Untangle u25w Setup Manual

Package Contents
The u25w package includes:
Power adapter
●
Antenna
●
Ethernet cable
●
u25w appliance
●
Installation
Connect the ethernet cable from your Internet modem or router to the Internet port (LAN 1) located on the rear panel.
●
Connect the ethernet cable from your LAN switch to the LAN port (LAN 2) located on the rear panel.
●
Fasten the included antenna to the WiFi RP-SMA connector located on the rear panel.
●
Plug in the power adapter to a power source and connect it to the power input located on the front panel.
●
Review the power button on the front of the appliance. If the indicator is green, the appliance is powered on.
●
If the appliance is not powered on, press the power button.
●
Connect to the appliance
You can connect to your appliance via the online ​ C ommand Center​ portal at ​
appliance from the local network, or directly using a monitor, keyboard, and mouse.
Via Command Center
Provisioning a new u25w appliance via Command Center is a convenient way to deploy and configure NG Firewall. To set up and manage
your new appliance from Command Center follow these steps:
untangle.com​ ​ | © Copyright 2018. Untangle, Inc. All rights reserved.

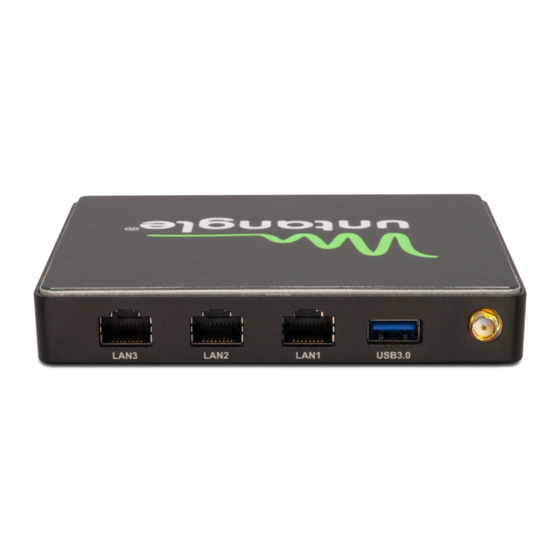

Rear Panel
Front Panel
u25w rear and front panels
h ttps://untangle.com/cmd​
u25w Setup
DC Jack
Power input
Console
Console port
HDMI
HDMI port
USB3.0 USB3 port
USB2.0 USB2 port
LAN1 Internet port
LAN2 LAN port
LAN3 LAN port (not configured)
RESET Reset switch
Power button / indicator
. Alternatively, you can connect to your
u25w Setup Guide - Page 1
