Untangle z20 Setup Manual

Package Contents
The z20 package includes:
Two power cables
●
Rack mounting hardware
●
z20 appliance
●
Installation
1. Prepare the appliance for rack installation by fastening the bracket ears to the sides of the chassis using the provided hardware.
2. Mount the appliance to your rack enclosure using the provided hardware.
3. Connect an ethernet cable from your Internet modem or router to the Internet port.
4. Connect an ethernet cable from your LAN switch to LAN port 1.
5. Plug in both power cables to a power source and connect them to the power inputs on the rear panel.
6. Power on the system by toggling the power switch on the rear panel.
Connect to the appliance
You can connect to your appliance via the online ​ C ommand Center​ portal at ​
appliance from the local network, or directly using a monitor, keyboard, and mouse.
Via Command Center
Provisioning a new hardware appliance via Command Center is a convenient way to deploy and configure NG Firewall. To set up and
manage your new appliance from Command Center follow these steps:
1. Navigate your web browser to ​
2. Log in with your Untangle Command Center account, or click ​ C reate Account​ to set up an account.
3. Navigate to the Appliances screen and click ​ A dd​ .
4. Enter the Untangle serial number located on the top right front of your appliance.
untangle.com​ ​ | © Copyright 2019. Untangle, Inc. All rights reserved.
h ttps://untangle.com/cmd​ .

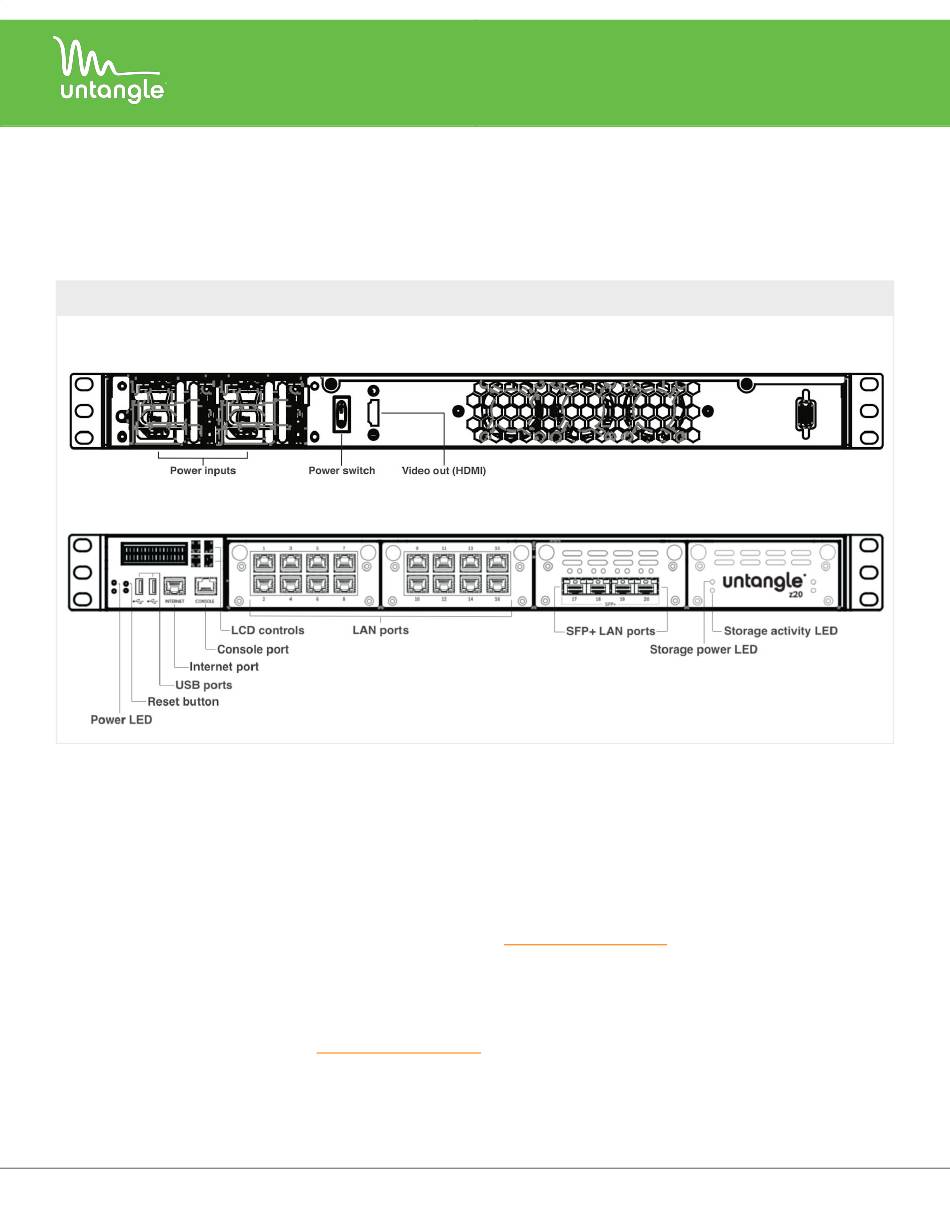

z20 rear and front panels
Rear Panel
Front Panel
h ttps://untangle.com/cmd​ . Alternatively, you can connect to your
z20 Setup Guide
z20 Setup Guide - Page 1
