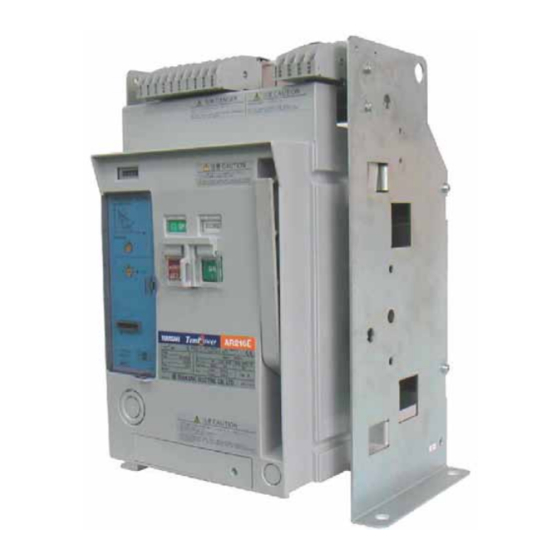

(Fixed type and Type AGR-12B Overcurrent Protective Device)
Be sure to read this manual before installing, operating, servicing, or inspecting the ACB.
Please retain this manual for future reference.
Electrical work must be done by competent persons.
ACB maintenance, inspection, parts replacement, OCR field tests and setting changes must be performed by competent
persons.
INSTRUCTION MANUAL FOR
AR-E AIR CIRCUIT BREAKERS
AR206E
Types:
AR208E
AR210E
AR212E
AR216E
Notice
KRB-5368c
