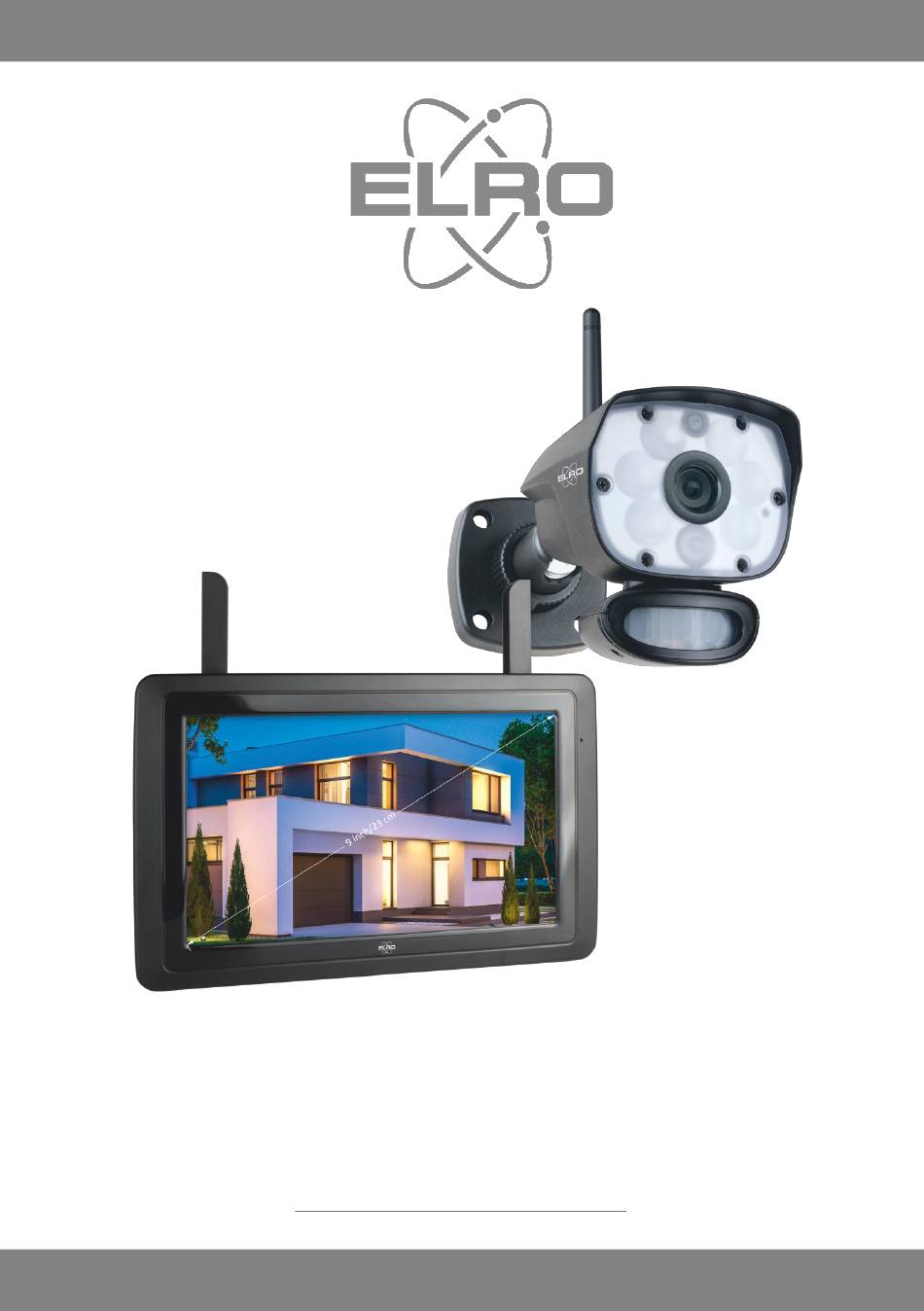

- Page 1 CZ30RIP11S Manual Version: A MANUAL CAMERA SECURITY SET Home is not a place, it’s a feeling CZ60RIP11S CZ60RIP11S Manual Version: V4...
-
Page 2: Table Of Contents
Contents Introduction ............................ - 3 - Package contents ..........................- 3 - Monitor & symbol overview ......................- 4 - Overview camera ..........................- 6 - Micro SD-Card ..........................- 6 - Camera installation ......................... - 7 - Mounting the camera ........................- 7 - Overview menu screens ........................ - Page 3 7. FAQ / Frequently asked questions .................... - 20 - 8. Specifications ..........................- 21 - 8.1 Specifications camera......................- 21 - 8.2 Specifications monitor ....................... - 22 - Symbols ............................- 22 - Go to www.elro.eu to download the latest version of these operating instructions. - 2 -...
-
Page 4: Introduction
Micro SD card into the card slot of the monitor. The monitor can be connected to the internet with the supplied UTP cable. You can use the ELRO Monitoring app to look at the live feed on a smartphone or tablet. The monitor has two antennas that provide an extra strong wireless connection to the camera. -
Page 5: Monitor & Symbol Overview
Monitor & symbol overview ANTENNAS Unfold for optimum wireless signal reception ON/OFF-BUTTON Press and hold for a few seconds (10-15 sec) to switch ON or OFF * Short press in the ON position to enter the Stand-By/SCAN mode TABLE STAND SPEAKER UID-NUMBER / QR-CODE Scan QR Code to connect to smartphone / tablet... - Page 6 SIGNAL INDICATOR SD CARD Visible when an SD card is inserted in the monitor. Press the SD Card to view the recorded images. Blue; there is recording space available. Red; the SD card is full. NEW RECORDING INDICATOR New recordings are stored on the SD card. RECORDING INDICATOR flashing;...
-
Page 7: Overview Camera
ZOOM INDICATOR Select 1 of the 5 areas to zoom. SWITCH CHANNEL Manual switch between channels. SEQUENCE INDICATOR (SEQ) Automatic channel switching. NEW DOWNLOAD New firmware version is ready for download. VOLUME INDICATOR Symbol appears when “Volumeregelaar” (see 8) is used. DATE &... -
Page 8: Camera Installation
Camera installation Important • Before mounting, check the signal of the system by viewing the live feed of the camera on the monitor from the same location/position as where the camera is mounted. • The location should be free of dust and not in view of a strong light source or direct sunlight. •... -
Page 9: Navigation
Navigation Navigating the menu and subsections is very easy with the help of your index finger. Tapping this will return you to the main screen. Tapping this will return you to the previous screen. 1. Lighting settings The 3 lighting settings can be set per camera. 1.1 Duration Adjusts how long the lights stay on after movement. -
Page 10: Alarm Volume
2. Alarm volume If the camera is activated by motion and starts recording the images, the monitor emits an alarm tone. Here you can set the alarm volume. Tap plus to increase the volume and minus to decrease the volume of the alarm. 3. -
Page 11: Camera Setup - Pairing
4.1.1 Camera setup – Pairing When you add a new camera to your system, you need to pair the camera to the monitor. You can also use this procedure to move a camera from one channel to another. Do the following: Tap pairing in camera setup screen. -
Page 12: Recording Setup - Planned Recordings
4.2.2 Recording setup – Planned recordings This function allows you to set a time schedule on which a camera should record. You can set multiple cameras at the same time and the recording times may overlap. The total recording time is limited to the available space on the SD card. If you set up the SD card to delete the oldest files when new it continues to record, otherwise it will stop the recording when the SD card is out of storage. -
Page 13: Motion Detection - Sensitivity/Area
4.4.1 Motion Detection – Sensitivity/area You can set the sensitivity (High - Low - Off) and the area to be scanned for each camera in this menu. This function is mainly used to make the detection as specific as possible. In the image of the camera, areas can be excluded, so that for example moving trees are not the cause of detection. -
Page 14: Other Functions
ON/OFF-Button) when the monitor is ON. 5.2 Expanding the camera set The set is expandable to a complete security system with up to 4 cameras. Only the additional ELRO CC60RXX security camera is compatible with this system and is available separately from our sales channels. -
Page 15: Elro Monitoring App
6. ELRO Monitoring App The ELRO CZ60RIPS camera set offers you the option of linking it to a smartphone. This allows you to view live images and review events. So you can keep an eye on everything remotely. 6.1 Connecting with the ELRO Monitoring App Making a connection between the camera set and the ELRO Monitoring App is very easy. - Page 16 • After the ELRO Monitoring App has been installed, you can open it to add the camera set. Then choose the option ''Add Device''. • Then choose one of three ways to pair the set: Scan the QR-Code on the back of the monitor.
-
Page 17: Overview App & Symbols
• The added camera set (called ELRO Monitoring) will now come online. If you press this button, you will be asked to change the default password. After a new password has been entered and confirmed, the image seen by the camera in the app will appear. -
Page 18: App Management & Settings
Using the speaker, you can hear the ambient noise which the camera detects. Grey is turned off; you won't hear anything. Blue means that it is turned on. The microphone allows you to speak to an entity which is located near the camera. Grey is off, blue is on. -
Page 19: Edit Device
6.3 Edit device Here you can change the name ELRO Monitoring to e.g. "Camera driveway”. Go to Advanced to adjust the advanced settings. 6.3.1. Password Settings Here you can change and confirm the password. 6.3.2. Video settings \ Video quality Video Quality selects the format in pixels. -
Page 20: View Events
4.4.1 Motion Detection – Sensitivity) and set the sensitivity to HIGH. • Go to the settings of your smartphone and make sure that you give the ELRO Monitoring App access to send notifications. • In the ELRO Monitoring App, go to Advanced Settings and now choose a notification interval (See 6.3.4. -
Page 21: Faq / Frequently Asked Questions
Can I connect my old ELRO camera to one of your new camera systems? No, it is not possible to connect old ELRO cameras (before 2018) to our new ELRO systems. Should any questions remain unanswered despite these detailed instructions, please refer to our website www.elro.eu/faq and see if you can find the answer in the "Frequently Asked Questions"... -
Page 22: Specifications
8. Specifications 8.1 Specifications camera Frequency reach 2400MHz~2483.5MHz Data speed 4 Mbps Transmission power 16dBm (TYP) Modulation GFSK with FHSS Camera dimensions 23cm x 9cm x 14,5cm Adapter length 460cm (220cm + 240cm) Wireless distance 100m (open room) Image sensor 1/4"... -
Page 23: Specifications Monitor
Protect the environment and human health, use natural resources responsibly! Read the manual (b) before use and keep it in a safe place for future use and maintenance. For warranty (c) visit www.elro.eu. ELRO Europe | www.elro.eu Postbus 9607 - Box E800 1006 GC Amsterdam - The Netherlands...
