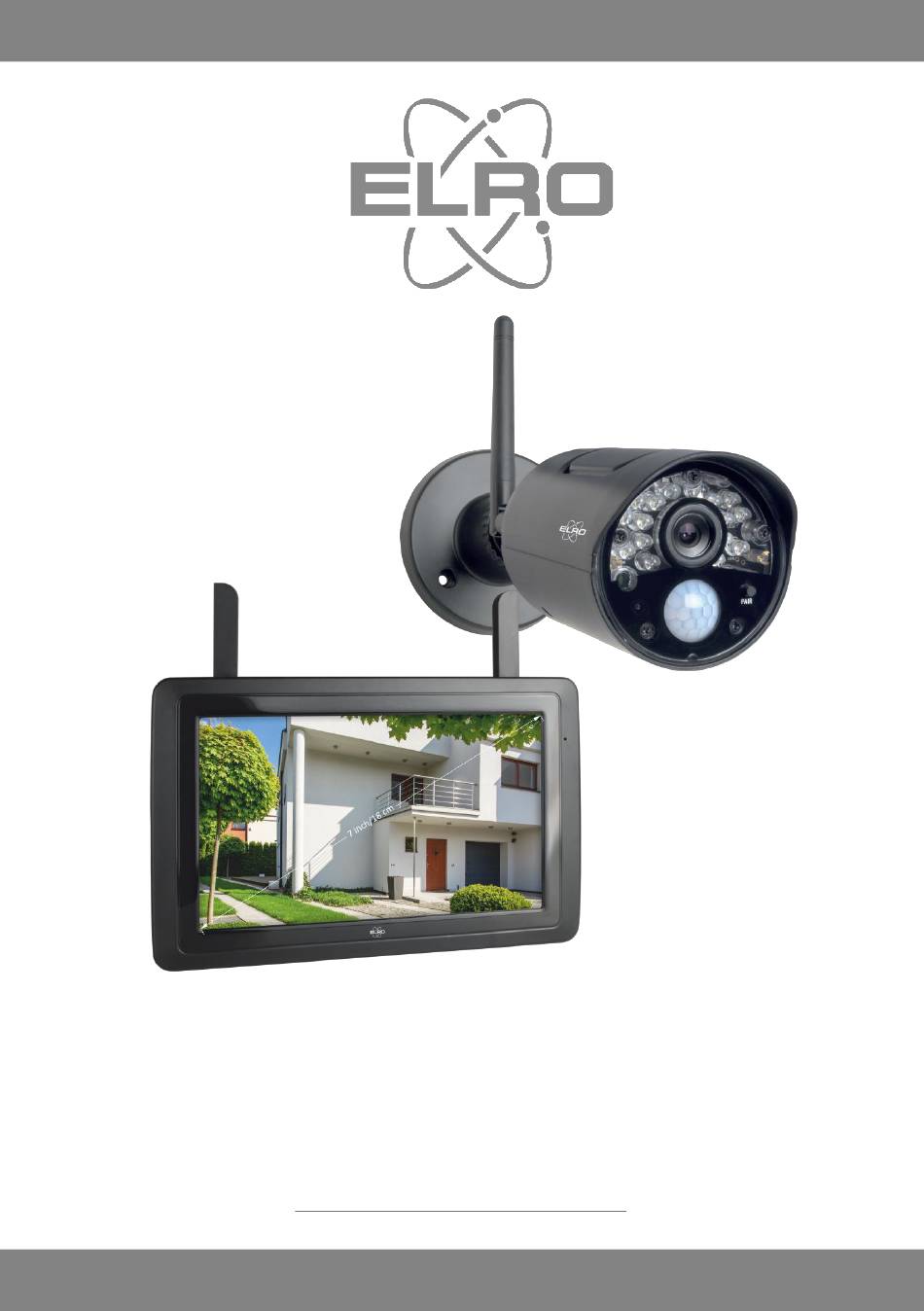

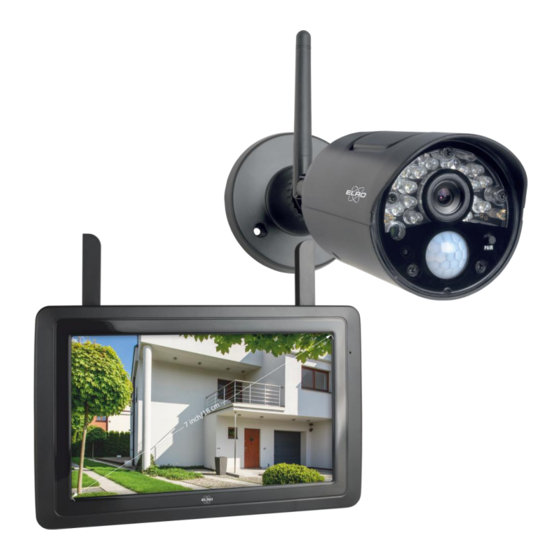

- Page 1 CZ30RIP11S Manual Version: A MANUAL CAMERA SECURITY SET Home is not a place, it’s a feeling CZ30RIP11S CZ30RIP11S Manual Version: V2...
-
Page 2: Table Of Contents
Contents Introduction ............................ - 3 - Package contents ..........................- 3 - Monitor & symbol overview ......................- 4 - Overview camera ..........................- 6 - SD-Card ............................- 6 - Camera installation ......................... - 7 - Mounting the camera ........................- 7 - Overview menu screens ........................ - Page 3 7. FAQ / Frequently Asked Questions ................... - 20 - 8. Specifications ..........................- 21 - 8.1 Specifications camera......................- 21 - 8.2 Specifications monitor ....................... - 22 - Symbols ............................- 23 - Go to www.elro.eu to download the latest version of these operating instructions. - 2 -...
-
Page 4: Introduction
SD card into the card slot of the monitor. The monitor can be connected to the internet with the supplied UTP cable. You can use the ELRO Monitoring app to look at the live feed on a smartphone or tablet. The monitor has two antennas that provide an extra strong wireless connection to the camera. -
Page 5: Monitor & Symbol Overview
Monitor & symbol overview ANTENNAS Unfold for optimum wireless signal reception ON/OFF-BUTTON Press and hold for a few seconds (10-15 sec) to switch ON or OFF * Short press in the ON position to enter the Stand-By/SCAN mode TABLE STAND SPEAKER UID-NUMBER / QR-CODE Scan QR Code to connect to smartphone / tablet... - Page 6 SIGNAL INDICATOR SD CARD Visible when an SD card is inserted in the monitor. Press the SD Card to view the recorded images. Blue; there is recording space available. Red; the SD card is full. NEW RECORDING INDICATOR New recordings are stored on the SD card. RECORDING INDICATOR flashing;...
-
Page 7: Overview Camera
ZOOM INDICATOR Select 1 of the 5 areas to zoom. TALK BACK INDICATOR Symbol appears when “Talk” (see 9) is pressed SEQUENCE INDICATOR (SEQ) Automatic channel switching. DATE & TIME (Y/M/D - H/M/S) VOLUME INDICATOR Symbol appears when “Volumeregelaar” (see 8) is used. SWITCH CHANNEL Manual switch between channels. -
Page 8: Camera Installation
Camera installation Important • Before mounting, check the signal of the system by viewing the live feed of the camera on the monitor from the same location/position as where the camera is mounted. • The location should be free of dust and not in view of a strong light source or direct sunlight. •... -
Page 9: Navigation
Tapping this will return you to the previous screen. 1. Lighting settings The ELRO CZ30RIPS does not have lighting. Are you looking for a camera system with lighting? Then we refer you to our CZ60RIPS with Color Night Vision. 2. Alarm volume If the camera is activated by motion and starts recording the images, the monitor emits an alarm tone. -
Page 10: General Settings
4. General settings The General Settings screen contains 6 subsections, each of which may contain other subsections. These sub screens allow you to set functions of your system. You can turn cameras on and off, set up a specific schedule for specific cameras to record, set the date and time, and set the sensitivity for motion detection. -
Page 11: Camera Setup - On / Off
4.1.2 Camera setup – ON / OFF When you add a camera to your system, connect the camera to the monitor and the system turns it on automatically. You may want to temporarily turn off a paired camera. Although the camera is turned off, it keeps it connection. Do the following : Tap the switch bar below the camera you want to turn on or off. -
Page 12: Recording Setup - Overwriting A File
4.2.3 Recording setup – Overwriting a file This function allows you to set the system to overwrite the oldest files automatically when the SD card is full. This allows you to continue recording. If overwriting is not allowed, recording will stop when the SD card is full. (see Monitor &... -
Page 13: Motion Detection - Recording On Motion
4.4.3 Motion Detection - Recording on motion In addition to continuous recording, the camera set can also record events as soon as movement is detected. The advantage of this function is that the SD card is less likely to fill up. You set this function by first setting the sensitivity (See 4.4.1 Motion Detection –... -
Page 14: Expanding The Camera Set
5.2 Expanding the camera set The set is expandable to a complete security system with up to 4 cameras. Only the additional ELRO CC30RXX security camera is compatible with this system and is available separately from our sales channels. To connect the additional camera, see 4.1.1 Camera setup –... -
Page 15: Elro Monitoring App
6. ELRO Monitoring App The ELRO CZ30RIPS camera set offers you the option of linking it to a smartphone. This allows you to view live images and review events. So you can keep an eye on everything remotely. 6.1 Connecting with the ELRO Monitoring App Making a connection between the camera set and the ELRO Monitoring App is very easy. - Page 16 • After the ELRO Monitoring App has been installed, you can open it to add the camera set. Then choose the option ''Add Device''. • Then choose one of three ways to pair the set: Scan the QR-Code on the back of the monitor.
-
Page 17: Overview App & Symbols
• The added camera set (called ELRO Monitoring) will now come online. If you press this button, you will be asked to change the default password. After a new password has been entered and confirmed, the image seen by the camera in the app will appear. -
Page 18: App Management & Settings
Using the speaker, you can hear the ambient noise which the camera detects. Grey is turned off; you won't hear anything. Blue means that it is turned on. The microphone allows you to speak to an entity which is located near the camera. Grey is off, blue is on. -
Page 19: Edit Device
6.3 Edit device Here you can change the name ELRO Monitoring to e.g. "Camera driveway”. Go to Advanced to adjust the advanced settings. 6.3.1. Password Settings Here you can change and confirm the password. 6.3.2. Video settings \ Video quality Video Quality selects the format in pixels. -
Page 20: View Snapshots
4.4.1 Motion Detection – Sensitivity) and set the sensitivity to HIGH. • Go to the settings of your smartphone and make sure that you give the ELRO Monitoring App access to send notifications. • In the ELRO Monitoring App, go to Advanced Settings and now choose a notification interval (See 6.3.4. -
Page 21: Faq / Frequently Asked Questions
Can I connect my old ELRO camera with one of your new camera systems? No, it is not possible to connect old ELRO cameras (before 2018) with our new ELRO systems. Should any questions remain unanswered despite this comprehensive user guide, please refer to our website www.elro.eu/faq and see if you can find the answer in the "Frequently Asked... -
Page 22: Specifications
8. Specifications 8.1 Specifications camera Frequency reach 2400MHz~2483.5MHz Data speed 4 Mbps Transmission power 16dBm (TYP) Modulation GFSK with FHSS Camera dimensions 22cm x 8cm x 8cm Adapter length 460cm (220cm + 240cm) Wireless distance 100m (open room) Image sensor 1/4"... -
Page 23: Specifications Monitor
8.2 Specifications monitor Frequency reach 2400MHz~2483.5MHz Data speed 4 Mbps Sensitivity 81dBm Modulation GFSK with FHSS Size LCD Screen 7 Inch / 17cm Monitor dimensions 19,5cm x 3cm x 12,4cm Adapter length 240cm Recording SDHC- Memory card Maximum 128GB recommended: 32GB Lcd Resolution 800 RGB (H) x 480 (V) Recording capacity... -
Page 24: Symbols
Protect the environment and human health, use natural resources responsibly! Read the manual (b) before use and keep it in a safe place for future use and maintenance. For warranty (c) visit www.elro.eu. ELRO Europe | www.elro.eu Postbus 9607 - Box E800 1006 GC Amsterdam - The Netherlands...
