PUIG 20712 Mounting Instructions

DUCATI MONSTER 937 '21-
M O
REF 20712
1 Person
20 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
*
Algunos componentes se suministran montados.
Some components are supplied assembled.
U N T I N G

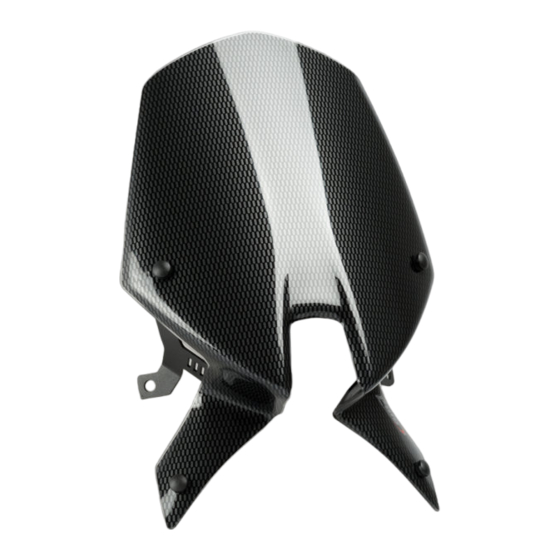

CARENABRÍS NG SPORT / WINDSHIELD NG SPORT
DESCRIPCIÓN
Cúpula Sport
Soporte izquierdo ( L )
Soporte derecho ( R )
Tornillo Allen M8x45 DIN912
Casquillo Ø13xØ8,5x15
Silentblock Ø12 xØ6 x9mm
Casquillo con valona Ø12xØ6,8x7,3
Tornillo Allen M5x16 Ø11 ISO 7380
Tapón tornillo M5 ISO 7380
www.puig.tv
www.puigusa.com
I N S T R
DESCRIPTION
Sport screen
Left support ( L )
Right support ( R )
M8x45 DIN912 Allen screw
Ø13xØ8,5x15 arrowhead
Ø12 xØ6 x9mm silentblock
Ø12xØ6,8x7,3 bush with flange
M5x16 Ø11 ISO 7380 Allen screw
M5 ISO 7380 screw cap
Pg. 1/2
info@puigusa.com
U C T I O N
QTY
1
1
1
2
2
4
4
4
4
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
ALLEN
Nº 2,3
Nº 2,6
REF
20712F/H/W/N/R/CM3
SOPOR2P4-L20712
SOPOR2P4-R20712
TORNI-AD912-508
AROPASACABLES-1
CASQUI-1A---750
TORNI-I7380-493
TAPON--------85
V0.06/21
