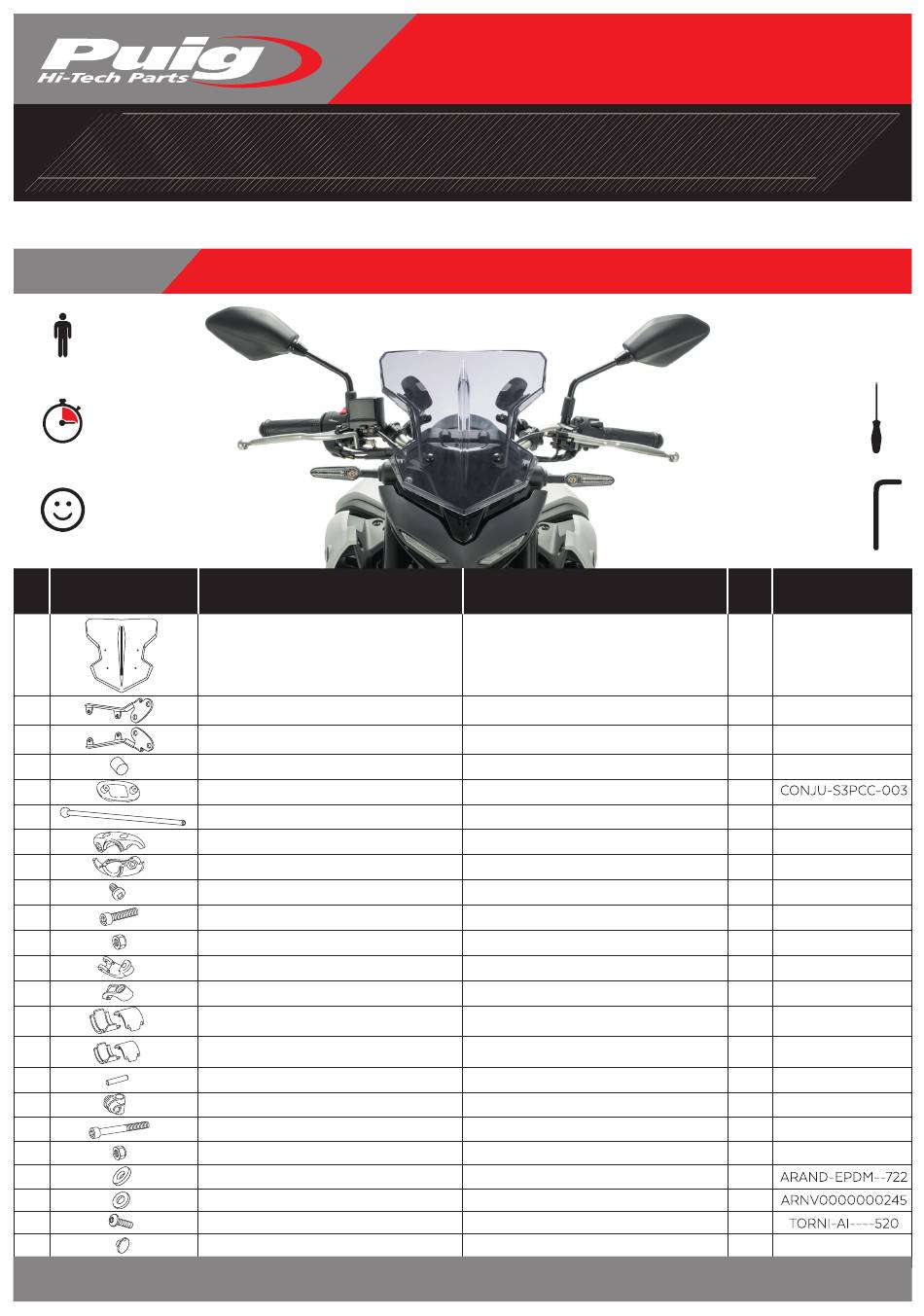

PUIG 20334 Mounting Instructions

M O
RE F 203 3 4
1 Person
15 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
UNIVERSAL
U N T I N G
DESCRIPCIÓN
Cúpula
Soporte izquierdo
Soporte derecho
Tapón de plástico
Tapa de plástico
Varilla Ø9 x 200
Brida rotula L
Brida rotula R
Tornillo Philips 5x10mm
Din912 M5x20 inox
Tuerca autoblocante M5 DIN982 INOX
Semi-brida corta
Semi-brida larga
Casquillo semi-brida para aplicar
al manillar de Ø26
Casquillo semi-brida para aplicar
al manillar de Ø22
Pasador cilíndrico Ø4x20mm
Brida varilla
Tornillo Allen M6x50 din912
Tuerca M6 autoblocante
Arandela de goma Ø4,5 x Ø11 x 2mm
Arandelas de nylon M5
Tornillo Allen M5x11 Ø11 ISO 7380
Tapón tornillo M5 ISO 7380
www.puig.tv
www.puigusa.com
I N S T R

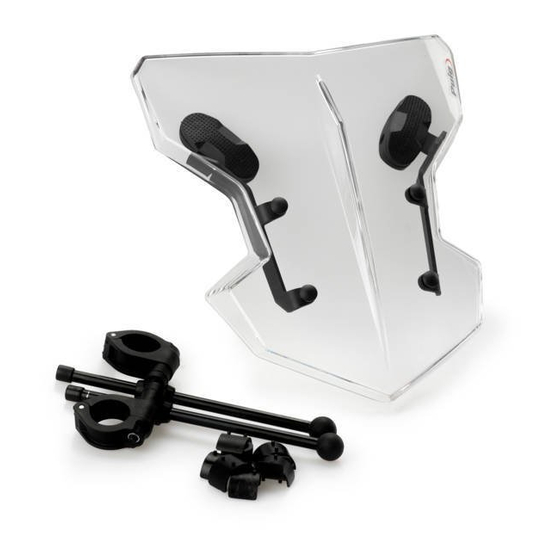

SHARK WINDSHIE LD MODEL
DESCRIPTION
Screen
Left support
Right support
Plastic cap
Plastic cover
Ø9x200 Bar
L ball joint bridle
R ball joint bridle
Ø5x10mm Philips screw
M5x20 DIN912 Allen screw
M5 DIN982 selft-locking nut
Short semi-bridle
Large semi.-bridle
Semi.-bridle arrowhead applicate
the handlebar Ø26
Semi.-bridle arrowhead applicate
the handlebar Ø22
Ø4x20mm cross dowel pin
Dispstick bridle
M6x50 DIN912 Allen screw
M6 selft-locking nut
Ø4,5 x Ø11 x 2mm Rubber washer
M5 nylon washer
M5x11 Ø11 ISO 7380 Allen screw
M5 ISO 7380 screw cap
Pg. 1/3
info@puigusa.com
U C T I O N
SCREWDRIVER
QTY
1
1
1
2
2
2
2
2
4
4
4
2
2
2
2
2
2
2
2
4
4
4
4
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
PHILLIPS
ALLEN
Nº23
Nº25
REF
9376HUANHUI/W/
F/H/NM3
SOPOR2P2-L20334
SOPOR2P2-R20334
TOPEE-VPGT--8/4
VARILI9X200-591
BRIROT01-1-PR16
BRIROT02-1-PR16
TORNIP510---233
TORNI-D912--748
TUERCA-D982-746
BRIDAANT-0-PR16
BRIDAPOS-0-PR16
CAS29-22-0-PR16
CAS29-26-0-PR16
VARILI4X20--576
FIXVARLL-0-PR16
TORNI-D912--473
TUERCA-D982-745
TAPON--------85
