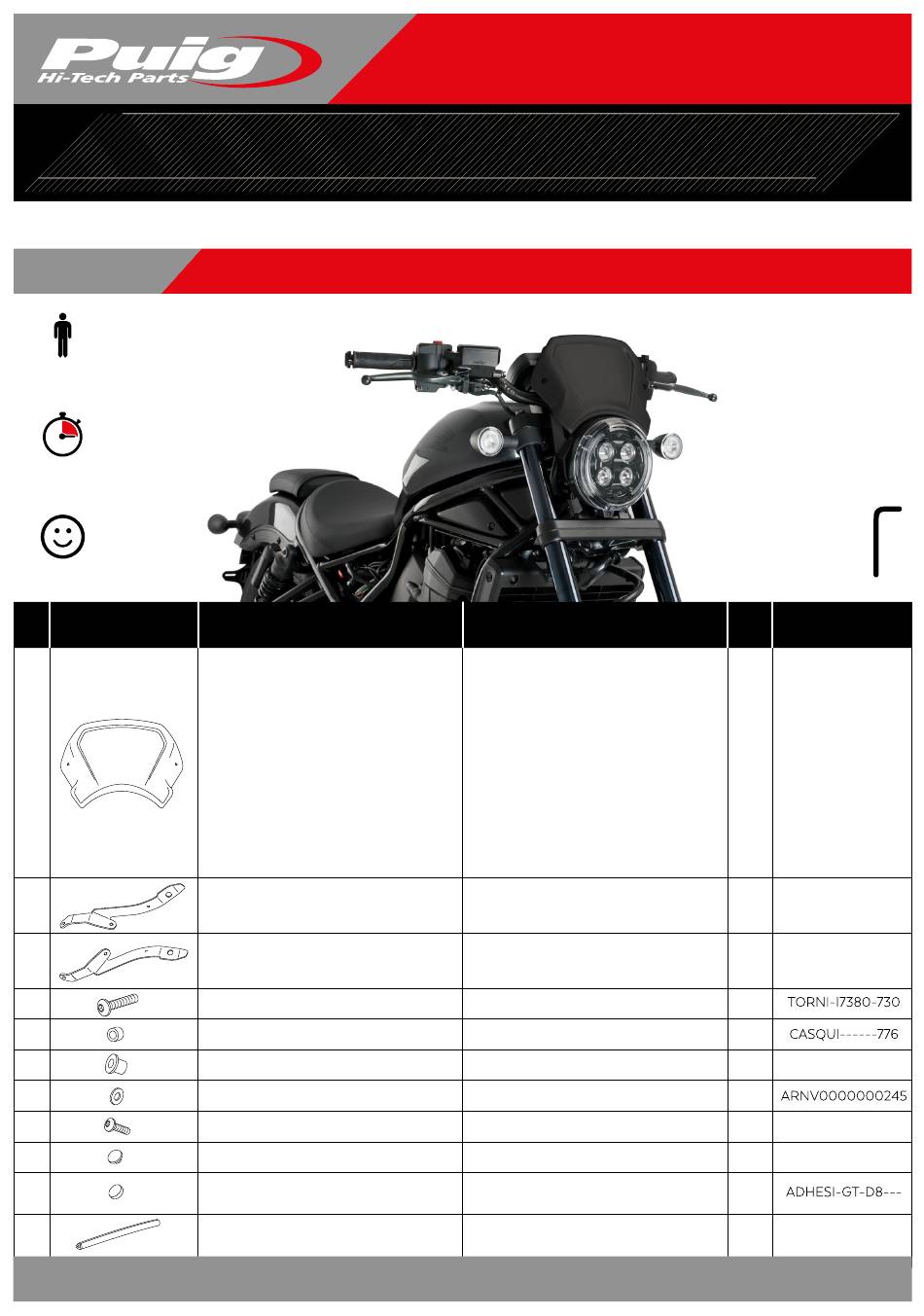

PUIG 20822 Mounting Instructions

HONDA CMX1100 REBEL '21-
M O
REF 208 22
1 Person
15 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
*
Algunos componentes se suministran montados.
Some components are supplied assembled.
U N T I N G

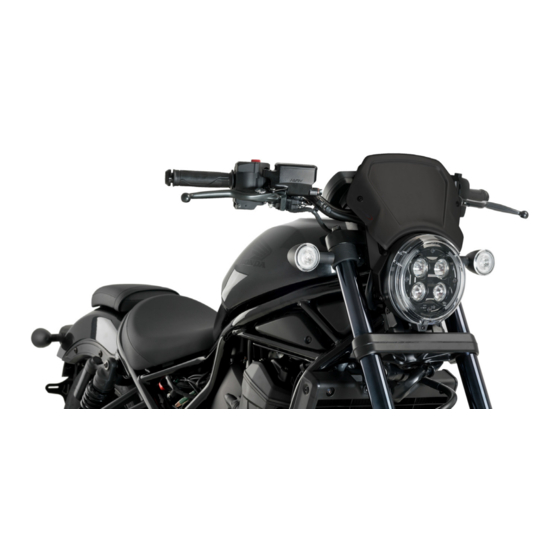

PLACA FRONTAL DE ALUMINIO / ALUMINIUM FRONT PLATE
DESCRIPCIÓN
Placa frontal Aluminio
Soporte derecho (R)
Soporte izquierdo (L)
Tornillo Allen M5x20 Ø11 ISO 7380
Casquillo Ø8,5x Ø13x 6
Silentblock M5
Arandela de nylon M5x1
Tornillo Allen M5x16 Ø11 ISO 7380 (INOX)
Tapón tornillo M5
Separador de silicona Ø8 x2
Ribete autoadhesivo
(longitud de 190mm , 6,2X2,6mm)
www.puig.tv
www.puigusa.com
I N S T R
DESCRIPTION
Aluminium front plate
Right support (R)
Left support (L)
M5x20 Ø11 ISO 7380 Allen screw
Ø8,5x Ø13x 6 arrowhead
M5 silentblock
M5x1 nylon washer
M5x16 Ø11 ISO 7380 Allen screw (INOX)
M5 screw cap
Ø8 x2 silicon spacers
Selft-autoadhesive trim
(lenght 190mm ,6,2 x2,6mm)
Pg. 1/3
info@puigusa.com
U C T I O N
QTY
1
1
1
4
4
2
2
2
2
2
1
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
ALLEN
Nº23
Nº26
REF
9807P/N
SOP2P3-R--20821
SOP2P3-L--20821
SILENBTM5-046/1
TORNI-IA----423
TAPON--------85
PERFIL-PVC-1048
V0.10/21
