• Power for Optional Direct DC Power Connection:

∗

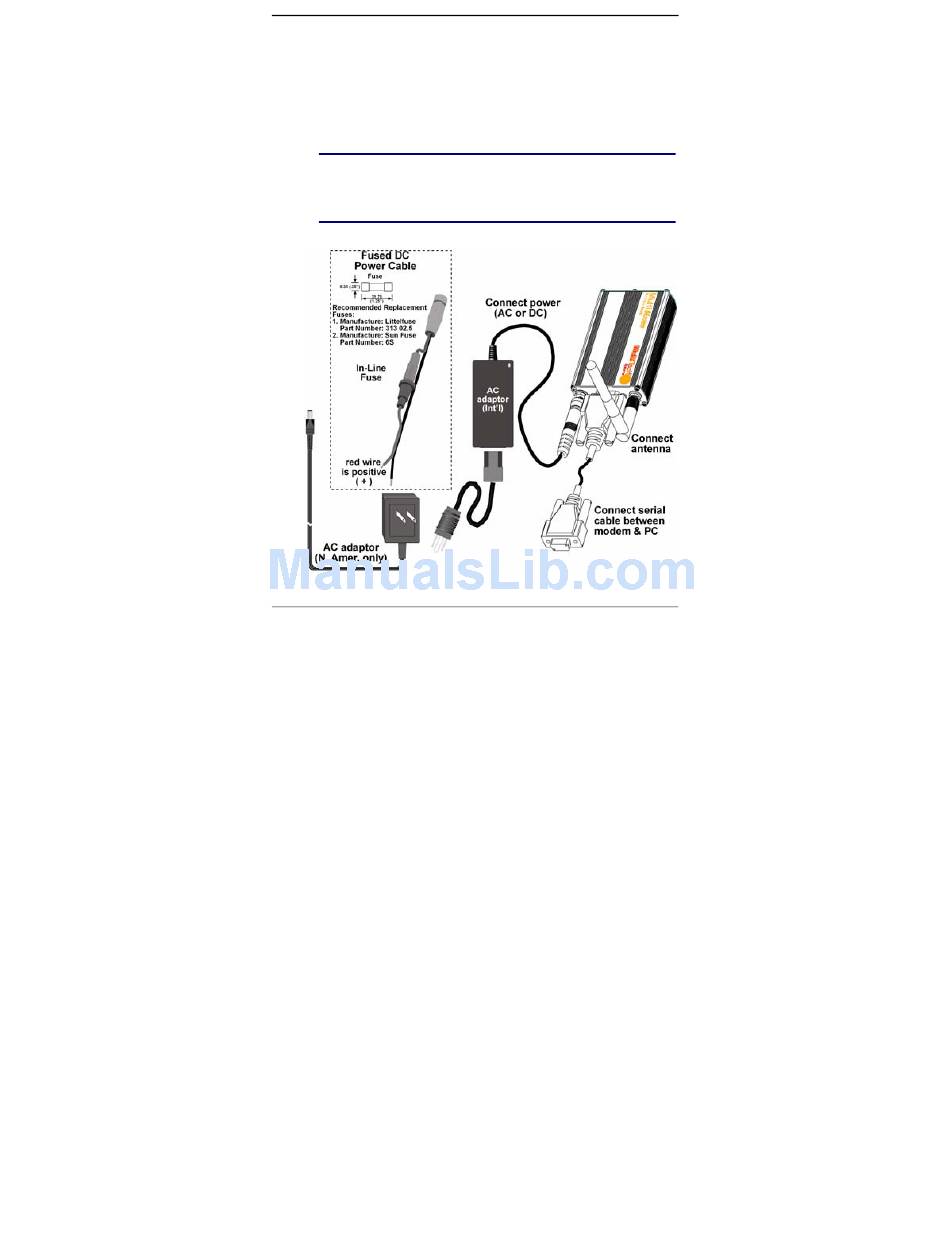

Connect the fused DC power cable into the power

connector on the modem.

∗

Then attach the two wires at the other end of the fused

cable to a DC fuse/terminal block on a vehicle in which

you are mounting the MultiModem.

∗

Connect the red wire to the "+" positive and the black wire

to the "-" negative. Be sure the GND connection is correct.

Warning

Over-voltage protection is provided on the device. To ensure

complete protection, you may want to add additional filtering

to the DC input.
