Insert the SIM Card into Holder

The wireless modem requires a SIM card (Subscriber Identity
Module) to operate on a GPRS network. To install the SIM card:
1. Using your fingernail or small screwdriver, pry off SIM cover.

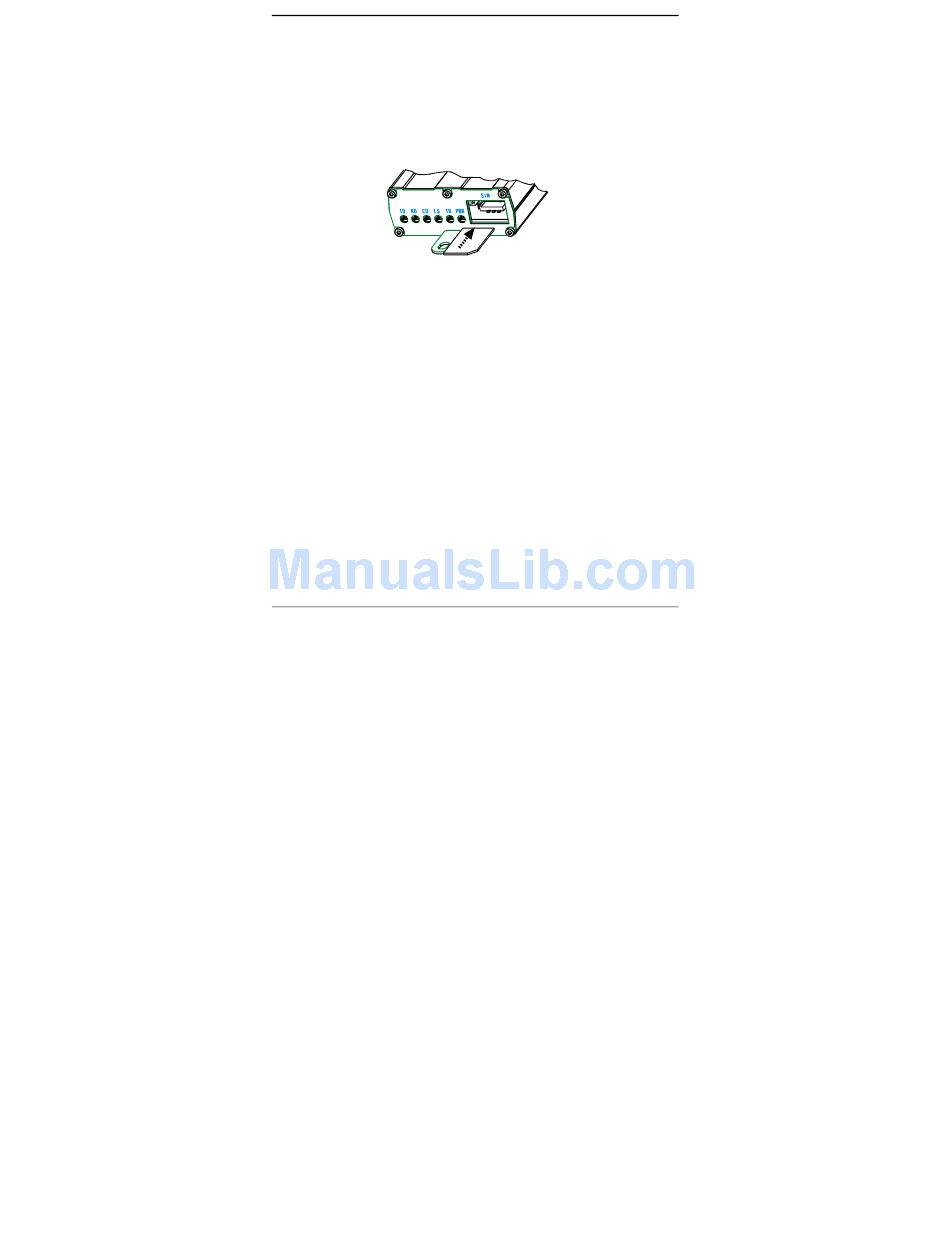

2. Insert the SIM card into the SIM card slot. The following
graphic illustrates the correct SIM card orientation.
Wireless Service Provider
will give you a SIM card.
Insert SIM card.
3. Verify that the SIM card fits properly; then replace the cover.

Hook up the Antenna, Serial Cable, and Power

• Antenna.
Connect a suitable antenna to the SMA connector
(see the User Guide for antenna/RF specifications).
• Serial Cable.
Connect one end of the serial cable to the
modem and the other end to a PC.
• Power for Standard Transformer Power Supply:
∗
Connect the AC cord to its transform block and then plug
into a power outlet.
∗ Note:
Units shipped with the universal AC power supply
are not suited for installation in hazardous locations.
