Creda CLR5C Installation And Operating Instructions

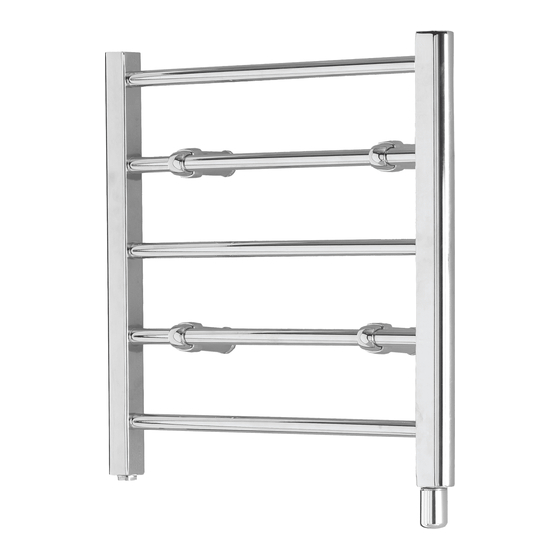

Ladder Towel Rail
Model : CLR5C, CLR5W, CLR7C, CLR7W, CLR10C, CLR10W, CLR12C & CLR12W
Dimensions
(millimetres)
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Important Safety Advice
WARNING - THE SURFACE OF THIS
RADIATOR CAN BE HOT.
In order to be effective the towel rail will get
hot, however momentary contact with any
part of it should not cause injury.
The heater is to be installed so that switches
and other controls cannot be touched by a
person in the bath or shower
CAUTION - This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
Children of less than 3 years should be
kept away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision
or instruction concerning the use of the
appliance in a safe way and understand
the hazards involved. Children aged from 3
years and less than 8 years shall not plug in,
regulate and clean the appliance or perform
user maintenance.
Installation and Operating Instructions
Height (X)
Model Rails
(mm) fig.1
CLR5C 5
CLR5W 5
CLR7C 7
CLR7W 7
CLR10C 10
CLR10W 10
CLR12C 12
CLR12W 12
Fig. 1
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
Precautions should be taken to ensure that
prolonged contact with the towel rail cannot
occur. Particular care should be taken in
confined areas where accidental prolonged
contact with the rail could be more likely to
occur.
This appliance should only be used to dry
fabrics washed in water using commonly
available detergents.
A means for disconnection must be
incorporated in the fixed wiring in accordance
with the wiring rules. The supply circuit to
the heater must incorporate a double pole
isolating switch having a contact separation
of at least 3mm.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
IMPORTANT - If the towel rail is to be installed
in a place used by the public, a warning notice
should be placed adjacent to the rail advising
that the surface can be hot.
WARNING - the towel rail is a sealed unit
and is filled and sealed under controlled
conditions. Under no circumstances should
the seal of the unit be compromised
WARNING - In order to avoid a hazard for
very young children, this appliance should
be installed so that the lowest heated rail is
at least 600mm above the floor.
08/53052/0 (UK)
Power Weight
(W) (kg)
492 60 4.0
492 100 4.0
692 80 5.4
692 120 5.4
992 120 7.6
992 175 7.6
1192 175 9.2
1192 250 9.2
Issue 1
Finish
Chrome
White
Chrome
White
Chrome
White
Chrome
White
