Creda Contour 100 Installation And Operating Instructions

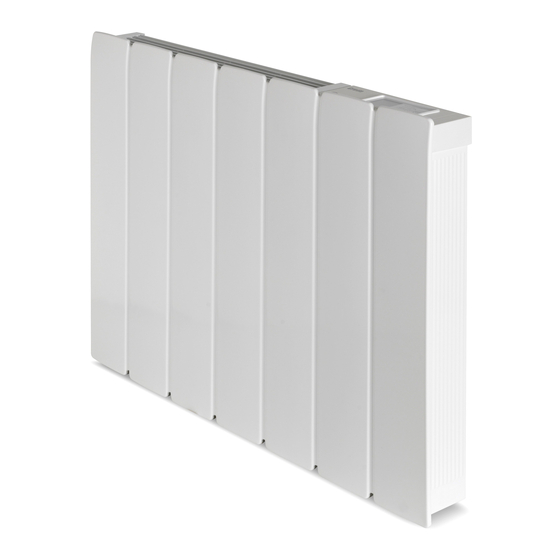

Contour 100 Electronic Panel Heaters
Dimensions
(millimetres)
Model(s) Watt
CEP500E 0.5kW
CEP750E 0.75kW
CEP1000E 1.0kW
CEP1500E 1.5kW
CEP2000E 2.0kW
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Important Safety Advice
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electrical shock, and
injury to persons, including the following:
IMPORTANT – The wall bracket supplied
with the appliance must be used.
WARNING – DO NOT USE THIS HEATER
IN THE IMMEDIATE SURROUNDINGS OF
A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a
room containing a bath or shower, it must be
so installed that switches and other controls
cannot be touched by a person using a bath
or shower.
Do not use outdoors.
Do not locate the heater immediately below
a fixed socket outlet or connection box.
WARNING: In order to avoid overheating, do
not cover the heater. Do not place material
or garments on the heater, or obstruct the
air circulation around the heater, for instance
by curtains or furniture, as this could cause
overheating and a fire risk.
NEVER cover or obstruct in any way the heat
outlet slots at the top of the heater or the air
inlet slots in the base of the heater.
The heater carries the Warning symbol
indicating that it must not be covered.
CAUTION - Some parts of this product
can become very hot and cause burns.
Particular attention has to be given where
children and vulnerable people are present.
This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
A B
503 104
503 104
671 104
741 104
911 104
Installation and Operating Instructions
150
Min.
Fig. 1
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintainance shall not
be made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate
and clean the appliance or perform user
maintainance.
Note that due care and consideration must
be taken when using this heater in series
with a thermal control, a program controller,
a timer or any other device that switches on
the heat automatically, since a fire risk exists
when the heater is accidentally covered or
displaced.
If the supply cord is damaged it must be
replaced by the manufacturer or service
agent or a similarly qualified person in order
to avoid a hazard.
WARNING:
repairs should only be undertaken by the
manufacturers approved service agent or a
similarly qualified person, using only exact
manufacturer approved spare parts.
A means for disconnection must be
incorporated in the fixed wiring of the
premises in accordance with the wiring
rules. The supply circuit to the heater must
incorporate a double pole isolating switch
having a contact separation of at least 3mm.
INCMUKP7RG
A
536
150 Min.
Servicing and
Issue 6
shelf
300 Min.
B
product
