E
S
lectro
trainer
Installation Manual
(888) 384-8881
(952) 475-8084
System
support@electrosea.com
www.electrosea.com

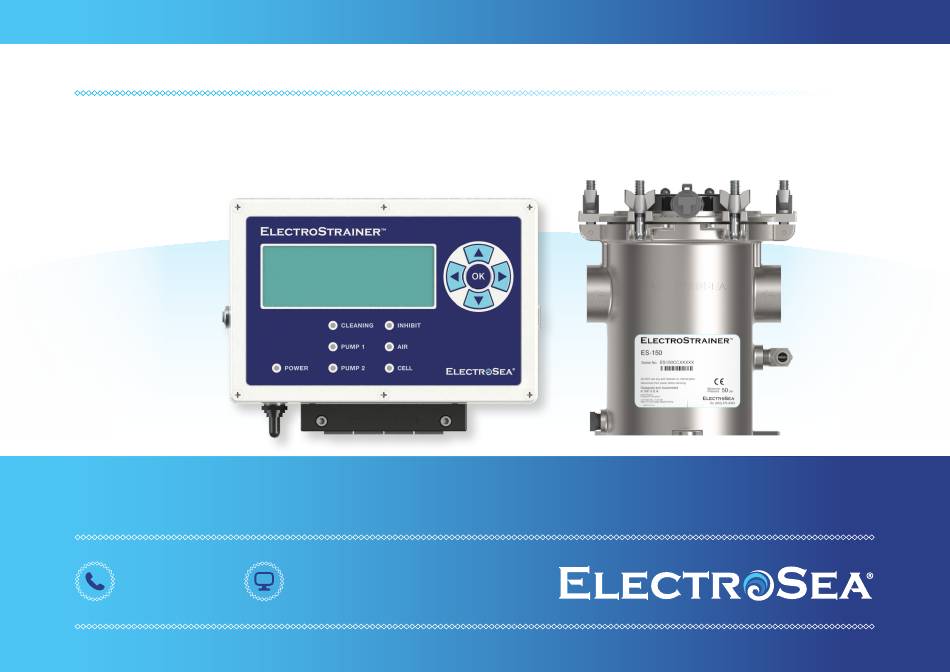

Models: ES-200-PS / ES-150-PS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ElectroStrainer ES-200-PS and is the answer not in the manual?

Questions and answers

Summary of Contents for ELECTROSEA ElectroStrainer ES-200-PS

  • Page 1 System lectro trainer ™ Installation Manual Models: ES-200-PS / ES-150-PS (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com...
  • Page 2: Table Of Contents

    No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise without prior written consent by ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission.
  • Page 3: Introduction

    With more than 100 issued U.S. patents and 350+ foreign patents in advanced technologies, our Executive Management Team has been developing innovative solutions for more than 50 years. With an experienced team of ‘old salts’ who eat, sleep, and breathe boating, ElectroSea will improve your time on the water.
  • Page 4: Components

    Components ElectroStrainer System The ElectroStrainer System includes the Control Unit, Canister Assembly and all components listed below: Control Unit Canister Assembly • (1) Control Unit • (1) Canister, Strainer Basket, and Cell • (1) Chlorinated Return Line Tubing • (3) Cables •...
  • Page 5: Safety And Pre-Installation Descaling

    Pre-installation descaling ensures any existing biofouling that has accumulated on the interior seawater lines are removed. If seawater lines are impacted with barnacles and marine growth, then ElectroSea recommends professional descaling prior to installing the ElectroStrainer System. By starting with descaled and clean seawater lines, you will realize the full benefit of the ElectroStrainer System.
  • Page 6: Optimal Performance And Strainer Flow Alert

    NOTICE Flow Alert feature is default OFF from ElectroSea and must be set by the installer or end user. NOTICE ElectroStrainer will continue generating chlorine even after a Strainer Flow Alert occurs.
  • Page 7: Cell Indicator

    When the ElectroStrainer Cell has reached the end of its useful life it can no longer generate chlorine. The Cell life is dependent on flow rate, hours of use, seawater quality and other factors. RESOLUTION: Contact your ElectroSea dealer. U.S. Patent No. 11,027,991 and other U.S. and Foreign Patents Pending...
  • Page 8: Installation Overview

    Installation Overview Electrical Connection Overview NOTICE DO NOT cut, extend, or splice the Cell cable. ELECTROSTRAINER CONTROL UNIT MUST BE LOCATED WITHIN: Longer Cell cables are available from ElectroSea. ES-150-PS ES-200-PS NOTICE DO NOT connect multiple Cell cables together. Canister Assembly 12 ft.
  • Page 9: Seawater Connection Overview

    ElectroStrainer is made of 2205 Duplex Stainless Steel for NOTICE corrosion resistance. Do not connect dissimilar metals to it if possible. Use only original parts supplied by ElectroSea. They are NOTICE made of special titanium, stainless and other high quality materials. Use of non-factory or substitute parts will void the Warranty.
  • Page 10: Canister Preparation

    ElectroStrainer Canister Installation Canister Preparation Unsecure the pressure ring by turning the wing Remove the pressure ring. Remove the Cell Assembly. Lift straight up by nuts counterclockwise. the black plastic cover. Do not lift or pull on the cable. Set the Cell Assembly aside in a safe location.
  • Page 11: Mounting Options

    ElectroStrainer Canister Installation Mounting Options The Canister Assembly must be installed so it is level and at or below the waterline. Mount Mount the Canister Assembly level to prevent accumulation of excess air/gas. WARNING Level The Canister Assembly can be mounted using several different options as shown below: OPTION B OPTION A Side Mounting...
  • Page 12 ElectroStrainer Canister Installation Canister and Flow Sensor The Canister Assembly has directional IN and OUT labels. Seawater MUST enter at the IN port and flow through and exit at the OUT port. Failure to route seawater in the direction of the IN and OUT labels NOTICE will result in improper operation of the ElectroStrainer System.
  • Page 13: Clearvis ™ Flow Sensor

    ElectroStrainer Canister Installation Canister and Flow Sensor BEST: 12” of straight hose before and after Flow Sensor There are two options for the location of the ClearVis Flow Sensor: Flow The “BEST” location for the ClearVis Flow Sensor is after the Canister output Sensor with at least 12”...
  • Page 14: Chlorinated Return Line

    ElectroStrainer Canister Installation Chlorinated Return Line to Canister To prevent growth at the inlet of the ElectroStrainer basket, a chlorinated return line should be connected from the pressure side of the pump to the Canister Assembly’s 90-degree fitting located under the inlet port. Connect this chlorinated return line with a tee-fitting and ball valve to the pressure side of the pump.
  • Page 15: Reassembly

    ElectroStrainer Canister Installation Canister Reassembly Insert the basket into the Canister. Align the flat edge of the basket with the flat edge of the Canister. Confirm the gasket is in the top of the Canister. Flat Edge The Canister and lid are keyed and can be inserted in only one direction. Align the flat edge of the Cell screen and strainer basket.
  • Page 16: Control Unit

    ElectroStrainer Control Unit Installation Control Unit Mounting and Wiring Location and Mounting Mount the ElectroStrainer Control Unit (1) on a bulkhead in the engine room using four #10 stainless steel Mounting Screws provided. The Control Unit is designed for marine engine rooms with a maximum environmental temperature of 50°C (122°F).
  • Page 17: Wiring To Inhibit

    ElectroStrainer Control Unit Installation Control Unit Wiring to Inhibit ElectroStrainer to Inhibit Lines (Reverse Osmosis Water System and Baitwell) The ElectroStrainer can be wired to receive a signal from one (1) 12VDC or 24VDC, and one (1) 120AVC or 240VAC input from equipment such as a Baitwell or Reverse Osmosis (R.0.) System that are not compatible with chlorinated seawater.
  • Page 18: Pump Control, Mode And Time

    ElectroStrainer Control Unit Installation ElectroStrainer Pump Control, Mode and Time The Pump Mode should be set up during the installation process. Refer to the table below to verify the Pump Mode is set correctly. Use the Up or Down arrow to select Pump Mode.
  • Page 19: Pump Control Wiring

    ElectroStrainer Control Unit Installation ElectroStrainer Pump Control Wiring ElectroStrainer to Seawater Intake Pumps ElectroStrainer includes an option to make a wired connection to the vessel’s centralized seawater intake pump(s) for monitoring and/or to control the process of alternating pumps for a specific duration. This optional feature is useful for vessels that have two seawater intake pumps that require scheduled manual cycling.
  • Page 20: Pump Control Schematic Example

    ElectroStrainer Pump Control Wiring Example ElectroStrainer Pump Control to Viking Centralized Seawater Control System Wiring Schematic Double Pole Switches Single Pole Switches Single Pole Switches with External VFDs Sample Double Pole Wiring ElectroStrainer Yellow ElectroStrainer Blue ElectroStrainer Violet ElectroStrainer Black ElectroStrainer Brown ElectroStrainer Green ElectroStrainer Orange...
  • Page 21 ElectroStrainer Pump Control Wiring Example ElectroStrainer Pump Control to Viking Centralized Seawater Control System Wiring Schematic U.S. Patent No. 11,027,991 and other U.S. and Foreign Patents Pending...
  • Page 22: Specifications

    Specifications Specifications ElectroStrainer Model: ES-200-PS ElectroStrainer Model: ES-150-PS ElectroStrainer Control Unit 9.96 x 6.75 x 3.25 inches 9.96 x 6.75 x 3.25 inches Dimensions (L x W x H) 252.98 x 171.45 x 82.55 mm 252.98 x 171.45 x 82.55 mm Weight 4 lbs 6 oz / (1.98 kg) 4 lbs 6 oz / (1.98 kg)
  • Page 23 Notes NOTES: U.S. Patent No. 11,027,991 and other U.S. and Foreign Patents Pending...
  • Page 24 This Limited Warranty is made only to this purchaser (the “Original Purchaser”): The original end user purchaser of a Product directly from ElectroSea or an authorized ElectroSea Dealer (a “Direct Purchaser”); or The original end user purchaser of a new vessel in which a new Product was installed by the manufacturer (a “Vessel Purchaser”).
  • Page 25 This Limited Warranty is the only express warranty that applies to the Product. ElectroSea has not given anyone the right to make any warranty or promise of any kind relating to ElectroSea or the Product, so if someone other than ElectroSea makes a warranty or promise relating to ElectroSea or the Product, that warranty or promise is not binding on ElectroSea.
  • Page 26 (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com 750074-002...
