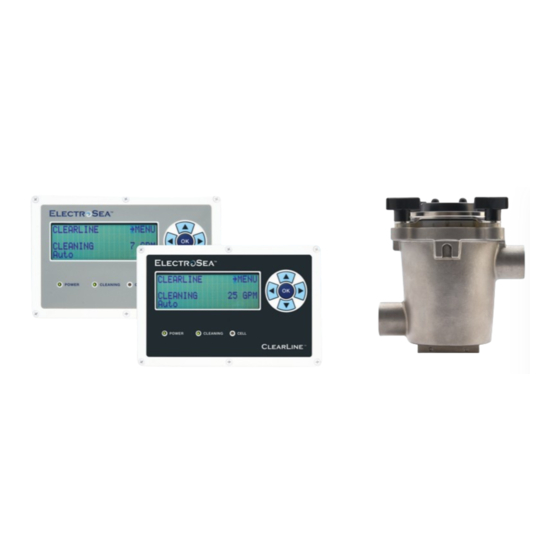

- Page 1 System ® lear Operation Manual Model CL-430-N1.0 / Model CL-410-N0.5 (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com...
-
Page 2: Table Of Contents
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein. -
Page 3: Introduction
With more than 100 issued U.S. patents and 350+ foreign patents in advanced technologies, our executive management team has been developing innovative solutions for more than 50 years. With an expert team of “old salts” who eat, sleep, and breathe boating, ElectroSea will improve your time on the water. -
Page 4: System Features
System Features User Interface Features and Functions Power ON ClearLine. The Control Unit will complete a diagnostic self-test, and then the green “POWER” light will be illuminated. The main status screen will be displayed. Programming Menu Status Screen Selection Buttons Operating Mode Flow Rate USB Port... -
Page 5: Operating Modes And Feature Overview
This feature is used to restore ClearLine to its original factory default settings or to update the ClearLine Control Unit firmware using a USB memory drive supplied by ElectroSea. U.S. Patent No. 11,027,991 and 11,345,621, Foreign Patent No. I782112 and other U.S. and Foreign Patents Pending... - Page 6 System Features Power ON and Start-Up Delay Power ON the ClearLine System. The Control Unit will complete a diagnostic self-test, and then the green “POWER” LED will be illuminated. “START-UP” will be displayed for 30 seconds. Cleaning Mode During normal operation the Control Unit will flash “CLEANING,” and the green Cleaning LED will be illuminated. This indicates the ClearLine System is electrochemically generating a safe and effective level of chlorine to prevent biofouling in the vessel’s seawater circuit.
-
Page 7: Optimal Performance And Flow Alert
System Features Optimal Performance Constant Chlorinated Seawater Flow: The ClearLine System should be powered ON and have seawater flowing through the ClearCell whenever possible. This provides the vessel’s seawater circuit with constant chlorinated seawater to prevent unwanted marine growth. Intermittent or stagnant seawater that is not continuously electrochemically treated allows growth of marine microorganisms. -
Page 8: Cell Indicator
The ClearCell Electrode will be effective for many years before replacement is required. RESOLUTION: Contact your ElectroSea dealer. U.S. Patent No. 11,027,991 and 11,345,621, Foreign Patent No. I782112 and other U.S. and Foreign Patents Pending... -
Page 9: Clearcell Maintenance
ClearCell Maintenance Internal Screen Care Internal Screen: The ClearCell contains an internal screen to catch debris (tiny shells or other foreign materials that pass through the vessel’s main strainer) before it reaches the flow sensor. The internal screen should be cleaned periodically and whenever debris gets caught in the screen and decreases seawater flow. Before accessing the ClearCell Electrode, double-check the list of Alerts and Indicators on pages 7 and 8 because the ClearCell infrequently requires rinsing. -
Page 10: Clearcell Internal Screen Access
ClearCell Maintenance Internal Screen Access Before accessing the ClearCell Electrode, double-check the list of Alerts and Indicators on pages 7 and 8 because the ClearCell infrequently requires rinsing. To Access the ClearCell Electrode: Power OFF the ClearLine Control Unit. Turn OFF ALL seacock valves in the seawater circuit at or below the waterline. This includes any output seacocks to prevent back siphoning. - Page 11 ClearCell Maintenance Turn the wing nuts counterclockwise Remove the Electrode Assembly and pressure ring by lifting it straight up by the sides to release the Electrode Assembly. of the black plastic top. Do not lift or pull on the top cable connectors. U.S.
- Page 12 ClearCell Maintenance Spray the ClearCell Electrode Assembly with fresh water to remove any dirt or mud between the plates or debris in the internal screen. NOTICE DO NOT TOUCH THE SURFACE BETWEEN THE ELECTRODE PLATES OR USE ANY TYPE OF MECHANICAL BRUSH. THE CLEARCELL ELECTRODE PLATES CONTAIN A SPECIAL METAL OXIDE COATING THAT WILL BE PERMANENTLY DAMAGED IF YOU HANDLE IT.
- Page 13 ClearCell Maintenance Insert the ClearCell Electrode Assembly back into ClearCell canister. The Electrode Assembly and Canister are keyed and can only be inserted in one direction. Align the Electrode Assembly key and the ClearCell canister key and insert it into the ClearCell canister.
- Page 14 ClearCell Electrode is at the end of its useful life. For further troubleshooting, see pages 8 or 19 or contact your ElectroSea dealer. U.S. Patent No. 11,027,991 and 11,345,621, Foreign Patent No. I782112 and other U.S. and Foreign Patents Pending...
-
Page 15: System Updates
OK to Exit 2. Update: This allows the user to update the firmware using a USB memory drive supplied by ElectroSea. To perform a firmware update Insert the ElectroSea USB memory drive. Go to the Update menu. Line 1 displays the current firmware version of the unit. Line 2 displays the available firmware version that is on the USB memory drive. -
Page 16: Inspection
Inspection Periodic Inspection The ClearLine System should be viewed during regular inspection of the vessel’s engine room. During normal operation, the ClearLine System status screen will flash the message “CLEANING,” and the green LED will be illuminated. This indicates the ClearLine System is generating a safe and effective low level of chlorine preventing unwanted marine growth, barnacles, and biofilm in the seawater lines. -
Page 17: Important Information
Important Information Specifications CLEARLINE SYSTEM Power: 12 VDC or 24 VDC 5 amps max peak current Normal Operating Flow: CL-430-N1.0: 5–26 GPM (18.9 – 98.4 LPM) CL-410-N0.5: 3–7 GPM (11.4 – 26.5 LPM) Maximum Pressure: 35 psi CLEARLINE CONTROL UNIT Size: 10.0 inches (25.4 cm) –... -
Page 18: Modes & Troubleshooting
Modes & Troubleshooting Modes, Descriptions and Actions Mode Description Action The unit is powered ON, but it is in the OFF state. No seawater is This is a normal operating mode, provided there is no seawater flow. flowing through the ClearLine System. The unit is in the mode for Cleaning and preventing biofouling by Cleaning This is a normal operating mode. - Page 19 The ClearCell Electrode will be effective for many years before replacement is required. RESOLUTION: Contact your ElectroSea dealer. ClearLine internal temperature Contact your ElectroSea dealer or ElectroSea directly as the ClearCell Electrode may be at the end of its High Temperature is high.
- Page 20 (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com 750070-015...
