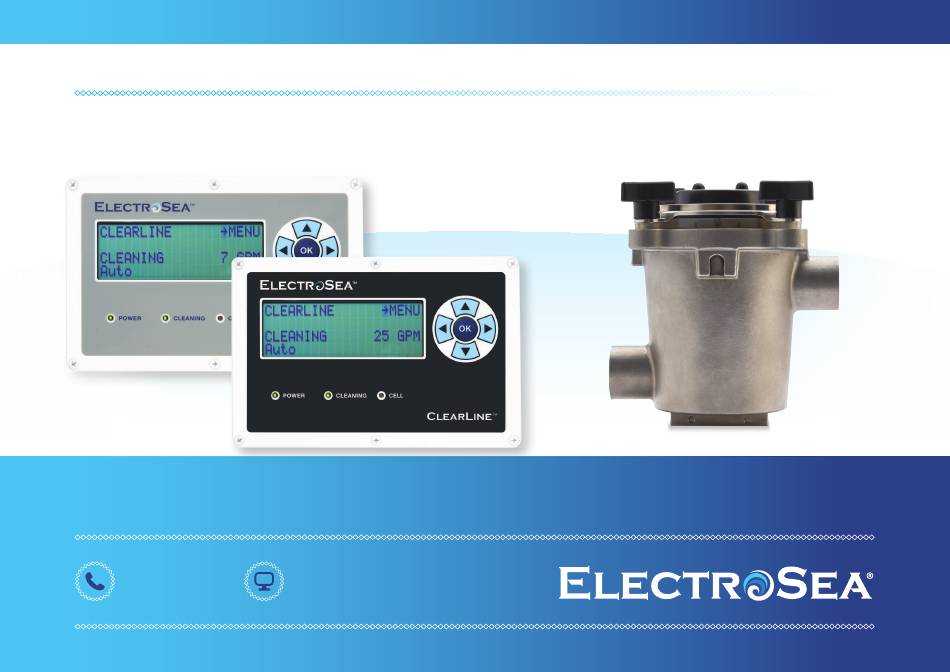

- Page 1 CLEARLINE System ® Installation Manual Model CL-430-N1.0 / Model CL-410-N0.5 (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com...
-
Page 2: Table Of Contents
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise without prior written consent by ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission. -
Page 3: Introduction
® ElectroSea was created when the owners of a sportfishing yacht invented “a better way” to prevent unwanted marine growth in their seawater lines. Solving complex technical problems is their expertise. With more than 100 issued U.S. patents and 350+ foreign patents in advanced technologies, our Executive Management Team has been developing innovative solutions for more than 50 years. -
Page 4: Components
Components CLEARLINE System The CLEARLINE System includes the Control Unit, ClearCell, and all components listed below: Items not included CLEARLINE Control Unit ClearCell • Marine Grade Seawater Hose • (1) Control Unit • (1) ClearCell • Stainless Steel Hose Clamps •... -
Page 5: Safety And Pre-Installation Descaling
Pre-installation descaling ensures any existing barnacles, biofilm, and marine growth that have accumulated on the interior seawater lines are removed. If seawater lines are impacted with barnacles and marine growth, then ElectroSea recommends professional descaling prior to installing the CLEARLINE System. -
Page 6: Optimal Performance
NOTICE Flow Alert feature is default OFF from ElectroSea and must be set-up by the installer or end user. NOTICE CLEARLINE will continue generating chlorine even after a Flow Alert occurs. Flow Alert does not prevent CLEARLINE from operating. -
Page 7: Internal Screen And Cell Indicator
Internal Screen and Cell Indicator Internal Screen The ClearCell contains an internal screen to catch debris before it reaches the Flow Sensor (debris, tiny shells, or other foreign materials that pass through the vessel’s main strainer). The internal screen Spray screen with should be cleaned periodically, and whenever debris gets caught in the screen and decreases seawater freshwater flow. -
Page 8: Installation Overview
Installation Overview Electrical Connection Overview CLEARLINE Control Unit must be located: DO NOT cut, extend, or splice the 20’ (6.1m) ClearCell cable. NOTICE • Within 20ft. (6. 1 m) of ClearCell • Within 20ft. (6. 1 m) of Flow Sensor DO NOT connect multiple ClearCell cables together. -
Page 9: Seawater Connection Overview
Do not connect dissimilar metals to the ClearCell. Secondary CLEARLINE Treated NOTICE Strainer Line Use only original parts supplied by ElectroSea. They are made of special titanium, stainless and other high quality materials. Use of Seawater/ non-factory or substitute parts will void the Warranty. -
Page 10: Clearcell Installation
ClearCell Installation ClearCell Canister Preparation Turn the wing nuts counterclockwise Remove the Electrode Assembly and to release the Electrode Assembly. pressure ring by lifting it straight up by the sides of the black plastic top. Do not lift or pull on the top cable connectors. U.S. -
Page 11: Mounting Options
ClearCell Installation ClearCell Mounting Options Mount The ClearCell canister must be installed so it is level and at or below the waterline. ClearCell Level Failure to mount the ClearCell level could result in the accumulation of harmful gas. WARNING The ClearCell can be mounted using several different options as shown below: OPTION B OPTION A Side Mounting... -
Page 12: Canister And Flow Sensor
ClearCell Installation ClearCell Canister and Flow Sensor The ClearCell canister and Flow Sensor have directional INPUT and OUTPUT requirements. Output Seawater MUST enter at the INPUT port and flow through the ClearCell and Flow Sensor according to the marked labels. Failure to route seawater in the direction of the ClearCell and NOTICE Flow Sensor INPUT and OUTPUT labels will result in improper operation of the... - Page 13 ClearCell Installation Flow Sensor connected to ClearCell ClearCell Canister and Flow Sensor Flow Connect the threaded female PVC hose connector to Flow Sensor output. Sensor Use PTFE tape and thread sealant. Union Connect male PVC hose connector to threaded Union. The Union provides quick access to the Flow Sensor as necessary.
-
Page 14: Optional Strainer Return Line
ClearCell Installation Optional Strainer Return Line OPTIONAL: Add a CLEARLINE treated strainer return line after the ClearCell Flow Sensor using a tee-fitting and ball valve to the strainer. • The CLEARLINE treated strainer return line should should be connected after the seacock and before the strainer. •... -
Page 15: Clearcell Reassembly
ClearCell Installation ClearCell Reassembly Ensure the gasket is in the top of the ClearCell canister. The Electrode Assembly and lid are keyed and can be inserted in only one direction. The plates of the ClearCell Electrode will be parallel to the seawater input. -
Page 16: Clearline Control Unit Installation
CLEARLINE Control Unit Installation CLEARLINE Control Unit Mounting and Wiring CLEARLINE Location and Mounting • Mount the CLEARLINE Control Unit (1) on a bulkhead in the engine room using four #10 stainless steel Mounting Screws provided. CLEARLINE is designed for marine engine rooms with a maximum environmental temperature of 50°C (122°F). -
Page 17: Specifications
Specifications Specifications CLEARLINE SYSTEM Power: 12VDC or 24VDC 5 Amp Max Peak Current Normal Operating Flow: CL-430: 5-26 GPM (18.9 – 98.4 LPM) CL-410: 3-7 GPM (11.4 – 26.5 LPM) Maximum Pressure: 35 psi CLEARLINE CONTROL UNIT Size: 10.0 inches (25.4cm) – width 7.0 inches (17.8cm) –... -
Page 18: Warranty
This Limited Warranty is made only to this purchaser (the “Original Purchaser”): The original end user purchaser of a Product directly from ElectroSea or an authorized ElectroSea Dealer (a “Direct Purchaser”); or The original end user purchaser of a new vessel in which a new Product was installed by the manufacturer (a “Vessel Purchaser”). - Page 19 This Limited Warranty is the only express warranty that applies to the Product. ElectroSea has not given anyone the right to make any warranty or promise of any kind relating to ElectroSea or the Product, so if someone other than ElectroSea makes a warranty or promise relating to ElectroSea or the Product, that warranty or promise is not binding on ElectroSea.
- Page 20 (888) 384-8881 support@electrosea.com (952) 475-8084 www.electrosea.com 750070-007 REV A...
