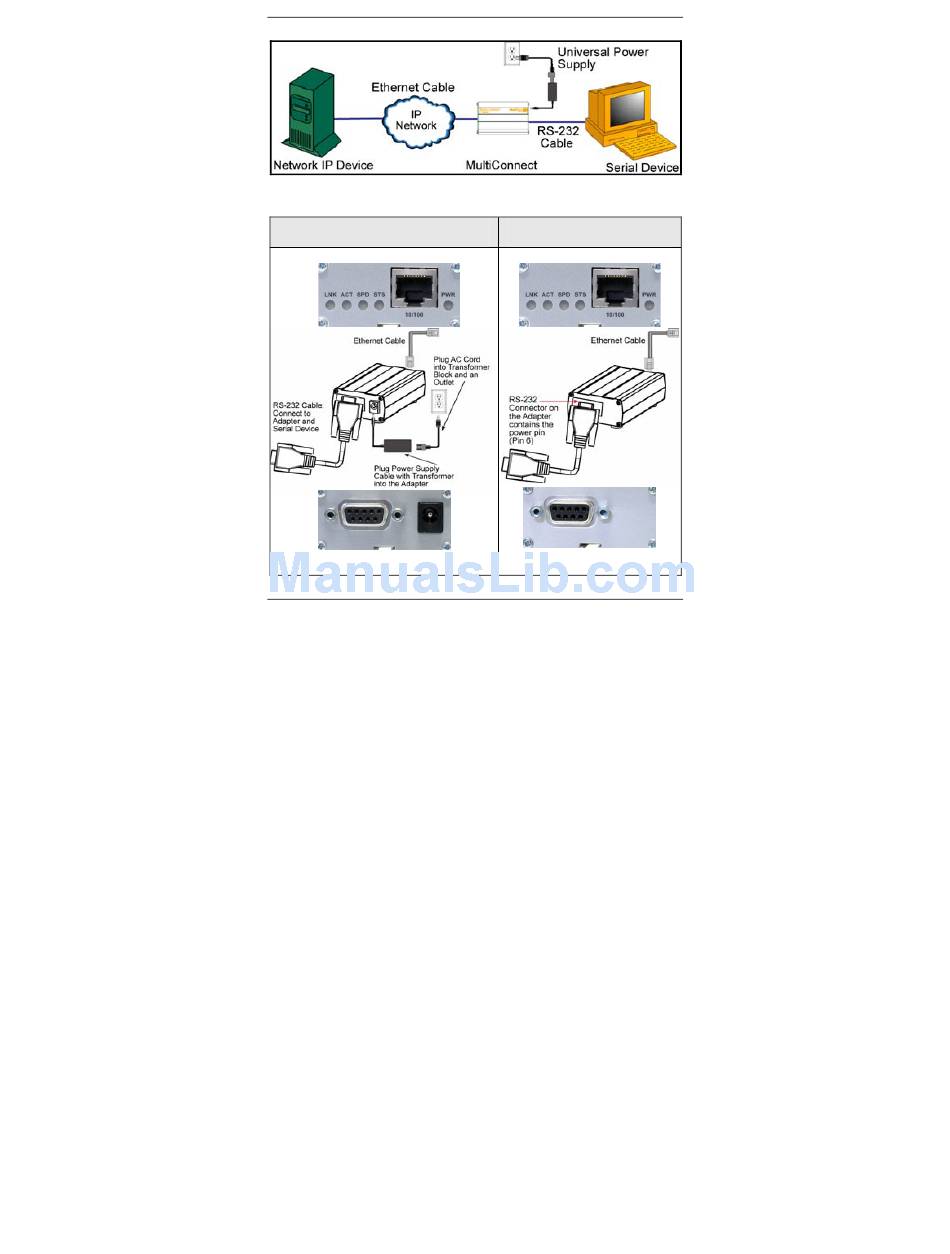

Serial-to-Ethernet Setup Example
Serial-to-Ethernet Power Connections
Powered in one of two ways:
Powered by External Power Supply
MTS2EA
Adapter Ethernet Connector
RS-232 & External Power Connectors
6
RS-232 Power (Pin 6)
MTS2EA-R
Adapter Ethernet Connector
RS-232 Power Pin
Connector
Multi-Tech Systems, Inc. Quick Start Guide
