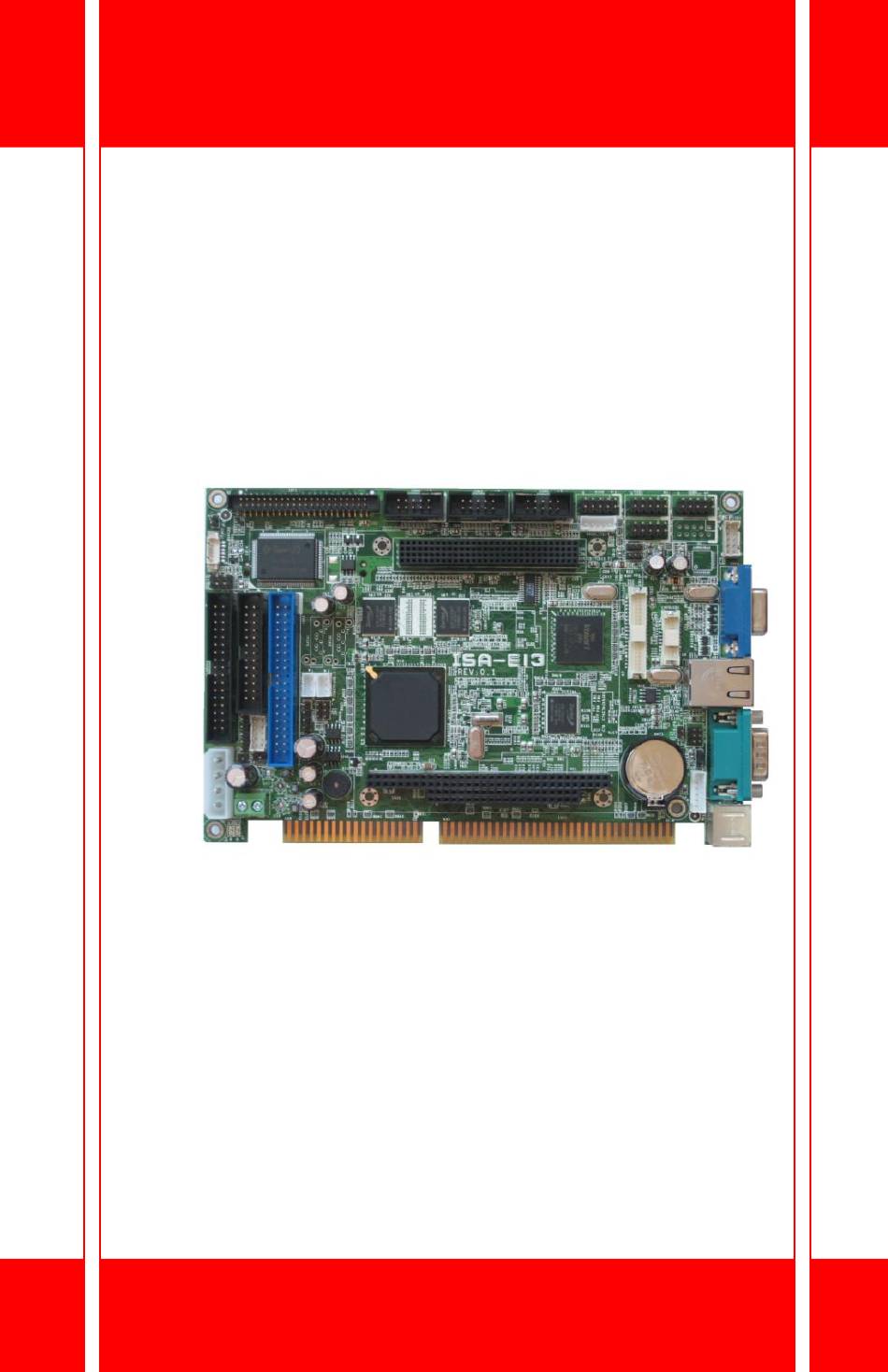

  • Page 1 ISA-E13 SINGLE BOARD COMPUTER User’s Manual Version 1.0...
  • Page 2 IBM, PS/2 are trademarks of International Business Machines Corporation. Intel, Pentium4 are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. All other product names or trademarks are properties of their respective owners. ISA-E13 User`s Manual...

  • Page 3: Table Of Contents

    JUMPER SETTING & CONNECTORS ............. 7 2.1J ISA-E13 ..............8 UMPERS ON THE Jumper Locations on the ISA-E13 ........... 9 JP1: LCD PANEL Power Selection ..........10 JP2: LCD PANEL Inverter Power Selection ........10 JP3: CF Card Mode Selection ............10 JP4: Redundant system support switch ........
  • Page 4 Floppy B ....................50 Super I/O Configuration ............... 51 On Board Floppy Controller ..............51 Floppy Drive Swap ................51 Serial Port 3 Address ................51 Serial Port 4 Address ................51 Serial Port4 Mode ................52 ISA-E13 User`s Manual...
  • Page 5 Wait For ‘F1’ If Error ................80 Hit ‘DEL’ Message Display ..............81 Interrupt 19 Capture ................82 Beep Function ..................83 On Board Virtual Flash FDD ..............83 Boot Device Priority ..............84 Boot Device ..................84 ISA-E13 User`s Manual...
  • Page 6 GPIO PORT3 7BH*37…30+ ..............97 PORT2& COM1 Pin Select ............... 98 GPCS Configuration ..............99 GPCSO Function ................99 GPCS1 Function ................99 Redundancy Control Configuration ........... 100 Dual Port 4KB SRAM ..............100 SB Serial Port 9 ................100 ISA-E13 User`s Manual...
  • Page 7 Discard Changes ................. 105 Load Optimal Defaults ............... 105 Load Failsafe Defaults ..............106 CHAPTER 4 APPENDIX ..............107 A. I/O P ..............108 DDRESS B. I (IRQ) ............109 NTERRUPT EQUEST INES C. POST B ..................110 ISA-E13 User`s Manual...
  • Page 8 Contents This page is intentionally left blank. viii ISA-E13 User`s Manual...

  • Page 9: Introduction

    Introduction This manual is designed to give you information on the ISA-E13 Single Board Computer card. The topics covered in this manual are as follows:  Features  Specification  Jumper setting and Connectors  BIOS Setup  Appendix ISA-E13 User`s Manual...

  • Page 10: Chapter 1

    Chapter 1 Features & Specifications ....................3 EATURES ..................4 PECIFICATIONS ISA-E13 User`s Manual...

  • Page 11: Features

    16-bits Digital I/O with programmable input and output direction.  One Mini-PCI socket on board to support WLAN, Modem and CANBUS module.  PC104 and PC104Plus socket on board.  COM1 and COM2 optional support RS485 protocol.  Support WatchDog Timer and MTBF counter. ISA-E13 User`s Manual...

  • Page 12: Specifications

    2.54mm pitch).  1 x IrDA port; (5-pins pin-header with +5V powered).  One Mini-DIN 6-pins connector on I/O bracket to support PS2 Keyboard/Mouse.  USB Interface:  Four USB 2.0 ports compliant with USB Specification Rev. ISA-E13 User`s Manual...
  • Page 13 One 3-pins Jumper for users to clear CMOS data.  Digital Input and Output::  Support 16-bits Digital I/O.  Software programmable to configure as input or output direction.  BIOS:  AMI Standard PnP Flash BIOS.  BIOS utility for field update. ISA-E13 User`s Manual...
  • Page 14 One Buzzer (9mm) on-board for beep message.  Operating Temperature:  -40~85°C Operation Range.  -40~85°C Storage.  Relative Humility: 5~95%, non-condensing.  Dimensions:  185mm(W) x 127mm(L)  4 screw holes on four corners for standalone operation. ISA-E13 User`s Manual...

  • Page 15: Chapter 2

    Chapter 2 Jumper setting & Connectors Jumper Locations on the ISA-E13 ............ 9 Connector Locations on the ISA-E13 ..........15 ISA-E13 User`s Manual...

  • Page 16: Jumpers On The Isa-E13

    2.1Jumpers on the ISA-E13 The jumpers on the ISA-E13 allow you to configure your Single Board Computer card according to the needs of your applications. If you have doubts about the best jumper configuration for your needs, contact your dealer or sales representative. The following table lists the jumpers on ISA-E13 and their respective functions.

  • Page 17: Jumper Locations On The Isa-E13

    Jumper Locations on the ISA-E13 ISA-E13 User`s Manual...

  • Page 18: Jp1: Lcd Panel Power Selection

    Inverter spec and adjust this jumper to make Inverter work in specified power rail. +12V JP3: CF Card Mode Selection This Jumper is to select the CF works as Primary Channel Master device or The default setting is Slave mode. Slave device. Master Slave ISA-E13 User`s Manual...

  • Page 19: Jp4: Redundant System Support Switch

    JP4: Redundant system support switch This Jumper is to switch input for redundant. External switch Normal fail. JP5: COM1 RS232/RS485 Selection The default setting is RS232 mode. I/F TYPE RS-232 RS-485 ISA-E13 User`s Manual...

  • Page 20: Jp6: Com2 Rs232/Rs485 Selection

    (4) Put Jumper cap back to pin1& 2. (5) Turn on your computer, (6) Hold Down <Delete> during boot up and enter BIOS setup to enter your preferences. Setting Function Pin 1-2 Normal Operation Short/Closed (default) Pin 2-3 Clear CMOS Short/Closed Content ISA-E13 User`s Manual...

  • Page 21: Jp8: On-Board Lan

    JP8: On-Board LAN On-Board Fast Ethernet LAN chips can be disabled by shorting the JP8 jumper. Port # Disable Enable JP9: COM1 Power Selection JP9 can be used to select the COM1 supply power: +5V, Ring-IN or +12V. +12V ISA-E13 User`s Manual...

  • Page 22: Connectors On The Isa-E13

    2.2Connectors on the ISA-E13 The connectors on the ISA-E13 allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers and etc. The following table lists the connectors on ISA-E13 and their respective page number.

  • Page 23: Connector Locations On The Isa-E13

    Connector Locations on the ISA-E13 ISA-E13 User`s Manual...

  • Page 24: Backlight Connector

    BACKLIGHT Connector Pin # Signal Name +12V Brightness ON/OFF COM1 (RS485), COM2 (RS485) Serial Ports Pin # Signal Name 485TX- 485TX+ ISA-E13 User`s Manual...

  • Page 25: Com1 Serial Port

    COM2, COM 3, COM 4 Serial Ports Pin # RS232 Mode Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send Ring-IN N.C. ISA-E13 User`s Manual...

  • Page 26: Int_Vga Connector

    Mouse connector, which is mount on button of bracket. To attach PS/2 Keyboard and mouse, users need to connect trough a PS/2 1-to-2 Y-cable and plug into this Mini-Din connector. All the ISA-E13 boards come with a Y-cable. Contact with your dealer if the Y-cable is missing.

  • Page 27: Cf-Ii (Bot) Connector

    Signal Name PDD3 PDD4 PDD5 PDD6 PDD7 PCS1- PDA2 PDA1 PDA0 PDD0 PDD1 PDD2 N.C. N.C. N.C. PDD11 PDD12 PDD13 PDD14 PDD15 PCS3- N.C. PDIOR- PDIOW- IRQ14 MST#_SLV N.C. PST1- PIORDY PDDREQ PDDACK- CF_LED- N.C. PDD8 PDD9 PDD10 ISA-E13 User`s Manual...

  • Page 28: Dc_In (5V+12V) Connector

    DIO ports support 8 digital I/O bits. Each bit can be configured as Input or output individually. All bits are 5V tolerant. Signal Name Pin # Pin # Signal Name DIO_0 DIO_4 DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 ISA-E13 User`s Manual...

  • Page 29: Dio2 Connector

    Drive select 1 Ground Drive select 0 Ground Motor enable 1 Ground Direction Ground Step Ground Write data Ground Write gate Ground Track 00 Ground Write protect Ground Read data Ground Side 1 select Ground Diskette change ISA-E13 User`s Manual...

  • Page 30: Front Panel Connector

    The reset switch allows the user to reset the system without turning the main power switch off and then on. Orientation is not required when making a connection to this header. RESET Signal Name Pin # Reset Ground ISA-E13 User`s Manual...

  • Page 31: Irda Connector

    IrDA Connector This connector is used for an IrDA connector for wireless communication. IrDA Pin # Signal Name Ir TX Ground Ir RX ISA-E13 User`s Manual...

  • Page 32: Ide1 Connector

    Host data 15 Ground Ground Host IOW Ground Host IOR Ground IOCHRDY Host PU 0 DACK Ground IRQ14 No connect Address 1 P66DET Address 0 Address 2 Chip select 1 Chip select 3 Activity Ground No connect ISA-E13 User`s Manual...

  • Page 33: Int_Kbms Connector

    Host data 0 Host data 15 Ground Ground Host IOW Ground Host IOR Ground IOCHRDY Host PU 0 DACK Ground IRQ14 No connect Address 1 P66DET Address 0 Address 2 Chip select 1 Chip select 3 Activity Ground ISA-E13 User`s Manual...

  • Page 34: Lpt Connector

    /ACK BUSY SLCT /AUTOFD /ERROR /INIT SELIN LAN Connector This connector is for the 10/100Mbps Ethernet capability. The figure below shows the pin out assignments of this connector and its corresponding input jack. Pin # Signal Name ISA-E13 User`s Manual...

  • Page 35: Lvds_Lcd Connector

    CHA_TX0+ CHB_TX0+ CHA_TX0- CHB_TX0- LVDS_GND LVDS_GND CHA_TX1+ CHB_TX1+ USB12, USB34 Connectors The following table shows the pin outs of the USB12 USB34 connectors. Signal Name Pin # Pin # Signal Name N.C. USB- USB+ USB+ USB- N.C. ISA-E13 User`s Manual...

  • Page 36: Ttl_Lcd Connector

    +12V/+5V +12V/+5V LCDVDD LCDVDD 5V/3.3V 5V/3.3V HSYNC VSYNC VGA Connector The pin assignments of VGA CRT connector are as follows: Signal Name Pin # Pin # Signal Name Green Blue N.C. N.C. N.C. DDC_DATA HSYNC VSYNC DDC_CLK ISA-E13 User`s Manual...

  • Page 37: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the ISA-E13 CPU card. The topics covered in this chapter are as follows: 3.1M ................... 31 3.2A ..................33 DVANCED 3.3PCI /P P ..................

  • Page 38: Bios Introduction

    And the firmware chip will store the setup utility on the board. However, if you want to enter the setup after the POST, you can press Ctrl + Alt + Del simultaneously or turn off the power then back on. ISA-E13 User`s Manual...

  • Page 39: Main Menu

    (System on Chip) with 0.13 micron process and ultra low power consumption design (less than 1 watt). The CPU is a high performance and fully static 32-bit X86 processor with the compatibility of Windows based, Linux and most popular 32-bit RTOS. ISA-E13 User`s Manual...

  • Page 40: System Memory

    The average time between failing and being returned to service is termed mean down time (MDT). System Fault As the system detect the illegal command or serious error when boot, it will show on this screen. ISA-E13 User`s Manual...

  • Page 41: Advanced

     : Select Item Board Configuration IDE Configuration + -:Change Field Floppy Configuration Tab: Select Field Super IO Configuration F1:General Help F10:Save and Exit Remo Access Configuration ESC: Exit USB Configuration V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 42: Board Configuration

    Shipment Date Year 08 Week 21 Customer Serial Number D8 E9 FA OB 1C 2D 3E 4F  :Select Screen  : Select Item F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 43: Ide Configuration

    + -:Change Field ATA(PI)80P in Cable Detection [Host &Device] F1:General Help Hard Disk Delay [2 Second] F10:Save and Exit On Board IDE Operate Mode [Legacy Mode] ESC: Exit Not Program PIO MODE [Disabled] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 44: On Bard Pci Ide Controller

    Disabled onboard IDE function Primary Allow system to detect only the Primary IDE channel. Secondary Allow system to detect only the Secondary IDE channel Both Allow system to detect the Primary and Secondary IDE channels. This is the default setting. ISA-E13 User`s Manual...

  • Page 45: Primary/Secondary Ide Master/Slave

    Options Block(Multi-Sector)Transfer [Auto] + -:Change Field Not Installed Tab: Select Field PIO Mode [Auto] Auto F1:General Help DMA Mode [Auto] CD/DVD F10:Saveand Exit S.M.A.R.T [Auto] ARMD ESC: Exit 32BitData Transfer [Enabled] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 46: Lba/Large Mode

    Set this value to prevent the BIOS from using Large Block Addressing mode control on the specified channel. Auto Set this value to allow the BIOS to auto detect the Large Block Addressing mode control on the specified channel. This is the default setting. ISA-E13 User`s Manual...

  • Page 47: Block (Multi-Sector) Transfer

    Set this value to prevent the BIOS from using Multi-Sector on the specified channel. Auto Set this value to allow the BIOS to auto detect device support for Multi-Sector Transfers on the specified channel. This is the default setting. ISA-E13 User`s Manual...

  • Page 48: Pio Mode

    Set this value to allow the BIOS to use PIO mode 0.It has a data transfer rate of 16.6MBs.This setting generally works with all hard disk drives manufactured after 1999.For other disk drive, such as IDE CD-ROM drives, check the specified of the drive. ISA-E13 User`s Manual...

  • Page 49: Dma Mode

     : Select Item Block(Multi-Sector)Transfer [Auto] + -:Change Field Tab: Select Field PIO Mode [Auto] Options F1:General Help DMA Mode [Auto] Auto F10:Saveand Exit S.M.A.R.T [Auto] ESC: Exit 32BitData Transfer [Enabled] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...
  • Page 50 Use this setting if the IDE disk drive support cannot be determined. This is the default setting. Disabled Set this value to prevent the BIOS from using the SMART feature. Enabled Set this value to allow the BIOS to SMART feature on support hard disk drives. ISA-E13 User`s Manual...

  • Page 51: 32Bit Data Transfer

    Description Disabled Set this value to prevent the BIOS from using 32-bit data transfers. Enabled Set this value to allow the BIOS to use 32-bit data transfers on support hard disk drive. This is the default setting. ISA-E13 User`s Manual...

  • Page 52: Hard Disk Write Protect

    Set this value to allow the hard disk drive to be used normally. Read, write, and erase functions can be performed to the hard disk drive. This is the being setting. Enabled Set this value to prevent the hard disk from being erased. ISA-E13 User`s Manual...

  • Page 53: Ide Detect Time Out (Sec)

    ATA(PI)80P in Cable Detection [Host &Device] Tab: Select Field Hard Disk Delay [2 Second] F1:General Help OnBoard IDE Operate Mode [Legacy Mode] F10:Save and Exit Not Program PIO MODE [Disabled] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 54: Ata (Pi) 80 Pin Cable Detection

    V02.58 © Copyright 1985-2008,American Megatrends, Inc. The use of an 80-conductor ATA cable is mandatory for running Ultra ATA/66, Ultra ATA/100 and Ultra ATA/133 IDE hard disk drives. The standard 40-conductor ATA cable cannot handle the higher speeds. ISA-E13 User`s Manual...

  • Page 55: Hard Disk Delay

    ATA(PI)80P in Cable Detection [Host &Device] 2 Second Tab: Select Field Hard Disk Delay [2 Second] 4 Second F1:General Help On Board IDE Operate Mode [Legacy Mode] 8 Second F10:Save and Exit Not Program PIO MODE [Disabled] ESC: Exit ISA-E13 User`s Manual...

  • Page 56: On Board Ide Operate Mode

    Legacy Mode Tab: Select Field Hard Disk Delay [2 Second] Native Mode F1:General Help On Board IDE Operate Mode [Legacy Mode] F10:Save and Exit Not Program PIO MODE [Disabled] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 57: Not Program Pio Mode

    + -:Change Field ATA(PI)80P in Cable Detection [Host &Device] Secondary Channel Tab: Select Field Hard Disk Delay [2 Second] F1:General Help On Board IDE Operate Mode [Legacy Mode] F10:Save and Exit Not Program PIO MODE [Disabled] ESC: Exit ISA-E13 User`s Manual...

  • Page 58: Floppy Configuration

    5.25 in5-1/4 inch PC-type standard drive. 1.2MB 5 1/4” 5.25 in5-1/4 inch AT-type high-density drive. 720KB 3 1/2” 3.5 in3-1/2 inch double-sided drive. 1.44MB 3 1/2” 3.5 in3-1/2 inch double-sided drive 2.88MB 3 1/2” 3.5 in 3-1/2 inch double-sided drive. ISA-E13 User`s Manual...

  • Page 59: Super I/O Configuration

    The choice: [Disabled],[338/IRQ4],[238/IRQ3],[228/IRO10]. The default setting is [228/IRQ10]. Serial Port 4 Address This option specifies the base I/O port address and Interrupt Request address of serial port. The choice: [Disabled],[338/IRQ4],[238/IRQ3],[220/IRO11]. The default setting is [220/IRQ11]. ISA-E13 User`s Manual...

  • Page 60: Serial Port4 Mode

    Parallel Port Mode [ECT EPP] + -:Change Field ASK IR EPP Version [1.9] Tab: Select Field ECP Mode DMA Channel [DMA3] F1:General Help F10:Save and Exit Parallel Port IRQ [IRQ7] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 61: Parallel Port Address

    Prevent the parallel port from accessing any system resources. Allow the parallel port to use 378 as its I/O port address. This is the default setting. Allow the parallel port to use 278 as its I/O port address. ISA-E13 User`s Manual...

  • Page 62: Parallel Port Mode

    This option specifies the IRQ used by the parallel port. The choice: Option Description Set this value to allow the serial-port to use Interrupt 3. Set this value to allow the serial-port to use Interrupt 7. This is the default setting. ISA-E13 User`s Manual...

  • Page 63: Remote Access Configuration

    The choice: Option Description Disabled Prevent the BIOS from using Remote Access. This is the default setting. Enabled Allow the system to use the remote access feature. The remote success feature requires a dedicated serial port connection. ISA-E13 User`s Manual...

  • Page 64: Serial Port Number

    Flow Control [None] COM2 F1:General Help Redirection After BIOS POST [Always] COM3 F10:Save and Exit Terminal Type [ANSI] ESC: Exit COM4 VT-UTF8 Combo Key Support [Enabled] Sredir Memory Display Delay [No Delay] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 65: Serial Port Mode

    Flow Control [None] None F1:General Help Redirection After BIOS POST [Always] Hardware F10:Save and Exit Terminal Type [ANSI] Software ESC: Exit VT-UTF8 Combo Key Support [Enabled] Sredir Memory Display Delay [No Delay] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 66: Redirection After Bios Post

    Flow Control [None] F1:General Help ANSI Redirection After BIOS POST [Always] F10:Save and Exit VT100 Terminal Type [ANSI] ESC: Exit VT-UTF8 VT-UTF8 Combo Key Support [Enabled] Sredir Memory Display Delay [No Delay] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 67: Vt-Utf8 Combo Key Support

    Redirection After BIOS POST [Always] F10:Save and Exit Delay 1 Sec Terminal Type [ANSI] ESC: Exit Delay 2 Sec VT-UTF8 Combo Key Support [Enabled] Delay 4 Sec Sredir Memory Display Delay [No Delay] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 68: Usb Configuration

    BIOS EHCI Hand-Off [Enabled] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. The choice: Option Description Disabled This setting makes the onboard USB ports unviable. Enabled Allows the use of the USB ports. This is the default setting. ISA-E13 User`s Manual...

  • Page 69: Legacy Usb Support

    Allow the use of USB devices during boot and while using DOS. This is the default setting. Auto This option auto detects USB Keyboards or Mice and if found, allows them to be untilized during boot and while using DOS. ISA-E13 User`s Manual...

  • Page 70: Usb 2.0 Controller Mode

    + -:Change Field USB Port2,3 [Enabled] Tab: Select Field Options Legacy USB Support [Enabled] F1:General Help Enabled USB 2.0 Controller Mode [Hi Speed] F10:Save and Exit Disabled BIOS EHCI Hand-Off [Enabled] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 71: Pci /Pnp

    [Available] DMA Channel 3 [Available] Tab: Select Field DMA Channel 5 [Available] F1:General Help DMA Channel 6 [Available] F10:Save and Exit DMA Channel 7 [Available] ESC: Exit Reserved Memory Size [Disabled] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 72: Clear Nvram

    + -:Change Field Allocate IRQ to PCI VGA [No] Tab: Select Field Palette Snooping [Disabled] F1:General Help PCI IDE Bus Master [Disabled] F10:Save and Exit Off Board PCI/ISA IDE Card [Auto] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 73: Plug & Play O/S

    It allows the BIOS to configure all the devices in the system. This is the default setting. The Yes setting allows the operating system to change the interrupt, I/O, and DMA settings. Set this option if the system is running Plug and Play aware operating systems. ISA-E13 User`s Manual...

  • Page 74: Pci Latency Timer

    This option sets the PCI latency to 160 PCI clock cycle. This option sets the PCI latency to 192 PCI clock cycle. This option sets the PCI latency to 224 PCI clock cycle. This option sets the PCI latency to 248 PCI clock cycle. ISA-E13 User`s Manual...

  • Page 75: Allocate Irq To Pci Vga

    Set this value to allow the allocation of an IRQ to a VGA adapter card that uses the PCI local bus. Set this value to prevent the allocation of an IRQ to a VGA adapter card that uses the PCI local bus. This is the default setting. ISA-E13 User`s Manual...

  • Page 76: Palette Snooping

    This does not necessarily indicate a physical ISA adapter card. The graphics chipset can be mounted on a PCI card. Always check With tour adapter card’s manuals first, before modifying the default setting in the BIOS. ISA-E13 User`s Manual...

  • Page 77: Pci Ide Bus Master

    PCI Slot3 Tab: Select Field Palette Snooping [Disabled] PCI Slot4 F1:General Help PCI IDE Bus Master [Disabled] PCI Slot5 F10:Save and Exit Off Board PCI/ISA IDE Card [Auto] PCI Slot6 ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...
  • Page 78 Use this setting only if there is an IDE adapter card installed in PCI Slot 6. This option is available even if the motherboard does not have a PCI Slot 6. If the motherboard does not have a PCI Slot 6, do not use this setting. ISA-E13 User`s Manual...

  • Page 79: Irq 3, 4, 5, 6, 7, 9

    This setting allows the specified IRQ to be IRQ4 used by a PCI/PnP device. IRQ5 This is the default setting. IRQ6 IRQ7 IRQ9 Reserved This setting allows the specified IRQ to be IRQ10 used by a legacy ISA device. IRQ11 IRQ12 IRQ14 IRQ15 ISA-E13 User`s Manual...

  • Page 80: Dma Channel 0, 1, 3, 5, 6, 7

    PCI/PnP device. DMA Channel 3 This is the default setting. DMA Channel 5 Reserved This setting allows the specified DMA DMA Channel 6 to be used by a legacy ISA device. DMA Channel 7 ISA-E13 User`s Manual...

  • Page 81: Reserved Memory Size

    ISA device. Set this value to allow the system to reserve 36K of the system memory to the ISA device. Set this value to allow the system to reserve 64K of the system memory to the ISA device. ISA-E13 User`s Manual...

  • Page 82: Boot Setting

    + -:Change Field Hit ‘DEL’ Message Display [Enabled] Tab: Select Field Interrupt 19 Capture [Hi Speed] F1:General Help Beep Function [Enabled] F10:Save and Exit ESC: Exit On Board Virtual Flash FDD [Disabled] V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 83: Quick Boot

    The choice: Option Description Disabled Set this value to allow the BIOS to perform all POST tests. Enabled Set this value to allow the BIOS to skip certain POST tests to boot faster. This is the default setting. ISA-E13 User`s Manual...

  • Page 84: Quiet Boot

    The choice: Option Description Disabled Set this value to allow the computer system to display the POST message. Enabled Set this value to allow the computer system to display the OEM logo. This is the default setting. ISA-E13 User`s Manual...

  • Page 85: Add On Rom Display Mode

    Set this value to allow the computer system to force BIOS a third party BIOS to display during system boot. This is the default setting. Keep Set this value to allow the computer system to Current display the ez PORT information during system boot. ISA-E13 User`s Manual...

  • Page 86: Boot Up Num-Lock

    V02.58 © Copyright 1985-2008,American Megatrends, Inc. The choice: Option Description Disabled the keyboard Number Lock automatically. Allow the Number Lock on the keyboard to be enabled automatically when the computer system is boot up. This is the default setting. ISA-E13 User`s Manual...

  • Page 87: Ps/2 Mouse Support

    Use this setting if installing a serial mouse. Enabled Set this value to allow the system to use a PS/2 mouse. Auto Set this value to allow the system to use a PS/2 mouse. This is the default setting. ISA-E13 User`s Manual...

  • Page 88: Wait For 'F1' If Error

    BIOS to recognize it. This normally Happens when upgrading the hardware and not setting the BIOS to recognize it. This is the default setting. ISA-E13 User`s Manual...

  • Page 89: Hit 'Del' Message Display

    This prevents the ezPORT to display Hit Del to enter Setup during Memory initialization. If Quite Boot is enables, the Hit ‘DEL‘message will not display. Enabled This allows the ezPORT to display Hit Del to enter Setup during Memory initialization. This is the default setting. ISA-E13 User`s Manual...

  • Page 90: Interrupt 19 Capture

    ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. The choice: Option Description Disabled The BIOS prevents option ROMs from trapping interrupt 19. Enabled The BIOS allows option ROMs to trap interrupt 19. This is the default setting. ISA-E13 User`s Manual...

  • Page 91: Beep Function

    Wait For “F1 If Error [Enabled] Options F1:General Help Hit ‘DEL’ Message Display [Enabled] Disabled F10:Save Interrupt 19 Capture [Hi Speed] Enabled Exit On Board Virtual Flash FDD [Disabled] Diskette Write Protect ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 92: Boot Device Priority

    ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. Boot Device The choice: [Removable Dev.], [CD/DVD], [Hard Drive], [Disabled]. Boot Device The choice: [Removable Dev.], [CD/DVD], [Hard Drive], [Disabled]. Boot Device The choice: [Removable Dev.], [CD/DVD], [Hard Drive], [Disabled]. ISA-E13 User`s Manual...

  • Page 93: Security

    Boot Sector Virus Protection [Disabled] Enter New Password 111111 F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. Clear Supervisor Password Select [Clear Supervisor Password] and press <Enter>. In sub menu, press <Enter>. Then password uninstalled. ISA-E13 User`s Manual...

  • Page 94: Change User Password

    + -:Change Field Change Supervisor Password Clear User Password? Tab: Select Field Change User Password F1:General Help Clear User Password F10:Save and Exit [OK] [Cancel] Boot Sector Virus Protection [Disabled] ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 95: Boot Sector Virus Protection

     : Select Item User Password :Installed + -:Change Field Change Supervisor Password Tab: Select Field Options Change User Password F1:General Help Disabled Clear User Password F10:Save and Exit Enabled Boot Sector Virus Protection [Disabled] ESC: Exit ISA-E13 User`s Manual...

  • Page 96: Chipset

     :Select Screen DRAM Timing Setting By [BIOS]  : Select Item + -:Change Field CPU Speed Setting By [Divide By 1] Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 97: Dram Timing Setting By

    + -:Change Field CPU Speed Setting By [Divide By 1] Tab: Select Field Manual F1:General Help BIOS F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. CPU Speed Setting By Allow you to regulate CPU speed. ISA-E13 User`s Manual...

  • Page 98: South Bridge Configuration

    Serial/Parallel Port  : Select Item COM1 Configuration + -:Change Field Watch Dog Configuration Tab: Select Field GPIO Configuration F1:General Help GPCS Configuration F10:Save and Exit Redundancy Control ESC: Exit Configuration V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 99: Isa Configuration

    The choice: [1clock], [2clock], [3clock], [4clock], [5clock], [6clock], [7clock], [8clock]. ISA 16 bits Memory wait-state The choice: [0clock], [1clock], [2clock], [3clock], [4clock], [5clock] , [6clock] , [7clock] . ISA 8bits Memory wait-state The choice: [1clock], [2clock], [3clock], [4clock], [5clock], [6clock], [7clock], [8clock]. ISA-E13 User`s Manual...

  • Page 100: Pwm Configuration

    F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. PUM Timer0 The choice: [Interval 1.19MHz], [External clock]. PUM Timer1 The choice: [Interval 1.19MHz], [External clock]. PUM Timer2 The choice: [Interval 1.19MHz], [External clock]. ISA-E13 User`s Manual...

  • Page 101: Serial/Parallel Port Configuration

    If the system will not use a serial device, it is best to set this port to Disabled. 2E8/IRQ3 Allow the serial port to use 2E8 as its I/O port address. If the system will not use a serial device, it is best to set this port to Disabled. ISA-E13 User`s Manual...

  • Page 102: Sb Serial Port 1

    The choice: [SB Serial Port 2], [8254 PWM]. SB Serial Port 2 The choice: [Disabled], [3F8], [2F8], [3E8], [2E8]. Serial Port IRQ 2 The choice: [IRQ3], [IRQ4], [IRQ9], [RQ10], [IRQ11]. Serial Port Bound Rate The choice: [2400 BPS], [4800BPS], [9600BPS], [19200BPS], [38400BPS], [57600BPS], [115200BPS]. ISA-E13 User`s Manual...

  • Page 103: Watchdog Configuration

    Watch Dog 0 Function [Disabled] Disabled Watch Dog 1Function [Disabled]  :Select Screen Options  : Select Item Disabled + -:Change Field Enabled Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 104: Watch Dog 0 Signal Select

    Watch Dog 0 Signal Select [Reset] IRQ3 Watch Dog 0 Timer [64 Sec] IRQ4  :Select Screen Watch Dog 1Function [Disabled] IRQ5  : Select Item IRQ6 + -:Change Field Tab: Select Field Reset F1:General Help F10:Save and Exit ESC: Exit ISA-E13 User`s Manual...

  • Page 105: Gpio Configuration

    [III00000] , [II000000] , [I0000000] , [00000000] PORT3 & SPI Pin Select The choice: [SPI Bus] , [GPIO PORT3] GPIO PORT3 7BH[37…30] The choice: [IIIIIIII] , [IIIIIII0] , [IIIIII00] , [IIIII000] , [IIII0000] [III00000] , [II000000] , [I0000000] , [00000000] ISA-E13 User`s Manual...

  • Page 106: Port2& Com1 Pin Select

    PORT2& COM1 Pin Select The choice: [SB Serial Port1] , [GPIO PORT4]. ISA-E13 User`s Manual...

  • Page 107: Gpcs Configuration

    Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. Allow you to set the address of the Flash Disk device GPCSO Function The choice: [Disabled], [Enabled]. GPCS1 Function The choice: [Disabled], [Enabled]. ISA-E13 User`s Manual...

  • Page 108: Redundancy Control Configuration

    SB Serial Port 9 The choice: [Disabled], 3F8, 2F8, 3E8, 2E8, 10. WatvhDog0 Condition The choice: [Disabled], [Enabled]. WatvhDog1Condition The choice: [Disabled], [Enabled]. Invalid OPCODE Condition The choice: [Disabled], [Enabled]. KB/MS System Fail The choice: [Normal], [TRI-State]. ISA-E13 User`s Manual...

  • Page 109: Gpio Port0 System Fail

    The choice: [Normal], [TRI-State]. LPT PORT System Fail The choice: [Normal], [TRI-State]. UART1 System Fail The choice: [Normal], [TRI-State]. UART2 System Fail The choice: [Normal], [TRI-State]. UART3 System Fail The choice: [Normal], [TRI-State]. UART4 System Fail The choice: [Normal], [TRI-State]. ISA-E13 User`s Manual...

  • Page 110: Exit Option

    Discard Changes For this operation. Load Optimal Defaults  :Select Screen Load Failsafe Defaults  : Select Item + -:Change Field Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 111: Save Changes And Exit

    Save Configuration changes and exit setup? Load Optimal Defaults  :Select Screen Load Failsafe Defaults [OK] [Cancel]  : Select Item + -:Change Field Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 112: Discard Changes And Exit

    Discard changes and exit Load Optimal Defaults setup?  :Select Screen Load Failsafe Defaults  : Select Item [OK] [Cancel] + -:Change Field Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 113: Discard Changes

    Load Optimal Defaults? Load Optimal Defaults  :Select Screen Load Failsafe Defaults [OK] [Cancel]  : Select Item + -:Change Field Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 114: Load Failsafe Defaults

    Load Failsafe Defaults? Load Optimal Defaults  :Select Screen Load Failsafe Defaults [OK] [Cancel]  : Select Item + -:Change Field Tab: Select Field F1:General Help F10:Save and Exit ESC: Exit V02.58 © Copyright 1985-2008,American Megatrends, Inc. ISA-E13 User`s Manual...

  • Page 115: Chapter 4 Appendix

    CHAPTER 4 Appendix A. I/O P ..............108 DDRESS B. I (IRQ) ............109 NTERRUPT EQUEST INES C. POST B ..................110 ISA-E13 User`s Manual...

  • Page 116: I/O Port Address Map

    Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1) ISA-E13 User`s Manual...

  • Page 117: Interrupt Request Lines (Irq)

    Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE ISA-E13 User`s Manual...

  • Page 118: Post Beep

    This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. ISA-E13 User`s Manual...

Table of Contents
