PISA-E12
Intel® Atom N270 945GSE PISA SBC
User's Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PISA-E12 and is the answer not in the manual?

Questions and answers

Related Manuals for ETOP PISA-E12

Summary of Contents for ETOP PISA-E12

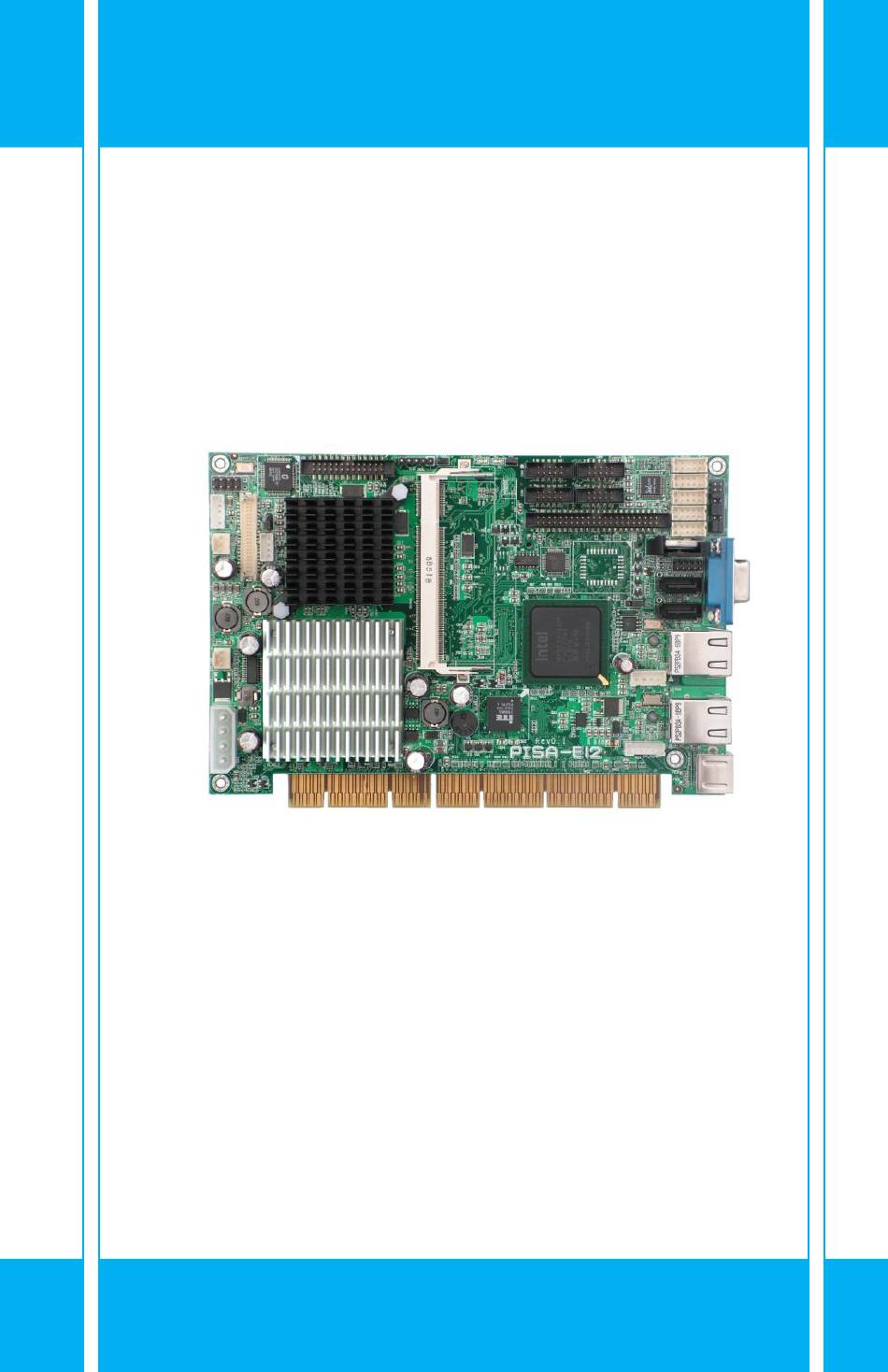

  • Page 1 PISA-E12 Intel® Atom N270 945GSE PISA SBC User's Manual Version 1.0...
  • Page 2 IBM, PS/2 is trademarks of International Business Machines Corporation. Intel Pentium M is registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. All other product names or trademarks are properties of their respective owners. PISA-E12 User`s Manual...

  • Page 3: Table Of Contents

    IrDA Connector ............23 CF-II Connector (bot) ..........24 COM1, 2, 3, 4 Serial Ports ........25 TV-OUT Connector ..........25 PIDE1 Connector ............ 26 CHAPTER 3 BIOS SETUP ........27 BIOS Introduction ..........28 Starting Setup ............28 PISA-E12 User`s Manual...
  • Page 4 Boot Up Num Lock Status ........44 Gate A20 Option ............ 44 Typematic Rate Setting .......... 45 Typematic Rate (Chars/Sec) ........45 Typematic Delay (Msec) ......... 45 Security Option............46 APIC Mode ............46 MPS Version Control For OS ........46 PISA-E12 User’s Manual...
  • Page 5 USB Keyboard Support ........60 Azalia/AC97 Audio Select ........60 Super IO Device............. 61 Onboard Serial Port 1 .......... 61 Onboard Serial Port 2 .......... 61 UART Mode Select ..........62 RxD, TxD Active ..........62 IR Transmission Delay ......... 62 PISA-E12 User`s Manual...
  • Page 6 IRQ-3,4,5,7,9,10,11,12,14,15 assigned to ..... 76 PCI/VGA Palette Snoop ........... 77 INT Pin 1/2/3/4/5/6/7/8 Assignment ......77 Maximum Payload Size ........... 77 3.8 PC H ......... 78 EALTH TATUS CPU Warning Temperature ........78 Current System Temp ..........78 PISA-E12 User’s Manual...
  • Page 7 3.13 S & E ........83 ETUP 3.14 E ......... 84 ITHOUT AVING CHAPTER 4 APPENDIX ........85 A. I/O P ........86 DDRESS B. I (IRQ) ...... 87 NTERRUPT EQUEST INES C. POST B ............ 88 PISA-E12 User`s Manual...
  • Page 8 Contents This page is intentionally left blank viii PISA-E12 User’s Manual...

  • Page 9: Introduction

    This manual is designed to give you information on the E12 Industrial Main Board. The topics covered in this manual are as follows:  Features  Specification  Jumper setting and Connectors  BIOS Setup  Appendix PISA-E12 User`s Manual...

  • Page 10: Chapter 1 Features & Specifications

    Chapter 1 Features & Specifications ............. 3 EATURES ............ 4 PECIFICATIONS PISA-E12 User’s Manual...

  • Page 11: Features

    SATA, 1 x IRDA, 1x PIDE, 1x CF, 1x LPT.  Dual GbE LANs maximize the transfer bandwidth.  Multiple display technology: CRT, TVOUT, Dual 24-bits LVDS LCD. Dual Independent display supported.  Support stand-alone operation with power input and screw holes. PISA-E12 User`s Manual...

  • Page 12: Specifications

    One Parallel port supports SPP/ECP/EPP mode.  One IrDA port.  Six USB 2.0 ports support USB KB/MS and storage devices.  PS2 Keyboard and Mouse.  One 8-bits digital I/O ports with configurable input and output. PISA-E12 User’s Manual...
  • Page 13  4-pins power connector on board for stand-alone operation. Software Compatibility  Microsoft windows: Win2K, Win XP 32/64-bits, Vista 32/64-bits, Windows 7 32/64-bits.  Linux 32-bits/64-bits and DOS 6.22. Cooling  Two cooling FAN connectors for CPU cooler and System FAN. PISA-E12 User`s Manual...
  • Page 14  185mm (W) x 122mm (L). PISA Half-size Card Standard form factor.  4 screw holes on four corners for stand-alone operation. Operating Temperature  0 to 60 C operating Range.  -40 C to 70 C storage.  Relative Humility: 5~95%, non-condensing. PISA-E12 User’s Manual...

  • Page 15: Chapter 2 Jumper Setting & Connectors

    Chapter 2 Jumper setting & Connectors 2.1 J E12 ........8 UMPERS ON THE 2.2 C E12 ........ 13 ONNECTORS ON THE PISA-E12 User`s Manual...

  • Page 16: Jumpers On The E12

    Jumper Locations on the E12 ........9 JP1: Clear CMOS RAM Data ........10 JP2: CF Card Mode Selection ........10 COM2MODE: RS232/RS422/RS485 ......11 AT MODE: AT Mode Selection ........12 LCDPWR: LCD PANEL Power Selection ...... 12 PISA-E12 User`s Manual...

  • Page 17: Jumper Locations On The E12

    Jumper Locations on the E12 PISA-E12 User`s Manual...

  • Page 18: Jp1: Clear Cmos Ram Data

    (6) Hold Down <Delete> during boot up and enter BIOS setup to enter your preferences. Clear CMOS Normal JP2: CF Card Mode Selection This Jumper is to select the CF works as Secondary Channel Master device or Slave device. Master Slave PISA-E12 User’s Manual...

  • Page 19: Com2Mode: Rs232/Rs422/Rs485

    RS485, while COM1, COM3 and COM4 support diffused RS232 protocol. The Protocols of COM2 can be set up through jumpers. COM2MODE: COM2 Protocols selection. The pin-out for each mode is illustrated on next chapter. COM2MODE I/F TYPE RS-232 RS-422 RS-485 PISA-E12 User`s Manual...

  • Page 20: At Mode: At Mode Selection

    LCDPWR can be used to select the Panel LCD supple power: +3.3V or +5V.The default setting is on +3.3V.User need to check the LCD panel spec and adjust this jumper to make Panel work in specified power rail. This Jumper serves LVDS LCD connector. +3.3V LCDPWR PISA-E12 User’s Manual...

  • Page 21: Connectors On The E12

    CPUF FAN Connector ..........21 LVDS LCD Connector ..........22 LPT Port ..............23 IrDA Connector ............23 CF-II Connector (bot) ..........24 COM1, 2, 3, 4 Serial Ports ........25 TV-OUT Connector ..........25 PIDE1 Connector ............ 26 PISA-E12 User`s Manual...

  • Page 22: Connector Locations On The E12

    Connector Locations on the E12 PISA-E12 User’s Manual...

  • Page 23: Audio Connector

    Name Name DIO_0 DIO_4 DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 USB12, 34, 56 Connectors The following table shows the pin outs of the USB12, USB34, USB56 connectors. Signal Signal Name Name N.C. USB- USB+ USB+ USB- N.C. PISA-E12 User`s Manual...

  • Page 24: Int_Vga Connector

    INT_VGA is for internal Video A/D board connection. The pin out is listed as below: Signal Pin # Pin # Signal Name Name GREEN BLUE HSYNC DDC_DATA VSYNC DDC_CLK SATA1.2 Connectors Pin # Signal Name SATARX+ SATARX- SATATX- SATATX+ PISA-E12 User’s Manual...

  • Page 25: Vga Connector

    LAN1, 2 GbE Connectors This connector is for the 10/100/1000Mbps Ethernet capability. The figure below shows the pin out assignments of this connector and its corresponding input jack. Pin # Signal Name MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- PISA-E12 User`s Manual...

  • Page 26: Atx-Pwr Connector

    AT-MODE Jumper. The setting is illustrated as below : AT-MODE When PWRMODE are chosen as ATX Mode, you will need a cable to connect control signal and 5VSB standby power from backplane to ATX-PWR connector on PISA-E12. AT-MODE BACKPLANE CABLE PISA-E12 Jumper PISA-E12 User’s Manual...

  • Page 27: Int_Kbms Connector

    To attach PS/2 Keyboard and mouse, users need to connect trough a PS/2 1-to-2 Y-cable and plug into this Mini-Din connector. All the PISA-E12 boards come with a Y-cable. Contact with your dealer if the Y-cable is missing. Pin #...

  • Page 28: Front_Panel Connector

    This LED will flash when the HDD is being accessed. IDE LED Signal Pin # Name HDDLED  Power-On LED This connector allows users to connect to Front Panel Power indicator. PWR LED Signal Pin # Name Ground PISA-E12 User’s Manual...

  • Page 29: Back Lite Connector

    System FAN Connector This is a 3-pin header for the system fan. Pin # Signal Name Ground +12V SYSPWM CPUF FAN Connector This is a 3-pin header for the CPU fan. Pin # Signal Name Ground +12V CPUPWM PISA-E12 User`s Manual...

  • Page 30: Lvds Lcd Connector

    +12V LCDVDD 5V/3.3V LCDVDD 5V/3.3V BCKLITE_ON BRIGHTNES LVDS_GND LVDS_GND CHB_TX0+ CHA_TX0+ CHB_TX0- CHA_TX0- LVDS_GND LVDS_GND CHB_TX1+ CHA_TX1+ CHB_TX1- CHA_TX1- LVDS_GND LVDS_GND CHB_TX2+ CHA_TX2+ CHB_TX2- CHA_TX2- LVDS_GND LVDS_GND CHB_TXC+ CHA_TXC+ CHB_TXC- CHA_TXC- LVDS_GND LVDS_GND CHB_TX3+ CHA_TX3+ CHB_TX3- CHA_TX3- PISA-E12 User’s Manual...

  • Page 31: Lpt Port

    /AUTOFD DATA0 /ERROR DATA1 /INIT DATA2 SELIN DATA3 DATA4 DATA5 DATA6 DATA7 /ACK BUSY SLCT IrDA Connector This connector is used for an IrDA connector for wireless communication. IrDA Pin # Signal Name CIRRX IRTX Ground IRTX PISA-E12 User`s Manual...

  • Page 32: Cf-Ii Connector (Bot)

    Name PDD3 PDD4 PDD5 PDD6 PDD7 PCS1- PDA2 PDA1 PDA0 PDD0 PDD1 PDD2 N.C. N.C. N.C. PDD11 PDD12 PDD13 PDD14 PDD15 PCS3- N.C. PDIOR- PDIOW- IRQ14 MST#_SLV N.C. PST1- PIORDY PDDREQ PDDACK- CF_LED- N.C. PDD8 PDD9 PDD10 PISA-E12 User’s Manual...

  • Page 33: Com1, 2, 3, 4 Serial Ports

    DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send Ring-IN N.C. TV-OUT Connector Pin # Signal Name LUMA CHOMA CVBS PISA-E12 User`s Manual...

  • Page 34: Pide1 Connector

    Host data 15 Ground Ground Host IOW Ground Host IOR Ground IOCHRDY Host PU 0 DACK Ground IRQ14 No connect Address 1 P66DET Address 0 Address 2 Chip select 1 Chip select 3 Activity Ground No connect PISA-E12 User’s Manual...

  • Page 35: Chapter 3 Bios Setup

    3.9 F ......80 REQUENCY OLTAGE ONTROL 3.10 L ......80 EFAULTS 3.11 L ......81 PTIMIZED EFAULTS 3.12 S ....81 UPERVISOR ASSWORD 3.13 S & E ........83 ETUP 3.14 E ........84 ITHOUT AVING PISA-E12 User`s Manual...

  • Page 36: Bios Introduction

    1. By pressing <Del> immediately after switching the system on, or 2. by pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self-Test). PISA-E12 User’s Manual...

  • Page 37: Using Setup

    <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. PISA-E12 User`s Manual...
  • Page 38 Use the left and right arrow keys to choose the menu you want to be in. To display a sub menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. PISA-E12 User’s Manual...

  • Page 39: Getting Help

    These defaults have been carefully chosen by both Award and E12 manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. PISA-E12 User`s Manual...

  • Page 40: Main Menu

    Setup Items The main menu includes the following main setup categories. Standard CMOS Features Use this menu for basic system configuration.  Advanced BIOS Features Use this menu to set the Advanced Features available on your system. PISA-E12 User’s Manual...

  • Page 41: Advance Chipset Features

    While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet their needs.  Set Supervisor/ User Password Use this menu to set User and Supervisor Passwords. PISA-E12 User`s Manual...

  • Page 42: Save & Exit Setup

     Save & Exit Setup Save CMOS value changes to CMOS and exit setup.  Exit Without Saving Abandon all CMOS value changes and exit setup. PISA-E12 User’s Manual...

  • Page 43: Standard Cmos Features

    Video [EGA/VGA] Halt On [All , But Disk/Key] Base Memory 639K Extend Memory 1038336K Total Memory 1039360K ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 2) PISA-E12 User`s Manual...
  • Page 44 All, but Disk/Key Base Memory Displays the amount of conventional memory detected during boot up Extended Memory Displays the amount of extended memory detected during boot up Total Memory Displays the total memory available in the system PISA-E12 User’s Manual...

  • Page 45: Ide Channel 0, 1 Master/ Slave

    To auto-detect the HDD‟s Access Mode [Auto] size, head…on this channel Capacity 0 MB Cylinder Head Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 3) PISA-E12 User`s Manual...
  • Page 46 Min = 0 **** Warning: Setting a Max = 65535 value of 65535 means no hard disk Landing zone Min = 0 **** Max = 65535 Sector Min = 0 Number of sectors per track Max = 255 PISA-E12 User’s Manual...

  • Page 47: Drive A/B

    The system boot will not be halted for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not be halted for a key- board or disk error; it will stop for all others. (default) PISA-E12 User`s Manual...

  • Page 48: Advanced Bios Features

    MPS Version Control For OS [1.4] OS Select For DRAM > 64MB [Non-OS2] Report No FDD For WIN 95 [No] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 4) PISA-E12 User’s Manual...

  • Page 49: Cpu Feature

    The choice: 4 Min , 8 Min, 16 Min (default), 32 Min. Limit CPUID Max Val The choice: Enabled, Disabled (default). C1E Function The choice: Auto (default), Disabled Execute Disabled Bit The choice: Enabled (default), Disabled PISA-E12 User`s Manual...

  • Page 50: Hard Disk Boot Priority

    Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 6) Bootable Add-in Cards This is for setting the priority of the hard disk boot order when the “Hard Disk” option is selected in the “[First/Second/Third] Boot Device “menu item. PISA-E12 User’s Manual...

  • Page 51: Virus Warning

    This field is used to enable or disable the CPU‟s L3 cache. The choice: Enabled (default), Disabled. Quick Power On Self Test Allows the system to skip certain tests while booting. This will decrease the time needed to boot the system. Enabled Enable quick POST(default) Disabled Normal POST PISA-E12 User`s Manual...

  • Page 52: First/Second/Third Boot Device

    Boot Up Num Lock Status Selects power on state for Num Lock. The choice: On, Off (default). Gate A20 Option The choice: Normal: A pin in the keyboard controller controls GateA20. Fast (default): Lets chipset control GateA20. PISA-E12 User’s Manual...

  • Page 53: Typematic Rate Setting

    Sets the delay time after the key is held down before it begins to repeat the keystroke. The choice: 250 (default), 500, 750, and 1000. Typematic Delay (Msec) ….. [ ….. [ ….. [ 1000 ….. [ : Move Enter: Accept ESC: Abort PISA-E12 User`s Manual...

  • Page 54: Security Option

    OS Select For DRAM > 64MB Select OS2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system. The choice: Non-OS2 (default), OS2. Report No FDD For WIN 95 The choice: No (default), Yes. PISA-E12 User’s Manual...

  • Page 55: Advanced Chipset Features

    TV Standard [Off] Video Connector [Automatic] TV Format [Auto] Lan1 Chip Control [Enabled] Lan2 Chip Control [Enabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 7) PISA-E12 User`s Manual...

  • Page 56: Dram Timing Selectable

    This controls the idle clocks after issuing a precharge command to DRAM. Leave this on the default setting. The choice: Auto (default), 2, 3,4,5,6. Precharge dealy (tRAS) The choice: Auto (default), 4,5,6,7,8,9,10,11,12,13,14,15. System Memory Frequency The choice: Auto (default), 533MHz, 667MHz PISA-E12 User’s Manual...

  • Page 57: Slp_S4#Assertoin Width

    16 MB. The choice: Enabled, Disabled (default) On-Chip Frame Buffer Size User can select frame buffer size. The choice: 1MB, 8MB (default). DVMT Mode This field shows the current DVMT mode. The choice: FIXED, DVMT (default), BOTH PISA-E12 User`s Manual...

  • Page 58: Dvmt / Fixed Memory Size

    The choice: Off (default), NTSC, PAL, SECAM. Video Connector The choice: Automatic (default), Composite, Component, Both. TV Format The choice: Auto(default) NTSC_M NTSC_M_J NTSC_433 NTSC_N PAL_B PAL_G PAL_D PAL_H PAL_I PAL_M PAL_N PAL_60 SECAM_L SECAM_L1 SECAN_B SECAN_D SECAN_G SECAN_H SECAN_K SECAN_K1 PISA-E12 User’s Manual...

  • Page 59: Lan1 Chip Control

    Lan1 Chip Control The choice: Enabled (default), Disabled. Lan2 Chip Control The choice: Enabled (default), Disabled. PISA-E12 User`s Manual...

  • Page 60: Integrated Peripherals

    [IRQ3] Onboard Serial Port 4 [2E8] Serial Port 4 Use IRQ [IRQ4] Watch Dog Timer Select [Disabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 8) PISA-E12 User’s Manual...

  • Page 61: On Chip Ide Device

    Enabled for automatic detection of the optimal number of block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read /write per sector where the drive can support. The choice: Enabled (default), Disabled PISA-E12 User`s Manual...

  • Page 62: On-Chip Primary Pci Ide

    Auto (default) On-Chip Secondary PCI IDE These fields allow you to enable or disable the primary and secondary IDE controller. Select disabled if you want to add a different hard drive controller. The choice: Enabled (default), Disabled. PISA-E12 User’s Manual...

  • Page 63: On-Chip Serial Ata

    Disable sector x PATA IDE Mode Secondary the drive x SATA Port PO, P2 is Primary support ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 10) PISA-E12 User`s Manual...
  • Page 64 SATA PORT Speed Settings Disable x PATA IDE Mode Secondary x SATA Port PO, P2 is Primary Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help ↑↓← → ：Move F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (FigurE12) PISA-E12 User’s Manual...

  • Page 65: Sata Mode

    This field is used to select the function mode of the IDE connector. The only choice: Secondary: IDE serves as Secondary Master and Secondary Slave channel. SATA 1 and SATA 2 serve as Primary Master and Primary Slave channel. PISA-E12 User`s Manual...

  • Page 66: Sata Mode

    F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure13) SATA Mode Controls the SATA controller's operating mode. The choice: IDE (default), RAID, AHCI. SATA Port Speed Settings Select SATA speed. The choice: Disabled (default), Force GEN I, Force GEN PISA-E12 User’s Manual...

  • Page 67: Sata Mode

    PO, P2 is Primary ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure14) SATA Mode Controls the SATA controller's operating mode. The choice: IDE (default), RAID, AHCI. PISA-E12 User`s Manual...

  • Page 68: On Board Device

    USB Keyboard Support Select enabled if user plan to use an USB keyboard. The choice: Enabled, Disabled (default). Azalia/AC97 Audio Select The choice: Auto (default), Azalia, AC97 Audio and Modem, AC97 Audio only, AC97 Modem only, ALL Disabled. PISA-E12 User’s Manual...

  • Page 69: Super Io Device

    Select an address and corresponding interrupt for the first serial ports. The choice: Disable, 3F8/IRQ4 (default), 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto. Onboard Serial Port 2 Select an address and corresponding interrupt for the second serial ports. The choice: Disable, 3F8/IRQ4, 2F8/IRQ3 (default), 3E8/IRQ4, 2E8/IRQ3, Auto. PISA-E12 User`s Manual...

  • Page 70: Uart Mode Select

    UART Mode Select Hi, Hi ……[ Hi, Lo ……[ Lo, Hi …..[ Lo, Lo …..[ : Move Enter: Accept ESC: Abort IR Transmission Delay The choice: Disabled, Enabled (default). UR2 Duplex Mode The choice: Full, Half (default). PISA-E12 User’s Manual...

  • Page 71: Onboard Parallel Port

    [378/IRQ7] Parallel Port Mode [SPP] x EPP Mode Select EPP1.7 x ECP Mode Use DMA PWRON After PWR-Fail [Off] Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit ↑↓← → ：Move F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PISA-E12 User`s Manual...

  • Page 72: Epp Mode Select

    PWRON After PWR-Fail [Off] Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit ↑↓← → ：Move F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default EPP Mode Select Select EPP port type 1.7 or 1.9. The choice: 1.7 (default), 1.9. PISA-E12 User’s Manual...

  • Page 73: Ecp Mode Use Dma

    If your system supports ECP parallel port mode and you have the port set to use ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). PISA-E12 User`s Manual...

  • Page 74: Epp Mode Select

    ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). PWRON After PWR-Fail When power fails, you can select power ON or Off or Former status. The choice: Off (default), On, Former-Sts. PISA-E12 User’s Manual...

  • Page 75: Onboard Serial Port 3

    The choice: Disabled, 3F8, 2F8, 3E8, 2E8 (default). Serial Port 4 Use IRQ This is used to select an IRQ for the onboard serial port 4. The choice: IRQ3, IRQ4 (default), IRQ5, IRQ7, IRQ10, IRQ11. Watch Dog Timer Select The choice: Disabled (default), Enable PISA-E12 User`s Manual...

  • Page 76: Power Management Setup

    Primary IDE 1 [Disabled] Secondary IDE 0 [Disabled] Secondary IDE 1 [Disabled] FDD , COM , LPT Port [Disabled] PIRQ[A-D]# [Disabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PISA-E12 User’s Manual...

  • Page 77: Pci Express Pm Function

    SL CPUs. Inactivity period is 1 minute in each mode. User Define Set each mode individually. Select time-out periods in the section for each mode, below. Min Saving Minimum power savings. Inactivity period is 1 hour in each mode (except the hard drive). PISA-E12 User`s Manual...

  • Page 78: Video Off Method

    'Wake up Events in Doze & Standby' / 'PM Events'. The choice: 1Min, 2Min, 4Min, 8Min, 12Min, 20Min, 30Min, 40Min,1Hour, Disable (default). PISA-E12 User’s Manual...

  • Page 79: Hdd Power Down

    The choice: 75.0%, 50.0% (default), 25.0%. Wake-Up by PCI card Enable/Disable PCI PME wake up function. The choice: Enabled (default), Disabled. Power On by Ring Enable/Disable Power On By Ring function. The choice: Enabled (default), Disabled. PISA-E12 User`s Manual...

  • Page 80: Resume By Alarm

    Key in a DEC number: wwww : Move Enter: Accept ESC:Abort Primary/ Secondary IDE 0/1 When Enabled, the system will resume from suspend mode if Primary IDE 0 (1) or Secondary IDE 0 (1) is active. The choice: Enabled, Disabled (default) PISA-E12 User’s Manual...

  • Page 81: Fdd, Com, Lpt Port

    When Enabled, the system will resume from suspend mode if FDD, COM port, or LPT port is active. The choice: Enabled, Disabled (default). PCI PIRQ [A-D] # When Enabled, the system will resume from suspend mode if interrupt occurs. The choice: Enabled, Disabled (default). PISA-E12 User`s Manual...

  • Page 82: Pnp/Pci Configuration

    ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Init Display First This item allows you to choose which one to activate first, PCI Slot or onchip VGA. The choice: PCI Slot (default), Onboard, PCIEx. PISA-E12 User’s Manual...

  • Page 83: Reset Configuration Data

    [Auto] INT Pin 7 Assignment [Auto] INT Pin 8 Assignment [Auto] **PCI Express relative items** Maximum Payload Size [4096] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PISA-E12 User`s Manual...

  • Page 84: Irq Resource

    ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default IRQ-3,4,5,7,9,10,11,12,14,15 assigned to IRQ-3 assigned to PCI Device ….. [ Reserved ….. [ : Move Enter: Accept ESC:Abort The choice: PCI Device, Reserved. PISA-E12 User’s Manual...

  • Page 85: Pci/Vga Palette Snoop

    This BIOS feature determines if your graphics card should allow VGA palette snooping by a fixed function display card. The choice: Enabled, Disabled (default). INT Pin 1/2/3/4/5/6/7/8 Assignment The choice: Auto (default),3,4,5,7,9,10,11,12,14,15. Maximum Payload Size The choice: 128 (default), 256,512,1024,2048,4096. PISA-E12 User`s Manual...

  • Page 86: Pc Health Status

    F6:Fail-Safe Defaults F7:Optimized Default CPU Warning Temperature Select the CPU over-heated warning temperature. The choice: Disabled (default), 50 C/122F, 53C/127F, 56C/133F, 60C/140F, 63C/145F, 66C/151F, 70C/158F. Current System Temp Show System Temperature. Current CPU Temperature Shows Board Temperature PISA-E12 User’s Manual...
  • Page 87 CPU FAN Speed Shows speed. CPU Fan CHASSIS Fan Speed Shows CHASSIS speed Shutdown Temperature Select the CPU over-heated shutdown temperature. The choice: Disabled (default), 60 C/140F, 65C/149F, 70C/158F, 75C/167F PISA-E12 User`s Manual...
  • Page 88 Load Fial-Safe Defaults (Y/N)? N ►PnP/PCI Configuration Save & Exit Setup ►PC Health Status Exit Without Saving Esc :Quit ↑↓← → ：Select Item F10:Save & Exit Setup Pressing „Y‟ loads the BIOS default values for the most stable, minimal-performance system operations. PISA-E12 User’s Manual...
  • Page 89 User password: just can only enter but do not have the right to change the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password. PISA-E12 User`s Manual...
  • Page 90 Set Supervisor Password ►Power Management Set User Password PASSWORD DISABLED!!! ►PnP/PCI Configuration Save & Exit Setup continue… Press any key to ►PC Health Status Exit Without Saving Esc :Quit ↑↓← → ：Select Item F10:Save & Exit Setup PISA-E12 User’s Manual...
  • Page 91 CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again. PISA-E12 User`s Manual...
  • Page 92 Esc :Quit ↑↓← → ：Select Item F10:Save & Exit Setup This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. PISA-E12 User’s Manual...
  • Page 93 CHAPTER 4 Appendix A. I/O P ........86 DDRESS B. I (IRQ) ....... 87 NTERRUPT EQUEST INES C. POST B ............. 88 PISA-E12 User`s Manual...
  • Page 94 Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1) PISA-E12 User’s Manual...
  • Page 95 Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int 0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE PISA-E12 User`s Manual...
  • Page 96 BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. PISA-E12 User’s Manual...
