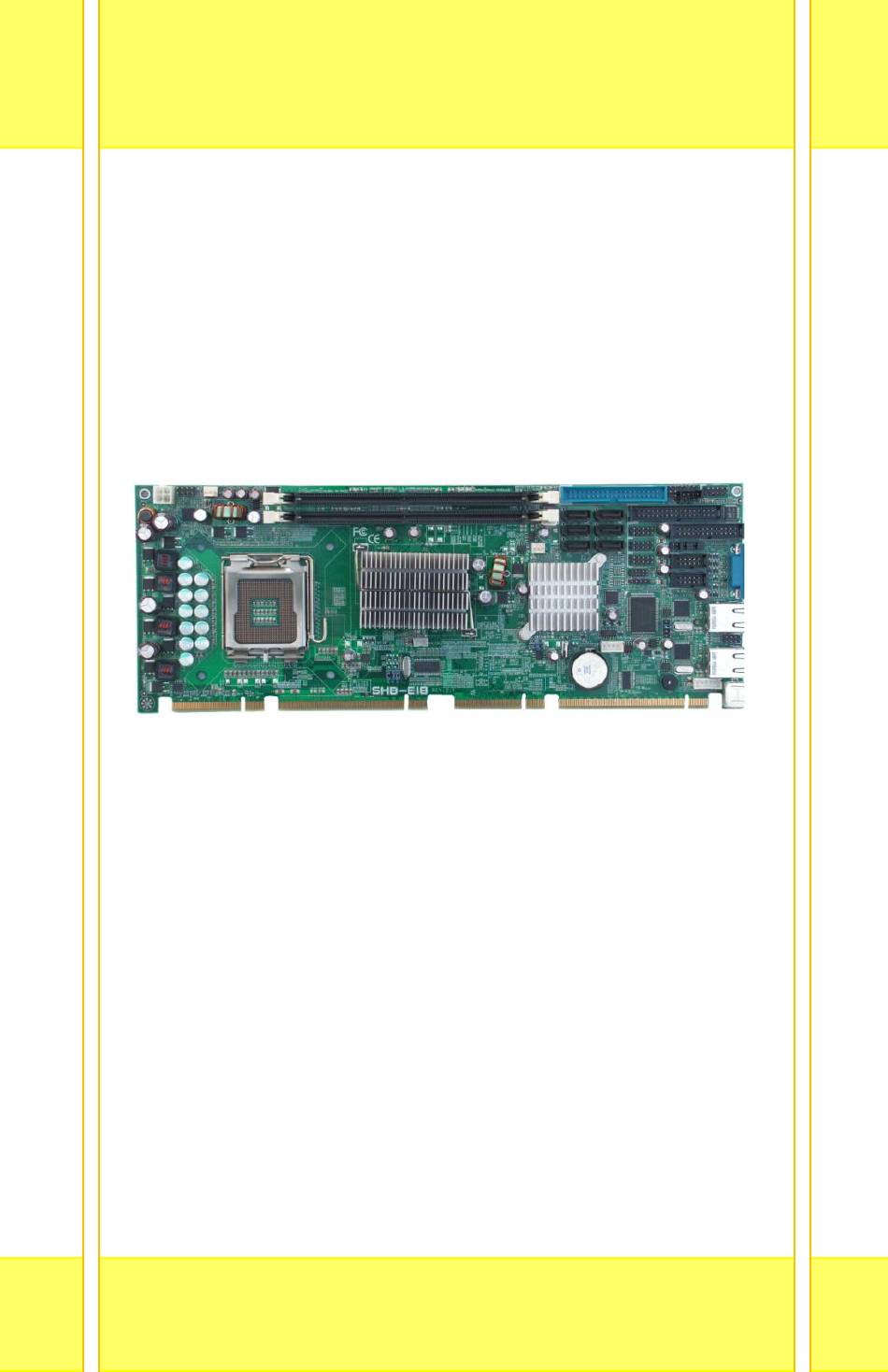

- Page 1 SHB-E18 Intel® Core™2 Quad Q35 PICMG 1.3 SBC User’s Manual Version 1.0...
- Page 2 IBM, PS/2 are trademarks of International Business Machines Corporation. Intel Pentium4 is registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. All other product names or trademarks are properties of their respective owners. SHB-E18 User`s Manual...
-
Page 3: Table Of Contents
JUMPER SETTING & CONNECTORS ............. 7 2.1 J SHB-E18 ..............8 UMPERS ON THE Jumper Locations on the SHB-E18 ..........9 JP3: Clear CMOS RAM Data ............10 AT_MODE: Power Supply Mode Selection ........10 JP4, 5, 6: Front Side Bus Selection ..........11 COM2MODE: RS232/RS422/RS485 .......... - Page 4 Hard Disk Boot Priority ..............41 Bootable Add-in Cards ................. 41 Virus Warning ................42 CPU L3 Cache ................42 Quick Power On Self Test ............. 42 First/Second/Third Boot Device ............ 42 Boot Other Device ................ 43 Swap Floppy Drive ................ 43 SHB-E18 User`s Manual...
- Page 5 LEGACY Mode Support ................ 52 Super IO Device ................52 Onboard FDC Controller ..............52 Onboard Serial Port 1 ................52 Onboard Serial Port 2 ................53 UART Mode Select ................53 RxD, TxD Active ................. 53 SHB-E18 User`s Manual...
- Page 6 ............... 64 ONFIGURATION Init Display First ................64 Reset Configuration Data ............. 65 Resources Controlled By ............... 65 IRQ Resource ................66 IRQ-3,4,5,7,9,10,11,12,14,15 assigned to ..........66 PCI/VGA Palette Snoop ..............67 INT Pin 1/2/3/4/5/6/7/8 Assignment .......... 67 SHB-E18 User`s Manual...
- Page 7 3.12 S & E ............... 73 ETUP 3.13 E ..............73 ITHOUT AVING CHAPTER 4 APPENDIX ..............75 A. I/O P ..............76 DDRESS B. I (IRQ) ............77 NTERRUPT EQUEST INES C. POST B ..................78 SHB-E18 User`s Manual...
- Page 8 Contents This page is intentionally left blank viii SHB-E18 User`s Manual...
-
Page 9: Introduction
Introduction This manual is designed to give you information on the SHB-E18 Single Board Computer card. The topics covered in this manual are as follows: Features Specification Jumper setting and Connectors BIOS Setup Appendix SHB-E18 User`s Manual... -
Page 10: Chapter 1
Chapter 1 Features & Specifications ....................3 EATURES ..................4 PECIFICATIONS SHB-E18 User`s Manual... -
Page 11: Features
Multiple I/O functions: 6 x USB2.0, 2x COM ports, 6x SATA, 1x IRDA, 1x PIDE, 1x LPT, 1x FDD, 1x DIO. Six SATA-II ports support RAID0, RAID 1, RAID 5, RAID10 and Legacy IDE mode. Standard PICMG 1.3 Form Factor. SHB-E18 User`s Manual... -
Page 12: Specifications
Winbond 83627HF LPC I/F Super I/O chip. Two serial ports as COM1~COM2. COM2 is RS232/422/485 selectable by jumper. One Parallel port supports SPP/ECP/EPP mode. One IrDA port, One Floppy connector for up to two drives. SHB-E18 User`s Manual... - Page 13 Dimensions PICMG 1.3 Full-Size SBC form factor. 4.98”(W) x 13.33” (L); or 126.4mm (W) x 338.6mm (L). Operating Temperature 0 to 60 C operating Range. -40~70 C storage Relative Humility: 5~95%, non-condensing. SHB-E18 User`s Manual...
- Page 14 This page is intentionally left blank SHB-E18 User`s Manual...
-
Page 15: Chapter 2
Chapter 2 Jumper setting & Connectors 2.1 J SHB-E18 ..............8 UMPERS ON THE 2.2 C SHB-E18 ............13 ONNECTORS ON THE SHB-E18 User`s Manual... -
Page 16: Umpers On The Shb-E18
2.1 Jumpers on the SHB-E18 The jumpers on the SHB-E18 allow you to configure your Single Board Computer card according to the needs of your applications. If you have doubts about the best jumper configuration for your needs, contact your dealer or sales representative. -
Page 17: Jumper Locations On The Shb-E18
Jumper Locations on the SHB-E18 SHB-E18 User`s Manual... -
Page 18: Jp3: Clear Cmos Ram Data
(5) Turn on your computer. (6) Hold Down <Delete> during boot up and enter BIOS setup to enter your preferences. Clear CMOS Normal Operation Content (default) AT_MODE: Power Supply Mode Selection AT mode ATX mode (default) AT_MODE AT_MODE SHB-E18 User`s Manual... -
Page 19: Jp4, 5, 6: Front Side Bus Selection
JP6: Pin 1-2 short (default) JP4 JP5 JP6 JP4: Pin 1-2 short 1066Mhz FSB JP5: Pin 1-2 short JP6: Pin 1-2 short JP4 JP5 JP6 JP4: Pin 1-2 short 1333Mhz FSB JP5: Pin 1-2 short JP4 JP5 JP6 SHB-E18 User`s Manual... -
Page 20: Com2Mode: Rs232/Rs422/Rs485
COM2 support multi-protocols include RS232, RS422 and RS485. The Protocols of COM2 can be set up through jumpers. COM2MODE: COM2 Protocols selection. The pin-out for each mode is illustrated on next chapter. COM2MODE I/F TYPE RS-232 (default) RS-422 RS-485 SHB-E18 User`s Manual... -
Page 21: Connectors On The Shb-E18
2.2 Connectors on the SHB-E18 The connectors on the SHB-E18 allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers and etc. The following table lists the connectors on Connector Locations on the SHB-E18 ........... 14 ATX_12V Connector .............. -
Page 22: Connector Locations On The Shb-E18
Connector Locations on the SHB-E18 SHB-E18 User`s Manual... -
Page 23: Atx_12V Connector
Pin # Signal Name PWOK 5VSB PS_ON- When using ATX power supply soft-on/off function, please make sure remove AT_MODE jumper. The setting is illustrated as below: BACKPLANE CABLE SHB-E18 User`s Manual... -
Page 24: At_Kb Connector
KBCLK KBDAT PWOK KBVCC AUDIO Connector Pin # Signal Name MIC1-IN-L MIC1-IN-R AGND AGND LINEOUT-L LINE-IN-L LINEOUT-R LINE-IN-R CPU FAN Connector This is a 3-pin header for the CPU fan. Pin # Signal Name Ground +12V CPUPWM SHB-E18 User`s Manual... -
Page 25: Cd_In Connector
E18. The following table shows its pin assignments. Pin # Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send +5V,Ring-IN or +12V SHB-E18 User`s Manual... -
Page 26: Com2 Serial Port
DIO Connector DIO ports support 8 digital I/O bits. Each bit can be configured as Input or output individually. All bits are 5V tolerant. Signal Pin # Signal Name Name DIO_0 DIO_4 DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 SHB-E18 User`s Manual... -
Page 27: Front_Panel Connector
PWRBTN (ATX Power ON/OFF Button) This 2-pin connector acts as the “Power Supply On/Off Switch” on the SHB-E18 main board. When pressed, the switch will force the Main board to power on. When pressed again, it will force the main board to power off. - Page 28 The reset switch allows the user to reset the system without turning the main power switch off and then on. Orientation is not required when making a connection to this header. RESET1 Signal Name Pin # SYS_RST Ground SHB-E18 User`s Manual...
-
Page 29: Floppy Drive Connector
Ground Track 00 Ground Write protect Ground Read data Ground Side 1 select Ground Diskette change IRDA Connector This connector is used for an IRDA connector for wireless communication. IrDA Pin # Signal Name IR-RX Ground IR-TX SHB-E18 User`s Manual... -
Page 30: Ide Connector
Host data 0 Host data 15 Ground Ground Host IOW Ground Host IOR Ground IOCHRDY Host PU 0 DACK Ground IRQ14 No connect Address 1 P66DET Address 0 Address 2 Chip select 1 Chip select 3 Activity LED SHB-E18 User`s Manual... -
Page 31: Lan1, 2- Rj45 Connectors
TX/RX activity. The Orange/Green Dual color LED on the left-hand side indicates the operation mode, i.e. 10Base-T, 100Base-T or 1000Base-T. LNK/ACT STATUS GREEN Link Disconnected FLASH Packets TX/RX SPEED MODE ORANGE 1000 Mbps GREEN 100 Mbps 10 Mbps SHB-E18 User`s Manual... -
Page 32: Lan_Led1 Connector
LAN_LED2 Connector The 4-pins LAN_LED2 connector designed for LAN2 port is for applications need to display LAN2 port status on front panel or the places administrators are easy to access. Pin # Signal Name 2_ACTLED 2_PULUP 2_LINK1000 2_LINK100 SHB-E18 User`s Manual... -
Page 33: Ps/2 Keyboard & Mouse Connector
PD2, parallel data 2 Select PD3, parallel data 3 Ground PD4, parallel data 4 Ground PD5, parallel data 5 Ground PD6, parallel data 6 Ground PD7, parallel data 7 Ground ACK, acknowledge Ground Busy Ground Paper empty Ground Select SHB-E18 User`s Manual... -
Page 34: Sata1~6 Connectors
This is a 3-pin header for the system fan. Pin # Signal Name Ground +12V SYSPWM SPDIF Connector SPDIF connector is for S/PDIF audio module that allows digital instead of analog sound input or output. Signal Name Signal Name SPDIFO SPDIFI SHB-E18 User`s Manual... -
Page 35: Sdvo_Ctrl
Pin # Signal Name Exp_EN SDVO_CLCLK SDVO_CLDATA USB12, 34, 56 Connectors The following table shows the pin outs of the USB12, USB34, USB56 connectors. Signal Pin # Pin # Signal Name Name N.C. USB- USB+ USB+ USB- N.C. SHB-E18 User`s Manual... -
Page 36: Vga Connector
VGA Connector The pin assignments of VGA CRT connector are as follows: Signal Name Pin # Pin # Signal Name Green Blue N.C. N.C. N.C. DDC_DATA HSYNC VSYNC DDC_CLK SHB-E18 User`s Manual... -
Page 37: Chapter 3 Bios Setup
Chapter 3 BIOS Setup This chapter describes the different settings available in the Award BIOS that comes with the SHB-E18 CPU card. The topics covered in this chapter are as follows: 3.1 M .................. 31 3.2 S CMOS F ............33... -
Page 38: Bios Introduction
And the firmware chip will store the setup utility on the board. However, if you want to enter the setup after the POST, you can press Ctrl + Alt + Del simultaneously or turn off the power then back on. SHB-E18 User`s Manual... -
Page 39: Main Menu
Use this menu for basic system configuration. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Advance Chipset Features Use this menu to change the values in the chipset registers and optimize your system's performance. SHB-E18 User`s Manual... -
Page 40: Integrated Peripherals
Set Supervisor/ User Password Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. SHB-E18 User`s Manual... -
Page 41: Standard Cmos Features
Video [EGA/VGA] Halt On [All , But Disk/Key] Base Memory 639K Extend Memory 1037312K Total Memory 1038336K ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 2) SHB-E18 User`s Manual... - Page 42 All, but Disk/Key Base Memory Displays the amount of conventional memory detected during boot up Extended Memory Displays the amount of extended memory detected during boot up Total Memory Displays the total memory available in the system SHB-E18 User`s Manual...
-
Page 43: Ide Channel 0, 1 Master/ Slave
To auto-detect the HDD’s Capacity 0 MB size, head…on this channel Cylinder Head Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 3) SHB-E18 User`s Manual... -
Page 44: Ide Channel 2, 3 Master
↑↓← → ：Move Enter: Accept Esc: Abort Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 4) Extended IDE Drive The choice: None, Auto (default) SHB-E18 User`s Manual... - Page 45 Min = 0 **** Warning: Setting a value Max = 65535 of 65535 means no hard disk Landing zone Min = 0 **** Max = 65535 Sector Min = 0 Number of sectors per track Max = 255 SHB-E18 User`s Manual...
-
Page 46: Drive A/B
The system boot will not be halted for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not be halted for a key- board or disk error; it will stop for all others. (default) SHB-E18 User`s Manual... -
Page 47: Advanced Bios Features
MPS Version Control For OS [1.4] OS Select For DRAM > 64MB [Non-OS2] Report No FDD For WIN 95 [No] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 5) SHB-E18 User`s Manual... -
Page 48: Cpu Feature
Limit CPUID Max Val The choice: Enabled, Disabled (default). C1E Function The choice: Auto (default), Disabled. Execute Disabled Bit The choice: Enabled, Disabled (default). Virtualization Technology The choice: Enabled (default), Disabled. Core Multi-Processing The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 49: Hard Disk Boot Priority
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 7) Bootable Add-in Cards This is for setting the priority of the hard disk boot order when the “Hard Disk” option is selected in the “[First/Second/Third] Boot Device “menu item. SHB-E18 User`s Manual... -
Page 50: Virus Warning
The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The Choice: Floppy, LS120, Hard-Disk, ZIP100, CDROM, Disabled, USB-FDD, USB-ZIP, USB-CDROM, Legacy LAN. Item Default First Boot Device Hard-Disk Second Boot Device CDROM Third Boot Device LS120 SHB-E18 User`s Manual... -
Page 51: Boot Other Device
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The choice: Enabled, Disabled (default). If Typematic Rate Setting is [Enabled], can choice Rate and Delay: SHB-E18 User`s Manual... -
Page 52: Typematic Rate (Chars/Sec)
Sets the delay time after the key is held down before it begins to repeat the keystroke. The choice: 250 (default), 500, 750, and 1000. Typematic Delay (Msec) ….. [ ….. [ ] ….. [ ] 1000 ….. [ ] : Move Enter: Accept ESC:Abort SHB-E18 User`s Manual... -
Page 53: Security Option
OS Select For DRAM > 64MB Select OS2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system. The choice: Non-OS2 (default), OS2. Report No FDD For WIN 95 The choice: No (default), Yes. SHB-E18 User`s Manual... -
Page 54: Advanced Chipset Features
DVMT Mode [DVMT] DVMT / FIXED Memory Size [128MB] Lan1 Chip Control [Enabled] Lan2 Chip Control [Enabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 8) SHB-E18 User`s Manual... -
Page 55: Dram Timing Selectable
Leave this on the default setting. The choice: Auto (default), 2, 3,4,5,6. Precharge dealy (tRAS) The choice: Auto (default), 4,5,6,7,8,9,10,11,12,13,14,15. System Memory Frequency The choice: Auto (default), 533MHz, 667MHz. System BIOS Cacheable The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 56: Memory Hole At 15M-16M
The choice: Onchip VGA, PEG Port, Auto (default). On-Chip Frame Buffer Size User can select frame buffer size. The choice: 1MB, 8MB (default). DVMT Mode This field shows the current DVMT mode. The choice: FIXED, DVMT (default), BOTH. SHB-E18 User`s Manual... -
Page 57: Dvmt / Fixed Memory Size
This field is used to select the graphics memory size used by DVMT/ Fixed mode. The choice: 64MB, 128MB (default), 224MB. Lan1 Chip Control The choice: Enabled (default), Disabled. Lan2 Chip Control The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 58: Integrated Peripherals
IDE Secondary Slave UDMA [Auto] of lock SATA Mode [IDE] read/writes per LEGACY Mode Support [Disabled] sector the drive can support ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default SHB-E18 User`s Manual... -
Page 59: Ide Hdd Block Mode
The BIOS will automatically set the system according to your hard disk drive’s timing (default). Mode 0-4 You can select a mode that matches your hard disk drive’s timing. IDE Primary/Secondary, Master/ Slave UDMA The choice: Disabled, Auto (default). SHB-E18 User`s Manual... -
Page 60: On-Chip Secondary Pci Ide
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Onboard FDC Controller The choice: Enabled (default), Disabled. Onboard Serial Port 1 Select an address and corresponding interrupt for the first serial ports. The choice: Disable, 3F8/IRQ4 (default), 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto. SHB-E18 User`s Manual... -
Page 61: Onboard Serial Port 2
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default RxD, TxD Active The choice: UART Mode Select Hi, Hi ……[ ] Hi, Lo ……[ ] Lo, Hi …..[ ] Lo, Lo …..[ ] : Move Enter: Accept ESC: Abort SHB-E18 User`s Manual... -
Page 62: Ir Transmission Delay
[378/IRQ7] Parallel Port Mode [SPP] x EPP Mode Select EPP1.7 x ECP Mode Use DMA PWRON After PWR-Fail [Off] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default SHB-E18 User`s Manual... -
Page 63: Epp Mode Select
Onboard Parallel Port [378/IRQ7] Parallel Port Mode [ECP] x EPP Mode Select ECP Mode Use DMA PWRON After PWR-Fail [Off] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default SHB-E18 User`s Manual... -
Page 64: Ecp Mode Use Dma
ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). PWRON After PWR-Fail When power fails, you can select power ON or Off or Former status. The choice: Off (default), On, Former-Sts. SHB-E18 User`s Manual... -
Page 65: Watch Dog Timer Select
If the BIOS has high speed USB support built in, the support will be automatically turn on when high speed device were attached. The choice: Enabled (default), Disabled. USB Operation Mode The choice: Full/Low Speed, High Speed (default). USB Keyboard Function The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 66: Usb Mouse Function
USB Mouse Function The choice: Enabled (default), Disabled. USB Storage Function The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 67: Power Management Setup
↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 68: Power Management
Suspend Type The choice: Stop Grant (default),PwrOn Suspend. MODEM Use IRQ This field is used to set an IRQ channel for the modem installed in your system. The choice: NA, 3 (default), 4, 5, 7, 9, 10, 11. SHB-E18 User`s Manual... -
Page 69: Suspend Mode
This field allows you to select the CPU THRM-Throttling rate. The choice: 75.0%, 50.0% (default), 25.0%. Wake-Up by PCI card Enable/Disable PCI PME wake up function. The choice: Enabled (default), Disabled. Power On by Ring Enable/Disable Power on by Ring function. The choice: Enabled (default), Disabled. SHB-E18 User`s Manual... -
Page 70: Resume By Alarm
Key in a DEC number: wwww : Move Enter: Accept ESC:Abort Primary/ Secondary IDE 0/1 When Enabled, the system will resume from suspend mode if Primary IDE 0 (1) or Secondary IDE 0 (1) is active. The choice: Enabled, Disabled (default). SHB-E18 User`s Manual... -
Page 71: Fdd, Com, Lpt Port
When Enabled, the system will resume from suspend mode if FDD, COM port, or LPT port is active. The choice: Enabled, Disabled (default). PCI PIRQ [A-D] # When Enabled, the system will resume from suspend mode if interrupt occurs. The choice: Enabled, Disabled (default). SHB-E18 User`s Manual... -
Page 72: Pnp/Pci Configuration
↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Init Display First This item allows you to choose which one to activate first, PCI Slot or onchip VGA. The choice: PCI Slot (default), Onboard, PCIEx. SHB-E18 User`s Manual... -
Page 73: Reset Configuration Data
[Auto] INT Pin 7 Assignment [Auto] INT Pin 8 Assignment [Auto] **PCI Express relative items** Maximum Payload Size [128] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default SHB-E18 User`s Manual... -
Page 74: Irq Resource
↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default IRQ-3,4,5,7,9,10,11,12,14,15 assigned to IRQ-3 assigned to PCI Device ….. [ Reserved ….. [ : Move Enter: Accept ESC:Abort The choice: PCI Device, Reserved. SHB-E18 User`s Manual... -
Page 75: Pci/Vga Palette Snoop
This BIOS feature determines if your graphics card should allow VGA palette snooping by a fixed function display card. The choice: Enabled, Disabled (default). INT Pin 1/2/3/4/5/6/7/8 Assignment The choice: Auto (default),3,4,5,7,9,10,11,12,14,15. Maximum Payload Size The choice: 128 (default), 256,512,1024,2048,4096. SHB-E18 User`s Manual... -
Page 76: Pc Health Status
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default CPU Warning Temperature Select the CPU over-heated warning temperature. The choice: Disabled (default), 50C/122F, 53C/127F, 56C/133F, 60C/140F, 63C/145F, 66C/151F, 70C/158F. Current System Temp Show System Temperature. Current CPU Temp Shows Board Temperature. SHB-E18 User`s Manual... -
Page 77: Cpu Fan Speed
CPU FAN Speed Shows speed. CPU Fan CHASSIS Fan Speed Shows CHASSIS speed. POWER Fan Speed Shows POWER speed. Shutdown Temperature Select the CPU over-heated shutdown temperature. The choice: Disabled (default), 60C/140F, 65C/149F, 70C/158F, 75C/167F. SHB-E18 User`s Manual... -
Page 78: Load Fail-Safe Defaults
Load Optimized Defaults (Y/N)? N Save & Exit Setup ►PC Health Status Exit Without Saving ↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations. SHB-E18 User`s Manual... -
Page 79: Set Supervisor/ User Password
Load Optimized Default ►Integrated Peripherals Set Supervisor Password ►Power Management Set User Password ►PnP/PCI Configuration Save & Exit Setup ►PC Health Status Enter Password: Exit Without Saving ↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup SHB-E18 User`s Manual... - Page 80 Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. SHB-E18 User`s Manual...
-
Page 81: Save & Exit Setup
↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. SHB-E18 User`s Manual... - Page 82 This page is intentionally left blank SHB-E18 User`s Manual...
-
Page 83: Chapter 4 Appendix
CHAPTER 4 Appendix A. I/O P ..............76 DDRESS B. I (IRQ) ............77 NTERRUPT EQUEST INES C. POST B ..................78 SHB-E18 User`s Manual... -
Page 84: I/O Port Address Map
Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1) SHB-E18 User`s Manual... -
Page 85: Interrupt Request Lines (Irq)
Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE SHB-E18 User`s Manual... -
Page 86: Post Beep
This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. SHB-E18 User`s Manual...
