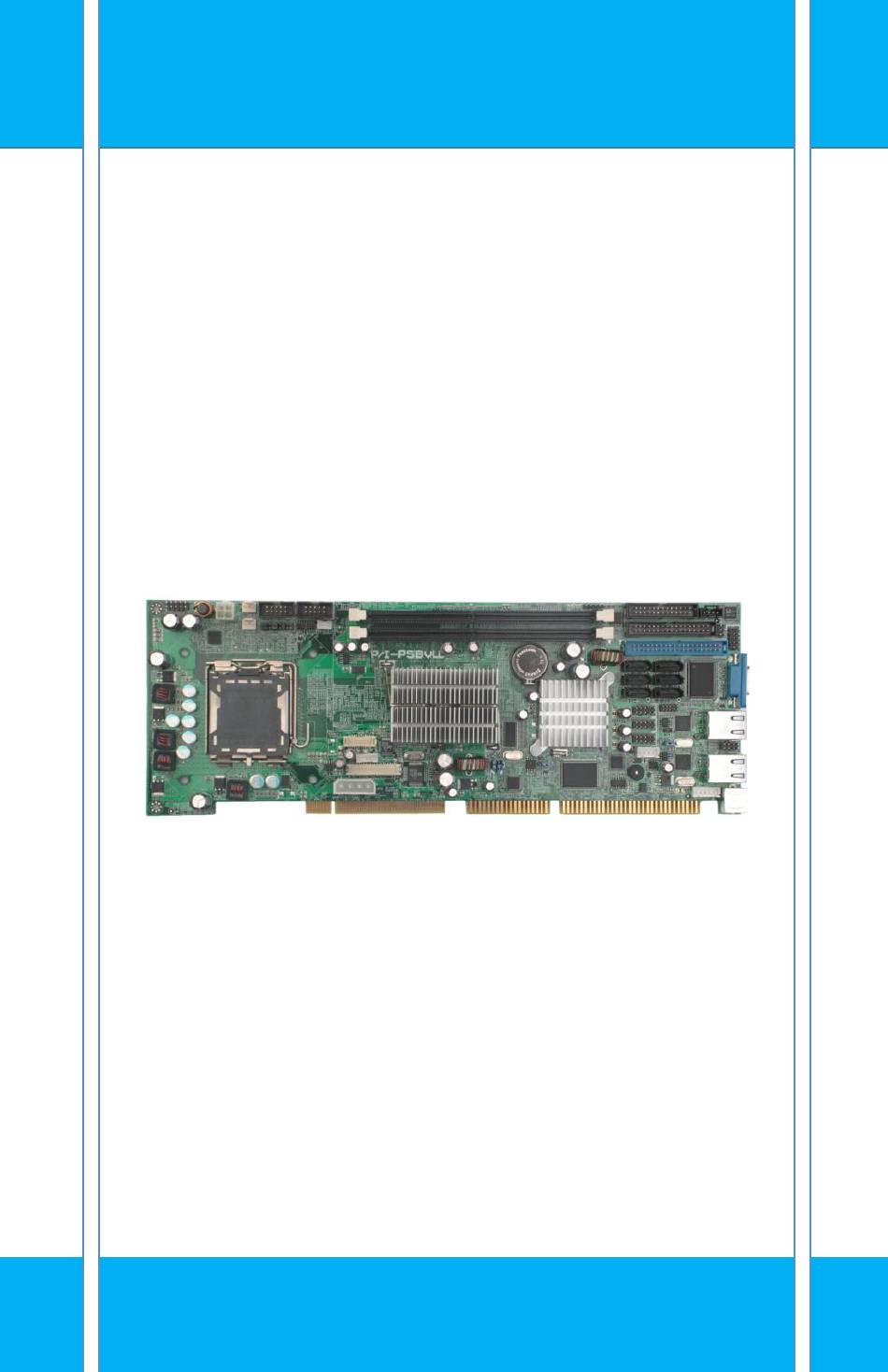

- Page 1 PI-P5BVLL Intel® Core™ 2Quad Q35 PICMG 1.0 SBC User’s Manual Version 1.0...
- Page 2 IBM, PS/2 are trademarks of International Business Machines Corporation. Intel Pentium4 is registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. All other product names or trademarks are properties of their respective owners. PI-P5BVLL User`s Manual...
-
Page 3: Table Of Contents
JUMPER SETTING & CONNECTORS ............. 7 2.1 J PI-P5BVLL .............. 8 UMPERS ON THE Jumper Locations on the PI-P5BVLL ..........9 JP1: Clear CMOS RAM Data ............10 JP2, JP3, JP4: Front Side Bus Selection .......... 11 AT_MODE: Power Supply Mode Selection ........11 COM2MODE: RS232/RS422/RS485 .......... - Page 4 C1E Function ..................42 Execute Disabled Bit ................42 Hard Disk Boot Priority ..............43 Bootable Add-in Cards ................. 43 Virus Warning ................44 Hyper-Threading Technology ............44 Quick Power On Self Test ............. 44 First/Second/Third Boot Device ............ 44 PI-P5BVLL User`s Manual...
- Page 5 IDE Primary/Secondary, Master/ Slave UDMA ........53 On-Chip Secondary PCI IDE ..............54 SATA Mode ..................54 LEGACY Mode Support ................ 54 Super IO Device ................54 Onboard FDC Controller ..............54 Onboard Serial Port 1 ................54 PI-P5BVLL User`s Manual...
- Page 6 Time (hh: mm: ss) Alarm .............. 65 Primary/ Secondary IDE 0/1 ............65 FDD, COM, LPT Port ..............66 PCI PIRQ [A-D] # ................66 3.7 P P/PCI C ............... 67 ONFIGURATION Init Display First ................67 Reset Configuration Data ............. 68 PI-P5BVLL User`s Manual...
- Page 7 3.12 S & E ............... 77 ETUP 3.13 E ..............77 ITHOUT AVING CHAPTER 4 APPENDIX ..............79 A. I/O P ..............80 DDRESS B. I (IRQ) ............81 NTERRUPT EQUEST INES C. POST B ..................82 PI-P5BVLL User`s Manual...
- Page 8 Contents This page is intentionally left blank viii PI-P5BVLL User`s Manual...
-
Page 9: Introduction
Introduction This manual is designed to give you information on the PI-P5BVLL Single Board Computer card. The topics covered in this manual are as follows: Features Specification Jumper setting and Connectors BIOS Setup Appendix PI-P5BVLL User`s Manual... -
Page 10: Chapter 1
Chapter 1 Features & Specifications ....................3 EATURES ..................4 PECIFICATIONS PI-P5BVLL User`s Manual... -
Page 11: Features
High-Definition Audio Codec support Line-out, Line-in and Microphone, CD-IN and SPDIF. PICMG 1.0 Standard form factor support PCI and ISA interface. Multiple display technology: Support CRT, Dual channel 24-bits LVDS LCD display and DVI interface Display. PI-P5BVLL User`s Manual... -
Page 12: Specifications
COM1~COM2 are pin-header for internal connections. One Floppy connector supports up to floppy drives. One Parallel port supports SPP/ECP/EPP mode. One IrDA port. One Mini-DIN connector on I/O bracket to support PS2 Keyboard and mouse. PI-P5BVLL User`s Manual... - Page 13 Temperature Monitor: One sensor close to CPU socket for CPU temperature detection. One sensor close to 83627HF chip for board temperature detection. One CPU FAN for CPU cooler, one SYS FAN for chassis FAN. All FAN speeds are monitored. PI-P5BVLL User`s Manual...
- Page 14 Operating Temperature: 0~60°C Operation Range. -40C to 70C storage. Relative Humility: 5~95%, non-condensing. Dimensions: 13.3” (L) x 4.8” (W); or 338mm (L) x 124mm (W). PICMG 1.0 Standard Form Factor. PI-P5BVLL User`s Manual...
-
Page 15: Chapter 2
Chapter 2 Jumper setting & Connectors 2.1 J PI-P5BVLL .............. 8 UMPERS ON THE 2.2 C PI-P5BVLL ............13 ONNECTORS ON THE PI-P5BVLL User`s Manual... -
Page 16: Umpers On The Pi-P5Bvll
2.1 Jumpers on the PI-P5BVLL The jumpers on the PI-P5BVLL allow you to configure your Single Board Computer card according to the needs of your applications. If you have doubts about the best jumper configuration for your needs, contact your dealer or sales representative. -
Page 17: Jumper Locations On The Pi-P5Bvll
Jumper Locations on the PI-P5BVLL PI-P5BVLL User`s Manual... -
Page 18: Jp1: Clear Cmos Ram Data
(3) Short the pin2 and pin3 for three seconds. (4) Put Jumper cap back to pin1 & 2. (5) Turn on your computer. (6) Hold Down <Delete> during boot up and enter BIOS setup to enter your preferences. Clear CMOS Normal Operation Content (default) PI-P5BVLL User`s Manual... -
Page 19: Jp2, Jp3, Jp4: Front Side Bus Selection
1066Mhz FSB JP3: Pin 1-2 short JP4: Pin 1-2 short JP4 JP3 JP2 JP2: Pin 1-2 short 1333Mhz FSB JP3: Pin 1-2 short JP4 JP3 JP2 AT_MODE: Power Supply Mode Selection AT mode ATX mode (default) AT_MODE AT_MODE PI-P5BVLL User`s Manual... -
Page 20: Com2Mode: Rs232/Rs422/Rs485
LCDPWR can be used to select the Panel LCD supple power: +3.3V or +5V.The default setting is on +3.3V.User need to check the LCD panel spec and adjust this jumper to make Panel work in specified power rail. This Jumper serves LVDS LCD connector. +3.3V(default) PI-P5BVLL User`s Manual... -
Page 21: Connectors On The Pi-P5Bvll
2.2 Connectors on the PI-P5BVLL The connectors on the PI-P5BVLL allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers and etc. The following table lists the connectors on Connector Locations on the PI-P5BVLL ......... 14 DIO Connector ................ -
Page 22: Connector Locations On The Pi-P5Bvll
Connector Locations on the PI-P5BVLL PI-P5BVLL User`s Manual... -
Page 23: Dio Connector
DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 USB12, 34, 56 Connectors The following table shows the pin outs of the USB12, USB34, USB56 connectors. Signal Pin # Pin # Signal Name Name N.C. USB- USB+ USB+ USB- N.C. PI-P5BVLL User`s Manual... -
Page 24: Sata1~6 Connectors
Pin # Signal Name SATATX+ SATATX- SATARX- SATARX+ VGA Connector The pin assignments of VGA CRT connector are as follows: Signal Name Pin # Pin # Signal Name Green Blue N.C. N.C. N.C. DDC_DATA HSYNC VSYNC DDC_CLK PI-P5BVLL User`s Manual... -
Page 25: Lan1, 2- Rj45 Connectors
TX/RX activity. The Orange/Green Dual color LED on the left-hand side indicates the operation mode, i.e. 10Base-T, 100Base-T or 1000Base-T. LNK/ACT STATUS GREEN Link Disconnected FLASH Packets TX/RX SPEED MODE ORANGE 1000 Mbps GREEN 100 Mbps 10 Mbps PI-P5BVLL User`s Manual... -
Page 26: Audio Connector
AUDIO Connector Pin # Signal Name MIC1-IN-L MIC1-IN-R AGND AGND LINEOUT-L LINE-IN-L LINEOUT-R LINE-IN-R CD_IN Connector CD_IN connector is designed for wire the CD_ROM audio signals to the on-board Audio CODEC. Pin # Signal Name CD_Left CD_Right PI-P5BVLL User`s Manual... -
Page 27: Ps/2 Keyboard & Mouse Connector
PWRBTN1 (ATX Power ON/OFF Button) This 2-pin connector acts as the “Power Supply On/Off Switch” on the PI-P5BVLL main board. When pressed, the switch will force the Main board to power on. When pressed again, it will force the main board to power off. - Page 28 Orientation is not required when making a connection to this header. RESET1 Signal Name Pin # SYS_RST Ground KEYLOCK Switch The keylock switch, when closed, will disable the keyboard function. RESET Signal Name Pin # KEYLOCK PI-P5BVLL User`s Manual...
-
Page 29: System Fan Connector
This is a 3-pin header for the CPU fan. Pin # Signal Name Ground +12V CPUPWM IRDA Connector This connector is used for an IrDA connector for wireless communication. IrDA Pin # Signal Name IR-RX Ground IR-TX PI-P5BVLL User`s Manual... -
Page 30: Com1 Serial Port
RXD, Receive data RX+ (422) TXD, Transmit data RX- (422) DTR, Data terminal ready GND, ground DSR, Data set ready N.C. N.C. RTS, Request to send N.C. CTS, Clear to send N.C. +5V,Ring-IN or +12V N.C. N.C. PI-P5BVLL User`s Manual... -
Page 31: Ide Connector
LAN1_LED Connector The 4-pins LAN1_LED connector designed for LAN1 port is for applications need to display LAN1 port status on front panel or the places administrators are easy to access. Pin # Signal Name 1_ACTLED 1_PULUP 1_LINK1000 1_LINK100 PI-P5BVLL User`s Manual... -
Page 32: Lan2_Led Connector
Signal Name SPDIFO SPDIFI ATX_12V Connector The ATX_12V power connector mainly supplies power to the CPU. Caution! If the ATX_12V power connector is not connected, the system will not start. Pin # Signal Name +12V ATX_12V +12V PI-P5BVLL User`s Manual... -
Page 33: Floppy Drive Connector
Ground Motor enable 1 Ground Direction Ground Step Ground Write data Ground Write gate Ground Track 00 Ground Write protect Ground Read data Ground Side 1 select Ground Diskette change WOL Connector Pin # Signal Name 5VSB PI-P5BVLL User`s Manual... -
Page 34: Printer Connector
PD2, parallel data 2 Select PD3, parallel data 3 Ground PD4, parallel data 4 Ground PD5, parallel data 5 Ground PD6, parallel data 6 Ground PD7, parallel data 7 Ground ACK, acknowledge Ground Busy Ground Paper empty Ground Select PI-P5BVLL User`s Manual... -
Page 35: Dvi Connector
DVI Connector Signal Signal Name Name TCLK+ TDC1+ TCLK- TDC1- TDC0+ TDC2+ TDC0- TDC2- CLOCK DATA DVI_PLUG BACKLITE Connector Pin # Signal Name +12V Brightness ON/OFF PI-P5BVLL User`s Manual... -
Page 36: Lvdslcd Connector
+12V LCDVDD 5V/3.3V LCDVDD 5V/3.3V BRIGHTNES BCKLITE_ON LVDS_GND LVDS_GND CHA_TX0+ CHB_TX0+ CHA_TX0- CHB_TX0- LVDS_GND LVDS_GND CHA_TX1+ CHB_TX1+ CHA_TX1- CHB_TX1- LVDS_GND LVDS_GND CHA_TX2+ CHB_TX2+ CHA_TX2- CHB_TX2- LVDS_GND LVDS_GND CHA_TXC+ CHB_TXC+ CHA_TXC- CHB_TXC- LVDS_GND LVDS_GND CHA_TX3+ CHB_TX3+ CHA_TX3- CHB_TX3- PI-P5BVLL User`s Manual... -
Page 37: At_Kb Connector
Pin # Signal Name PWOK 5VSB PS_ON- When using ATX power supply soft-on/off function, please make sure remove AT_MODE jumper. The setting is illustrated as below: BACKPLANE CABLE P5BVLL PI-P5BVLL User`s Manual... - Page 38 This page is intentionally left blank PI-P5BVLL User`s Manual...
-
Page 39: Chapter 3 Bios Setup
Chapter 3 BIOS Setup This chapter describes the different settings available in the Award BIOS that comes with the PI-P5BVLL CPU card. The topics covered in this chapter are as follows: 3.1 M .................. 33 3.2 S CMOS F ............35... -
Page 40: Bios Introduction
And the firmware chip will store the setup utility on the board. However, if you want to enter the setup after the POST, you can press Ctrl + Alt + Del simultaneously or turn off the power then back PI-P5BVLL User`s Manual... -
Page 41: Main Menu
Use this menu for basic system configuration. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Advance Chipset Features Use this menu to change the values in the chipset registers and optimize your system's performance. PI-P5BVLL User`s Manual... -
Page 42: Integrated Peripherals
Set Supervisor/ User Password Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. PI-P5BVLL User`s Manual... -
Page 43: Standard Cmos Features
Video [EGA/VGA] Halt On [All , But Disk/Key] Base Memory 639K Extend Memory 513024K Total Memory 514048K ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 2) PI-P5BVLL User`s Manual... - Page 44 All, but Disk/Key Base Memory Displays the amount of conventional memory detected during boot up Extended Memory Displays the amount of extended memory detected during boot up Total Memory Displays the total memory available in the system PI-P5BVLL User`s Manual...
-
Page 45: Ide Channel 0, 1 Master/ Slave
To auto-detect the HDD’s Capacity 0 MB size, head…on this channel Cylinder Head Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 3) PI-P5BVLL User`s Manual... -
Page 46: Ide Channel 2, 3, 4 Master/ Slave
↑↓← → ：Move Enter: Accept Esc: Abort Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 4) Extended IDE Drive The choice: None, Auto (default) PI-P5BVLL User`s Manual... - Page 47 Min = 0 **** Warning: Setting a value Max = 65535 of 65535 means no hard disk Landing zone Min = 0 **** Max = 65535 Sector Min = 0 Number of sectors per track Max = 255 PI-P5BVLL User`s Manual...
-
Page 48: Drive A/B
The system boot will not be halted for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not be halted for a key- board or disk error; it will stop for all others. (default) PI-P5BVLL User`s Manual... -
Page 49: Advanced Bios Features
MPS Version Control For OS [1.4] OS Select For DRAM > 64MB [Non-OS2] Report No FDD For WIN 95 [No] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 5) PI-P5BVLL User`s Manual... -
Page 50: Cpu Feature
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 6) PPM Mode The choice: Native Mode (default), SMM Mode. Limit CPUID Max Val The choice: Enabled, Disabled (default). C1E Function The choice: Auto (default), Disabled. Execute Disabled Bit The choice: Enabled, Disabled (default). PI-P5BVLL User`s Manual... -
Page 51: Hard Disk Boot Priority
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 7) Bootable Add-in Cards This is for setting the priority of the hard disk boot order when the “Hard Disk” option is selected in the “*First/Second/Third+ Boot Device “menu item. PI-P5BVLL User`s Manual... -
Page 52: Virus Warning
The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The Choice: Floppy, LS120, Hard-Disk, ZIP100, CDROM, Disabled, USB-FDD, USB-ZIP, USB-CDROM, Legacy LAN. Item Default First Boot Device Hard-Disk Second Boot Device CDROM Third Boot Device LS120 PI-P5BVLL User`s Manual... -
Page 53: Boot Other Device
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The choice: Enabled, Disabled (default). If Typematic Rate Setting is [Enabled], can choice Rate and Delay: PI-P5BVLL User`s Manual... -
Page 54: Typematic Rate (Chars/Sec)
Sets the delay time after the key is held down before it begins to repeat the keystroke. The choice: 250 (default), 500, 750, and 1000. Typematic Delay (Msec) ….. [ ….. [ ] ….. [ ] 1000 ….. [ ] : Move Enter: Accept ESC: Abort PI-P5BVLL User`s Manual... -
Page 55: Security Option
OS Select For DRAM > 64MB Select OS2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system. The choice: Non-OS2 (default), OS2. Report No FDD For WIN 95 The choice: No (default), Yes. PI-P5BVLL User`s Manual... -
Page 56: Advanced Chipset Features
[DVMT] DVMT / FIXED Memory Size [128MB] Boot Display Lan1 Chip Control [Enabled] Lan2 Chip Control [Enabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 8) PI-P5BVLL User`s Manual... -
Page 57: Dram Timing Selectable
Leave this on the default setting. The choice: Auto (default), 2, 3,4,5,6. Precharge dealy (tRAS) The choice: Auto (default), 4,5,6,7,8,9,10,11,12,13,14,15. System Memory Frequency The choice: Auto (default), 533MHz, 667MHz. System BIOS Cacheable The choice: Enabled (default), Disabled. PI-P5BVLL User`s Manual... -
Page 58: Memory Hole At 15M-16M
PCI-E Compliancy Mode The choice: v1.0a (default), v1.0. On-Chip Frame Buffer Size User can select frame buffer size. The choice: 1MB, 8MB (default). DVMT Mode This field shows the current DVMT mode. The choice: FIXED, DVMT (default), BOTH. PI-P5BVLL User`s Manual... -
Page 59: Dvmt / Fixed Memory Size
The choice: Auto (default), CRT, TV, EFP, LFP, CRT+LFP, ERP+LFP. Panel Number These fields allow you to select the LCD Panel type. The choice: 1~16. 3(default) Lan1 Chip Control The choice: Enabled (default), Disabled. Lan2 Chip Control The choice: Enabled (default), Disabled. PI-P5BVLL User`s Manual... -
Page 60: Integrated Peripherals
IDE Secondary Slave UDMA [Auto] lock read/writes SATA Mode [IDE] per sector the drive LEGACY Mode Support [Disabled] can support ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PI-P5BVLL User`s Manual... -
Page 61: Ide Hdd Block Mode
The BIOS will automatically set the system according to your hard disk drive’s timing (default). Mode 0-4 You can select a mode that matches your hard disk drive’s timing. IDE Primary/Secondary, Master/ Slave UDMA The choice: Disabled, Auto (default). PI-P5BVLL User`s Manual... -
Page 62: On-Chip Secondary Pci Ide
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Onboard FDC Controller The choice: Enabled (default), Disabled. Onboard Serial Port 1 Select an address and corresponding interrupt for the first serial ports. The choice: Disable, 3F8/IRQ4 (default), 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto. PI-P5BVLL User`s Manual... -
Page 63: Onboard Serial Port 2
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default RxD, TxD Active The choice: UART Mode Select Hi, Hi ……[ ] Hi, Lo ……[ ] Lo, Hi …..[ ] Lo, Lo …..[ ] : Move Enter: Accept ESC: Abort PI-P5BVLL User`s Manual... -
Page 64: Ir Transmission Delay
[378/IRQ7] Parallel Port Mode [SPP] x EPP Mode Select EPP1.7 x ECP Mode Use DMA PWRON After PWR-Fail [Off] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PI-P5BVLL User`s Manual... -
Page 65: Epp Mode Select
Onboard Parallel Port [378/IRQ7] Parallel Port Mode [ECP] x EPP Mode Select ECP Mode Use DMA PWRON After PWR-Fail [Off] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PI-P5BVLL User`s Manual... -
Page 66: Ecp Mode Use Dma
ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). PWRON After PWR-Fail When power fails, you can select power ON or Off or Former status. The choice: Off (default), On, Former-Sts. PI-P5BVLL User`s Manual... -
Page 67: Watch Dog Timer Select
If the BIOS has high speed USB support built in, the support will be automatically turn on when high speed device were attached. The choice: Enabled (default), Disabled. USB Operation Mode The choice: Full/Low Speed, High Speed (default). USB Keyboard Function The choice: Enabled (default), Disabled. PI-P5BVLL User`s Manual... -
Page 68: Usb Mouse Function
USB Mouse Function The choice: Enabled (default), Disabled. USB Storage Function The choice: Enabled (default), Disabled. PI-P5BVLL User`s Manual... -
Page 69: Power Management Setup
[Disabled] Secondary IDE 0 [Disabled] Secondary IDE 1 [Disabled] FDD , COM , LPT Port [Disabled] PCI PIRQ[A-D]# [Disabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PI-P5BVLL User`s Manual... -
Page 70: Pci Express Pm Funtion
CPUs. Inactivity period is 1 minute in each mode. User Define Set each mode individually. Select time-out periods in the section for each mode, below. Min Saving Minimum power savings. Inactivity period is 1 hour in each mode (except the hard drive). PI-P5BVLL User`s Manual... -
Page 71: Video Off Method
This field specifies the length of time of system inactivity while in full power on state before the computer enters suspend mode and motivates the enable 'Wake up Events in Doze & Standby' / 'PM Events'. The choice: 1Min, 2Min, 4Min, 8Min, 12Min, 20Min, 30Min, 40Min,1Hour, Disable (default). PI-P5BVLL User`s Manual... -
Page 72: Hdd Power Down
This field, when enabled, allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state. This can be configured only if the ‘ACPI Suspend Type’ field is set to ‘S3 (STR)’. The choice: Enabled, Disabled (default). PI-P5BVLL User`s Manual... -
Page 73: Resume By Alarm
Key in a DEC number: wwww : Move Enter: Accept ESC:Abort Primary/ Secondary IDE 0/1 When Enabled, the system will resume from suspend mode if Primary IDE 0 (1) or Secondary IDE 0 (1) is active. The choice: Enabled, Disabled (default). PI-P5BVLL User`s Manual... -
Page 74: Fdd, Com, Lpt Port
When Enabled, the system will resume from suspend mode if FDD, COM port, or LPT port is active. The choice: Enabled, Disabled (default). PCI PIRQ [A-D] # When Enabled, the system will resume from suspend mode if interrupt occurs. The choice: Enabled, Disabled (default). PI-P5BVLL User`s Manual... -
Page 75: Pnp/Pci Configuration
↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Init Display First This item allows you to choose which one to activate first, PCI Slot or onchip VGA. The choice: PCI Slot (default), Onboard, PCIEx. PI-P5BVLL User`s Manual... -
Page 76: Reset Configuration Data
[Auto] INT Pin 7 Assignment [Auto] INT Pin 8 Assignment [Auto] **PCI Express relative items** Maximum Payload Size [128] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PI-P5BVLL User`s Manual... -
Page 77: Irq Resource
↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default IRQ-3,4,5,7,9,10,11,12,14,15 assigned to IRQ-3 assigned to PCI /ISA PnP ….. [ s ] Legacy ISA ….. [ : Move Enter: Accept ESC:Abort The choice: PCI/ISA PnP, Legacy ISA. PI-P5BVLL User`s Manual... -
Page 78: Dma Resource
F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default DMA-0 , 1, 3, 5, 6, 7 assigned to IRQ-3 assigned to PCI /ISA PnP ….. [ s ] Legacy ISA ….. [ : Move Enter: Accept ESC:Abort The choice: PCI/ISA PnP, Legacy ISA. PI-P5BVLL User`s Manual... -
Page 79: Pci/Vga Palette Snoop
This BIOS feature determines if your graphics card should allow VGA palette snooping by a fixed function display card. The choice: Enabled, Disabled (default). INT Pin 1/2/3/4/5/6/7/8 Assignment The choice: Auto (default),3,4,5,7,9,10,11,12,14,15. Maximum Payload Size The choice: 128 (default). PI-P5BVLL User`s Manual... -
Page 80: Pc Health Status
F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default CPU Warning Temperature Select the CPU over-heated warning temperature. C/122F, 53C/127F, 56C/133F, The choice: Disabled (default), 50 60C/140F, 63C/145F, 66C/151F, and 70C/158F. Current System Temp Show System Temperature. Current CPU Temp Shows Board Temperature. PI-P5BVLL User`s Manual... -
Page 81: Cpu Fan Speed
CPU FAN Speed Shows speed. CPU Fan CHASSIS Fan Speed Shows CHASSIS speed. POWER Fan Speed Shows POWER speed. Shutdown Temperature Select the CPU over-heated shutdown temperature. C/140F, 65C/149F, 70C/158F, The choice: Disabled (default), 60 75C/167F. PI-P5BVLL User`s Manual... -
Page 82: Load Fail-Safe Defaults
Load Optimized Defaults (Y/N)? N Save & Exit Setup ►PC Health Status Exit Without Saving ↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations. PI-P5BVLL User`s Manual... -
Page 83: Set Supervisor/ User Password
Load Optimized Default ►Integrated Peripherals Set Supervisor Password ►Power Management Set User Password ►PnP/PCI Configuration Save & Exit Setup ►PC Health Status Enter Password: Exit Without Saving ↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup PI-P5BVLL User`s Manual... - Page 84 Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. PI-P5BVLL User`s Manual...
-
Page 85: Save & Exit Setup
↑↓← → ：Select Item Esc :Quit F10:Save & Exit Setup This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. PI-P5BVLL User`s Manual... - Page 86 This page is intentionally left blank PI-P5BVLL User`s Manual...
-
Page 87: Chapter 4 Appendix
CHAPTER 4 Appendix A. I/O P ..............80 DDRESS B. I (IRQ) ............81 NTERRUPT EQUEST INES C. POST B ..................82 PI-P5BVLL User`s Manual... -
Page 88: I/O Port Address Map
Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1) PI-P5BVLL User`s Manual... -
Page 89: Interrupt Request Lines (Irq)
Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE PI-P5BVLL User`s Manual... -
Page 90: Post Beep
This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. PI-P5BVLL User`s Manual...
