Page 2

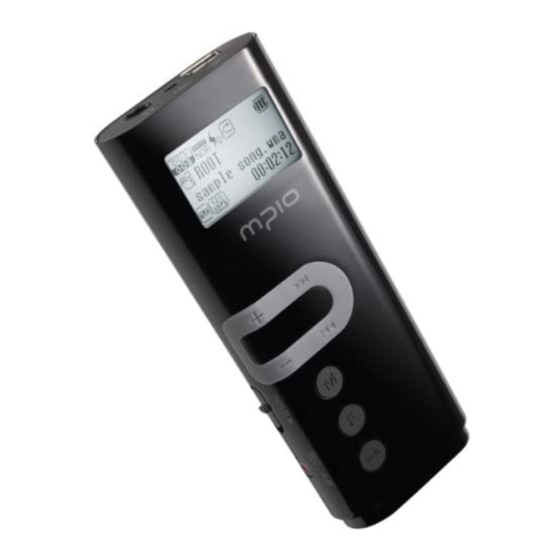

▄ Introduction of Thank you for purchasing MPIO FY700. FY700 is a digital audio player that enables users to play back music conveniently and utilize it for various purposes. To use this product properly, make sure to read through this manually before using it.
Data Storage ① MPIO Co., Ltd. will not be responsible for data loss or damages occurred while transferring data between the product and a PC. ② When storing important data, please make a back-up copy.
▄ Table of Contents Getting Started ▄ Safety Precautions ...4 User Safety ...5 Data Storage ...5 ▄ Product Features ...8 ▄ Components ...9 Basic Components ...9 Additional Components ...9 ▄ Name of the Parts ...10 Connecting and Disconnecting Additional Components ...11 LCD Screen ...11 Connection ▄...
Additional components can differ depending on the sales area. Note ● Actual player may vary slightly from images shown, and subject to change without notice. ● Broken components may be purchased separately at MPIO Service Center. � � 차 � � 차...
▄ Connecting to a PC System Requirement ■ IBM PC System: USB Interface 2.0, Standard device and a CD-ROM Drive equipped CPU: Pentium 133MHz or faster Memory: 64MB or more Hard disk space: 20MB or more Supported Operating Systems: Windows 98/98SE/ME/2000/XP ■...
■ Windows 98: [ Control Panel ] → [ Systems ] → [ Device Manager ] → [ Hard Drive ]→ MPIO FY700 USB Device Note ● In Windows 98/98SE, the program must be installed to use FY700 as a removable disk.
● When formatting the device using the Windows format command, it must be formatted in FAT or FAT16. To use the device after it has been formatted, the default settings must be restored using MPIO Utility. Click Caution ● The files in FY700 WILL BE LOST after formatting.
Click Select USB Mass Storage Device from the list of hardware, and click the [Stop] button. When the “Stop a Hardware Device” window appears, select MPIO FY700 USB Device. Then, click the [OK] button and disconnect the USB cable. Click Note ●...
▄ Basic Operation Searching for the desired section during playback During play, hold down the ◄ ◄ ► ► button to find the part ▐ ▌ you want to listen to. When you remove your hand from the pressed button, it plays automatically.
▄ Changing Modes Press and hold the F [Function] button during playback or pause mode. Every time the F [Function] button is pressed, player will switch between Music Playback and FM Radio modes. Screen of switching from Music Playback mode to FM Radio mode MUSIC MUSIC001.mp3...
▄ Using the Navigation You can search for the desired file or folder easily using the navigation. During playback or pausing, if you press the M [Menu] button it moves to navigation mode. ■ The file list screen comes up on the LCD window. Select the file you want to play.
▄ Setting A↔B Repeat Section Repeat Starting Point To repeatedly play music/voice files, press the REC button shortly at the point where the section starts. ■ will appear on the LCD window. MUSIC001.mp3 00:01:15 Section Repeat Ending Point Press the REC button again at the point where the section ends.
▄ Listening to FM Changing a Saved Frequency You can change an already saved channel to another frequency. At a new frequency, if you press the M [Menu] button, the save channel screen appears. Press the after selecting the saved channel number. When saving a frequency, if you have an already saved frequency at a channel number, the previous frequency is deleted and the new one is saved.
▄ Menu Structure The menu structure can be different for the convenient use and improvement with firmware upgrades Main manu Display Audio User EQ Live 3D Effect Repeat Save Channel FM Radio FM Band System FM Sound Auto Preset Seek Step Recording V/R Quality FM Quality...
▄ Menu Operation Saving the settings ■ Change the settings using the +/- button, and press [Menu] button to save the settings. After saving the settings, move to the previous menu. ■ Pressing the ◄ ◄ button during setup will not save settings, ▐...
▄ Setting the Menu [Audio Settings] Setting User EQ You can enjoy your own sound effects by setting the EQ to the each frequency bandwidth that you prefer. ■ Select User EQ from Audio in the menu. ■ Move through frequency band using the adjust the settings using the +/- button.
▄ Setting the Menu [Radio Settings] Saving Channels in Menu First see page 22 to move to FM Radio mode. ■ Select Save Channel from FM Radio in the menu. ■ After setting the frequency to save, select the desired channel using the +/- button, and then press the M [Menu] button to save the frequency.
▄ Setting the Menu [Recording Settings] Setting Seek Step You can set the FM radio’s frequency movement unit. ■ Select Seek Step from FM Radio in the menu. ■ You can set the unit to 50kHz or 100kHz. FM Radio Seek Step Auto Preset 50kHz...
▄ Setting the Menu [Recording Settings] Setting the VOR (Voice Operation Recording) VOR (Voice Operation Recording) VOR is a function that begins recording when the device detects a voice signal, and stops recording when the signal is absent. The VOR level is adjustable so the recording begins when the recording signal from the internal microphone reaches the user’s designated level.
▄ Setting the Menu [Screen Settings] Setting File Information Set information for music files to be displayed on the LCD. ■ Select File Info from Display in the menu. ■ Tag Info: If the file contains Tag information, the ID3 Tag information will be displayed.If there are no tag information, only the file name will be displayed.
▄ Setting the Menu [System Settings] Setting Auto Play You can set a file to AutoPlay. ■ Select Auto Play from System in the menu. ■ Off: When you turn the device on, the navigation screen appears, and if you press the ►...
▄ Setting the Menu [System Settings] Setting Sleep While the file is in play or listening to FM, you can set the time so that it shuts off automatically after the scheduled time. ■ Select Sleep from System in the menu. Sleep System Information...
▄ Upgrading Firmware The files in FY700 will be lost after upgrading firmware. Download the firmware from MPIO web site and save it on the PC. (www.mpio.com) Turn the power of FY700 ON and connect it to a computer using a USB cable.
▄ Upgrading Firmware After firmware upgrade is complete, click the [FINISH] button. Disconnect the USB cable from the player. Note ● To cancel firmware upgrade, click the [CANCEL] button. ● Please take note that external impact and low battery while performing a firmware upgrade may cause product failure or other malfunctions.
▄ Troubleshooting I can hear noise and cannot set the broadcasting channel when I listen to the radio. ■ Your player may be influenced by the neighboring electrical device. Secure enough distance. ■ The earphone plays a role of an antenna when listening to the radio.
