Moyer Diebel MD18 Technical Manual

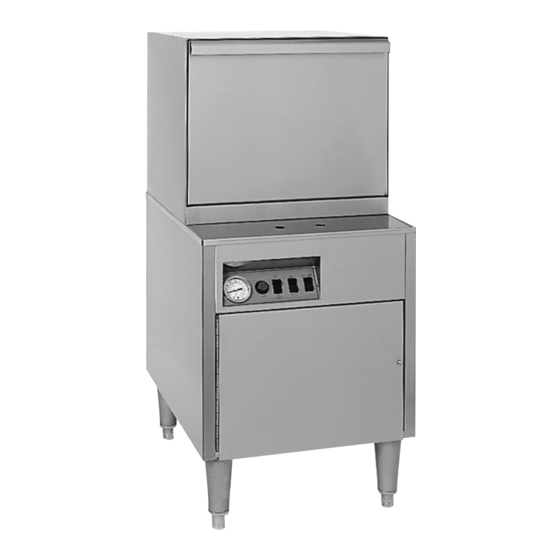

Automatic glasswasher
Hide thumbs Also See for MD18:
Table of Contents

Advertisement

Quick Links

Download this manual
July, 2003
P.O. Box 4183
Winston-Salem, North Carolina 27115-4183
Moyer Diebel, U.S.
336/661-1992
Fax: 336/661-1979
Technical Manual
Automatic
Glasswasher
Machine Serial No.
P/N
Manual
2674 N. Service Road
Jordan Station, Ontario, Canada L0R 1S0
Model
MD18-1
MD18-2
0509243
. F
REV
Moyer Diebel, Ltd.
905/562-4195
Fax: 905/562-4618

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moyer Diebel MD18

Summary of Contents for Moyer Diebel MD18

  • Page 1 P.O. Box 4183 Winston-Salem, North Carolina 27115-4183 Moyer Diebel, U.S. 336/661-1992 Fax: 336/661-1979 Technical Manual Automatic Glasswasher Model MD18-1 MD18-2 Machine Serial No. 0509243 Manual 2674 N. Service Road Jordan Station, Ontario, Canada L0R 1S0 Moyer Diebel, Ltd. Fax: 905/562-4618...
  • Page 2 Complete the information below so it will be available for quick reference. Model Number __________________________ Voltage and Phase ______________________________________________________________ Moyer Diebel Parts Distributor _______________________________ _____________________________________________________________________________ Moyer Diebel Service Agency ________________________________ _____________________________________________________________________________ Moyer Diebel Service: Moyer Diebel Limited Phone: 1-905-562-4195 1-800-263-5798 Fax: 1-905-562-4618 NOTE: When calling to order parts, be sure to have the model number, serial number, voltage,...

  • Page 3: Revision History

    Revision History Revision Revised Serial Number Date Pages Effectivity 10/30/95 — 1/xx/97 3/12/01 18, 19 G2735 3/12/01 24, 25 3/11/01 26, 27 2/5/03 7/23/03 Comments Issue of Manual and Replacement Parts Expanded Parts List Redesign of scrap screen and sump cover —...
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 5: Table Of Contents

    WARRANTY ... INTRODUCTION... GENERAL ... INSTALLATION ... Unpacking ... Electrical Connections... Plumbing Connections ... Detergent ... Rinse-Aid ... Chemical Sanitizer ... Completing Installation ... OPERATION ... Operation Summary ... Operation Procedures ... MAINTENANCE... 10 Cleaning Schedule... 10 Deliming... 11 Deliming Process... 11 Maintenance Schedule...
  • Page 6 CONTENTS Figure 9—Control Panel and Timer Assembly ... 30 Figure 10—Back Panel... 32 Figure 11—Rack ... 34 Figure 12—Wiring Schematic... 36 Figure 13—Timer Chart ... 37...

  • Page 7: P.o. Box

    Champion Industries/Moyer Diebel Limited, P.O. Box 4183, Winston-Salem, North Carolina 27115, and P. O. Box 301, 2674 North Service Road, Jordan Station, Ontario, Canada L0R 1S0 warrants machines, and parts, as set out below. Warranty of Machines: Champion Industries/Moyer Diebel Limited warrants all new machines of its manufacture bearing the name “Champion”...

  • Page 8: Md18

    INTRODUCTION INTRODUCTION Welcome to Moyer Diebel. Thank you for choosing Moyer Diebel and for allowing us to take care of your glasswashing/ warewashing needs. This manual covers two models (MD 18-1, MD 18-2). Model numbers are shown on the front cover. Your machine has been completely assembled, inspected, and thoroughly tested at our factory to eliminate problems at installation before it was shipped to your installation site.

  • Page 9: General

    This series of glasswashers is available in the following models: Model Numbers MD18-1, MD18-2 • The MD18-1 model is a single door chemical sanitizing rack glasswashing/warewashing machine. • The MD18-2 model is a two door chemical sanitizing rack glasswashing/warewashing machine.
  • Page 10 GENERAL Electrical Power Requirements Model MD18-1 MD18-2 NOTE: All machines come with a 5 Foot cord and plug. Standard 15 amp receptacle required. Booster Machine Voltage Rise Full Load Amp 115/60/1 115/60/1 Power Requirement (125% Service Factor)

  • Page 11: Installation

    INSTALLATION Unpacking WARNING: Care should be taken when lifting the machine to prevent damage. Immediately after unpacking your machine, inspect for any shipping damage. If damage is found, save the packing material and contact the carrier immediately. Remove the glasswasher from the skid. Adjust the feet if required, then move the machine to its permanent location.

  • Page 12: Plumbing Connections

    INSTALLATION Plumbing Connections CAUTION: Plumbing connections must comply with local sanitary and plumbing codes. Water Connections Connect the hot water supply (140 the front panel). The fill solenoid valve is equipped with a flow control that will accept water pressures from 20 psi to 70 psi. Install a manual shut-off valve in the water supply line to accommodate servicing the machine.

  • Page 13: Completing Installation

    Completing Installation Remove any foreign material from inside the machine. Check to assure scrap basket and sump cover are in place. After plumbing and electrical connections are completed, check the machine for water leaks by depressing the ON/FILL switch on the front panel, then close and latch the door(s). This allows the tank to fill and to complete the rinse cycle.

  • Page 14: Operation

    OPERATION OPERATION Operation Summary The following is a summary of your Glasswashing Machine operating cycle: The cycle begins when you close the door and push the cycle switch. The green cycle lamp lights and the pump starts. The pump runs during the wash cycle. The pump stops, and the drain valve is opened.
  • Page 15 NOTE: The machine may be stopped at any time by opening the door. When restarted, the cycle does not start over. It will continue from the point at which it was interrupted. 7. The pump will automatically stop and the green cycle light will turn off indicating the cycle is completed.

  • Page 16: Maintenance

    MAINTENANCE MAINTENANCE The efficiency and life of your machine is increased by regularly scheduled preventive maintenance. A well maintained machine gives better results and service. An investment of a few minutes of daily maintenance will be worthwhile. The best maintenance you can provide is to keep your machine clean. Components that are not regularly cleaned and flushed will clog and become inoperative.

  • Page 17: Deliming

    Deliming Your glasswasher should be delimed regularly as required. This will depend on the mineral content of your water. Inspect your machine interior for lime deposits. If deliming is required, a deliming agent should be used for best results. DANGER: Deliming solution or other acids must not come in contact with household bleach (sodium hypochlorite) or any chemicals containing chlorine, iodine, bromine, or fluorine.

  • Page 18: Maintenance Schedule

    MAINTENANCE Maintenance Schedule • As Required Check the temperature gauge reading. Check the chemical supplies and refill as necessary. • Weekly Inspect all water lines for leaks and tighten them at joints if required. Clean all detergent residue from the exterior of the machine. Check the drain for leaks.

  • Page 19: Troubleshooting

    TROUBLESHOOTING Before determining any specific cause of a breakdown or abnormal operation of your glasswasher, check that: All switches are ON. Wash arms are clean. Scrap screen is properly positioned and clean. Thermostat(s) are at their correct setting. Sanitizer, detergent, and rinse additive dispensers are adequately filled. All plumbing valves are open.
  • Page 20 TROUBLESHOOTING TROUBLESHOOTING CONDITION No water in wash well Opening door prior ... to cycle completion No water in wash tank Door not closed ... after activating the ON/FILL switch CAUSE SOLUTION Close door. Wait for green cycle light to go out before opening door. Close door.

  • Page 21: Figure 1-Overall View

    0709421 0709069 0309085 111370 0508751 0509671 112587 Figure 1 — Overall View of MD18-1 Description Hood, one door model... Hood, two door model... Hood, welded (High hood models only) ... Door, service ... Hinge, service door ... Screw (10-32 x 5/8 hex hd w/washer SS) ...

  • Page 22: Replacement Parts

    REPLACEMENT PARTS 11 12 13 15 16 Figure 2 — MD18-1, MD18-2 Door, Tracks, Safety Switch...
  • Page 23 108954 Nut (6-32 SS Nylite) (Not shown), per switch bracket ... * MD18-1 Requires (1) 0309301 bracket. MD18-2 Front-to-Back configuration requires (1) 0309301 and (1) 0309102. MD18-2 Side-to-Side configuration requires (2) 0309301. # MD18-1 Requires (1) 0309228. MD18-2 Front-to-Back requires (1) 0309228 and (1) 0309229.
  • Page 24 REPLACEMENT PARTS After Serial # G2735 Figure 3 — Upper & Lower Wash Arms & Hubs...

  • Page 25: Figure 3-Upper & Lower Wash Arms & Hubs

    Bolt (1/4-20 x 1/2 hex SS)... 0309212 Gasket, manifold... 0708650 Manifold, upper wash arm... 0501412 Screw (10-32 x 3/8 truss hd SS) ... 0507265 Hose 5/8 ID x 7/8 OD, per ft..0508808 Clamp, 3/4 gear SS ... MD18-1, MD18-2 Part Description REPLACEMENT PARTS...
  • Page 26 REPLACEMENT PARTS Solenoid Valve Detail Figure 4 — Fill Valve Assembly...

  • Page 27: Figure 4-Fill Valve Assembly

    Hose, 5/8 ID x 7/8 OD PVC braid ... 0501419 Bolt (1/4-20 x 1/2 hex SS)... 0501501 Lockwasher ... 0502811 Kit, valve repair... 0504958 Washer, flow... 0502803 Screen ... 0505235 Coil, 115VAC ... MD18-1, MD18-2 FILL VALVE ASSEMBLY Description REPLACEMENT PARTS...
  • Page 28 REPLACEMENT PARTS Figure 5 — Chemical Pump Assembly...

  • Page 29: Figure 5-Chemical Pump Assembly

    Tube, element assembly 45 cc... (Includes mounting screws) 0707142 Rotor assembly... 0503757 Motor, pump drive, with reducer... 109829 Pump, detergent... 108194 Tube, 3/16 ID x 3/8 OD... 0501425 Screw (8-32 x 5/8 rd hd SS) ... MD18-1, MD18-2 Description REPLACEMENT PARTS...
  • Page 30 REPLACEMENT PARTS See block below for new impeller and Seal/Gasket kit. This style no longer available. Figure 6 — Wash Pump Assembly...

  • Page 31: Figure 6-Wash Pump Assembly

    (Includes 8-32 x 1-3/4 round head Phillips screws and #8 washers) 0510222 Kit, Seal and gasket ... 0501419 Bolt (1/4-20 x 1/2 hex SS)... 0501501 Lockwasher... 0709393 Screen, inlet ... 0510221 Impeller, Stainless Steel... MD18-1, MD18-2 WASH PUMP ASSEMBLY Description REPLACEMENT PARTS...

  • Page 32: Figure 7-Fill System & Drain System

    REPLACEMENT PARTS (See Corresponding Pump For Hose) From Detergent Pump From Sanitizer Rinse-aid Pumps Figure 7 — Fill System & Drain System Front Side of Tank From Fill Valve...
  • Page 33 FILL SYSTEM AND DRAIN SYSTEM Fig. 7 Part Item No. 0507265 Hose, 5/8 ID x 7/8 OD PVC braided... 0509324 Elbow, 5/8 inch 90° plastic barbed... 0501518 Tie, nylon 5-1/2 inch ... 106090 Plate, tie wrap bracket ... 107966 Nut (10-32 Nylite)... 0509048 Gasket, inlet chute ...
  • Page 34 REPLACEMENT PARTS Figure 8 — Heating Element, Thermostat, Temperature Gauge...

  • Page 35: Figure 8-Heating Element, Thermostat, Temperature Gauge

    0501412 Screw (10-32 x 3/8 truss hd) ... 0501450 Screw (6-32 x 1/4 round hd NIBS) ... 0300096 Bracket, thermostat... 113622 Thermometer, flange type 4 ft./1.2 M Gas Filled (Includes mounting hardware) (Replaces 108391) ... MD18-1, MD18-2 Description REPLACEMENT PARTS...

  • Page 36: Figure 9—Control Panel And Timer Assembly

    REPLACEMENT PARTS Figure 9 - Control Panel and Timer Assembly...
  • Page 37 0509227 Motor, timer... 0501379 Switch, timer ... 0503701 Bearing, timer shaft ... 111068 Relay, 2PDT 10A 120VAC ... 0501408 Screw (8-32 x 1 truss hd SS)... – 0709076-S Timer & Cam Assembly (Includes items 7-12) MD18-1, MD18-2 Description REPLACEMENT PARTS...

  • Page 38: Figure 10—Back Panel

    REPLACEMENT PARTS Figure 10 — Back Panel and Cover Support Bracket...
  • Page 39 BACK PANEL AND COVER SUPPORT BRACKET Fig. 10 Part Item No. 0309237 Panel, rear... 0501412 Screw (10-32 x 3/8 truss hd SS)... 104985 Nut (10-32 SS) ... 0309238 Support, tank cover ... MD18-1, MD18-2 Description REPLACEMENT PARTS...

  • Page 40: Figure 11—Rack

    REPLACEMENT PARTS Figure 11 — Racks...
  • Page 41 Divider, upper glassrack... 110352 Rack, peg 16 in... * Glassracks using adjustable dividers may be made up with either 16, 25, or 36 compartments. Number of compartments determines the number of dividers needed. MD18-1, MD18-2 RACKS Part Description REPLACEMENT PARTS...

  • Page 42: Figure 12—Wiring Schematic

    REVISED TO SHOW RL IN NC STATE REVISED TO SHOW RL IN 5168 PROPER STATE CHANGED SIZE OF 5140 SCHEMATIC TO FIT DOOR PANEL RELEASED TO 5140 PRODUCTION DESCRIPTION SCHEMATIC MD18 NUMBER/REV 0509232 E 03-03 29-03 14-96 04-96 22-95 DATE...

  • Page 43: Timer Chart

    TIMER CHART Figure 13 — MD-18 Timer Assembly...

This manual is also suitable for:
