Moyer Diebel M4 Series Installation/Operation Manual With Service Replacement Parts

Undercounter dishwashers, high temperature wash refresh with built-in booster and pumped final rinse
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

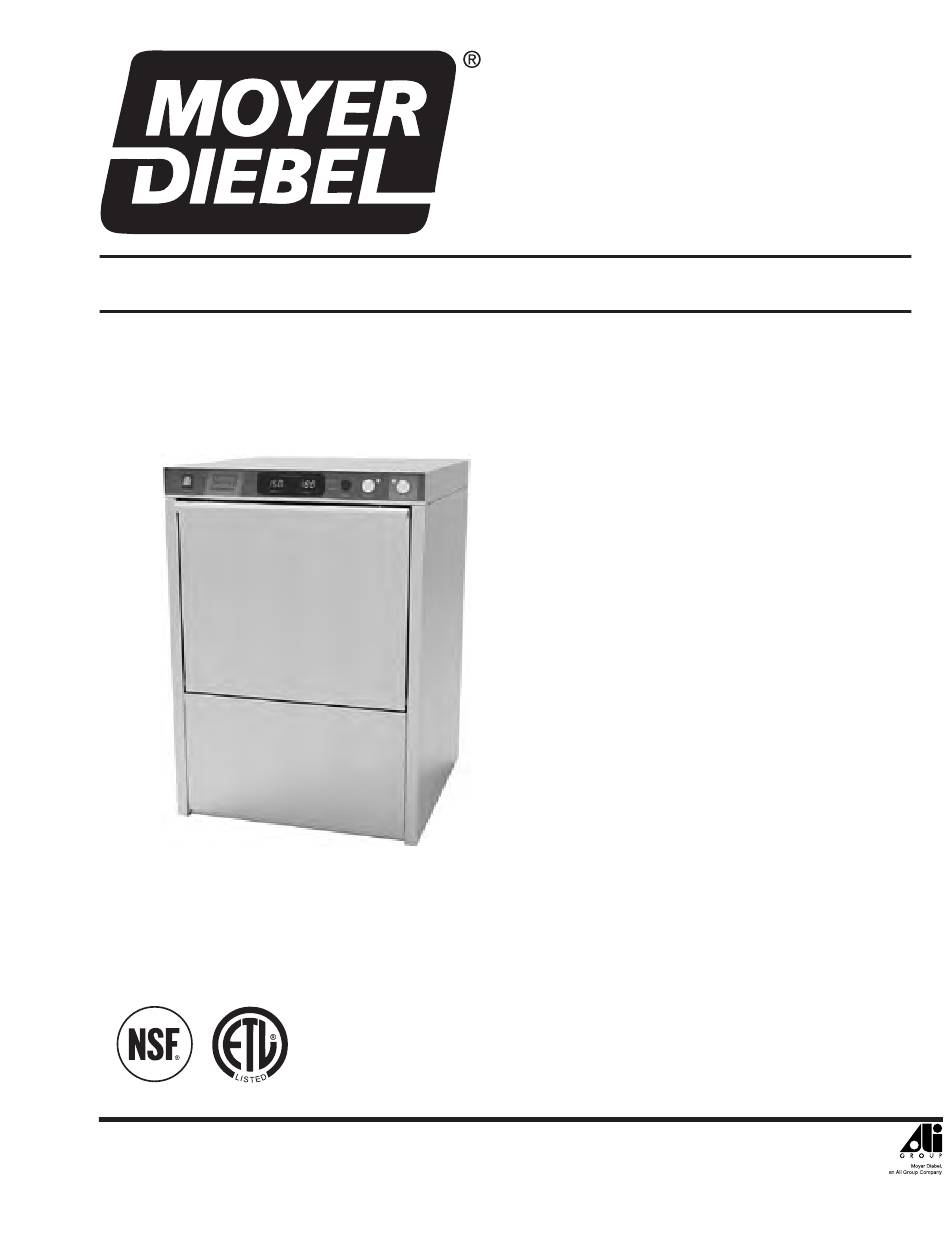

Installation/Operation Manual with Service Replacement Parts
401HT
3765 Champion Blvd.,
Winston-Salem, NC 27105
(336) 661-1556 Fax: (336) 661-1660
Toll-free: (800) 858-4477
2674 N. Service Road, Jordan Station
Ontario, Canada L0R 1S0
(905) 562-4195 Fax: (905) 562-4618
Toll-free: (800) 263-5798
Undercounter Dishwashers
401HT
High Temperature Wash
Refresh with built-in booster
and Pumped Final Rinse
Issue Date: 2.22.17
Manual P/N
115781 rev. A
For machines beginning with S/N W150350341 and above
M4 Series
Printed in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moyer Diebel M4 Series

Summary of Contents for Moyer Diebel M4 Series

  • Page 1 Installation/Operation Manual with Service Replacement Parts Undercounter Dishwashers M4 Series 401HT High Temperature Wash Refresh with built-in booster and Pumped Final Rinse 401HT Issue Date: 2.22.17 Manual P/N 115781 rev. A For machines beginning with S/N W150350341 and above 3765 Champion Blvd., 2674 N.
  • Page 2 For future reference, record your dishwasher information in the box below. Model Number__________________________ Serial Number_______________________ Voltage________________Hertz_____________ Phase__________________ Service Agent __________________________________ Tel:______________________ Parts Distributor _________________________________ Tel:______________________ National Service Department ATTENTION: In Canada: The model no., serial no., voltage, Hz Toll-free: (800) 263-5798 and phase are needed to identify your Tel: (905) 562-4195...
  • Page 3 PRODUCT REGISTRATION ONLINE Connect to the internet and enter the URL below to register your machine. IN CANADA: http://www.championindustries.com/canada/register...

  • Page 4: Product Registration Card

    PRODUCT REGISTRATION BY FAX COMPLETE THIS FORM AND FAX TO: (336) 661-1660 in the USA 1 (800) 204-0109 in Canada PRODUCT REGISTRATION CARD Model Serial # Date of Installation: Company Name: Address: (Street) State Zip or Telephone #: ( or Province Postal Code Contact: Installation Company:...

  • Page 5: Revision History

    Revision History Revision History A revision might be a part number change, a new instruction, or other information that was not available at print time. We reserve the right to make changes to these instructions without notice and without incurring any liability by making the changes. Equipment owners may request a revised manual, at no charge, by calling 1 (800) 858-4477 in the USA or by calling 1 (800) 263-5798 in Canada.

  • Page 6: Limited Warranty

    The Company's obligation with respect to labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs first. In the event that Moyer Diebel elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular working hours by The Company's authorized service technician.

  • Page 7: Table Of Contents

    Table of Contents Table of Contents Model 401HT Revision History ......................i Limited Warranty ...................... ii ..................Installation Receiving ......................1 Placement ......................1 Water Connections ....................2 Drain Connections ....................3 Electrical Connections 401HT 1 and 3 PH Wiring Diagrams ........6 Connecting Incoming Power to the Main Terminal Block (1 and 3 PH) ......
  • Page 8 Blank Page This Page Intentionally Left Blank...

  • Page 9: Installation

    Receiving and Placement - Installation Receiving - 401HT NOTE: The installation of your dishwasher must be performed by qualified service personnel familiar with food service equipment and must comply with all local health codes. Problems due to improper installation are not covered by the Limited Warranty. NOTE: The installation of the dishwasher must comply with all local electrical, plumbing, health and safety codes or in the absence of local codes, installed in accordance with the applicable...

  • Page 10: Water Connections

    Installation - 401HT Water Connections VERY IMPORTANT: Make sure the flexible water supply and drain hoses are not kinked. Plumbing connections must allow the machine to be pulled out for service and cleaning. Plumbing connections must comply with national, provincial local plumbing and sanitary codes.

  • Page 11: Drain Connections

    401HT - Installation Drain Connections ! VERY IMPORTANT ! Do not connect the drain hose to a disposer. The dishwasher will not drain correctly. Refer to the photo below. All models are equipped with a 6 ft.. 5/8" I.D. drain hose. The maximum drain height connection must not exceed 3 ft.[1 m] and must be vented to prevent the wash tank from siphoning.

  • Page 12: Drain Connection

    Installation - 401HT Drain Connection (continued) DO NOT REMOVE THE CLAMPS HOLDING THE DRAIN HOSE TO THE BACK OF THE DISHWASHER. DO NOT CONNECT THE DRAIN HOSE TO A DISPOSER. DO NOT REDUCE THE SIZE OF THE DRAIN HOSE CONNECTION NOR USE A DOMESTIC DRAIN FITTING.
  • Page 13 401HT - Installation Drain Connection For an Indirect Drain Connection: A 1" [25.4mm] minimum air gap must be provided between the outlet of the dishwasher drain hose and the flood-level rim of the floor drain, floor sink or any other locally approved drain receptacle.

  • Page 14: Electrical Connections 401Ht 1 And 3 Ph Wiring Diagrams

    Installation - 401HT Electrical Connections - 401HT with Built-in Booster 1PH and 3PH Wiring Diagrams WARNING: Electrocution or serious injury may result when working on an energized circuit. Disconnect power at the main breaker or service disconnect switch before working on the circuit. Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.
  • Page 15 401HT - Installation Electrical Connections - 401HT with Built-in Booster 1PH and 3PH Wiring Diagrams ! ATTENTION ! The installation of the dishwasher must comply with all local electrical, plumbing, health, and safety codes or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1;...

  • Page 16: Connecting Incoming Power To The Main Terminal Block (1 And 3 Ph)

    Installation - 401HT Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters WARNING: Electrocution or serious injury may result when working on an energized circuit. Disconnect power at the main breaker or service disconnect switch before working on the circuit.
  • Page 17 401HT - Installation Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters Refer to the photo below: Remove the lower front dishwasher panel. Remove the retaining fasteners (A) from the swing-out brackets and swing the chemical pump bracket (B) and the chemical circuit board bracket (C) out of the way as shown.
  • Page 18 Installation - 401HT Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters (continued from previous page) Refer to the photo below: Provide a 3 foot/1 meter service loop in the power supply cable to service the machine Route the power cable from the rear of the machine to the terminal block making sure the cable does not touch the booster tank.

  • Page 19: Booster Heater Conversion From 1 To 3 Ph

    401HT - Installation Booster Heater Conversion from 1PH to 3 PH Operation ! VERY IMPORTANT ! THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED. FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH. WARNING: Electrocution or serious injury may result when working on an energized circuit.
  • Page 20 Installation - 401HT Booster Heater Conversion from 1PH to 3 PH Operation (continued) ! VERY IMPORTANT ! THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED. FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH. Disconnect the existing booster heater wires and change the booster heater element jumpers as shown in the illustration below Connect wires 1H1, 1H2, and 1H3 as shown below.
  • Page 21 401HT - Installation Completing the 1PH to 3PH Electrical Conversion ! ATTENTION ! CHANGE THE DATA PLATE ON THE LOWER FRONT PANEL OF THE MACHINE AFTER THE MACHINE IS WIRED FOR 3PH AND THE BOOSTER HEATER IS CONNECTED FOR 3PH. The data plate on the dishwasher lower front panel must be changed after the machine is converted from single phase operation to three phase operation.

  • Page 22: Booster Fill Switch - (Filling The Booster For The First Time)

    Installation - 401HT Booster Fill Switch (Filling the booster tank for the first time) ! CAUTION ! AVOID PERMANENT DAMAGE TO THE BOOSTER HEATER DO NOT TURN THE DISHWASHER POWER SWITCH ON WHEN FILLING THE BOOSTER FOR THE FIRST TIME. THE BUILT-IN BOOSTER TANK WAS DRAINED BEFORE SHIPMENT AND MUST BE REFILLED BEFORE OPERATING THE DISHWASHER.
  • Page 23 401HT - Installation Booster Fill Switch (Filling the booster tank for the first time) PUSH AND HOLD the booster fill switch in the FILL position until water starts filling inside the wash compartment. Release the FILL switch. PUSH the booster fill switch to the ON position and release. The booster fill operation is complete.

  • Page 24: Chemical Connections

    Installation - 401HT Chemical Connections ! VERY IMPORTANT ! ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT. PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE. DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR. ! VERY IMPORTANT ! Contact a chemical supplier for detergent and rinse-aid chemicals.

  • Page 25: Pumps And Injection Points - Detergent And Rinse-Aid Dispensing Pumps

    401HT - Installation Detergent and Rinse-aid Pumps and Injection Points ! VERY IMPORTANT ! ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT. PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE. DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR. Injection Point Locations 1.
  • Page 26 Blank Page This Page Intentionally Left Blank...

  • Page 27: Pump Priming - Detergent And Rinse-Aid Dispensing Pumps

    401HT - Installation Detergent and Rinse-aid Pumps and Injection Points Priming the Dispensing Pumps ! VERY IMPORTANT ! The chemical dispensing pumps must be primed before operating the dishwasher and whenever the chemical container is changed. 401HT Control Panel The chemical dispensing pump supply lines must be primed before they will pump the chemicals properly.
  • Page 28 Installation - 401HT Detergent and Rinse-aid Pumps and Injection Points ! ATTENTION ! The amount of dispensed chemical is determined by the run time of the dispensing pump. Refer to the photo below: 1. The chemical dispensing pump run and the tank fill adjustment screws are located on the end of the chemical circuit board swing-out bracket.

  • Page 29: Fill Adjustments - Detergent And Rinse-Aid Dispensing Pumps

    401HT - Installation Detergent and Rinse-aid Pumps and Injection Points Refer to the photo below: To adjust the amount of chemicals dispensed by the pumps: Make sure the chemical containers are full and the pick-up tubes are in their proper containers. Turn the dishwasher power switch ON.

  • Page 30: Operation

    Operation - 401HT Operation Loading Dish Racks ! VERY IMPORTANT ! DO NOT OVERLOAD THE DISH RACK. LOAD ONE DISH RACK INTO THE MACHINE AT A TIME. Prescrap and rinse the wares before loading to remove large food particles. Load soiled wares into the dish rack. Place plates and glasses in a peg rack. Place cups and bowls in a flat bottom rack.
  • Page 31 401HT - Operation Loading Dish Racks (continued) Load pots and pans in a flat-bottom rack. Load utensils in a single layer in a flat-bottom rack. Load cups and bowls in a flat-bottom rack. NEVER stack dish racks. Wash one dish rack at a time.

  • Page 32: Normal Wash Mode

    Operation - 401HT Operation Normal Wash Mode 401HT Control Panel In-cycle Light Start ON-OFF/DRAIN Prime Wash Temperature Final Rinse Temperature Push button Power Switch Push button Digital Display Digital Display Close the dishwasher front door. Push the dishwasher Power Switch UP to turn the power ON. The power switch will illuminate and the machine will fill with water.

  • Page 33: Rinse Sentry Mode

    401HT - Operation Rinse Sentry Mode ! ATTENTION ! DOOR LEFT OPEN DURING WASH CYCLE If the dishwasher door is left open for more than 5 seconds during the normal wash mode, then the dishwasher cycle will reset to the beginning of the normal wash cycle. ! ATTENTION ! RINSE SENTRY MODE WILL EXTEND WASH CYCLE TIME In the event that the final rinse temperature has not reached 180-195ºF/82-91ºC after the...
  • Page 34 Operation - 401HT Operation Drain Mode (continued) Push the illuminated power switch down to the OFF(DRAIN) position. The power switch light will go out. The cycle light will illuminate and the machine will drain. The machine, will flush, perform 3 short drain cycles and then drain completely. The cycle light will go out indicating that the drain cycle is complete.

  • Page 35: Cleaning

    401HT - Cleaning Cleaning VERY IMPORTANT DRAIN AND CLEAN THE DISHWASHER EVERY 2 HOURS OF CONTINUOUS OPERATION, AFTER EACH MEAL PERIOD, AND AT THE END OF THE DAY. Cleaning the wash tank: Remove the upper and lower spray arms and flush clean in a sink. Remove the scrap screen taking care that debris does not fall off the screen and into the wash tank or sump.

  • Page 36: Cleaning The Wash Arms

    Cleaning - 401HT Cleaning Cleaning the wash arms: Unscrew the retaining screw from the upper and lower interchangeable spray arms. Flush the spray arms clean in a sink. Be sure to flush the wash arm bearings. Retaining Screw Wash Arm Bearing 401HT...

  • Page 37: Cleaning Scrap Screen And Sump Strainer

    401HT - Cleaning Cleaning Scrap Screen and Sump Strainer Scrap Screen Lift the scrap screen straight up and out of the machine to prevent food particles from falling into the tank sump. Flush the scrap screen in a remote sink making sure to back-flush both side of the screen.

  • Page 38: Deliming

    De-liming - 401HT Deliming DANGER: Death or serious injury may result when deliming solution is mixed with sodium hypochlorite sanitizing agent. Mixing may cause hazardous gases to form. Deliming solution and other acids must never be mixed with chlorine, iodine, bromine, or fluorine. CAUTION: Skin contact with deliming solutions can cause severe irritation and possible chemical burns.

  • Page 39: Maintenance

    Maintenance - 401HT Maintenance Follow the maintenance schedules below to keep the dishwasher operating most efficiently. Daily Maintenance Make sure the water supply is on and that the drain is not clogged. Check the temperature gauges and/or displays to ensure they are operating. Make sure the dish racks are in good condition.
  • Page 40 Blank page This Page Intentionally Left Blank...

  • Page 41: Troubleshooting

    Troubleshooting 401HT Illustrations Page Troubleshooting Chart ................... 34 Wash Display Codes Temperature Display Board ............35 Rinse Display Codes Temperature Display Board ............36 Booster Display Codes Temperature Display Board ........... 37 Timer Board Connection Diagram ................38 Timer Board Diagnostic Testing ................39 Temperature Display Board Power Terminal Connections ...........
  • Page 42 Troubleshooting - 401HT Condition Cause Solution Dishwasher will not run. Door not closed. Close door completely. Main power OFF. Check breaker on panel. Dishwasher OFF. Turn dishwasher power switch ON. Low or no water. Main water supply off. Open supply valve. Fill hose kinked.
  • Page 43 401HT - Digital Temperature Display Codes Digital Temperature Display Codes Display codes that appear in the display windows indicate the operating condition of the machine. Refer to the illustrations below for the meaning of the codes. Wash Display Codes CAUSE WASH DISPLAY CODE Wash temperature 1 8 8...
  • Page 44 Digital Temperature Display Codes - 401HT Rinse Display Codes CAUSE RINSE DISPLAY CODE Rinse temperature 1 5 9 is below 100˚F RINSE TEMP WASH TEMP 1 5 6 Rinse temperature is above 200˚F WASH TEMP RINSE TEMP Booster tank is empty 1 4 9 &...

  • Page 45: Display Codes

    401HT - Digital Temperature Display Codes Booster Display Codes Error Codes for Booster and Final Rinse Thermistors Only. CAUSE DISPLAY CODES 1 5 0 Booster overtemp lockout because booster temperature is greater than 210˚F. RINSE TEMP WASH TEMP NOTE: Booster is locked out for 10 minutes before being re-energized.
  • Page 46 Timer Board Connection Diagram - 401HT        ...
  • Page 47 401HT - Timer Board Diagnostic Testing Diagnostic Testing for the Solid State Timer Board, P/N 0712105 Beginning with S/N W150350341 and above Before testing, Press the dishwasher power switch to OFF/DRAIN and allow the machine to complete the drain cycle. Check the incoming voltages.
  • Page 48 Digital Temperature Display Board - 401HT Power Neutral...
  • Page 49 401HT - Digital Temperature Display Board...
  • Page 50 Digital Temperature Display Board - 401HT...
  • Page 51 401HT - Booster Heater/Wash Tank Heater Interlock Circuit Operation Booster Heater/Wash Tank Heater Interlock Circuit Operation For Model 401HT, the booster heater/wash tank heater interlock circuit removes power from the wash tank heater whenever the booster heater contactor energizes. The illustration below shows how the booster heater contactor is wired. The booster heater contactor is located on the center of the base behind the lower front access panel.
  • Page 52 Blank Page This Page Intentionally Left Blank...

  • Page 53: Service Replacement Parts

    Service Replacement Parts Service Replacement Parts Illustrations Page Wash Pump/Motor Assembly ...................46 Base Assembly ........................48 Fill Piping Assembly ......................52 Fill Solenoid Valve ......................54 Fill Chute Assembly ......................56 Chemical Dispensing Pumps .....................58 Booster Assembly ......................60 Power Input Block and Cord Assemblies ................62 Timer Control Board Assembly ..................64 Wash/Rinse Spray Arm and Drain Valve ................66 Control Panel ........................68...

  • Page 54: Wash Pump/Motor Assembly

    Wash Pump/Motor Assembly - 401HT...
  • Page 55 401HT - Wash Pump/Motor Assembly Item Part Description Qty. 0512347 CAPACITOR 40µF 0512101 PUMP/MOTOR ASSEMBLY COMPLETE 115VAC/60/1 0313394 BRACKET, WASH PUMP 0512185 BOLT, HEX FLANGE 1/4-20 X 3/8" SST 110285 GASKET 114139 SEAL 0512345 IMPELLER 0501478 WASHER, PLAIN, 17/64" 106482 WASHER, LOCK, 1/4"...

  • Page 56: Base Assembly

    Base Assembly - 401HT To upper wash hub 18 19 28 29...
  • Page 57 401HT - Base Assembly Item Part Description Qty. 0512136 SCREEN, SCRAP ASSY. 0513324 FLANGE, PUMP SUCTION 0513677 O-RING 0512426 HEATER, 240V 2kW (401HT) 401029-1 NUT, LOCK 1/2 INCH NI PLATED 0512099 O-RING 0508872 ADAPTOR, THERMOMETER 0512107 THERMOMETER, WASH TANK 108954 NUT, GRIP 6-32 WITH NYLON INSERT SST 113604 THERMOSTAT, HI-LIMIT BI-METAL SNAP, 212°F...
  • Page 58 Base Assembly - 401HT Item Part Description Qty. 0504952 VALVE, FILL 5.0 GPM 0509526 HOSE, 1/2" X 7 FT. FEM. GARD. ADAPT. 0501379 SWITCH, 15A 0512792 SCREW, 10-32 X 1/4" RD. HD. PHILL. SST 0508752 SCREW, 4-40 X 5/8" RH. HD. PHILL. SST 0512299 ADAPTER, THERMISTOR 0513310...
  • Page 59 Blank Page This Page Intentionally Left Blank...

  • Page 60: Fill Piping Assembly

    Fill Piping Assembly - 401HT Note: This is a 3/4" From Hot Water garden hose fitting Supply Fill Valve Assembly on Next Page To Fill Chute...
  • Page 61 401HT - Fill Piping Assembly Item Part Description Qty. 0502653 ELBOW, 90° 3/8" MPT X 1/2" HOSE 0512185 BOLT, HEX FLANGE 1/4-20 X 3/8" SST 0300065 SUPPORT, VALVE 0300203 CLAMP, VALVE 0502618 HOSE BARB, 1/2" X 3/8" MPT 0512985 CLAMP, HOSE 0509526 HOSE, 1/2"...

  • Page 62: Fill Solenoid Valve

    Fill Solenoid Valve - 401HT...
  • Page 63 401HT - Fill Solenoid Valve Item Part Description Qty. 0504952 VALVE, FILL 5.0 GPM 0502803 SCREEN, VALVE STRAINER 0502804 GASKET, CAP 0504958 WASHER, FLOW 5.0 GPM 0502811 KIT, REBUILD 0505229 GUIDE 0501406 SCREW, SLOT SS RH 8-32 X 1/2" 0505235 COIL, 115V 60HZ 10W 0502807 GASKET, OUTLET (COPPER)

  • Page 64: Fill Chute Assembly

    Fill Chute Assembly - 401HT...
  • Page 65 401HT - Fill Chute Assembly Item Part Description Qty. 107417 HOSE, RUBBER 1/2" ID X .84" OD 0502666 HOSE, 1/8" ID X 1/4" OD PVC 0502667 HOSE, 1/4" ID X 3/8" OD PVC 100194 NUT, GRIP 10-32 W/NYLON INSERT 0503722 NUT, HEX 10-32 SST 0507709 WASHER, FLAT #10 SST...

  • Page 66: Chemical Dispensing Pumps

    Chemical Dispensing Pumps - 401HT IMPORTANT: Check Items 9 and 20 every 6 months and replace if stretched or worn. RINSE-AID DETERGENT...
  • Page 67 401HT - Chemical Dispensing Pumps Item Part Description Qty. 0501869 STRAINER 0306363 TUBE, 3/8" ID X 12" LG. STIFFENER 0505483 LABEL, RINSE-AID HOSE 112883-1 TUBING, 1/8" OD X 1/16" ID 0503695 LABEL, DETERGENT HOSE 0502667 HOSE, 1/4" ID X 3/8" OD PVC 0501519 TIE, NYLON 4"...

  • Page 68: Booster Assembly

    Booster Assembly - 401HT 11 12...
  • Page 69 401HT - Booster Assembly Item Part Description Qty. 0512985 CLAMP, SS GEAR-MIN. 1/2" 107417 HOSE, RUBBER 1/2" ID X .84" OD 0513314 TEE, RINSE THERMISTOR 10 kΩ, 2-WIRE 0513310 110562 THERMOSTAT, HIGH LIMIT 240°F 108954 NUT, GRIP 6-32 W/NYLON INSERT SST 0512185 BOLT, HEX FLANGE, 1/4-20 X 3/8"...

  • Page 70: Power Input Block And Cord Assemblies

    Power Input Block and Cord Assemblies - 401HT 401HT...
  • Page 71 401HT - Power Input Block and Cord Assemblies Item Part Description Qty. 0313396 COVER, BOX WIRING 0501411 SCREW, 10-32 X 1/4", TRUSS HD. 0512432 CONTACTOR, 3-POLE 120VAC COIL 0509527 BLOCK, TERMINAL, 4-POLE 103310 LUG, GROUND 0503592 LABEL, GROUND 0313395 BOX, WIRING 0503574 BUSHING, STRAIN RELIEF, SMALL 201029-1...

  • Page 72: Timer Control Board Assembly

    Timer Control Board Assembly - 401HT Front View Rear View...
  • Page 73 401HT - Timer Control Board Assembly Item Part Description Qty. 0313397 BOX, CONTROL BOARD 0712105 TIMER CKT. BD. 0501464 SCREW, 10-24 X 3/8; TRUSS HD. SST 0512373 FUSE, 4A 250V 0313398 COVER, BOX 0501411 SCREW, 10-32 X 1/4" SST 0501373 SWITCH, BOOSTER FILL 0512973 STANDOFF...

  • Page 74: Wash/Rinse Spray Arm And Drain Valve

    Wash/Rinse Spray Arm and Drain Valve - 401HT...
  • Page 75 401HT - Wash/Rinse Spray Arm and Drain Valve Item Part Description Qty. 0501478 WASHER, 17/64" ID X 9/16" OD SST 107967 NUT, HEX SST 1/4-20 NYLON INSERT H35509-1 HUB, UPPER WASH ARM 107873 WASHER, PACKING 110215 SCREW, RETAINING 0502571 CLAMP, HOSE GEAR HOSE 1-1/2” SST 0512120 HOSE, UPPER WASH ARM 0512133...

  • Page 76: Control Panel

    Control Panel - 401HT...
  • Page 77 401HT - Control Panel Item Part Description Qty. 0512221 SWITCH, ROCKER DPST 250V NEON 0513504 LABEL, FACIA 0501408 SCREW, TRUSS PHIL. SST 8-32 X 1/4" 0512226 SWITCH, ROCKER RND SPDT MOMENTARY 0512232 LIGHT, INDICATOR, GREEN 0512218 SWITCH, PUSH BUTTON, GREEN 0512217 HOUSING, PUSH BUTTON SWITCH 0512216...

  • Page 78: Panels

    Panels - 401HT...
  • Page 79 401HT - Panels Item Part Description Qty. 0313405 PANEL, FRONT 100779 SCREW 1/4-20 X 5/8" TRUSS SS PHIL 0513735 GASKET 0313403 PANEL, LH SIDE 0503718 FOOT, ADJUSTING 0313402 PANEL, RH SIDE 0313401 PANEL, TOP 100007 SCREW, TRUSS SLOT SST 10-32 X 3/8" 0313404 PANEL, REAR 0512299...

  • Page 80: Door Assembly

    Door Assembly - 401HT...
  • Page 81 401HT - Door Assembly Item Part Description Qty. 0713136 DOOR ASSEMBLY 0513794 GASKET, DOOR TOP 0513793 GASKET, DOOR SIDE 0713428 HINGE, RH ASSY 0310183 WASHER, 9/32" X 5/8" OD SS 0501422 BOLT, HEX SS 1/4-20 X 1-1/2" 0513332 SPRING, DOOR 0713429 HINGE, LH ASSY 0313430...

  • Page 82: Dish Racks

    Dish Racks, Line Strainer, PRV - 401HT...
  • Page 83 401HT - Dish Racks Item Part Description Qty. 101273 DISH RACK, FLAT-BOTTOM 101285 DISH RACK, PEG...
  • Page 84 Blank Page This Page Intentionally Left Blank...

  • Page 85: Timing Charts

    Electrical Schematics Electrical Schematics and Timing Charts Illustrations Page Electrical Schematic - High Temperature Model ..............78 Timing Chart ........................79...

  • Page 86: Electrical Schematic

    Electrical Schematic - 401HT SINGLE PHASE THREE PHASE 401HT 201HT...

  • Page 87: Timing Chart

    Timing Chart - 401HT...
