SENSIT Technologies GOLD CGI Instruction Manual

Gas detection instrument
Hide thumbs Also See for GOLD CGI:
Table of Contents

Advertisement

Quick Links

Download this manual

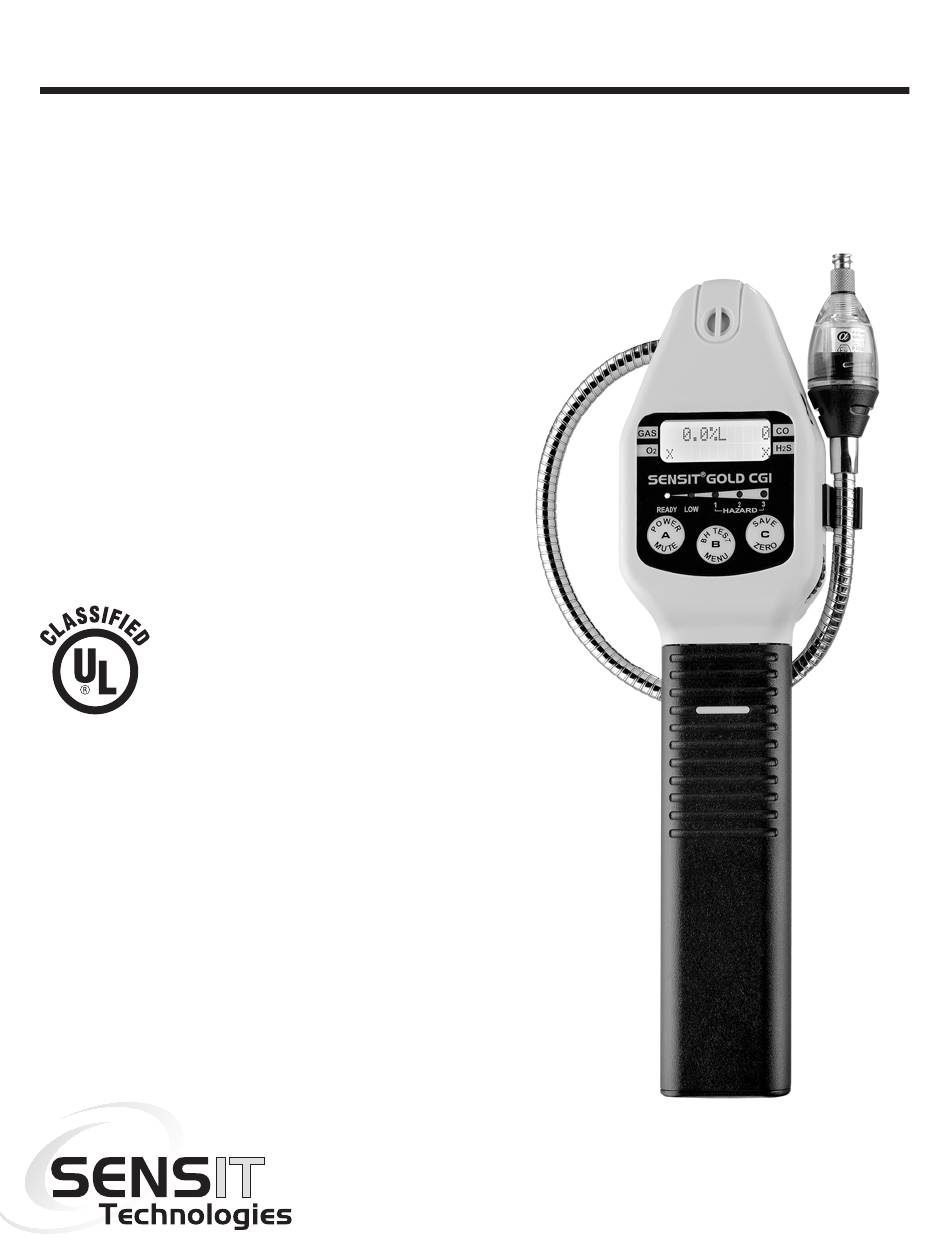

INSTRUCTION MANUAL
SENSIT
Gas Detection Instrument
For use with combustible gases and optionally available
oxygen and toxic gases.
Read and understand
instructions before use.
7WA6
Approved UL913, For Class 1,
Division 1, Groups C & D, T3
hazardous locations when used
with alkaline or NiMH batteries.
Warning: To prevent ignition of flammable
or combustible atmospheres, disconnect
power before servicing.
GOLD CGI
®
851 Transport Drive • Valparaiso, IN 46383 (USA)
Phone: 219.465.2700 • www.gasleaksensors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOLD CGI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SENSIT Technologies GOLD CGI

Summary of Contents for SENSIT Technologies GOLD CGI

  • Page 1 INSTRUCTION MANUAL SENSIT GOLD CGI ® Gas Detection Instrument For use with combustible gases and optionally available oxygen and toxic gases. Read and understand instructions before use. 7WA6 Approved UL913, For Class 1, Division 1, Groups C & D, T3 hazardous locations when used with alkaline or NiMH batteries.

  • Page 2: For Your Safety

    CO (above 1000ppm) or exhaust gases. Continuously low calibration check results or fluctuation of zero readings may indicate sensor end of life or failure. Consult Sensit Technologies with any questions. For best accuracy always zero in clean air environments similar in temperature and relative humidity to the environment where the instrument will be used.

  • Page 3: Table Of Contents

    CONTENTS Preparation For Your Safety .............. ii Contents ..............3-4 Parts and Accessories ...........5 General Description ............6 Sensor Specifications ............7 Product Specifications ...........7 Product Features ............. 8-10 Sensor Types and Pumps ...........11 Basic Operation Battery Installation/Replacement .........12 Operation and Use ..........13-17 Calibration Check ............18 Bar Hole Test ............

  • Page 4: Contents

    CONTENTS Tests and Calibration Bump Test ..............30 O2 Test ................31 Smart-Cal ..............32 Autolog ................33 CO Test and How to Conduct a CO Test .....34 Show and Print CO Test ..........35 CF Test and How to Conduct a CF Test ....36-37 Show a CF Test ............38 Print a CF Test .............39 Calibration Notes ............40...

  • Page 5: Parts And Accessories

    PARTS AND ACCESSORIES Standard Accessories (Included) 872-00001 Hard Carrying Case 360-00040 Wrist Strap 360-00018 Extra Sensor Cap with O-Rings 750-00035 Instruction Manual 310-00004 3”C” Alkaline Batteries 883-00036 2 Piece Polycarbonate Probe Assembly Accessories and Replacement Parts 870-00018 Sensor Cap with O-Rings 870-00012 Extension Adapter 873-00016...

  • Page 6: General Description

    Each SENSIT® GOLD CGI can be re-configured or upgraded by the manufacturer for an additional charge should your sensing requirements change. Consult Sensit Technologies for a listing of new sensors available for use with the SENSIT® GOLD CGI. SENSIT®...

  • Page 7: Sensor Specifications

    Battery Life: Alkaline: approximately 12 hrs. continuous 7WA6 The SENSIT® GOLD CGI instrument is approved by Underwriters Laboratories to UL913, for Class I, Division 1, Groups C & D hazardous locations when used with approved batteries. APPROVED BATTERIES: Duracell MN 1400BK or equivalent alkalines.

  • Page 8: Product Features

    PRODUCT FEATURES LUER PROBE CONNECTOR WATER / DIRT FILTER LEL / PPM SENSOR INFRARED COMMUNICATIONS BACKLIT LCD DISPLAY ALARM LEDs OPERATION BUTTONS TICK ADJUST FLEXIBLE GOOSENECK BATTERY COMPARTMENT...
  • Page 9 Incorporated in the hand grip area is the battery compartment. All SENSIT® GOLD CGI instruments require 3 “C” type alkaline batteries. APPROVED BATTERIES: PROCELL® MN 1400 batteries or equivalent alkalines, PANASONIC HHR300CH or equivalent NiMH (nickel metal hydride) batteries provide approximately 12 hours of use.
  • Page 10 PRODUCT FEATURES A flexible gooseneck is used to assist in locating the source of gas leaks and for remote sampling. A water/dirt trap is located at the end with a convenient luer style connector to attach sampling and probe accessories. A two line display continuously updates the operator of all available gas concentrations and alarms simultaneously as well as indicates internal functions such as air flow and battery power.

  • Page 11: Sensor Types And Pumps

    0-100ppm. All gases are displayed simultaneously on the display. The Pump The SENSIT® GOLD CGI instruments are equipped with a powerful and efficient diaphragm pump. A water/dirt filter at the end of the gooseneck protects the pump from foreign material. An additional internal filter also helps to protect the pump from damaging debris.

  • Page 12: Battery Installation/Replacement

    BATTERY INSTALLATION/REPLACEMENT Battery replacement is necessary when the display reads BAT LOW, an audible alarm sounds and the green ready LED flashes. When the instrument remains in BAT LOW, a count down will appear starting at 300 seconds (5 minutes) which is the maximum time remaining before shut down.

  • Page 13: Operation And Use

    OPERATION AND USE ⚠ CAUTION: Always start any SENSIT® GOLD CGI in a gas free environment to insure a proper zero. 1. Push the POWER/MUTE BUTTON (A). The following start-up sequence will be displayed. a. Product name and model version number b.
  • Page 14 OPERATION AND USE As an option, the instrument is capable of displaying a range of 0.1% LEL up to increments as high as every 2% LEL. An alternative option is to request a PPM display. Resolution for this option is 1ppm or every 10ppm.
  • Page 15 Carbon Monoxide - 35ppm per utility industry standards d. Hydrogen Sulfide - 10ppm and above per Federal OSHA guidelines ⚠ CAUTION: There are gases that can poison or be cross sensitive to the combustible gas sensor. Contact SENSIT Technologies for information regarding “LEL Cross Sensitivity”.
  • Page 16 OPERATION AND USE 11. To disable the alarm, quickly press the POWER/MUTE BUTTON (A). To enable the alarm press the same button again. During an alarm the gas that has exceeded the preset alarm point will flash on the display and the HAZARD 3 LED will flash indicating a potentially unsafe condition.
  • Page 17 OPERATION AND USE 13. At any time the operator may save the readings on the display by pressing the ZERO/SAVE (C) button. This will save all readings for download at a later time. The memory is factory set to store 6 events. This can be adjusted from 1-1000 at the factory.

  • Page 18: Calibration Check

    CALIBRATION CHECK To verify the accuracy of any SENSIT® GOLD CGI, it must be exposed to a known concentration of test gas that will test any sensor combination included in your particular model. Any sensor that does not meet the specifications listed in this manual may require calibration or repair.

  • Page 19: Bar Hole Test

    BAR HOLE TEST To assist pinpointing the location of underground leaks the Bar Hole Test feature may be used. This feature will draw a timed sample (45 seconds) and display sustained and peak readings. NOTE: Use an approved barhole probe with filter to prevent damage to the instrument when conducting bar hole surveys.
  • Page 20 BAR HOLE TEST The peak percent of gas by volume detected will be displayed on the right. At the conclusion of the test, the pump will shut off and any sustained and peak readings will be shown and recorded. If you have another test to take, press & hold the SAVE/ZERO BUTTON (C).

  • Page 21: User Menu / Function Descriptions

    USER MENU The SENSIT® GOLD CGI has several categories within the User Menu. The first nine fields are standard with all instruments. The last three are only available in certain instrument models when ordered with the Extended Memory option. PRINT MENU:...
  • Page 22 MENU The SENSIT® GOLD CGI has several categories within the User Menu. The first nine fields are standard with all instruments. The last three are only available in certain instrument models when ordered with the Extended Memory option. BUMP TEST: Perform automatic test for sensors response to calibration gas within 60 seconds or less.

  • Page 23: User Menu Operation

    USER MENU OPERATION PRINT MENU From the working display access the menu by pressing & holding the BH TEST/MENU BUTTON (B) until the top line of the display reads USER MENU. The bottom line will read PRINT MENU. Press & release the BH TEST/MENU BUTTON (B) once to enter the menu.

  • Page 24: Gas Type

    USER MENU OPERATION GAS TYPE From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ZERO BUTTON (C) until the bottom line reads GAS TYPE. Press & release the BH TEST/MENU BUTTON (B) once and the current primary gas type will appear.

  • Page 25: Power Off - Automatic Shut-Off

    USER MENU OPERATION POWER OFF From the working display access the menu by pressing & holding the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom line will read PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) until the bottom line displays POWER OFF.

  • Page 26: Set Clock

    USER MENU OPERATION SET CLOCK From the working display access the menu by pressing and holding the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) until the bottom line displays SET CLOCK.

  • Page 27: Calibration Log: Show And Print Calibration Log

    USER MENU OPERATION SHOW A CALIBRATION LOG From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU, the bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads SHOW CAL LOG.

  • Page 28: Session Log: Show And Print Session Log

    USER MENU OPERATION SHOW A SESSION LOG From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads SHOW SES LOG.
  • Page 29 USER MENU OPERATION PRINT A SESSION LOG From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom line reads PRINT MENU. Press & release the BH TEST/MENU BUTTON (B) once to enter this menu, SESSION LOG will be displayed.

  • Page 30: Tests And Calibration

    TESTS AND CALIBRATION BUMP TEST From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads BUMP TEST.

  • Page 31: O2 Test

    TESTS AND CALIBRATION O2 TEST From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads O2 TEST.

  • Page 32: Smart-Cal

    TESTS AND CALIBRATION SMART-CAL From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU and the bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads SMART CAL.

  • Page 33: Autolog

    TESTS AND CALIBRATION AUTOLOG (Automatically included with every unit that has the optional CF Test feature) With this feature the instrument will automatically save the peak readings of all sensors while the unit is operating in the working display. These peak readings are stored in Events with a maximum capacity of 1,600 events.

  • Page 34: Co Test And How To Conduct A Co Test

    TESTS AND CALIBRATION CO TEST Only available as an option for instruments with CO and the extended memory feature. TO CONDUCT A CO TEST: From the working display, press & release BH TEST/MENU BUTTON (B) once, SELECT TEST will appear on the top line of the display. Press &...

  • Page 35: Show And Print Co Test

    TESTS AND CALIBRATION TO SHOW A CO TEST: From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU, the bottom line reads PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads SHOW CO TEST.

  • Page 36: Cf Test And How To Conduct A Cf Test

    TESTS AND CALIBRATION CF TEST Only available as an option for instruments with CO and O2 and the extended memory feature. TO CONDUCT A CF TEST IMPORTANT: Air free CO levels or CF readings are calculated by the instrument based on CO and O2 levels detected during flue gas sampling of gas fired appliances.
  • Page 37 TESTS AND CALIBRATION TO CONDUCT A CF TEST ( CONTINUED ) If this segment continues to flash during the test period, conditions for a proper test were not possible. In this case any test results are invalid. The display and printout will show N/A for the peak CF reading. The test should be repeated.

  • Page 38: Show A Cf Test

    TESTS AND CALIBRATION TO SHOW A CF TEST From the working display, press & hold BH TEST/MENU BUTTON (B) until the top line reads USER MENU, the bottom line will read PRINT MENU. Press & release the SAVE/ZERO BUTTON (C) to scroll until the bottom line reads SHOW CF TEST.

  • Page 39: Print A Cf Test

    TESTS AND CALIBRATION TO PRINT A CF TEST From the working display, press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU, the bottom line will read PRINT MENU. Press & release the BH TEST/MENU BUTTON (B) once to enter this menu.

  • Page 40: Manual Calibration

    The following instructions pertain to manual calibration of the Sensit Gold CGI. If you are using the automatic Smart-Cal Calibration System, the procedure is different. See the Smart-Cal sections of this manual or consult the Smart-Cal instruction manual for details.

  • Page 41: Carbon Monoxide (Co) Calibration

    MANUAL CALIBRATION CARBON MONOXIDE (CO) CALIBRATION (100PPM CO/AIR) From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ZERO BUTTON (C) once. The bottom line will read CALIBRATION. Press &...

  • Page 42: Hydrogen Sulfide (H2S) Calibration

    MANUAL CALIBRATION HYDROGEN SULFIDE (H2S) CALIBRATION (H2S 25 PPM) From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ ZERO BUTTON (C) once. The bottom line will read CALIBRATION. Press &...

  • Page 43: Combustible Gas Calibration (50% Lel Methane)

    MANUAL CALIBRATION COMBUSTIBLE GAS CALIBRATION (50% LEL METHANE) From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ ZERO BUTTON (C) once. The bottom line will read CALIBRATION. Press &...

  • Page 44: Combustible Gas Calibration (100% Methane)

    MANUAL CALIBRATION COMBUSTIBLE GAS CALIBRATION (100% METHANE) From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ ZERO BUTTON (C) once. The bottom line will read CALIBRATION. Press &...

  • Page 45: Combustible Gas Calibration

    MANUAL CALIBRATION COMBUSTIBLE GAS CALIBRATION (1.1% PROPANE or 50% LEL PROPANE) From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Press & release the SAVE/ ZERO BUTTON (C) once. The bottom line will read CALIBRATION. Press &...

  • Page 46: Oxygen Sensor (O2) Test

    MANUAL CALIBRATION OXYGEN SENSOR TEST To determine if the O2 sensor is working properly, verify the sensors reaction by exposing it to a calibration gas void of oxygen, such as 100% methane or 100% nitrogen. From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU.

  • Page 47: Using The Smart-Cal Calibration Station

    SMART - CAL CALIBRATION USING THE SMART-CAL CALIBRATION STATION From the working display press & hold the BH TEST/MENU BUTTON (B) until the top line reads USER MENU. Scroll with SAVE/ZERO BUTTON (C) until the bottom line reads SMART CAL. Place the instrument into the cradle on the left side of the Smart-Cal Calibration Station.

  • Page 48: Factory Adjustble Features

    FACTORY ADJUSTABLE FEATURES USING THE SMART-CAL CALIBRATION STATION FEATURE RANGE DEFAULT Session Saves /BH Saves 1-1000 Extended Memory Uo to 1600 Purge Time 0-30 Seconds 0 Seconds 0-100% by .1% up to 2% increments %LEL (by 0.1%) 0-2000ppm by 1ppm or 10ppm %GAS 0 - 100% Alarm - LEL...
  • Page 49 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
  • Page 50 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
  • Page 51 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...

  • Page 52: Warranty

    WARRANTY Your SENSIT® GOLD CGI is warranted to be free from defects in materials and workmanship for a period of two years after purchase (excluding calibration and batteries). The % gas sensor (TC) is warranted for 5 years. If within the warranty period, your instrument should become inoperative from such defects, the unit will be repaired or replaced at our option.
