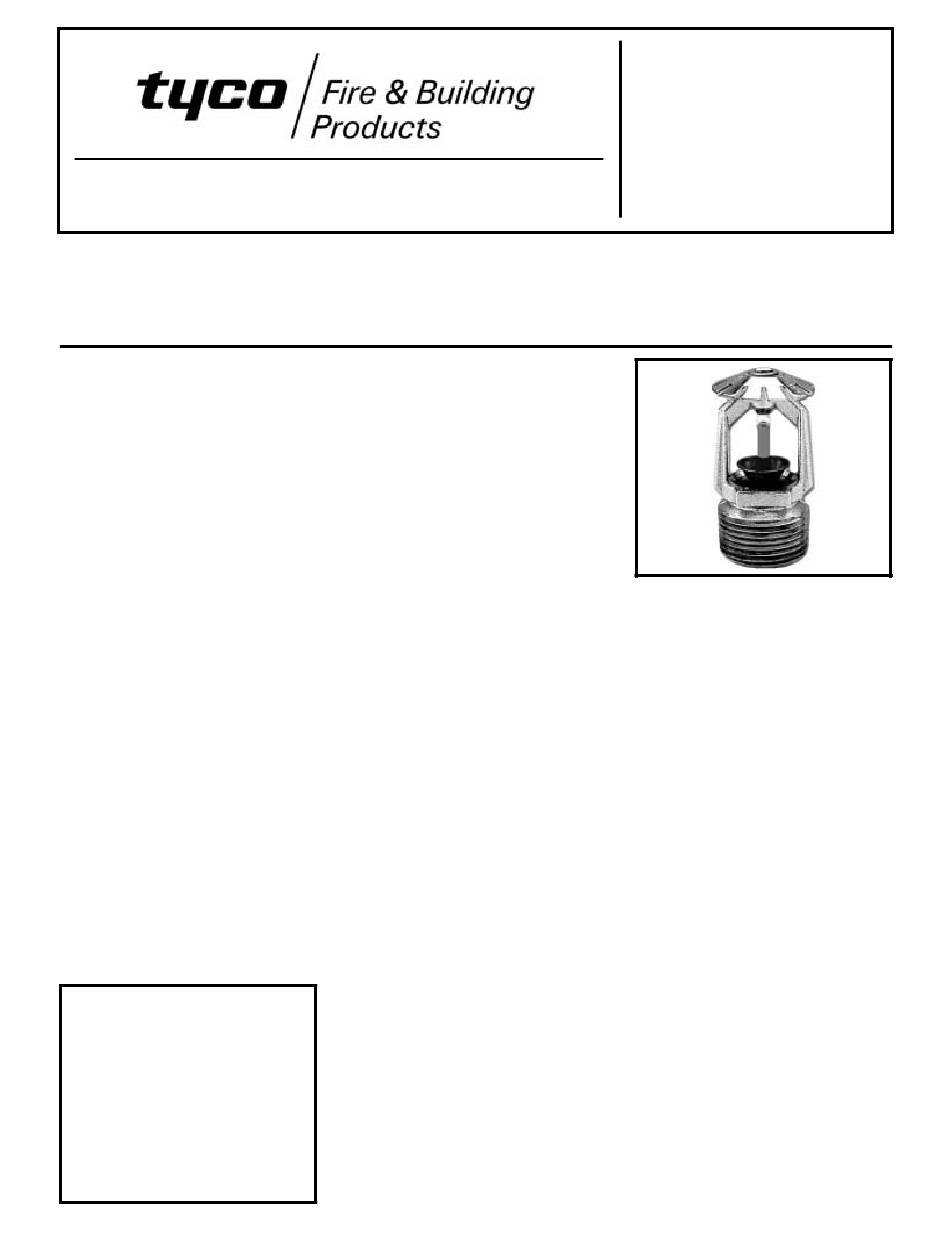

Tyco TY-B Series Quick Start Manual

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
Series TY-B — 80 and 115 K-factor
Conventional Sprinklers
Special Response, Standard Coverage
General
Description
The Series TY-B, 80 and 115 K-factor,
Conventional Sprinklers described in
this data sheet are special response -
standard coverage, decorative 4 mm
glass bulb sprinklers designed for use
in accordance with the installation
rules recognized by the applicable Ap-
proval agency (e.g.. VdS). These sprin-
klers are intended to be installed either
pendent or upright, and in either posi-
tion, they produce a spherical water
discharge pattern with approximately
50% of the discharge directed up-
wards and approximately 50% of the
discharge directed downwards.
WARNINGS
The Series TY-B Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards recognized by the Approval
agency, in addition to the standards of
any other authorities having jurisdic-
tion. Failure to do so may impair the
performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
Model/Sprinkler
Identification
Numbers
TY3641 - Conventional 80K
TY4641 - Conventional 115K
Technical
Data
Approvals
VdS Approved (CEA 4001)
Maximum Working Pressure
12,1 bar
Discharge Coefficient
1/2
K = 80 LPM/bar
1/2
K = 115 LPM/bar
Temperature Ratings
57°C, 68°C, 79°C, 93°C, 141°C, and
182°C
Finishes
Natural Brass, Chrome Plated, and
Polyester Coated
Physical Characteristics
Frame . . . . . . . . . . . . . Bronze
Button . . . . . . . . . Brass/Copper
Sealing Assembly . . . . . . . . . . .
. . . . . . Beryllium Nickel w/Teflon*
Bulb . . . . . . . . . . . . . . Glass
Compression Screw . . . . . Bronze
Deflector . . . . . . . . . . .
* DuPont Registered Trademark
JULY, 2004
Operation
The glass Bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass Bulb, allowing the sprinkler to
activate and water to flow.
Installation
The Series TY-B Sprinklers must be
installed in accordance with the follow-
ing instructions:
Copper
Do not install any bulb type sprinkler if
the bulb is cracked or there is a loss of
liquid from the bulb. With the sprinkler
held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1,6 mm for
the 57°C to 2,4 mm for the 182°C tem-
perature ratings.
A leak tight 1/2 inch NPT sprinkler joint
should be obtained with a torque of 9
to 19 Nm. A maximum of 28 Nm of
torque may be used to install sprin-
klers with 1/2 NPT connections. A leak
tight 3/4 inch NPT sprinkler joint
should be obtained with a torque of 13
NOTES
TFP663
