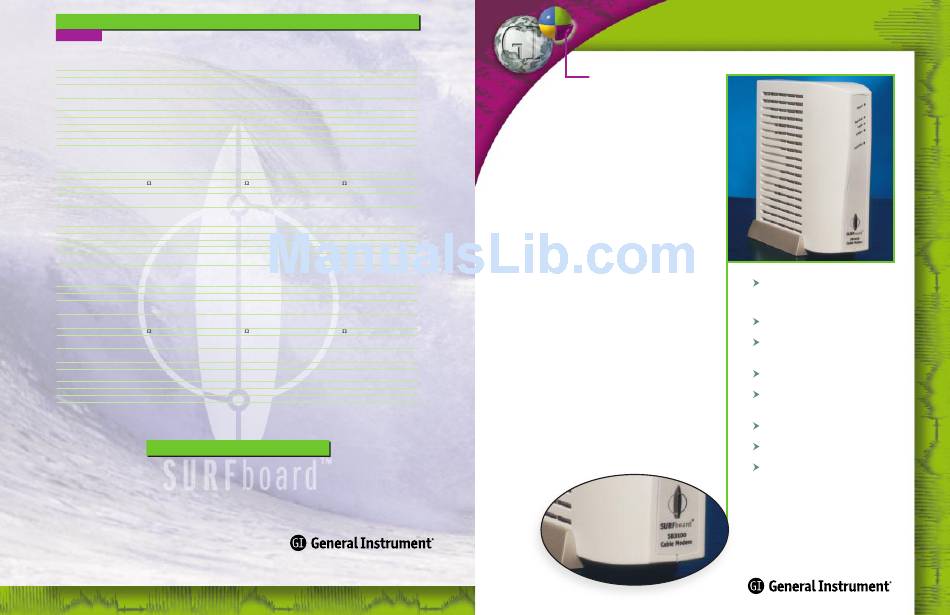

SURFBOARD DOCSIS BASED TWO-WAY EXTERNAL CABLE MODEM SPECIFICATIONS
MODEL SB3100
FEATURES SB3100
Interface to PC: Ethernet 10BaseT
Data Protocol: TCP/IP
Dimensions: 7.2"H x 2.8"W x 7.8"L
Power: 9 Watts
Input Power: 90-250 VAC, 47/63 Hz
DOWNSTREAM
Interface: F-Connector
Modulation: 64 or 256 QAM
Maximum Data Rate: 38Mbps
(into modem)
Bandwidth: 6 MHz
Symbol Rates (max.): 5,069 Msym/s
(64 QAM)
5,361 Msym/s
(256 QAM)
Operating Level Range: -15 to +15 dBmV
Input Impedance: 75 (nominal)
Total Input Power: < 30 dBmV
Frequency Range: 88-860 MHz
(30 kHz min. step size)
ENVIRONMENTAL
Power: 9 Watts Nominal
Input Power: 100-240VAC, 50-60Hz
Operating Temperature: 0 to 40C
Storage Temperature: -30 to +80C
Operating Humidity: 0 to 95% R.H. Non-Condensing
UPSTREAM
Interface: F-Connector
Upstream Modulation: 16 QAM or QPSK
(variable symbol rates)
Maximum Data Rate: 10 Mbps
Bandwidth: 200-3200 kHz
Symbol Rates: 160, 320, 640, 1280,
and 2560 ksym/s
Operating Level Range: +8 to +55 dBmV(16QAM)
+8 to +58 dBmV (QPSK)
Output Impedance: 75 (nominal)
Total Input Power: < 35 dBmV
(varies by symbol rate)
Frequency Range: 5-42 MHz
(edge to edge)
UPSTREAM—TELCO
Interface: N/A
Protocol:
Maximum Upstream
Transmission Rate:
*Internal power supply provides universal outlet functionality—all you need is a power cord.
GI has done it again. The SB3100—yet another
superior innovation in the GI SURFboard cable
modem family, offering high-performance
processors, superior RF design, operator-friendly
©Copyright 1999, General Instrument Corporation.
General Instrument is a registered trademark and the
GI logo is a trademark of General Instrument Corporation.
SB3100I* SB3100D
Ethernet 10BaseT Ethernet 10BaseT
TCP/IP TCP/IP
7.2"H x 2.8"W x 7.8"L 7.2"H x 2.8"W x 7.8"L
Operating Level Range: +8 to +55 dBmV (16QAM)
+8 to +58 dBmV (QPSK)
F-Connector F-Connector
64 or 256 QAM 64 or 256 QAM
38Mbps 38Mbps
(into modem) (in modem)
6 MHz 6 MHz
5,069 Msym/s 5,069 Msym/s
(64 QAM) (64 QAM)
5,361 Msym/s 5,361 Msym/s
(256 QAM) (256 QAM)
-15 to +15 dBmV -15 to +15 dBmV
75 (nominal) 75 (nominal)
< 30 dBmV < 30 dBmV
88-860 MHz 88-860 MHz
(30 kHz min. step size) (30 kHz min. step size)
9 Watts Nominal 9 Watts Nominal
100-240VAC, 50-60Hz 100-240VAC, 50-60Hz
0 to 40C 0 to 40C
-30 to +80C -30 to +80C
0 to 95% R.H. Non-Condensing 0 to 95% R.H. Non-Condensing
F-Connector F-Connector
16 QAM or QPSK 16 QAM or QPSK
(variable symbol rates) (variable symbol rates)
10 Mbps 10 Mbps
200-3200 kHz 200-3200 kHz
160, 320, 640, 1280, 160, 320, 640, 1280,
and 2560 ksym/s and 2560 ksym/s
+8 to +55 dBmV(16QAM) +8 to +55 dBmV (16QAM)
+8 to +58 dBmV (QPSK) +8 to +58 dBmV (QPSK)
75 (nominal) 75 (nominal)
< 35 dBmV < 35 dBmV
(varies by symbol rate) (varies by symbol rate)
5-42 MHz 5-42 MHz
(edge to edge) (edge to edge)
N/A RJ-11 connector
V.42, V.32, or V.34
33.6 kbps
CONCLUSION
diagnostics, and superior field reliability.
The SURFboard SB3100 cable modem—
21st Century Internet access... today.
101 Tournament Drive, Horsham, PA 19044
800.523.6678 www.gi.com
www.surfboard.com
ADVANCED NETWORK & TELECOM SYSTEMS
Now you can ride the wave
faster than ever before!
General Instrument has revolutionized the cable
industry once again. Now accessing and surfing the
Net is better than ever. Hold on tight, because the
fastest connection to the Net is here. Introducing
the newest member of the GI SURFboard family, the
SB3100 cable modem—the most dynamic wave in
external cable modem design yet. The SB3100 cable
modem is hardware-ready to support the DOCSIS 1.1
specification standard, which calls for advanced
Quality of Service (QoS) and Internet Protocol (IP)
filtering functions. QoS guarantees increased Internet
access speed to those businesses or homes demanding
it... this translates into increased revenue potential for
subscribers who require quicker connection. The
enhanced processor included in the SB3100 is
5 times faster than its SB2100 counterpart, making
it the fastest in the market and capable of handling
current and future DOCSIS functions.
SB3100/SB3100i/SB3100D SB3100/SB3100i/SB3100D
3 models available: SB3100, SB3100i
international version, and the
SB3100D dual mode
Hardware ready for DOCSIS 1.1
Attractive compact design
(40% smaller casing than the SB2100)
Improved LEDs for troubleshooting
Power supply inside the enclosure
(no power brick)
Supports up to 32 users
Ideal for retail
Cost reduction enables
better pricing
