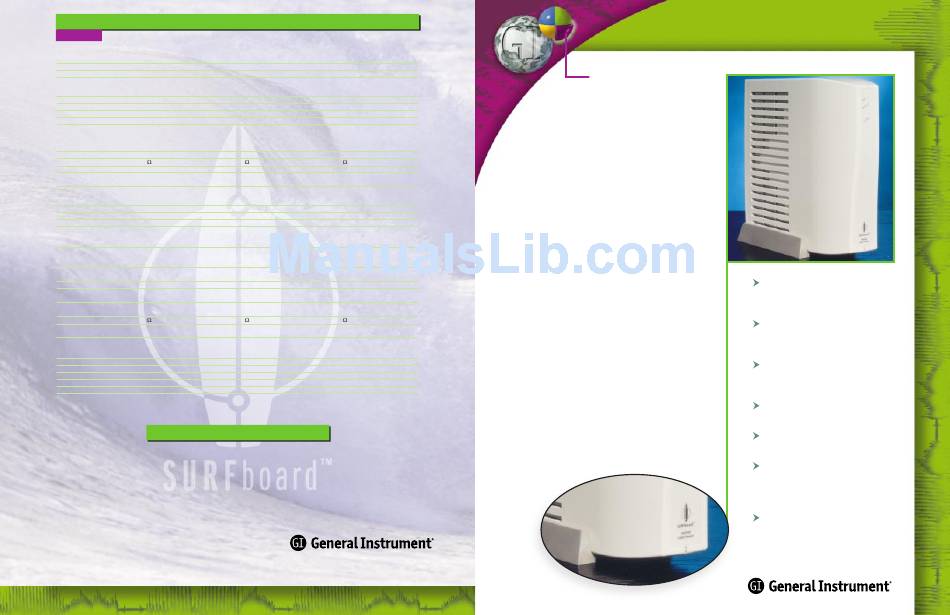

General Instrument SB2100 Specifications

SURFBOARD DOCSIS BASED TWO-WAY EXTERNAL CABLE MODEM SPECIFICATIONS
MODEL SB2100
FEATURES SB2100
Interface to PC: Ethernet 10BaseT
Data Protocol: TCP/IP
Dimensions: 8.75"H x 3.5"W x 9.5"L
DOWNSTREAM
Interface: F-Connector
Modulation: 64 or 256 QAM
Maximum Data Rate 10Mbps
(limited by Ethernet)
Bandwidth: 6 MHz
Symbol Rates (max.): 5,057 Msym/s
(64 QAM)
5,361 Msym/s
(256 QAM)
Operating Level Range: -15 to +15 dBmV
Input Impedance: 75 (nominal)
Total Input Power: < 30 dBmV
Frequency Range: 88-860 MHz
(30 kHz min. step size)
ENVIRONMENTAL
Power: 9 watts (nominal)
Input Power: +12 VDC @ 0.75 ma
Operating Temperature: 0 to +40ª C
Storage Temperature: -20 to +80ª C
Operating Humidity: 10-85% RH,
non-condensing
UPSTREAM
Interface: F-Connector
Upstream Modulation: 16 QAM or QPSK
variable symbol rates
Maximum Upstream
Transmission Rate: 10 Mbps
Bandwidth: 200-3200 kHz
Symbol Rates: 160, 320, 640, 1280,
and 2560 ksym/s
Operating Level Range: +8 to +55 dBmV (16QAM)
+8 to +58 dBmV (QPSK)
Output Impedance: 75 (nominal)
Total Input Power: < 35 dBmV
(varies by symbol rate)
Frequency Range: 5-42 MHz
(edge to edge)
UPSTREAM—TELCO
Interface: N/A
Protocol:
Maximum Upstream
Transmission Rate:
*Universal power supply and multiple line cord configurations available.
With the SURFboard SB2100 family you get the
SPEED that leaves traditional modems obsolete...
the FLEXIBILITY that allows multiple user access...
and the SIMPLICITY of plug-and-play operation.
The SB2100 series designs are built on proven
©Copyright 1999, General Instrument Corporation.
General Instrument is a registered trademark and the
GI logo is a trademark of General Instrument Corporation.
SB2100I* SB2100D
Ethernet 10BaseT Ethernet 10BaseT
TCP/IP TCP/IP
8.75"H x 3.5"W x 9.5"L 8.75"H x 3.5"W x 9.5"L
F-Connector F-Connector
64 or 256 QAM 64 or 256 QAM
10Mbps 10Mbps
(limited by Ethernet) (limited by Ethernet)
6 MHz 6 MHz
5,057 Msym/s 5,057 Msym/s
(64 QAM) (64 QAM)
5,361 Msym/s 5,361 Msym/s
(256 QAM) (256 QAM)
-15 to +15 dBmV -15 to +15 dBmV
75 (nominal) 75 (nominal)
< 30 dBmV < 30 dBmV
88-860 MHz 88-860 MHz
(30 kHz min. step size) (30 kHz min. step size)
9 watts (nominal) 9 watts (nominal)
+12 VDC @ 0.75 ma +12 VDC @ 0.75 ma
0 to +40ª C 0 to +40ª C
-20 to +80ª C -20 to +80ª C
10-85% RH, 10-85% RH,
non-condensing non-condensing
F-Connector F-Connector
16 QAM or QPSK 16 QAM or QPSK
variable symbol rates variable symbol rates
10 Mbps 10 Mbps
200-3200 kHz 200-3200 kHz
60, 320, 640, 1280, 60, 320, 640, 1280,
and 2560 ksym/s and 2560 ksym/s
+8 to +55 dBmV (16QAM) +8 to +55 dBmV (16QAM)
+8 to +58 dBmV (QPSK) +8 to +58 dBmV (QPSK)
75 (nominal) 75 (nominal)
< 35 dBmV < 35 dBmV
(varies by symbol rate) (varies by symbol rate)
5-42 MHz 5-42 MHz
(edge to edge) (edge to edge)
N/A RJ-11 connector
V.42, V.32, or V.34
33.6 kbps
CONCLUSION
General Instrument SURFboard cable modem
technology. GI's commitment to excellence enables
them to lead the market in innovative and reliable
products that consistently provide their customers
with outstanding performance and value.
101 Tournament Drive, Horsham, PA 19044
800.523.6678 www.gi.com
www.surfboard.com
ADVANCED NETWORK & TELECOM SYSTEMS
At last, the wait is over.
SURFboard technology leaves
traditional modems obsolete.
Waiting. It may be the greatest irritant in web surfing.
Waiting for your modem to transfer a document. Waiting
for the busy signals to stop; waiting for a connection.
Waiting. With GI's SURFboard cable modem, the waiting
is over. You're always on...always connected.
GI offers 3 models in the SURFboard cable modem
family: the SB2100, SB2100i and the SB2100D. The
standard SB2100 offers customer friendly, quick Internet
access via a single cable. The SB2100i international
modem supports universal power supplies providing
GI's plug-and-play convenience to customers across the
globe. Additionally, the SB2100D dual-return modem
automatically detects available return path in one-way or
two-way plants and configures itself accordingly. The
SB2100D is the same unit as the SB2100, but with facto-
ry added components like an analog telephone modem
included inside for one-way systems.
SB2100/SB2100i/SB2100D SB2100/SB2100i/SB2100D
3 models available: SB2100, SB2100i
international version, and the
SB2100D dual-return
High-Speed Access creating more
"bandwidth per dollar" with speeds up
to 100x's faster than 28.8 telco dial-in
Telco equipment limitations
eliminated with RF-return
cable modem
Increase return on investment for
plant upgrades
Cable operator can compete today
as high-speed data service provider
DOCSIS standardization and
interoperability of cable modems
provide longevity of purchased
headend equipment
Supports up to 32 users
