BN Products BNMS-100B Assembly Instructions

3. Place the Back Plate (#22) inside the Bucket Frame (#21) with the threaded
stud sticking out of the bottom hole and loosely start the Wing Nut (#27).
Thread the Lock Handle (#26) through the Bucket Frame and into the Back
Plate but leave loose. See Diagram B.
4. With the Back Plate (#22) very loose slide the Extension Frame (#8) into
the Bucket Frame and lock into place about 4 inches from the bottom.
5. Slide the Extension Tube (#10) with swivel into the Extension Frame and lock
in place with the Pin (#9). See Diagra C.
6. Attach the two Knob Bolts (#13) to the Swivel Assembly.
7. Install the battery in the Timer and attach it to the back bracket.
8. The electric mixer can now be installed and the Swivel adjusted with the
Bottom Knob (#18).
Note: When attaching an electric mixer, the paddle will need to
be pushed up through the Swivel and threaded into the mixer.
BN Products-USA, LLC.
3450 Sabin Brown Road
Wickenburg, AZ 85390
(800) 992-3833
mail@bnproducts.com
BNMS-100B Mixing Station
1. Check the package you received to ensure all parts are in-
cluded. If any parts are missing do not return this product to the
store but contact BN Customer Service at 1-800-992-3833.
2. To attach the Casters (#1) turn the
Lower Fame Assembly (#5) upside down
on a level surface. The two locking cast-
ers need to be installed in the back of the
frame that is near the Foot Lock Lever
(#4). Use a 3/4" open end wrench and a
3/4" socket to install the casters. Install
a wheel bolt and washer up through
the Lower Frame (#5) and through the
Caster and attach with a Lock Nut (#3)
on each wheel.

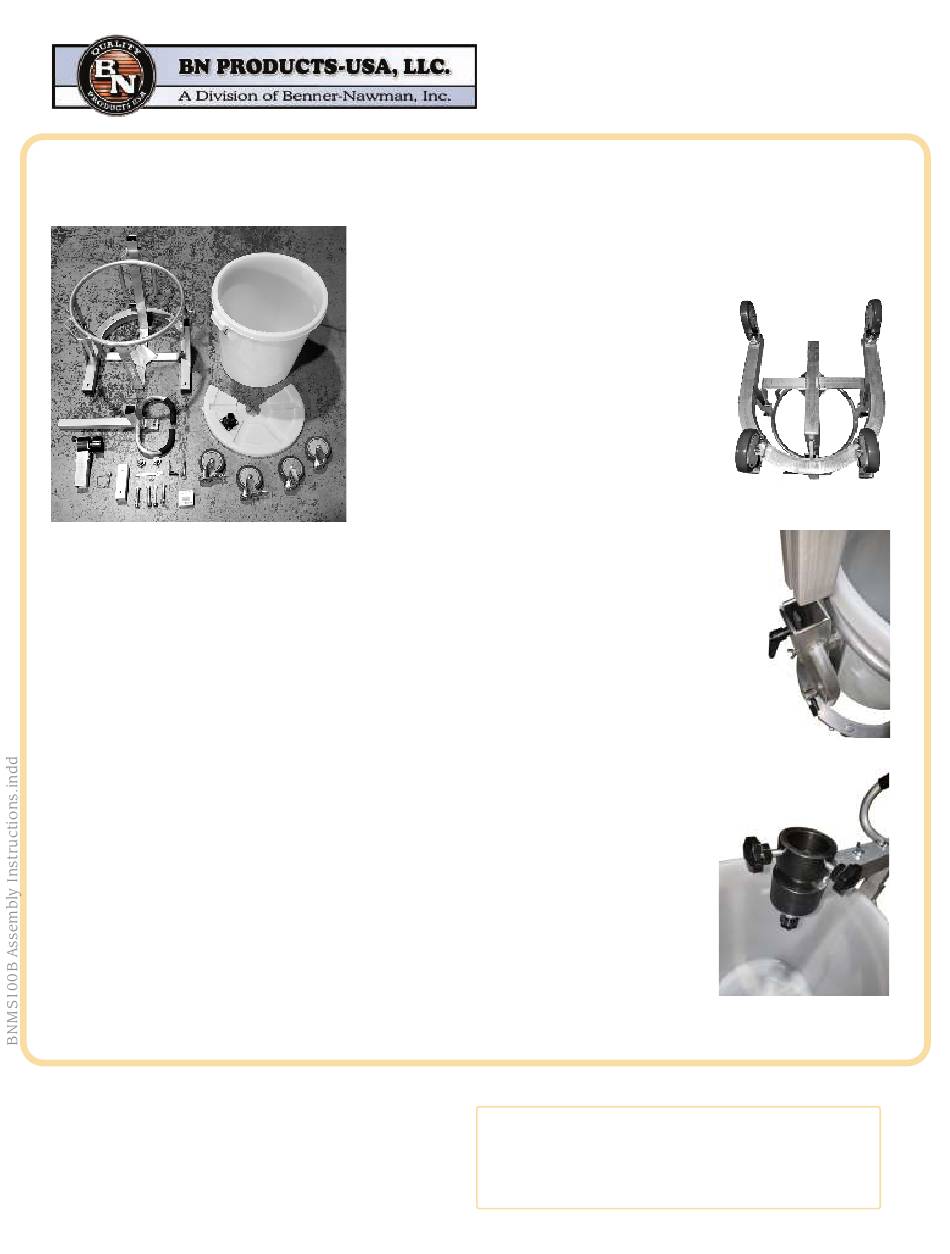

Assembly Instructions Assembly Instructions
Diagram A
Diagram B
Diagram C
