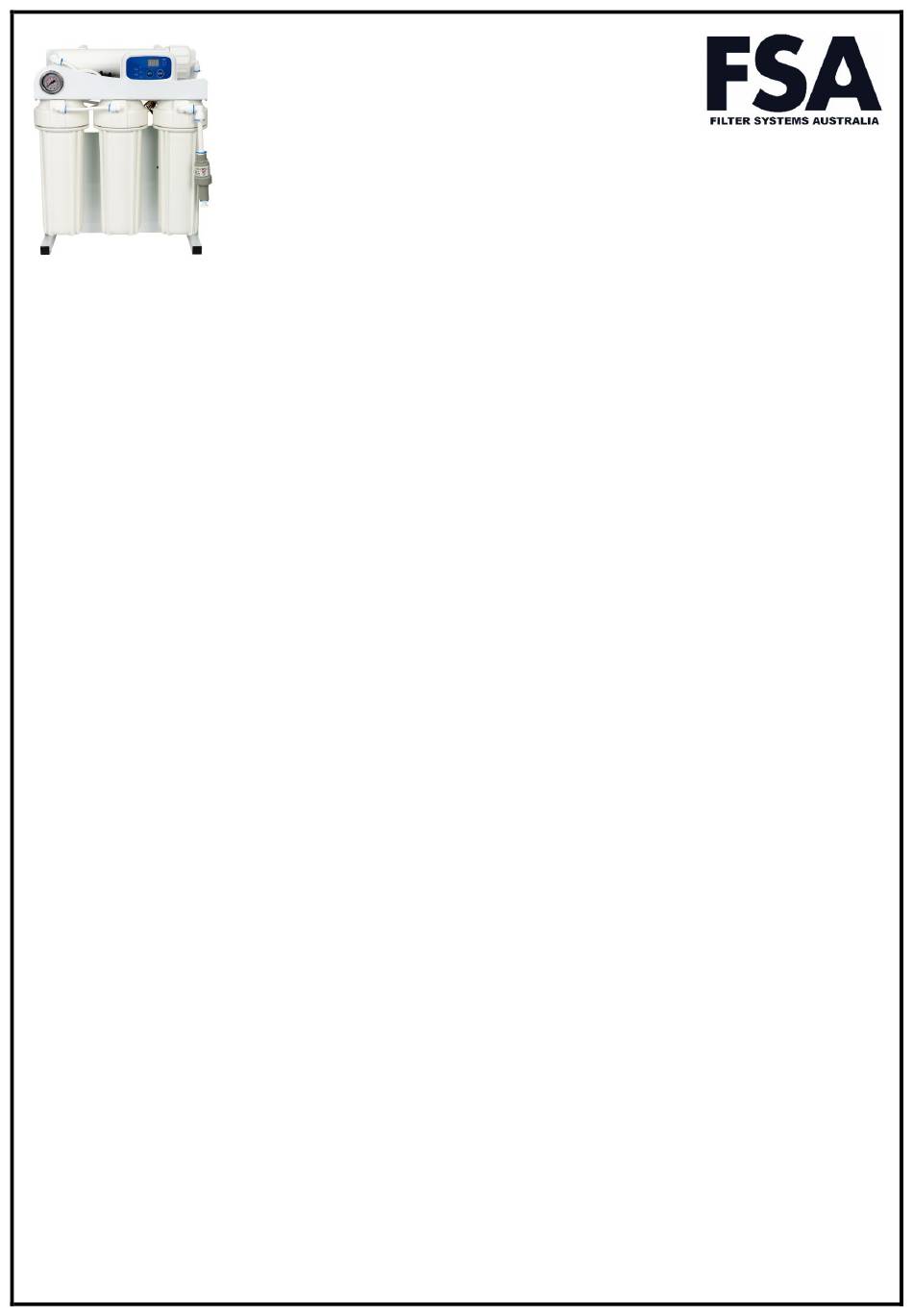

Commercial Reverse
Osmosis Water Filter System
15L/Hr - GT1-23LS
Contents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FSA GT1-23LS
Summary of Contents for FSA GT1-23LS
-
Page 1: Table Of Contents
Commercial Reverse Osmosis Water Filter System 15L/Hr – GT1-23LS Contents Technical Overview ............................2 I. Important Notes ............................. 2 II. Before You Purchase/Open ........................2 III. Space Requirements ..........................2 IV. Before You Begin Installation ....................... 3 V. What is Reverse Osmosis ........................3 VI. -
Page 2: Technical Overview
I. Replacement Parts..........................9 II. Replacement Cartridges ........................9 III. Parts List .............................. 9 Troubleshooting ............................10 Technical Overview I. Important Notes For correct operation of this appliance, it is essential to observe the manufacturer’s instructions. If this system is to be installed permanently as a POU or POE system, installation must be carried out by a qualified plumber or authorised technician to comply with Australian Plumbing Codes. -
Page 3: Before You Begin Installation
System Dimensions Depth: 20cm Width: 37 cm Height: 45cm If the system is to be enclosed in a cover, allow adequate ventilation around the pumps & power supplies to prevent overheating. IV. Before You Begin Installation These RO units come pre-assembled on the bracket will all connections in place. These units are tested for leaking before they are sent to ensure there are no leaks due to assembly. -
Page 4: Installation Introduction
2. Post storage sanitation is required if your RO water is filtering into a storage tank. This is the same principle as treating rain water from a tank into your house. While RO water is generally free from contamination, it is possible for the stored water to become contaminated especially if the tank is not sealed or mixed with rain water. -
Page 5: Installing Connections - Quick Connect
IV. Installing Connections – Quick Connect If you come across a push-fit fitting, you need to firmly push the tubing into the opening until you feel a “click” which signifies that the tubing has pushed through the internal O-ring and is seated correctly. If leaking occurs, it may be due to roughly cut tubing OR the tubing is not pushed in far enough. -
Page 6: (B) Membranes
the cartridge aligned with the guide lugs; remove the sump and line it up correctly before tightening. An opening spanner if provided with these systems and is only required for installation if hand tightening is not easily achieved or if slight leaking occurs. It is important not to overtighten the housings as this can lead to excessive stress on the cap thread which may cause damage to the housing long term. -
Page 7: (B) Functionality Instructions
(b) Functionality Instructions 1. After completed installation, the LED will show “FSH” and the system will flush the membranes for 15 sec. After flushing the system will start to produce RO water, the micro controller will start to display a TDS value after 4 minutes 2. -
Page 8: Commissioning
If the TDS has not stabilised after 4 days, please contact the manufacturer. II. Commissioning NOTE: New filtration systems will require a pre-flush before being used. The GT1-23LS system will need to run for at least 15 – 20 minutes before first use to clear and residue or fines from the filters. -
Page 9: Maintenance
If installing this system to a float switch in a tank, you will need to disconnect the high-pressure switch and connect the float valve terminals in its place. This will then run the shut off based on the float rather than the pressure. - Page 10 GT8-0LS 10” x 2.5” Filter Housing Sump GT8-31 1812 Reverse Osmosis Membrane Housing Troubleshooting Problem Possible Cause(s) Solution Leaking Unseated tubing Check all tubing connections by firmly pushing them into the between fitting fitting. Check that there are no kinks or any obvious issues. If and tubing the problem persists, remove the tubing and check for a clean cut with no burs.
- Page 11 The TDS Is 1. New Filter 1. While filters are new, it is normal for the TDS to be Higher than the elevated while the system is flushing. Continue flushing the inlet water (or system & contact support if the high TDS persists longer than the same).
- Page 12 12 months from date of sale. If applicable, FSA may cover the return freight in the form of a re-imbursement after the system has been inspected and confirmed it is a valid warranty claim.
- Page 13 ² Other products not manufactured or assembled by FSA are covered under the applicable manufacturer’s warranty. ³ FSA specifies recommended or required filter maintenance – see product information for further details. If a maintenance schedule is not specified, filter maintenance is required at least once per 12 month period.
