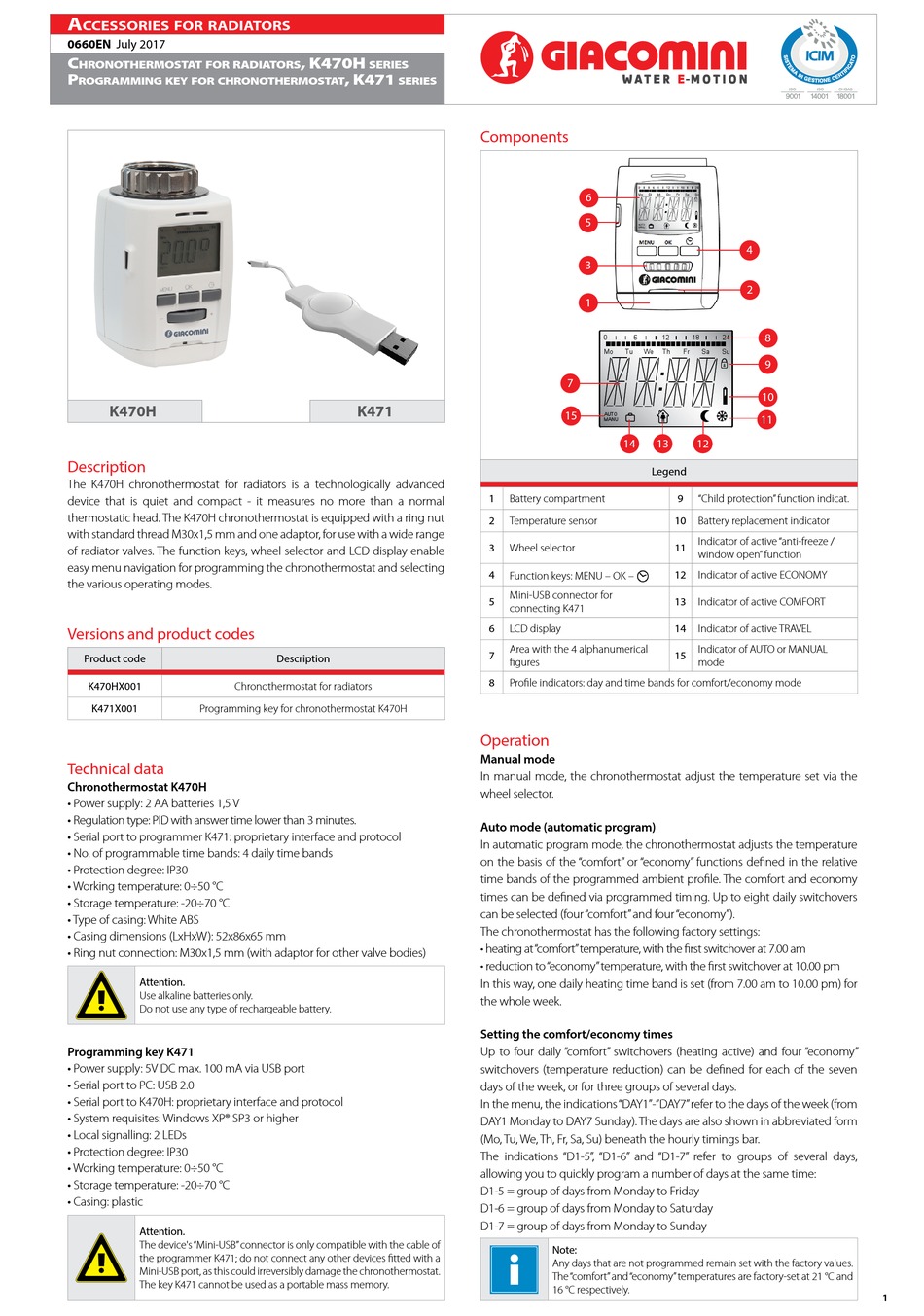

Giacomini K470H Series Quick Start Manual

A
ccessories for rAdiAtors
0660EN July 2017
C
hronothermostat for radiators
P
rogramming Key for Chronothermostat
K470H
Description
The K470H chronothermostat for radiators is a technologically advanced
device that is quiet and compact - it measures no more than a normal
thermostatic head. The K470H chronothermostat is equipped with a ring nut
with standard thread M30x1,5 mm and one adaptor, for use with a wide range
of radiator valves. The function keys, wheel selector and LCD display enable
easy menu navigation for programming the chronothermostat and selecting
the various operating modes.
Versions and product codes
Product code
K470HX001 Chronothermostat for radiators
K471X001 Programming key for chronothermostat K470H
Technical data
Chronothermostat K470H
• Power supply: 2 AA batteries 1,5 V
• Regulation type: PID with answer time lower than 3 minutes.
• Serial port to programmer K471: proprietary interface and protocol
• No. of programmable time bands: 4 daily time bands
• Protection degree: IP30
• Working temperature: 0÷50 °C
• Storage temperature: -20÷70 °C
• Type of casing: White ABS
• Casing dimensions (LxHxW): 52x86x65 mm
• Ring nut connection: M30x1,5 mm (with adaptor for other valve bodies)
Attention.
Use alkaline batteries only.
Do not use any type of rechargeable battery.
Programming key K471
• Power supply: 5V DC max. 100 mA via USB port
• Serial port to PC: USB 2.0
• Serial port to K470H: proprietary interface and protocol
• System requisites: Windows XP® SP3 or higher
• Local signalling: 2 LEDs
• Protection degree: IP30
• Working temperature: 0÷50 °C
• Storage temperature: -20÷70 °C
• Casing: plastic
Attention.
The device's "Mini-USB" connector is only compatible with the cable of
the programmer K471; do not connect any other devices fitted with a
Mini-USB port, as this could irreversibly damage the chronothermostat.
The key K471 cannot be used as a portable mass memory.
, K470h
series
, K471
series
K471
Description
Components
6
5
3
1
0 6
Mo Tu We
7
15
AUTO
MANU
14
Legend
1 Battery compartment
2 Temperature sensor
3
Wheel selector
4
Function keys: MENU – OK –
Mini-USB connector for
5
connecting K471
6
LCD display
Area with the 4 alphanumerical
7
figures
8 Profile indicators: day and time bands for comfort/economy mode
Operation
Manual mode
In manual mode, the chronothermostat adjust the temperature set via the
wheel selector.
Auto mode (automatic program)
In automatic program mode, the chronothermostat adjusts the temperature
on the basis of the "comfort" or "economy" functions defined in the relative
time bands of the programmed ambient profile. The comfort and economy
times can be defined via programmed timing. Up to eight daily switchovers
can be selected (four "comfort" and four "economy").
The chronothermostat has the following factory settings:
• heating at "comfort" temperature, with the first switchover at 7.00 am
• reduction to "economy" temperature, with the first switchover at 10.00 pm
In this way, one daily heating time band is set (from 7.00 am to 10.00 pm) for
the whole week.
Setting the comfort/economy times
Up to four daily "comfort" switchovers (heating active) and four "economy"
switchovers (temperature reduction) can be defined for each of the seven
days of the week, or for three groups of several days.
In the menu, the indications "DAY1"-"DAY7" refer to the days of the week (from
DAY1 Monday to DAY7 Sunday). The days are also shown in abbreviated form
(Mo, Tu, We, Th, Fr, Sa, Su) beneath the hourly timings bar.
The indications "D1-5", "D1-6" and "D1-7" refer to groups of several days,
allowing you to quickly program a number of days at the same time:
D1-5 = group of days from Monday to Friday
D1-6 = group of days from Monday to Saturday
D1-7 = group of days from Monday to Sunday
Note:
Any days that are not programmed remain set with the factory values.
The "comfort" and "economy" temperatures are factory-set at 21 °C and
16 °C respectively.
4
2
8
12 18 24
Th Fr Sa Su
:
9
10
11
13 12
9 "Child protection" function indicat.
10 Battery replacement indicator
Indicator of active "anti-freeze /
11
window open" function
12 Indicator of active ECONOMY
13 Indicator of active COMFORT
14
Indicator of active TRAVEL
Indicator of AUTO or MANUAL
15
mode
1
