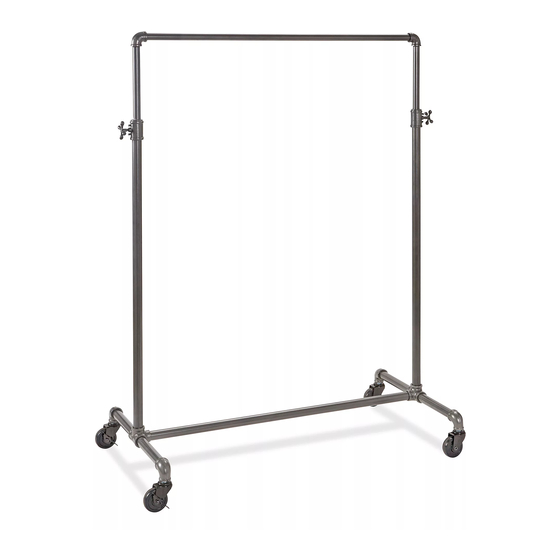

- Page 1 π H-5816 1-800-295-5510 uline.com PIPE CLOTHING RACK – SINGLE RAIL TOOLS INCLUDED Allen Wrench Wrench PARTS Caster x 4 Adjustable Connector x 2 Set Screw x 2 Top Upright x 2 Bottom Upright x 2 Hangbar x 1 Base x 1...
- Page 2 ASSEMBLY Screw the four casters into the base using provided 3. Screw an adjustable connector to the top of each wrench. (See Figure 1) bottom upright. Make sure connectors are facing out. (See Figure 3) Figure 1 2. Thread each bottom upright into the base. (See Figure 2) To fully secure uprights, place included wrench into pipe slots and tighten fully.
- Page 3 ASSEMBLY INCLUDED 5. Twist each top upright into hangbar. (See Figure 5) 6. Loosen adjustable connectors and insert hangbar with top uprights from step 5. Drop to desired height NOTE: Ends with slots should be facing down. and lock into position by retightening connectors. (See Figure 6) Figure 5 Figure 6...
