U-Line H-2924 Assembly Instructions

H-2924, H-5990

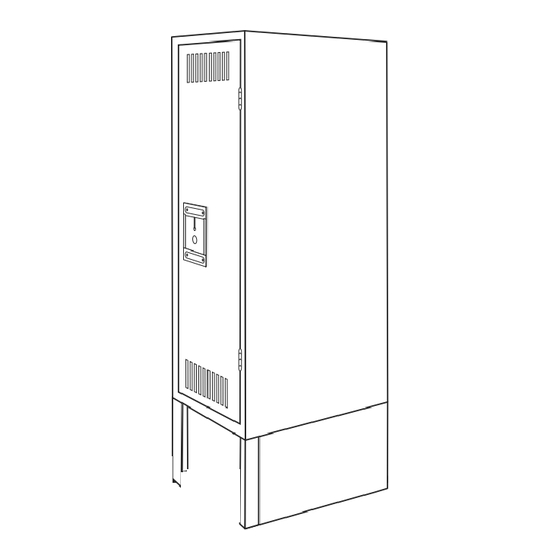

LOCKER END
BASE PLATE

TOOL NEEDED

7⁄16" Nut Driver
WARNING! Some parts may have sharp edges.
Care must be taken when handling various
pieces to avoid injury. For your safety, wear a
pair of work gloves when assembling.
1. The locker end base plate may be installed either
with the locker standing upright or lying on its side.
2. Slip offset end of end base plate into the front leg of
the locker. Slip the other end of the end base plate
around the back leg of the locker. (See Figure 1)
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY INSTRUCTIONS
3. Fasten the end base plate to the back of the locker
with two 8-32 x 3/8" bolts and nuts. (See Figure 2)

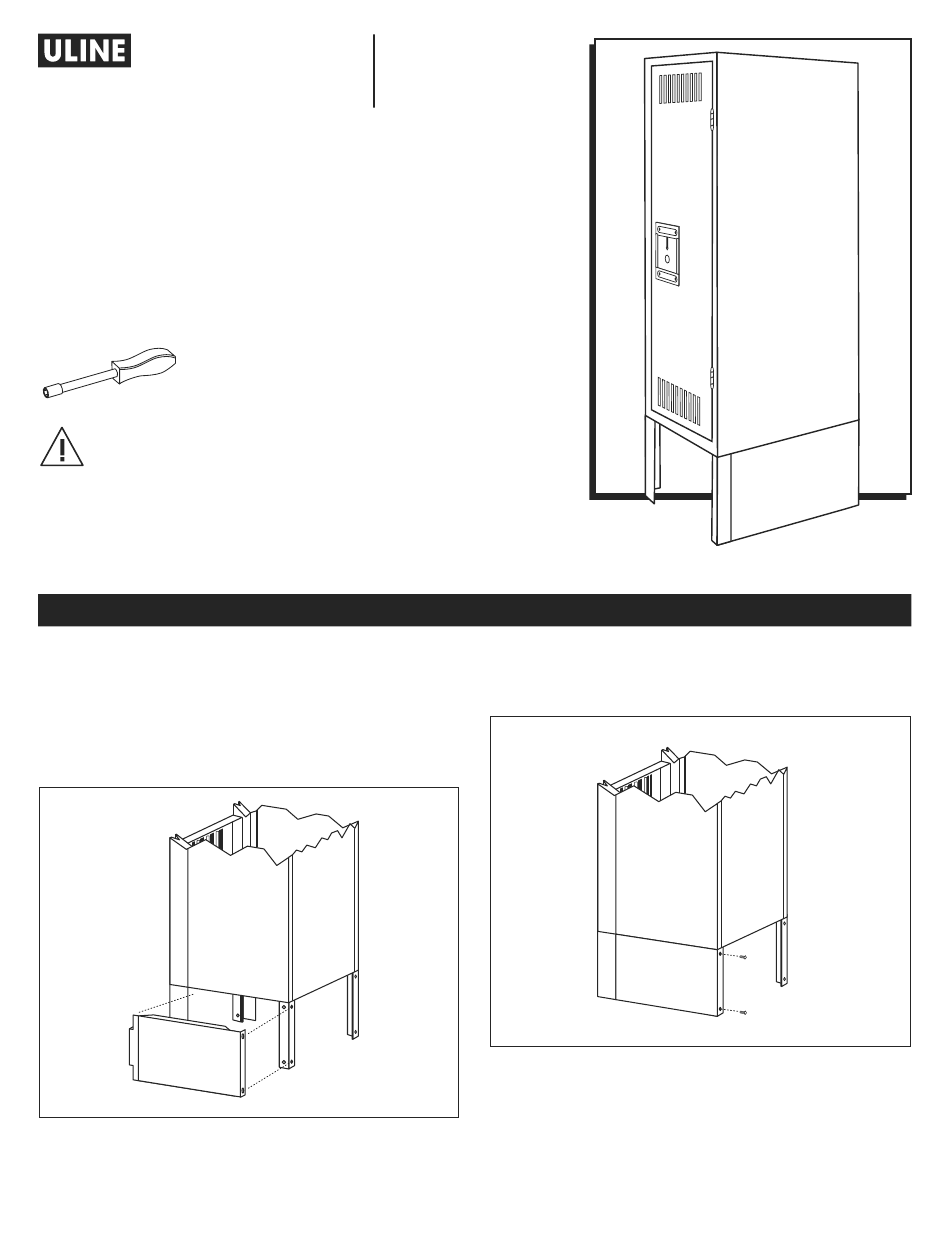

Figure 1
