DESCRIPTION

Demonstration circuit 1414B-B features the
LTM
4601AHVEV, the high efficiency, high density switch
®
mode step-down power module. The input voltage range
is 5V to 28V with a jumper selectable output voltage
from 0.6V to 5V. The rated load current is 12A, although
derating is necessary for certain V
conditions. The PLLIN pin supports synchronizing the
μModule
®
regulator to an external clock. The TRACK/SS
pin allows the user to program output ramp-up and ramp-
down rates which may coincidentally or ratiometrically

PERFORMANCE SUMMARY

PARAMETER
Input Voltage Range
Output Voltage V
OUT
Maximum Continuous Output Current
Default Operating Frequency
External Synchronous Clock Frequency Range
Efficiency

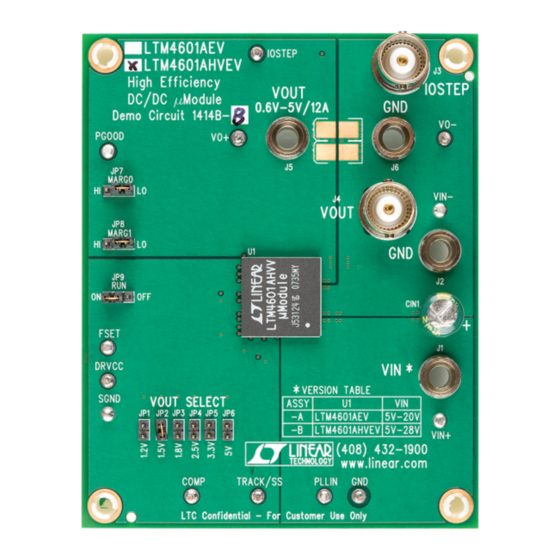

BOARD PHOTO
This datasheet has been downloaded from

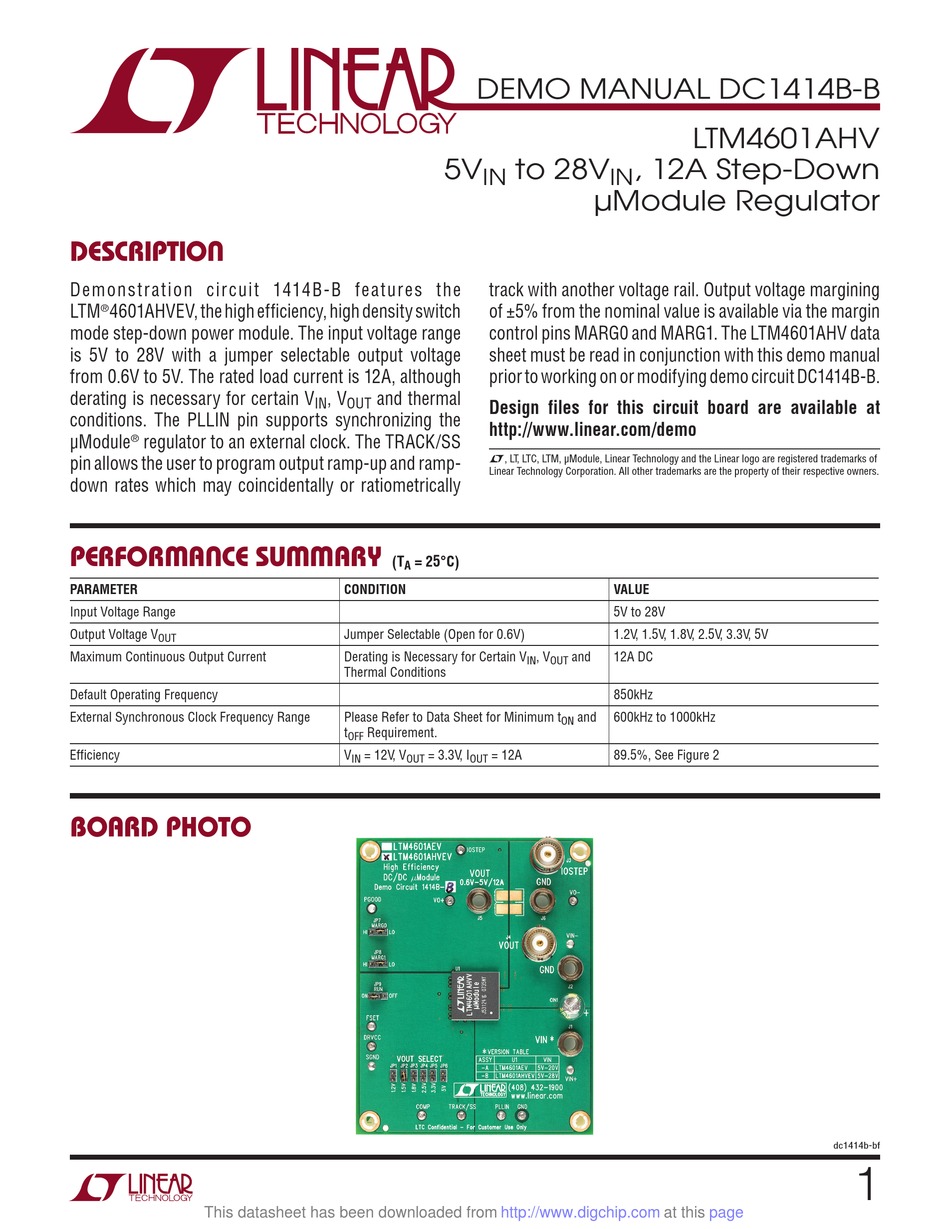

DEMO MANUAL DC1414B-B
5V
IN
track with another voltage rail. Output voltage margining
of ±5% from the nominal value is available via the margin
control pins MARG0 and MARG1. The LTM4601AHV data
sheet must be read in conjunction with this demo manual
prior to working on or modifying demo circuit DC1414B-B.
, V
and thermal
IN
OUT
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
(T
= 25°C)
A
CONDITION
Jumper Selectable (Open for 0.6V)
Derating is Necessary for Certain V
Thermal Conditions
Please Refer to Data Sheet for Minimum t
t
Requirement.
OFF
V
= 12V, V
= 3.3V, I
= 12A
IN
OUT
OUT
to 28V
, 12A Step-Down
IN
µModule Regulator
VALUE
5V to 28V
1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
, V
and
12A DC
IN
OUT
850kHz
and
600kHz to 1000kHz
ON
89.5%, See Figure 2
http://www.digchip.com
at this
LTM4601AHV
dc1414b-bf
1
page
