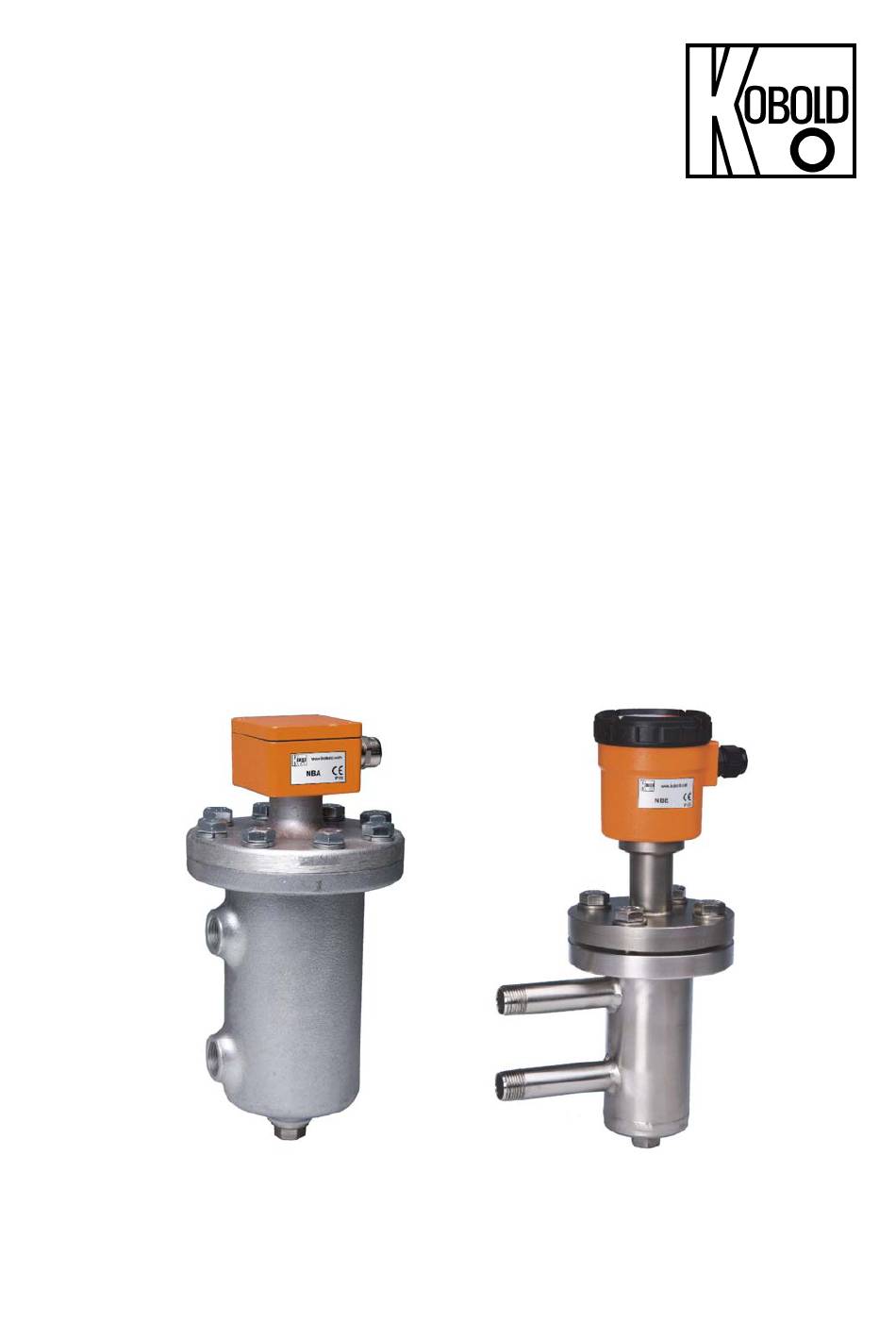

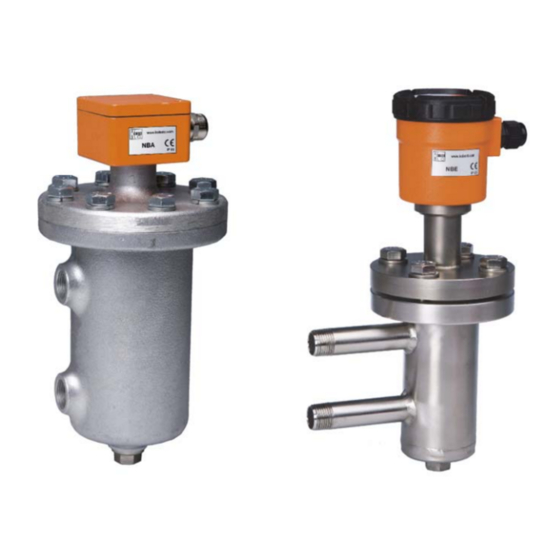

- Page 1 Operating Instructions Bypass Level Switch Model: NBA-2/NBE-2...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............11 UK Declaration of Conformity ..............12 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 NBA-2/NBE-2 K05/1022... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
NBA-2/NBE-2 4. Regulation Use Any use of the Bypass Level Switch, model: NBA-2/NBE-2, which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. -
Page 5: Mechanical Connection
At all events it must be ensured when actuating loads such as contactors, relays etc. that the electrical limiting values are not exceeded – and not even briefly due, for instance, to voltage peaks. A contact protection relay is recommended to stop any contact overloading. NBA-2/NBE-2 K05/1022 page 5... -
Page 6: Operation
If incrustations or crystallization are present, then the tank must be emptied or sealed off. This is to be followed by slowly removing the tank lid plus slider tube and float from the bypass tank. The bypass tank can now be mechanically cleaned. page 6 NBA-2/NBE-2 K05/1022... -
Page 7: Technical Information
Max. pressure: 10 bar Density of liquid: min. 0.65 kg/dm Contact components: 1 changeover contact Contact material: Rhodium Switching capacity: max. 60 VA Switching voltage: max. 250 V Inrush peak: max. 1 A Hysteresis: approx. 7 mm NBA-2/NBE-2 K05/1022 page 7... -
Page 8: Order Codes
NBA-2/NBE-2 12. Order Codes Case material Order number aluminium NBA-200 R 10 stainless steel NBE-200 K 15 13. Dimensions NBA-2 page 8 NBA-2/NBE-2 K05/1022... - Page 9 NBA-2/NBE-2 NBE-2 NBA-2/NBE-2 K05/1022 page 9...
-
Page 10: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 10 NBA-2/NBE-2 K05/1022... -
Page 11: Eu Declaration Of Conformance
NBA-2/NBE-2 15. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Bypass Level Switch Model: NBA-2/NBE-2 to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2011... -
Page 12: Declaration Of Conformity
NBA-2/NBE-2 16. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Bypass Level Switch Model: NBA-2/NBE-2 to which this declaration relates is in conformity with the standards noted below: BS EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use.
