Summary of Contents for Kobold NV Series

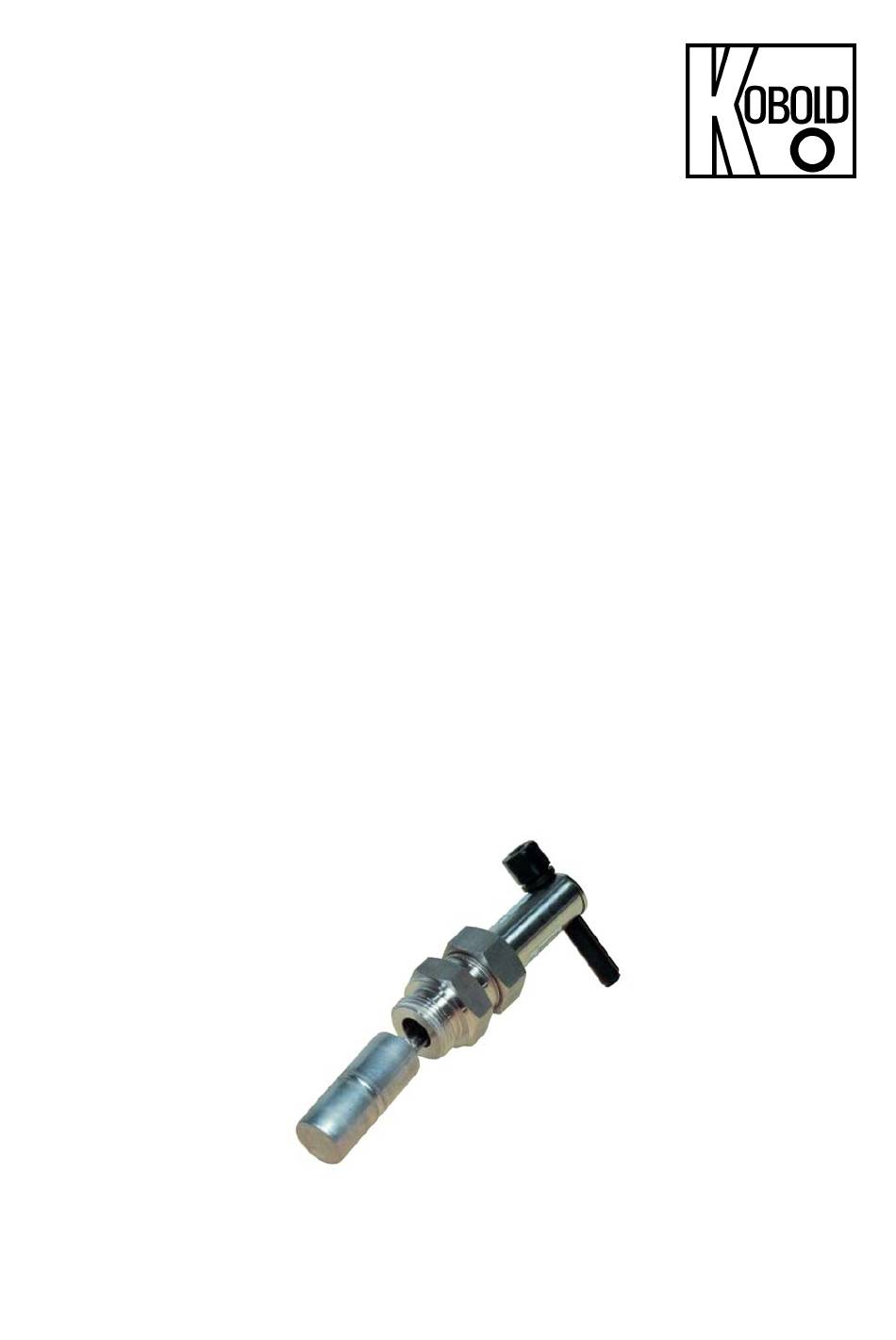

- Page 1 Operating Instructions Level Switches Model: NV...
-
Page 2: Table Of Contents
Order Codes ............... 7 Dimensions ................. 7 EU Declaration of Conformance ......... 8 Manufactured and Marketed by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49 (0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2 NV K08/0917... -
Page 3: Note
2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &... -
Page 4: Operating Principle

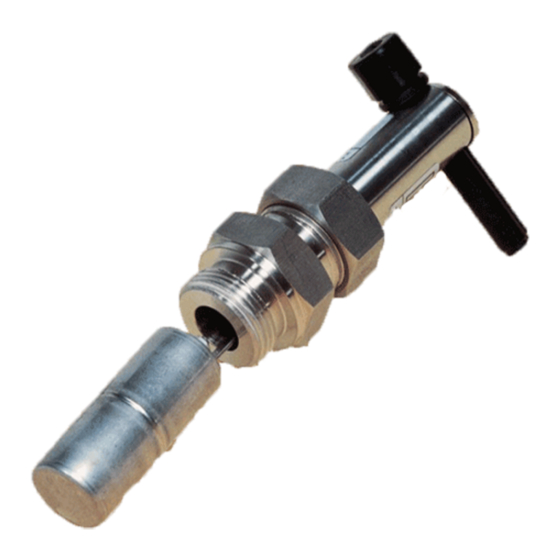

5. Operating Principle The Kobold Level Switch model NV is a reasonably-priced compact instrument for monitoring levels. A stainless steel cylindrical float attached to one end of a balance arm moves up and down with the liquid level. The motion of the float is transferred to a permanent magnet fitted at the other end of the balance arm. -
Page 5: Electrical Connection
7. Electrical Connection Make sure that the electric supply lines are not active. Connect the cable with your power supply. The contact box is made of fibreglass reinforced plastic. This material provides protective insulation according to VDI 0720 class II; a separate protection conductor is not required. -
Page 6: Technical Information
10. Technical Information Housing: NV-11...: brass, Ms 58 NV-12...: stainless steel, 1.4301 Connections: NV-11...: brass, Ms 58 NV-12...: stainless steel, 1.4301 Float: stainless steel, 1.4301 Leaf spring: stainless steel, 1.4310 Balance arm: stainless steel, 1.4310 Sleeve: NV-11...: brass, Ms 58 NV-12...: stainless steel, 1.4301 Contact tube: Polyamide... -
Page 7: Order Codes
11. Order Codes Example: NV-1101 R1 Connection/ Cable type/length Model Material Contact type, Length of float PVC cable R = N/O contact 1 =1.5 m (standard) (Standard CE) 2 =2.0 m 01 = G ¾; 25 mm C = N/O contact 4 =3.0 m 11 = brass 02 = M27x1.5;... -
Page 8: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Level Monitor model: NV... to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2011 Safety requirements for electrical equipment for measurement, control and laboratory use –...
