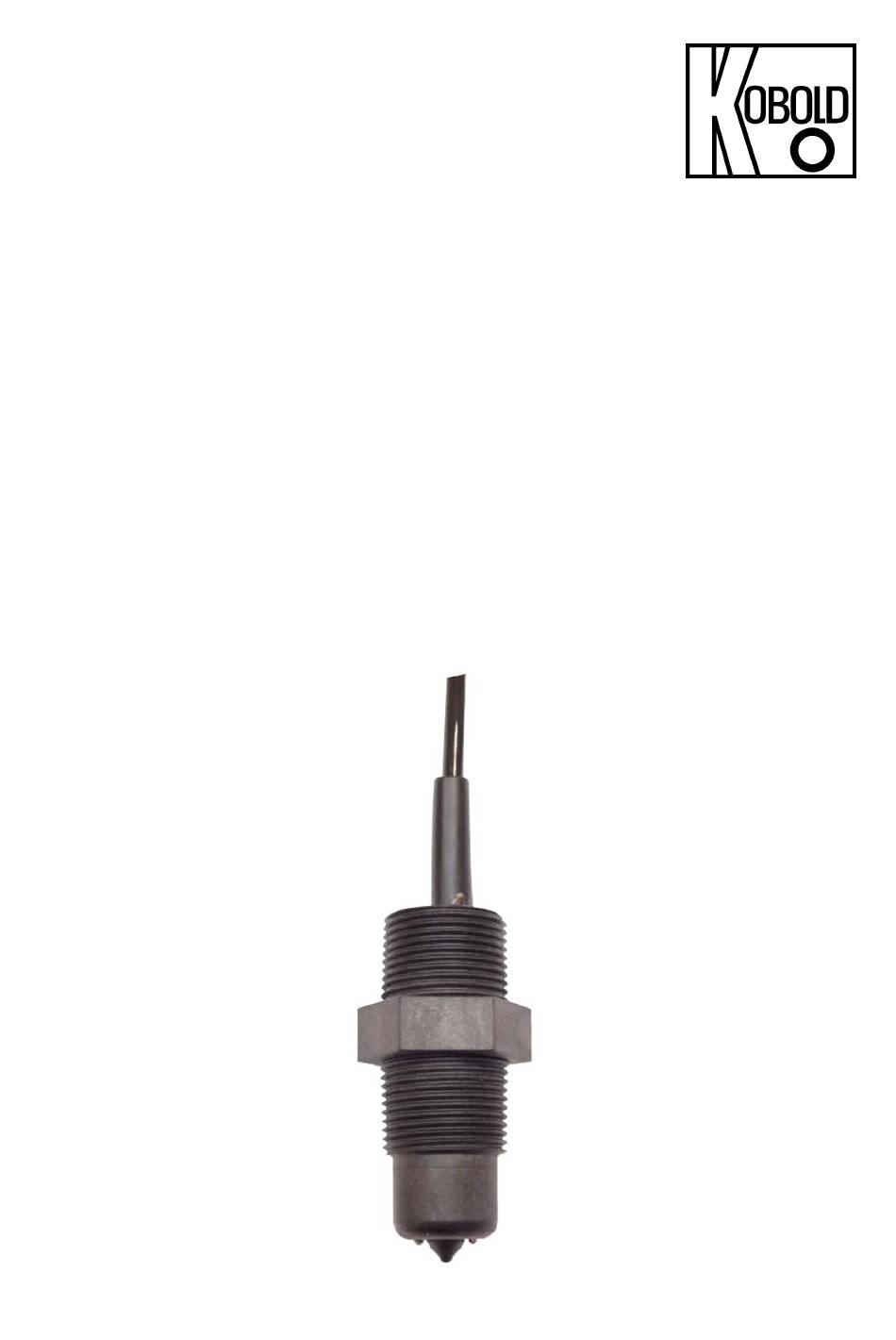

- Page 1 Operating Instructions Conductive Level Switches Model: NEK-...
- Page 2 Order Codes ....................7 Dimensions ....................7 EU Declaration of Conformance ..............8 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Seite 2 NEK K05/0516...
- Page 3 2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...

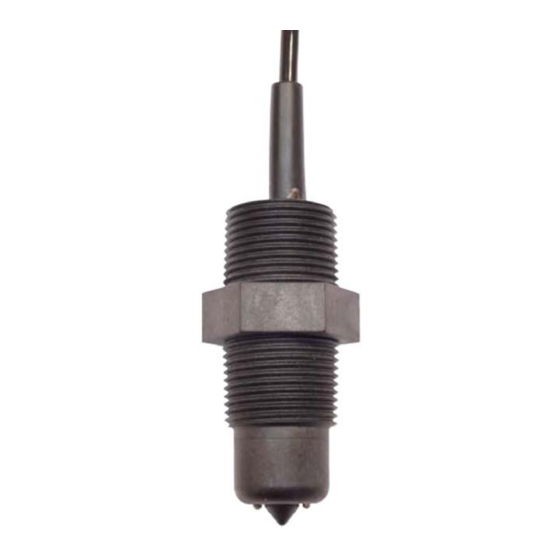

- Page 4 5. Operating Principle The Kobold Level Switch of model NEK is a complete functional unit which is specially designed for monitoring conductive liquids under extreme conditions. Due to the design without any moving or protruding parts, the switches are very suitable for monitoring critical media with, for example, solid content, negligible density or high viscosity.
- Page 5 Attention! Incorrect wiring will lead to damage of the unit’s electronics. If the unit is installed in a metallic, conductive container, this container must be connected with the NEK supply potential GND, otherwise it may cause functional problems by potential differences. 7.2.
- Page 6 9. Maintenance The Conductive Level Switch is maintenance-free. Should the electrodes be contaminated with a non-conductive coating (oil, grease, etc.), they can be cleaned with a suitable tool (e.g. cloth). Do not use a cleaner that would damage the plastic housing. 10.
- Page 7 11. Order Codes Example: NBK-1136 R20 C 12. Dimensions NEK K05/0516 Seite 7...
- Page 8 13. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Conductive level switch model: NEK -... to which this declaration relates is in conformity with the standards noted below: EN 61000-6-4:2011-09 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission...
