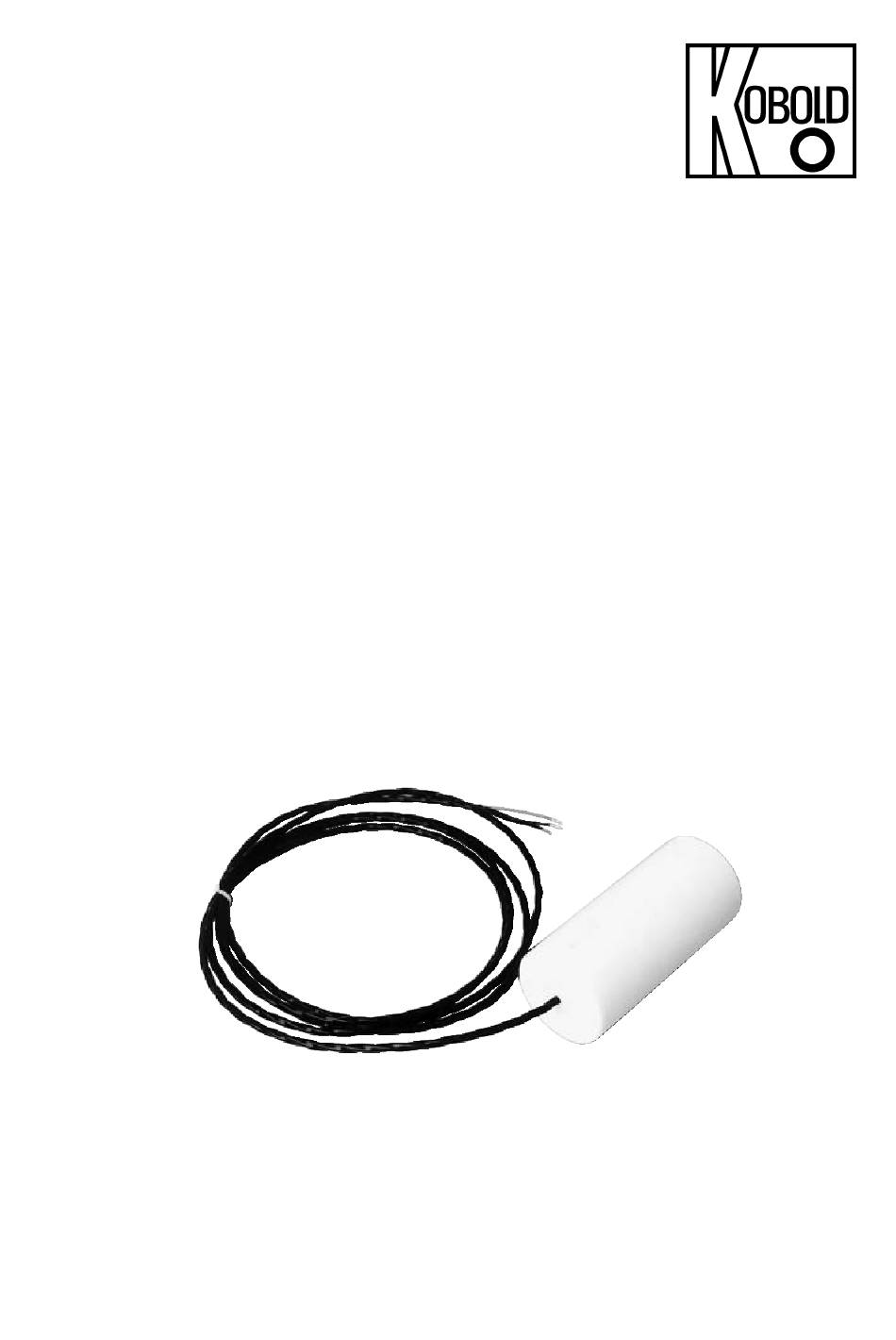

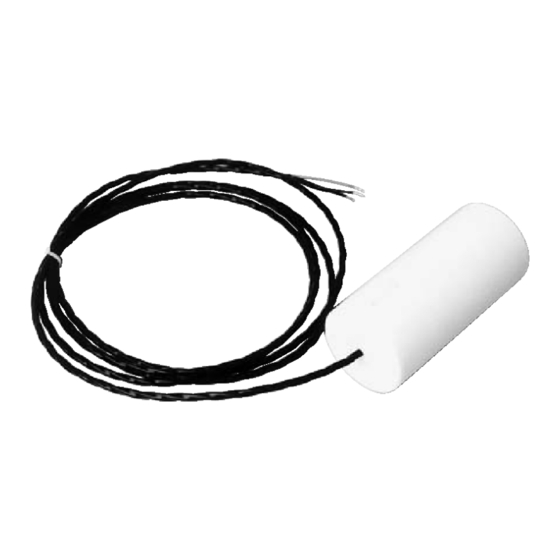

- Page 1 Operating Instructions Float Switch Model: NST...
- Page 2 Order Codes ....................6 Dimensions ....................7 EU Declaration of Conformance ..............8 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 NST K06/0422...
- Page 3 Float Switch model: NST 4. Regulation Use Any use of the Float Switch, model: NST, which exceeds the manufacturer’s specification may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage.
- Page 4 Externally by means of G 2 fitting 7. Electrical Connection 7.1 General Attention! Make sure that the maximum voltage power values of the level switch are not exceeded. With rising levels: black/ blue: black/ brown: page 4 NST K06/0422...
- Page 5 7.2 Connection example NST K06/0422 page 5...
- Page 6 Typ NST…: PTFE Float material: PTFE Bellows: PTFE (model NST-B only) Cable: Model NST-A: 2 m FEP cable Model NST-B: 2 m silicone or FEP cable Max. pressure: 1 bar Max. temperature: 150 °C (TPK cable) Medium density: > 0,79 kg/ dm³...
- Page 7 10. Dimensions NST K06/0422 page 7...
- Page 8 11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Float Switch Model: NST to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010 + A1:2019 + A1:2019/AC:2019...
