Step 1 - Setting The Ip Address - Digital Alert Systems DASDEC-III DAS3-EX Quick Start Manual

DASDEC-III
Quick Start Guide
The unit will have a default IP address of 192.168.0.200 and must be changed to an unused IP
address that matches the scheme of the network it will operate in.
To start, power up your DASDEC-III and wait until the unit completes its start-up, the green LED remain on.
Note: The initial time indicated while booting may not be accurate.
1. Connect your laptop or tablet via an RJ45 cable to
the NIC in the back of the DASDEC-III. You will need
to change your laptop or tablet's IP address to a
192.168.0.xxx address to communicate directly
with the DASDEC-III. Ex: 192.168.0.100

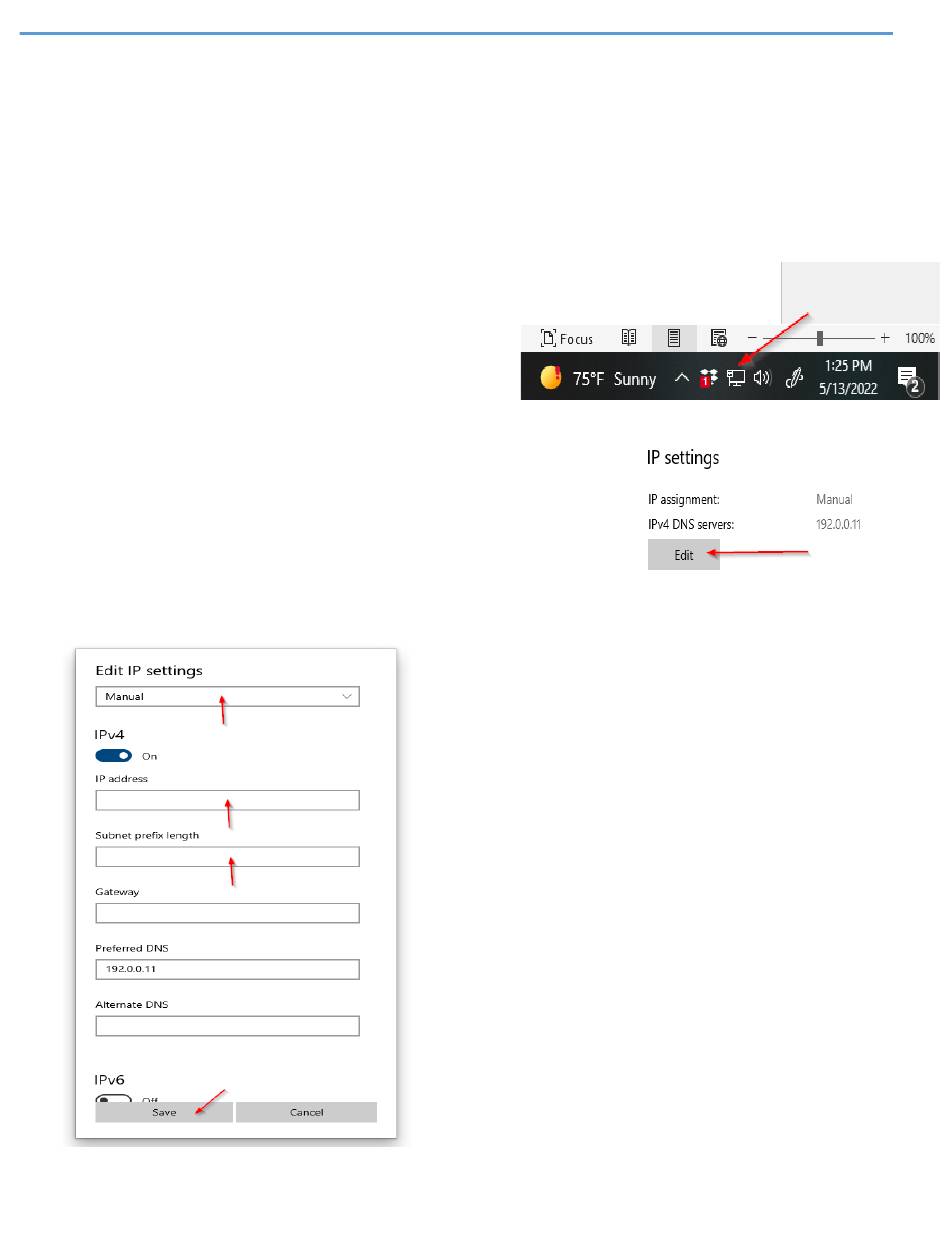

To change your PC's IP address, right-click the networking icon on
2.
the right-hand side of your PC's taskbar and click 'Open Network
and Internet Settings.
Note: These steps are targeted at PCs running Windows 10.
3. Click the 'Edit' button under IP settings which will open a dialog
box to edit the IP address for the PC.
Page | 4
Step 1 – Setting the IP Address
4. In the dialog box at the top, select the manual option
instead of dynamic (DHCP) if not already selected. Type in
the 192.168.0.X in the IP address field followed by
255.255.255.0 in the subnet prefix length/subnet mask field.
Click the save button at the bottom.
5. Open a browser type in the current DASDEC-III IP address
of 192.168.0.200 using Chrome, Firefox, or IE Edge, and the
login page will load. The default credentials are:
Username: Admin
Password: dasdec
6. After typing in the default credentials, a change to the
admin password is required. It is necessary that your chosen
word/phrase contains at least eight characters, one
uppercase letter, and one number.
Rev: R10122022
