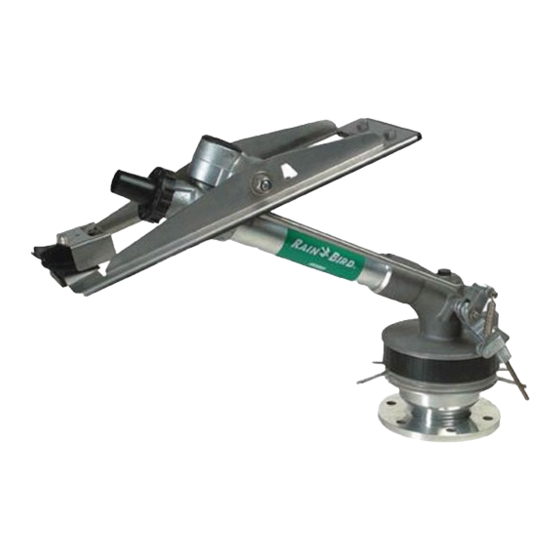

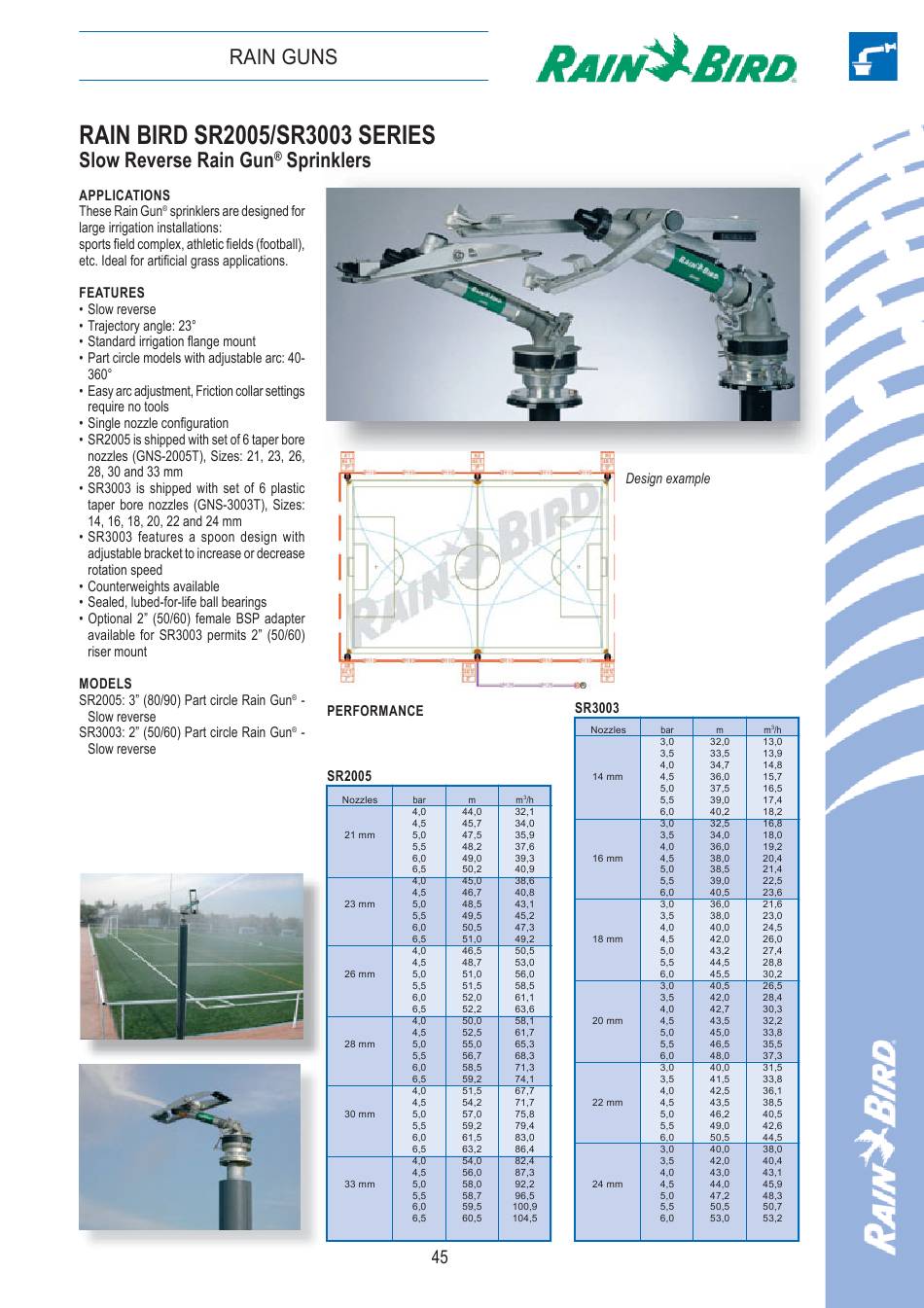

- Page 2 USER MANUAL Rain Gun SR3003 / F3002 User Manual ® Nozzle Refer to Table 2 to integrate with spoon adjustment bracket Arm Stop Spoon Adjustment Bracket Refer to table 2 Rear Arm Counterweight Pulls spoon into the water stream Pressure Port...
- Page 3 Rain Gun ® will operate properly in either configuration, but the rotation speed will be faster in A than in B. Rotation Angle Adjustment For part circle (SR3003) model only, adjust desired rotation angle manually as shown. Figure 2 Figure 3...
-
Page 4: Installation Tips
For more help with your installation, please call Provide drain valve your Rain Bird Dealer or District Manager. The as necessary toll free Rain Bird number is listed on the back Use pressure page of this guide. treated wood Traveler Installation •... - Page 5 Parts Diagram and Description Ref. Part Description Part Numbers Arm Shaft Assembly Included in Kit B Arm Assembly/Counterweight 71-P50472 Spoon Assembly 71-P50824 Spacer 71-P50420 Snap Ring 71-P00358 Pivot Cap Assembly 71-P50825 Pivot Assembly 71-P50826 Arm Spring 71-P50812 Spring Spacer 71-P50706 Arm Locknut Included in Kit B Arm Washer...
-
Page 6: Troubleshooting Tips
Also check the spoon and call your Rain Bird Dealer or the for damage. For proper operation, the Trip stop mechanism is not toll free Rain Bird number listed at the... -
Page 7: Warranty
Our warranty is simple and in line with Rain Bird’s reputation agricultural applications. In these circumstances, Rain Bird as the most reliable agricultural sprinkler in the world.
