TWO-WAY RADIO BUZZER KIT FOR R400 SERIES CONTROL UNITS
ENGLISH
DESCRIPTION

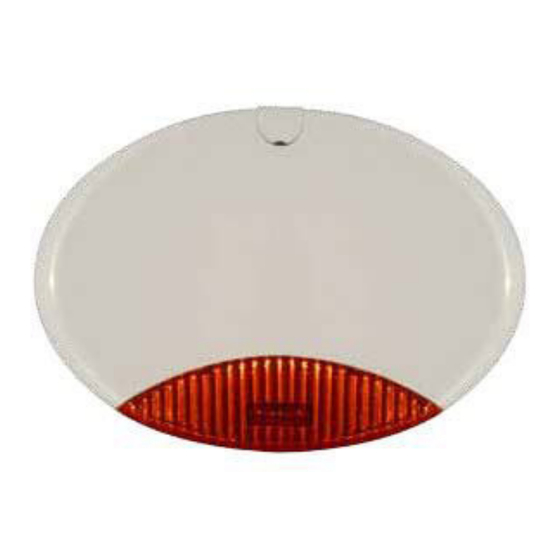

SRL400 is a radio-controlled buzzer for outdoor use with a 220Vac power unit. It comprises 2 elements, the buzzer shell, which
features all the devices installed in the buzzers, (loudspeaker, buffer battery, etc.) and a transmitter that can be used with R400
series control units. SR400 can, besides the alarm status, signal the system enabled/disabled status, the alarm log, and any
faiulres in the power supply and buffer battery.
All the buzzer functions are managed by a micro-controller, which makes their programming easy and intuitive. All the functions
are selectable via DIP-SWITCHES.
www.amcelettronica.com
CEI EN 50131-4:2010-08
SRL400/R
COMPLIANT
INSTALLER'S
MANUAL
SRL400/R V1.0 EN
Advertisement
Related Manuals for AMC SRL400/R
Summary of Contents for AMC SRL400/R
- Page 1 SR400 can, besides the alarm status, signal the system enabled/disabled status, the alarm log, and any faiulres in the power supply and buffer battery. All the buzzer functions are managed by a micro-controller, which makes their programming easy and intuitive. All the functions are selectable via DIP-SWITCHES. www.amcelettronica.com SRL400/R V1.0 EN...
- Page 2 - steady system ENABLED signal (DIP 5 ON); when the system is enabled, a double flash is emitted - Buzzer OK "stand-by" signal (DIP 6 ON): emits a brief flash every 10 seconds, when the buzzer is working properly www.amcelettronica.com SRL400/R V1.0 EN...
- Page 3 An installation according to standard requires the use of a screw fastened to a wall, whose head must exert pressure on the anti- removal microswitch, located on the lower side of the board. Note: bending the metal tab of the microswitch to achieve the same purpose nullifies the certification. www.amcelettronica.com SRL400/R V1.0 EN...
- Page 4 - Steady on: transmitter not associated (not programmed for a buzzer) - Steady on for 1 second: control transmitted to buzzer. (ALL OK) - Fast flah for 1 second: status signal reception from buzzer (ALL OK) - Slowly flashing: during self-learning phase (see below) www.amcelettronica.com SRL400/R V1.0 EN...
- Page 5 To check that the 2 objects are properly programmed, press the key on the CSR400 and check the BEEP on the SRL400 buzzer. Conversely, by pressing the key on buzzer, the green LED will flash fast from 1 to 3 times. Note: the combination between CSR400 and SRL400 is unique. www.amcelettronica.com SRL400/R V1.0 EN...
- Page 6 The installation must be carried out to state of the art by specialized personnel. AMC Elettronica S.r.l. rejects any responsibility in the case that the product is tampered with by unauthorized persons. We recommend that you check that the alarm system is working properly at least once a month. A reliable electronic alarm system does not prevent break-in, theft, fire or other, but only lowers the risk of the latter occurring.
