ASSEMBLY INSTRUCTIONS
ASSEMBLY RATING
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult). For most products, two
persons are recommended.
EASY
YNJ-1877C25
DIFFICULT
Page 1
E-commerce-Enitial Lab
Tools Required for Assembly
Allen Wrench
Phillips Screwdriver
2 PERSON RECOMMENDED
(Included)
(Not Included)
18.06.27
Advertisement
Related Manuals for Furniture of America YNJ-1877C25
Summary of Contents for Furniture of America YNJ-1877C25
- Page 1 E-commerce-Enitial Lab ASSEMBLY INSTRUCTIONS YNJ-1877C25 Tools Required for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point Allen Wrench system that shows the degree of effort needed in assembling a specific (Included) product (with 1 being easy and 5 being difficult).
- Page 2 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
- Page 3 Page 3...
- Page 4 PRE-ASSEMBLY INTRODUCTION Unless you are particularly adept at assembling flat-pack/knock-down furniture, we understand building ready-to-assemble furniture can be a frustrating experience for some. To help avoid confusion and to make the assembly process quicker and smoother, we have provided some helpful tips.
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Page 5...

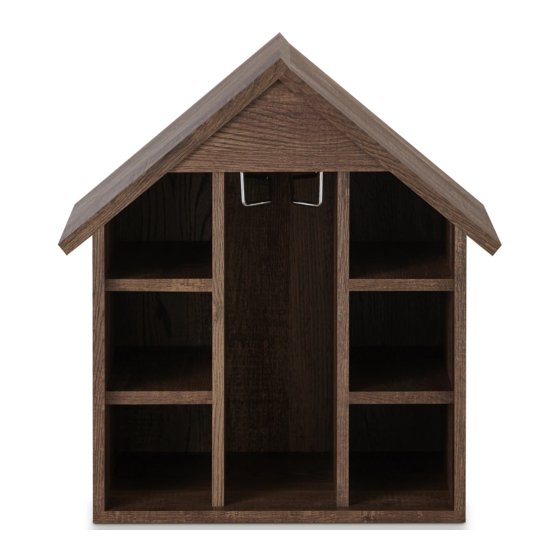

- Page 6 WINE CABINET ASSEMBLY INSTRUCTIONS MODEL # YNJ-1877C25 Please keep for future reference PARTS LIST Before you begin, please read "Assembly and Care Advice","Pre- Assembly Introduction" and "Cam Lock Fastener Assembly Instructions" DIMENSIONS 17.97" (W) X11.81" (D) X18.93" (H) 4PCS HARDWARE LIST...
-
Page 7: Get Ready
WINE CABINET MODEL #YNJ-1877C25 Get Ready. Please group boards as below. Body 4PCS Shelf Page 7... - Page 8 ASSEMBLY INSTRUCTIONS STEP1 Hardware #1=4pcs Hardware #3=4pcs Hardware #6=1pc Hardware #7=4pcs Make sure bending cam bolts (#3) are attached Please refer to page 5 to panels (#A,B) with on how to fasten cam the orientation of the locks(#2) to cam bolts arrows above.
- Page 9 ASSEMBLY INSTRUCTIONS STEP3 Hardware #2=4pcs Make sure the bending cam Hardware #4=4pcs boles (#3) on panels (#A,B) are bent to align to panels (#E,F). Finished side is facing up for panels (#G,H,D). Slide back panel (#L) through the grooves of the unit. long The distance between the hole to the end should be longer...
- Page 10 ASSEMBLY INSTRUCTIONS STEP4 Finished side of unit should all Hardware #4=8pcs be facing up. Hardware #5=16pcs Insertshelf pins (#5) to the unit, the place shelves (#K) onto shelf pins (#5). Page 10...
- Page 11 ASSEMBLY INSTRUCTIONS STEP5 Hardware #8=4pcs Hardware #9=4pcs Insertfixativeplates (#8) through the thin lined gaps of the back panels (#L), then secure by using screws (#9). Make sure the product is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
