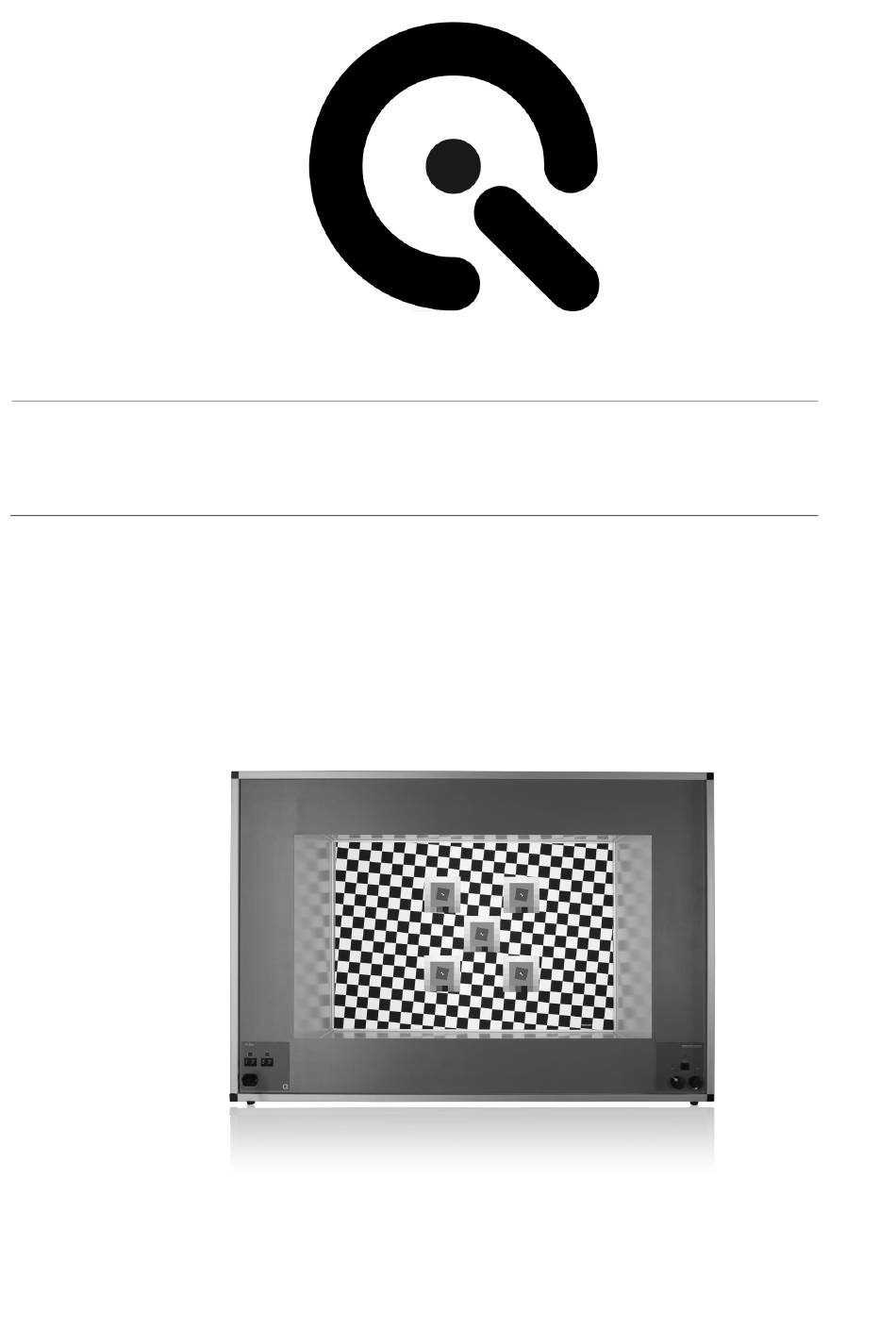

- Page 1 Box User Manual April 24, 2018 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen · Germany T +49 2273 99 99 1-0 · F +49 2273 99 99 1-10 · www.image-engineering.com...
- Page 2 GETTING STARTED ....................4 2.1 Scope of delivery ....................4 OPERATING INSTRUCTIONS..................4 3.1 Overview ....................... 4 ADDITIONAL INFORMATION ..................5 4.1 Maintenance ......................5 4.2 Disposal instructions ....................5 TECHNICAL DATASHEET ..................5 Image Engineering Seite 2 von 5...
- Page 3 Low Voltage - 2014/35/EU Intended use The iQ-AF Box is designed to illuminate a test chart at different light levels. Any test chart of the size 124.5 x 83.5 cm can be inserted into the backside of the box. •...
- Page 4 2 GETTING STARTED Scope of Delivery • iQ-AF Box • Set of fluorescent tubes (D50) • Power cable • Test chart 3 OPERATING INSTRUCTIONS Overview The fluorescent tubes must be burned for 100 hrs. before you can start with the measurement.
- Page 5 100 hrs. before use. Disposal instructions After the service life of the iQ-AF Box, it must be disposed of properly. Electrical and electromechanical components are included in the iQ-AF Box. Observe your national regulations and ensure that third parties cannot use the iQ-AF Box after disposing of it.
