(Tank NOT Included
with Boom Kit)
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

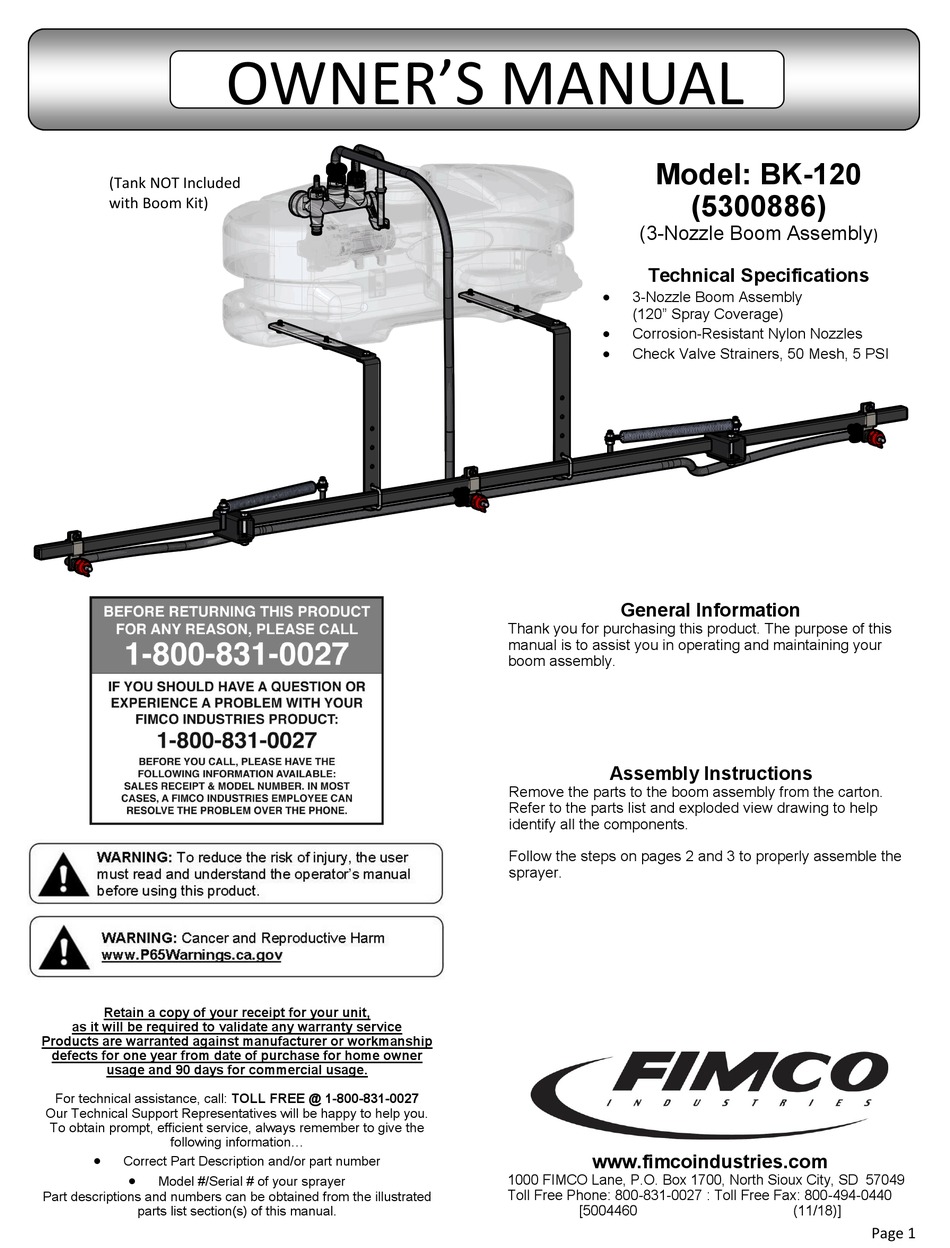

OWNER'S MANUAL
Model: BK-120

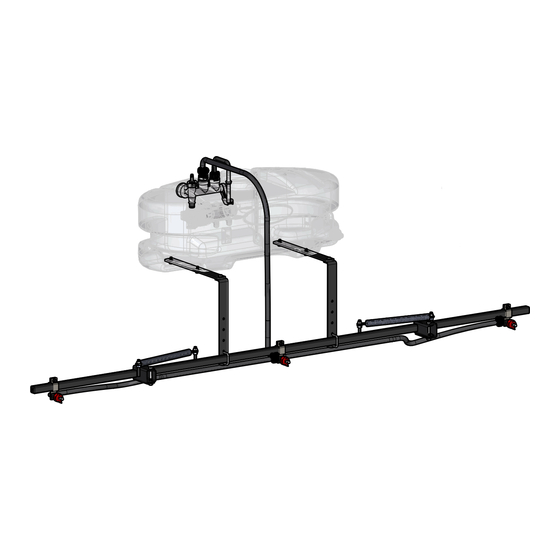

(3-Nozzle Boom Assembly

Technical Specifications

3-Nozzle Boom Assembly
(120" Spray Coverage)
Corrosion-Resistant Nylon Nozzles
Check Valve Strainers, 50 Mesh, 5 PSI

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
boom assembly.

Assembly Instructions

Remove the parts to the boom assembly from the carton.
Refer to the parts list and exploded view drawing to help
identify all the components.
Follow the steps on pages 2 and 3 to properly assemble the
sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004460
(5300886)
(11/18)]
)
