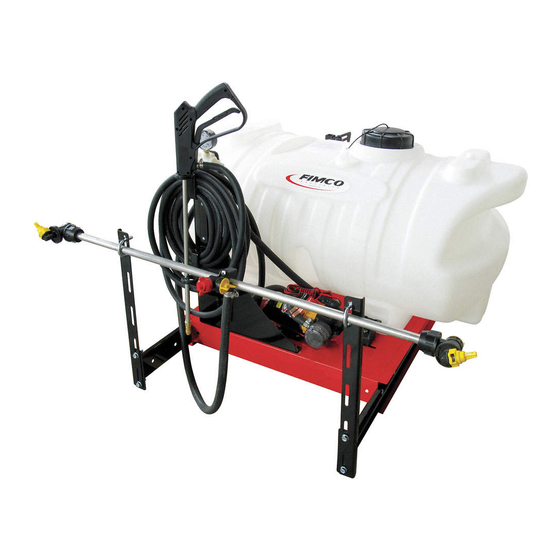

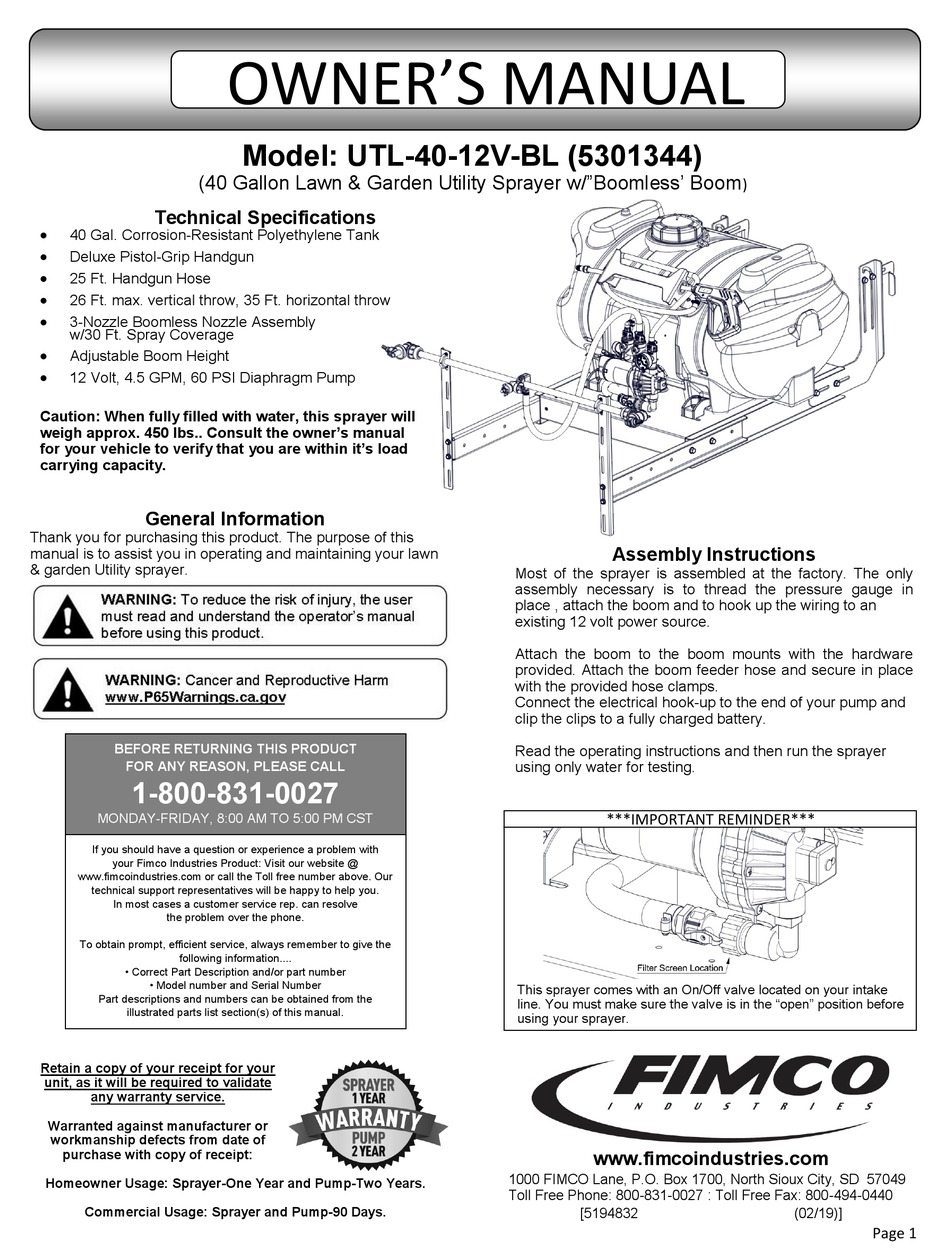

Fimco UTL-40-12V-BL Owner's Manual

(40 Gallon Lawn & Garden Utility Sprayer w/"Boomless' Boom
Technical Specifications

40 Gal. Corrosion-Resistant Polyethylene Tank

Deluxe Pistol-Grip Handgun

25 Ft. Handgun Hose

26 Ft. max. vertical throw, 35 Ft. horizontal throw

3-Nozzle Boomless Nozzle Assembly
w/30 Ft. Spray Coverage

Adjustable Boom Height

12 Volt, 4.5 GPM, 60 PSI Diaphragm Pump
Caution: When fully filled with water, this sprayer will
weigh approx. 450 lbs.. Consult the owner's manual
for your vehicle to verify that you are within it's load
carrying capacity.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Utility sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: UTL-40-12V-BL (5301344)
Assembly Instructions
Most of the sprayer is assembled at the factory. The only
assembly necessary is to thread the pressure gauge in
place , attach the boom and to hook up the wiring to an
existing 12 volt power source.
Attach the boom to the boom mounts with the hardware
provided. Attach the boom feeder hose and secure in place
with the provided hose clamps.
Connect the electrical hook-up to the end of your pump and
clip the clips to a fully charged battery.
Read the operating instructions and then run the sprayer
using only water for testing.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194832
)
(02/19)]
