Fimco LG-25-BL-QR Owner's Manual

Fimco LG-25-BL-QR Owner's Manual

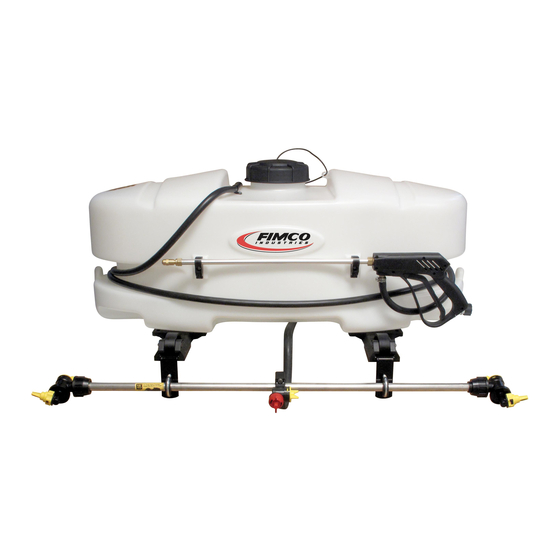

25 gallon atv dual nozzle sprayer

Advertisement

Quick Links

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden ATV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: LG-25-BL-QR (5302323)
(25 Gallon ATV Dual Nozzle Sprayer)
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve
located at the inlet location of the tank, towards the
underside. (See Detail A). Make sure the valve is in
the "open" position before using this sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194840
Detail A
(02/22]
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LG-25-BL-QR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fimco LG-25-BL-QR

  • Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5194840 (02/22] Commercial Usage: Sprayer and Pump-90 Days.
  • Page 2: Table Of Contents

    Sprayer Exploded Views ..........12 - 13 Calibration and Maintenance ..........7 Sprayer Dimensions ............13 Tank Care, Storing and Winter Storage ........8 Warranty ................14 Model: LG-25-BL-QR (5302323) (25 Gallon ATV Dual Nozzle Sprayer) Technical Specifications • 25 Gal. Corrosion-Resistant Polyethylene Tank •...
  • Page 3: Sprayer Contents

    Contents of Sprayer Carton: Owner’s Manual Tank Lid & Lanyard Tank Assembly Contents of Parts Bag #5278367 Bracket Kit #5278368 Assembly Procedure Step 1 • Make sure the contents of the sprayer’s carton match the items shown on page 3 of the manual. •...
  • Page 4 Assembly Procedure Step 2 After your tank brackets are securely attached, turn the tank assem- bly over and position it so that the cam handles which extend beyond the back of the tank are facing you and just hanging over the edge of the table or flat surface you are assembling this on.
  • Page 5 Assembly Procedure After securing the nozzle assemblies to the nozzle mounts, secure other end of hoses to the hose barbs on the y-valve on the manifold, with a twisting Step 5 motion and secure with hose clamps.. Each nozzle will have its own shut-off valve control. Lanyard Connection DETAIL Lanyard...
  • Page 6: Operation

    IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue before filling with water to test. Manifold Valves CLOSED Testing the Sprayer NOTE: It is VERY important to test this sprayer with plain water before actual spraying is attempted.
  • Page 7: Calibration And Maintenance

    Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substi- tute dish soap for this step, about 1-2 oz.
  • Page 8: Tank Care, Storing And Winter Storage

    Tank Care & Maintenance Warning: Do not use the tank as a container for fuel oils, kerosene, gasoline or any other petroleum distillate product. All polyole- fins are softened and permeated by such products. In an enclosed area the vaporization of these materials from the outside sur- face of the tank could create a dangerous condition.
  • Page 9: Pump Exploded View And Parts List

    1/2” Hose Barb Port Kit Fitting #5168833 DON’T • • Clean and rinse your pump after each use with Fimco Tank Neu- Use to pump bleach. • tralizer. Use to pump petroleum products such as diesel fuel, gasoline or •...
  • Page 10 Before Troubleshooting or Attempting to Service the Pump:  Review Troubleshooting Chart: Do Not attempt to repair until steps below are followed.  Personal Protective Gear: Wear protective gear when servicing pump.  Disconnect Power: Disconnect the power to the pump and relieve the pressure from the system. ...
  • Page 11 Intake/Siphon Tube/Screen Detail of a Typical L&G/ATV Sprayer (not including the ‘EC’Units) ‘Cut’ View of a ‘Typical’ Tank (looking inside) The suction line of your sprayer should contain a ‘siphon tube’ or intake tube which should be rotated so that it just touches the bottom of the tank surface.
  • Page 12: Sprayer Parts List

    Parts List: LG-25-BL-QR (5302323) Intake Detail Manifold Detail Typical Nozzle Detail (Right Side) (Left Side) Page 12...
  • Page 13: Sprayer Dimensions

    Exploded View: LG-25-BL-QR (5302323) See Manifold Assembly See Intake Detail See Nozzle Detail Approx. Dimensions: 17.063” 38.938” 28.500” Page 13...
  • Page 14: Warranty

    WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.

This manual is also suitable for:

5302323
