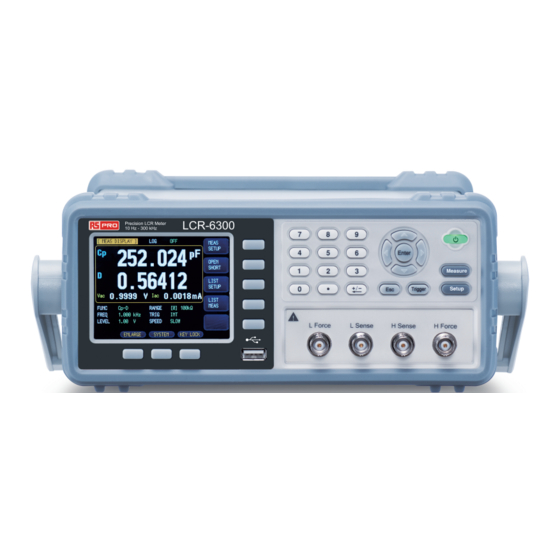

Summary of Contents for RS PRO LCR-6000 Series

  • Page 1 Instruction Manual LCR-6000 Series LCR Meter...
  • Page 3: Table Of Contents

    LCR-6000 Series Instruction Manual/English Table of Contents SAFETY INSTRUCTIONS ..........6 Safety Summary ............6 UNPACKING AND PREPERATION ........8 Incoming Inspection ............ 8 Environmental Requirements ........9 Cleaning ..............9 How to Remove the Handle ........9 OVERVIEW ..............11 Introduction ..............11...
  • Page 4 LCR-6000 Series Instruction Manual/English [LIST MEAS] Page ............ 44 SETUP KEY ..............50 [MEAS SETUP] Page ..........51 [BIN SETUP] Page ............ 56 [BIN MEAS] Page ............64 [BIN COUNT] Page ........... 66 SYSTEM CONFIGURATIONS ......... 68 [SYSTEM CONFIG] Page ......... 69 [SYSTEM INFO] Page ..........
  • Page 5 LCR-6000 Series Instruction Manual/English Header and Parameters ..........103 Command Reference ..........105 DISPlay Subsystem ..........106 FUNCtion Subsystem ..........108 FREQuency Subsystem ..........112 LEVel Subsystem ............113 APERture Subsystem ..........116 FETCh Subsystem ..........118 COMParator Subsystem ..........122 LIST Subsystem ............127 CORRection Subsystem ..........129 TRIGger Subsystem ..........132 BIAS Subsystem ............134...
  • Page 6: Safety Instructions

    LCR-6000 Series Instruction Manual/English AFETY INSTRUCTIONS Safety Summary Warning: Identifies conditions or practices that could result in WARNING injury or loss of life. DANGER High Voltage DANGEROUS When you notice any of the unusual conditions listed below, immediately terminate operation and disconnect the power cable.
  • Page 7 LCR-6000 Series Instruction Manual/English Disclaimer RS COMPONENTS assumes no liability for the customer's failure to comply with these requirements. Ground the To avoid electric shock hazards, the instrument chassis and Instrument cabinet must be connected to a safety earth ground by the supplied power cable with earth blade.
  • Page 8: Unpacking And Preperation

    LCR-6000 Series Instruction Manual/English NPACKING AND PREPERATION This chapter describes how to set up and start the LCR-6000 Series LCR Meter.  Incoming Inspection  Environmental Requirements  Cleaning  How to Remove the Handle Incoming Inspection After you receive the instrument, perform the following checks...
  • Page 9: Environmental Requirements

    LCR-6000 Series Instruction Manual/English Environmental Requirements Set up the LCR-6000 Series where the following environmental requirements are satisfied. Operating Environment Ensure that the operating environment meets the following requirements: Temperature: 0ºC to 50ºC Temperature range at 23ºC±5ºC (<1ºC deviation from the...
  • Page 10 LCR-6000 Series Instruction Manual/English 3 Carrying Position Remove Handle (Lift the handle perpendicular to the unit while pulling it in the direction of 1.) 13/12/2019 Version No. 002...
  • Page 11: Overview

    Furthermore, by using the handler interface, the LCR-6000 Series can be easily combined with a component handler, and a system controller to fully automate component testing, sorting, and quality-control data processing.
  • Page 12: Main Specifications And Features

    Cs=(1+D2)Cp FCpRp=1/Q Rs=RpD2/(1+D2) D=2π Cp=Cs/(1+D FCsRs=1/Q Rp=Rs(1+D Q=Xs/Rs, D=Rs/Xs, Xs=1/2πFCs=2πFLs Ranging Auto, Hold and Nominal range. Total 9 Ranges. About Nominal ranges: The LCR-6000 Series will automatically select the best range according to the nominal value 13/12/2019 Version No. 002...
  • Page 13 LCR-6000 Series Instruction Manual/English Measurement Speed Fast:40 readings per second; 25ms/per reading*1 Medium:10 readings per second; 100ms/per reading*1 Slow: 3 readings per second; 333ms/per reading*1 You can also specify the averaging factor within the range of 1 to 256 in steps of 1 to improve performance.
  • Page 14: Test Signal

    LCR-6000 Series Instruction Manual/English Test Signal Test Signal Frequency LCR-6300: 10Hz~300kHz LCR-6200: 10Hz~200kHz LCR-6100: 10Hz~100kHz LCR-6020: 10Hz~20kHz LCR-6002: 10Hz~2kHz Frequency Accuracy: ±0.01% Test Signal Level 10.00mV- 2.00V (±10%) CV mode:10.00mV- 2.00V(±6%) 100.0uA- 20.00mA (±10%) CC mode:100.0uA- 20.00mA(±6%) @2VMax +2V, 0.066A(Max.), Output impedance fixed 30Ω...
  • Page 15: Main Functions

    LCR-6000 Series Instruction Manual/English Main Functions Correction Function OPEN/SHORT correction: Eliminates measurement errors due to stray parasitic impedance in the test fixtures. Comparator Function (Sorting) Bin sort The primary parameter can be sorted into BIN1-BIN9, AUX, OUT and HI/IN/LO for each of the primary measurement parameters.
  • Page 16: Measurement Assistance Functions

    LCR-6000 Series Instruction Manual/English Measurement Assistance Functions Files Up to 10 setup conditions can be written to/read from the built-in non-volatile memory. Key Lock The front panel keys can be locked. RS‐232/USB Complies with SCPI. 13/12/2019 Version No. 002...
  • Page 17: Options

    LCR-6000 Series Instruction Manual/English Options USB host port Universal serial bus jack, type-A (4 contact positions, contact 1 is on your left); female; for connection to USB memory devices only. USB disk type: Flash disk only. Format: FAT / FAT32 / exFAT.
  • Page 18 LCR-6000 Series Instruction Manual/English Figure 2-2 Screen Saved DC Bias Voltage 0V ~ ±2.5V Accuracy: ±0.5%+0.005V 13/12/2019 Version No. 002...
  • Page 19: Startup

    LCR-6000 Series Instruction Manual/English TARTUP This chapter describes names and functions of the front panel, rear panel, and screen display and provides the basic procedures for operating the LCR-6000 Series  Front panel summary  Rear panel summary  Power On/Off ...
  • Page 20: Front Panel

    LCR-6000 Series Instruction Manual/English Front panel 10 9 Description Description LCD Display Setup Key Soft-key BNC Terminal Number Key Trigger Key Cursor Key ESC Key Power Switch USB Disk Port (USB-Host) Measure key System Soft-key 13/12/2019 Version No. 002...
  • Page 21: Rear Panel

    LCR-6000 Series Instruction Manual/English Rear Panel Description Power Cable Receptacle(Outlet) Frame Terminal USB Interface (Type B) RS-232 Interface Handler Interface 13/12/2019 Version No. 002...
  • Page 22: Power On/Off

    POWER LED will flash twice and the AUTOSAVE function will be executed during the power-off sequence. Warm‐up Time The LCR-6000 Series is ready to be used as soon as the power- up sequence has completed. However, to achieve the specification accuracy, first warm up the instrument for 30 minutes.
  • Page 23: Connect To The Device Under Test (Dut)

    LCR-6000 Series Instruction Manual/English Connect to the Device Under Test (DUT) The LCR-6000 Series uses a four terminal measurement configuration that provides easy, accurate and stable measurements and avoids mutual inductance, interference from measurement signals, noise and other factors inherent with other types of connections.
  • Page 24: Measure Key

    LCR-6000 Series Instruction Manual/English EASURE KEY This section includes the following information:  MEAS DISPLAY page  OPEN/SHORT page  LIST SETUP page  LIST MEAS page [MEAS DISPLAY] Page When the [Measure] key is pressed, the [MEAS DISPLAY] page appears.
  • Page 25 Figure 4-1 [MEAS DISPLAY] Page Measurement Function [FUNC] The LCR-6000 Series simultaneously measures four components of complex impedance (parameters) in a measurement cycle. These include a primary parameter, a secondary parameter and two monitor parameters. The monitor parameters can be set in the [SETUP] page. The Note monitor parameters are initially set to OFF.
  • Page 26 LCR-6000 Series Instruction Manual/English Monitor parameters Table 4-2 Δ Δ% Monitor θr θd parameters Parameter Description Capacitance value measured using the series equivalent circuit model Capacitance value measured using the parallel equivalent circuit model Inductance value measured using the series...
  • Page 27 LCR-6000 Series Instruction Manual/English Procedure for setting the measurement function [FUNC] Step 1. Press the [Measure] key. 2. Press the [MEAS DISPLAY] soft-key if [MEAS DISPLAY] is not already the active mode. 3. Use the cursor key to select [FUNC] field.
  • Page 28 LCR-6000 Series Instruction Manual/English Available impedance range The hold range has nine impedance ranges: 10, 30, 100, 300, 1k, 3k, 10k, 30k and 100k. The impedance range is selected according to the DUT’s impedance even if the measurement parameter is capacitance or inductance.
  • Page 29 LCR-6000 Series Instruction Manual/English DCR accuracy: ±0.05% with 0.1Ω~312kΩ measurement range. Procedure for setting the impedance range [RANGE] Step 1. Press the [Measure] key. 2. Use the cursor key to select the [RANGE] field. 3. Use the soft-keys to select the impedance range mode or impedance range.
  • Page 30 LCR-6000 Series Instruction Manual/English Procedure for setting test frequency [FREQ] Step 1. Press the [Measure] key. 2. Use the cursor key to select the [FREQ] field. 3. Use the soft-keys or numeric entry keys to enter the test frequency. When data is entered with the numeric keys, the soft-keys change to unit labels (Hz, kHz).
  • Page 31 100Hz 120Hz Table 4-12 1kHz 2kHz Trigger Mode [TRIG] LCR-6000 Series supports four trigger modes: INT (internal), EXT (external), MAN (manual) and BUS (RS-232/USB). Trigger Mode Description LCR-6000 Series continuously repeats the measurement cycle. LCR-6000 Series performs one cycle of measurement each time you press the [Trig] key.
  • Page 32 LCR-6000 Series Instruction Manual/English Test Signal Voltage/Current Level [LEVEL] The LCR-6000 Series’ test signal voltage/current level can be set as the effective value (RMS value) of a sine wave of the test frequency from the unit’s internal oscillator. When a constant voltage or current level measurement is performed, an asterisk mark (*) appears at the end of the LEVEL display.
  • Page 33 LCR-6000 Series Instruction Manual/English Measurement Speed [SPEED] SLOW, MED and FAST can be selected for LCR-6000 Series. SLOW mode will result in more stable and accurate measurement results. Procedure for setting measurement speed mode Step 1. Press the [Measure] key.
  • Page 34 LCR-6000 Series Instruction Manual/English Measurement log [LOG] The LCR-6000 has an internal data buffer that record up to 10000 measurement readings. These readings can be saved to an external USB drive in a .csv file format. These readings can then be opened on a PC using software such as Windows Excel.
  • Page 35: [Open/Short] Page

    LCR-6000 Series Instruction Manual/English 5. When the internal buffer is full, “!FULL” will be added after the number of recorded counts(in the [LOG] status field). The following two operations are available in this situation: Soft-key Function SAVE TO USB Saves the recorded readings in the buffer to an external USB flash drive.
  • Page 36 LCR-6000 Series Instruction Manual/English Figure 4-2 [OPEN/ SHORT] Page Open Correction [OPEN] The LCR-6000 Series’ OPEN correction capability cancels errors due to the stray admittance (G, B) in parallel with the device under test (Refer to Figure 4-3). Figure 4-3 0Stray...
  • Page 37 OPEN correction by depressing the ON or OFF soft-keys. Short Correction [SHORT] The short correction feature of the LCR-6000 Series compensates for any residual impedances (R,X) that may exist outside of calibration, such as the impedance of the cables and the DUT connection points.
  • Page 38 LCR-6000 Series Instruction Manual/English To perform short correction Step 1. Press the [Measure] key. 2. Press the [OPEN SHORT] soft-key 3. Use the cursor key to select the [SHORT] field. Soft-key Function Enables short correction. Disables short correction. MEAS SHORT Starts short correction (AC).
  • Page 39 LCR-6000 Series Instruction Manual/English Soft-key Function Enable this point. Disables this point. CURRENT FREQ Use current frequency MEAS OPEN Starts open correction. MEAS SHORT Starts short correction 5. Press the [MEAS OPEN] soft-key. A dialog message, “Open- circuit the test terminals”, will appear.
  • Page 40: [List Setup] Page

    LCR-6000 Series Instruction Manual/English [LIST SETUP] Page Press the [Measure] key and press the [LIST SETUP] soft-key to open the [LIST SETUP] page. The List Measure feature can perform automatic sweep measurements by sweeping the frequency or signal level through a maximum 10 list points.
  • Page 41 LCR-6000 Series Instruction Manual/English frequency or amplitude tests. When [MODE] is set to SEQ and [TRIG] is set to MAN, the [LIST MEAS] function will automatically execute each test step on the list in sequence until the last step is executed. The meter will then wait for the trigger button to be depressed before repeating the process.
  • Page 42 LCR-6000 Series Instruction Manual/English Soft-key Function FREQ Uses frequency as the list measurement parameter VOLT Uses voltage as the list measurement parameter CURR Uses current as the list measurement parameter List Point and Limit Modes The List measurement feature supports up to 10 list points as well as measurement limit values.
  • Page 43 LCR-6000 Series Instruction Manual/English Soft-key Function PRIMARY A Uses the primary parameter as the limit parameter. 2NDARY B Uses the secondary parameter as the limit parameter. Turns OFF the limit feature. 8. Using the cursor keys, select the LOWER field.
  • Page 44: [List Meas] Page

    LCR-6000 Series Instruction Manual/English [LIST MEAS] Page The [LIST MEAS] page will appear when you press the [Measure] key and then the [LIST MEAS] soft-key. Figure 4-6 [LIST MEAS] Page On the [LIST MEAS] page, the list points are swept and the measurement results are compared to the limits.
  • Page 45 LCR-6000 Series Instruction Manual/English Trigger mode When entering LIST MEAS for the first time, the system will set Trig Mode to MAN and automatically performs a measurement Trig Mode Function Internal Trigger. All ten list points are swept continuous. Manual Trigger. Each time the instrument is triggered by [Trig] key, the list points are swept one by one.
  • Page 46 LCR-6000 Series Instruction Manual/English There are 4 available trigger modes in the [LIST MEAS] page. Trigger Modes Function Trigger by the meter’s internal trigger source. Trigger by pressing the trigger button. Trigger by sending a signal to the trigger pin on the handler interface.
  • Page 47 LCR-6000 Series Instruction Manual/English Soft-key Function SAVE & STOP Stops the recording and saves the recorded readings in the internal buffer to an external USB flash drive. The internal buffer will be cleared after the save operation. If an external USB flash drive is not plugged in, the meter will not stop the ongoing recording.
  • Page 48 LCR-6000 Series Instruction Manual/English Enlarge Display Press the ENLARGE soft-key in the [MEAS DISPLAY] to enter the [ENLARGE DISPLAY] mode (simplified display mode); on the contrary, press the NORMAL soft-key in the [ENLARGE DISPLAY] mode to quit the [ENLARGE DISPLAY] mode and return to the regular [MEAS DISPLAY] mode.
  • Page 49 LCR-6000 Series Instruction Manual/English Figure 4-8 Direct Comparison setting 13/12/2019 Version No. 002...
  • Page 50: Setup Key

    LCR-6000 Series Instruction Manual/English ETUP KEY This section includes the following information  MEAS SETUP page  BIN SETUP page  BIN MEAS page  BIN COUNT page Every time or everywhere you can press the [Setup] key to open the [MEAS SETUP] page.
  • Page 51: [Meas Setup] Page

    LCR-6000 Series Instruction Manual/English [MEAS SETUP] Page In [MEAS SETUP] page, the Instrument does not display test Note result and sorting result, but testing still in progress. Figure 5-1 [MEAS SETUP] Page In the [MEAS SETUP] Page, you can configure each of the following measurement controls with the cursor placed in the corresponding field.
  • Page 52 Source Output Impedance [SRC RES] The Source output impedance can be set to 30Ω, 50Ω or 100Ω. If you use LCR-6000 Series to test a smaller inductor, please use 30Ω. If you need to compare test results with Keysight E4980A, select 100Ω.
  • Page 53 LCR-6000 Series Instruction Manual/English Procedure for setting DC bias voltage Step 1. Press the [Setup] key. Use the cursor key to select [BIAS] field. Use the soft-keys to select DC bias voltage. Soft-key Function Turn off the DC bias voltage 2V voltage is applied to the device under test.
  • Page 54 LCR-6000 Series Instruction Manual/English Monitor 1 and Monitor 2 [MON 1][MON 2] The LCR-6000 Series can monitor the other two parameters. Additional monitoring parameters do not increase the instrument Note measurement time. Monitor parameter display in [MEAS DISPLAY] page and [ENLARGE] page.
  • Page 55 LCR-6000 Series Instruction Manual/English AUTO LEVEL CONTROL [ALC] The automatic level control (ALC) feature adjusts the voltage across the DUT or the current through the DUT to match the voltage/current level setting. Using this feature, you can try to ensure a constant signal level (voltage or current) is applied to the DUT.
  • Page 56: [Bin Setup] Page

    Press [Setup] key and press the [BIN SETUP] soft-key to open [BIN SETUP] page. This page allows you to configure the LCR-6000 Series’ built-in comparator. The built-in comparator can sort DUTs into a maximum of 10 levels (BIN1 through BIN9 and OUT) using up to nine sets of primary parameter limits along with one set of secondary parameter limits.
  • Page 57 Figure 5-2 [BIN SETUP] Page Measurement Function [FUNC] The LCR-6000 Series simultaneously measures four components of the complex impedance (parameters) in a measurement cycle. These include primary parameter, secondary parameter and two monitor parameters. Please refer to the [MEAS DISPLAY] Page section on 24 for details.
  • Page 58 LCR-6000 Series Instruction Manual/English Comparator Function ON/OFF LCR-6000 Series’ built-in comparator can sort DUTs into a maximum of 10 bins (BIN1 to BIN9 and OUT), using a maximum of nine pairs of primary parameter limits and one pair of secondary parameter limits.
  • Page 59 LCR-6000 Series Instruction Manual/English Procedure for setting the comparator function [COMP] 1. Press the [Setup] key. Step 2. Press the [BIN SETUP] soft-key 3. Use the cursor key to select [COMP] field. 4. Use the soft-keys to turn on/off the comparator.
  • Page 60 LCR-6000 Series Instruction Manual/English  Nominal Value [NOM] Sets the nominal value (reference value) for the ABS and PER compare modes. Use the number keys to enter the value and the unit. Absolute mode [ABS] Absolute value (Δ) = UNKNOWN value – nominal value...
  • Page 61 LCR-6000 Series Instruction Manual/English Sequential mode [SEQ] Figure 5-6 Sequential mode  Includes the point ○ Excludes the point In Sequential mode, the comparison limit values are based on the absolute value of the measurement. The nominal value does not need to participate in operation.
  • Page 62 Beep when the comparator sorting result is OK FAIL Beep when the comparator sorting result is NG Total Number of Bins [#‐BINS] LCR-6000 series specify nine bins (1-BINS to 9-BINS). To set up the beep feature 1. Press the [Setup] key. Step 2.
  • Page 63 Set to 9 bins Lower and Upper Limits LCR-6000 Series built-in comparator can sort DUTs into a maximum 10 levels (Bin1 through Bin9 and OUT) using up to nine sets of primary parameter limits along with one set of secondary parameter limits.
  • Page 64: [Bin Meas] Page

    LCR-6000 Series Instruction Manual/English [BIN MEAS] Page When the [Setup] key and the [BIN MEAS] soft-key is pressed, the [BIN MEAS] page appears. The bin sorting results are displayed in larger characters while the measurement results are shown in normal characters.
  • Page 65 LCR-6000 Series Instruction Manual/English Procedure for setting the comparator function [COMP] Press the [Setup] key. Step Press the [BIN MEAS] soft-key Use the cursor key to select [COMP] field. Use the soft-keys to turn on/off the comparator. Soft-key Function Turns OFF the COMP function...
  • Page 66: [Bin Count] Page

    LCR-6000 Series Instruction Manual/English [BIN COUNT] Page When the [Setup] key and the [BIN COUNT] soft-key is pressed, the [BIN COUNT] page appears. This page provides the following information:  Counter function [COUNT] Figure 5-8 [BIN COUNT] Page Counter Function [COUNT]...
  • Page 67 LCR-6000 Series Instruction Manual/English Soft-key Function COUNT ON Turns the counter function on COUNT OFF Turns the counter function off RESET COUNT The counter is reset when this key pressed. 13/12/2019 Version No. 002...
  • Page 68: System Configurations

    LCR-6000 Series Instruction Manual/English YSTEM CONFIGURATIONS This section includes the following information:  SYSTEM CONFIG page  SYSTEM INFO page  SYSTEM SERVICE page 13/12/2019 Version No. 002...
  • Page 69: [System Config] Page

     Remote control interface [REMOTE]  [HAND SHAKE]  [ERROR CODE]  [RESULT]  [DATA BUFFER]  [DEFAULT SET] Figure 6-1 [SYSTEM CONFIG] Page Setting the system date and time LCR-6000 Series features a built-in 24-hour clock. 13/12/2019 Version No. 002...
  • Page 70 SECOND DECR- Decreases the second in steps of 1. Account Setting The LCR-6000 Series has two accounts, administrator and user. Administrator: All functions can be configured by the administrator except [SYSTEM SERVICE] page. User: All functions can be configured by user except the [SYSTEM SERVICE] page and the [FILE] page.
  • Page 71 LCR-6000 Series Instruction Manual/English 4. Use the soft-keys to change account Soft-key Function ADMIN Administrator USER User Switch user mode to administrator mode, you must input a correct password. To Change Administrator’s Password 1. Press the [Measure] or [Setup] key.
  • Page 72 LCR-6000 Series Instruction Manual/English Baud rate Before you can control the LCR-6000 Series remotely via the built-in RS-232/USB controller, you have to configure the RS- 232/USB baud rate. The LCR-6000 built-in RS-232/USB interface uses the SCPI language. RS-232/USB configuration is as follows:...
  • Page 73 LCR-6000 Series Instruction Manual/English correctly. Otherwise the device won’t be able to communicate with host computer correctly. Terminator The command terminator EOL uses the ASCII Line Feed character by default. (LF, Decimal 10, Hex 0x0A, or ASCII ‘\n’) The EOL of the command and the EOL of the command return data are the same.
  • Page 74 LCR-6000 Series Instruction Manual/English Error Code If the error code setting is set to on, the meter will return error codes if the wrong command or an invalid command is received to help you to debug your control program. "*E00", //No error "*E01",...
  • Page 75 LCR-6000 Series Instruction Manual/English 4. Use the soft-keys to set. Soft-key Function FETCH The meter will not send out the test result after the test. AUTO The meter will send out the test result after the test. DATA BUFFER The data buffer setting sets the maximum number of record counts that the internal buffers can store;...
  • Page 76 LCR-6000 Series Instruction Manual/English DEFAULT SET To reset setting values (MEAS SETUP) and offset values (OPEN SHORT) to factory default, use the DEFAULT SET setting. The device can be quickly restored to its factory settings. Default settings: (MEAS SETUP): FUNC: Cp-D...
  • Page 77: [System Info] Page

    LCR-6000 Series Instruction Manual/English [SYSTEM INFO] Page When the [Measure] or [Setup] key is pressed followed by [SYSTEM] bottom soft-key, and then the [SYSTEM INFO] soft-key, the [SYSTEM INFO] page appears. There are no configurable options in the [SYSTEM INFO] page.
  • Page 78: File Operation

    LCR-6000 Series Instruction Manual/English ILE OPERATION This chapter provides information on the file operation of the LCR-6000 Series. You can save up to 10 files into the internal non-volatile memory 13/12/2019 Version No. 002...
  • Page 79: [File] Page

    LCR-6000 Series Instruction Manual/English [FILE] Page When the [Setup] key is pressed followed by the [FILE] bottom soft-key, the [FILE] page appears. Figure 7-1 [FILE] Page In this page, you can configure each of the following controls with the cursor placed in the corresponding field.
  • Page 80 LCR-6000 Series Instruction Manual/English Soft-key Function INTERNAL MEMORY To access files from the meter’s internal memory. USB MEMORY To access files from the external USB flash drive. Recall a File at Startup [AUTO RECALL] You can recall file0 or the current file when the instrument starts To select auto recall file 1.
  • Page 81 LCR-6000 Series Instruction Manual/English File operation To choose a file to operate Press the [Setup] key. Step Press the [FILE] bottom soft-key. Use the cursor keys to select a file (File name from 0 to 9). Use the soft-keys to perform an operation.
  • Page 82: Handler Interface

    In addition, the instrument accepts input of external trigger. You can use these signals to easily integrate the LCR-6000 Series with a component handler or system controller. This means that you can fully automate such tasks as component inspection, component sorting, and processing of quality management data for higher manufacturing efficiency.
  • Page 83 LCR-6000 Series Instruction Manual/English Pin Assignment Figure 8-1 Pin Assignment Output Pins Table 8-1 Pin Pin names Signal descriptions Handler O_BIN_1 The sorting result is within bin1. Active low. Interface Signals O_BIN_2 The sorting result is within bin2. Active low.
  • Page 84 LCR-6000 Series Instruction Manual/English Low fail occurs on the primary measurement 20 O_P_LO parameter. Active low. The overall test result is an over fail. Active low. 21 O_NG The logic state of this pin = O_S_OVER OR O_P_OVER. This pin indicates that AD conversion is still 22 O_INDEX ongoing.
  • Page 85: Connection

    LCR-6000 Series Instruction Manual/English Connection Electrical parameters Interface power requirements: +12.4V~36VDC, 0.2A(Min). Output circuit: Built-in pull-up resistors are internally connected to the collector pin of the output transistors. The output pins are isolated by photocouplers. Input pins: Isolated by photocouplers.
  • Page 86 LCR-6000 Series Instruction Manual/English Circuit of output pins Figure 8-3 EXT.DCV Circuit of output pins (Bin sorting, R 4.99k Index, EOM) OUTPUT Maximum sourcing current: 5mA. Maximum sinking current: 50mA 13/12/2019 Version No. 002...
  • Page 87: Timing Chart For Handler Interface

    LCR-6000 Series Instruction Manual/English Timing Chart for Handler Interface Figure 8-4 Timing chart Table 8-4 Time segment Time segment Timing Definitions T1 Trigger pulse width 1msec Trigger delay time < 10usec Analog Measurement Depends on Measurement time settings circle Digital math time...
  • Page 88: Examples

    LCR-6000 Series Instruction Manual/English XAMPLES This chapter covers basic measurement procedures as well as basic L, C, and R measurement theory. It also offers various measurement hints. After the descriptions of basic measurement procedures, practical measurement examples are shown using...
  • Page 89 LCR-6000 Series Instruction Manual/English Start Setup measurement conditions: [FUNC] [LEVEL] [FREQ] Connect the test fixture Figure 9-1 Basic Measurement CORRECTIONS Procedure OPEN TEST SHORT TEST Connect DUT Perform measurement 13/12/2019 Version No. 002...
  • Page 90: Example

     Move to the FREQ field using the cursor keys and input 1 kHz.  Move to the LEVEL field using the cursor keys and input 1 V Connect the test fixture to the LCR-6000 Series. To compensate for the test fixture, a user correction is required.
  • Page 91 LCR-6000 Series Instruction Manual/English  Press the [MEAS OPEN] soft-key and then the [OK] soft-key. Wait until the “Correction finished” message is displayed.  Press the [ON] soft-key if the OPEN field is set to OFF.  Move to the SHORT TEST or SPOT field using the cursor keys.
  • Page 92 LCR-6000 Series Instruction Manual/English Press the [Measure] key. Measurements are performed continuously by the internal trigger, and the measured Cs and D values of the capacitors are displayed as shown below: Figure 09-2 Measurement results 13/12/2019 Version No. 002...
  • Page 93: Remote Control

    LCR-6000 Series Instruction Manual/English EMOTE CONTROL This chapter provides the following information to remotely control the LCR-6000 Series via the RS-232 or USB.  RS-232 interface  USB interface  Install USB driver The device uses the RS-232 interface or USB interface to communicate with the computer to complete all device’s...
  • Page 94: Rs-232 Interface

    RS‐232 Interface You can connect a controller (i.e. PC and PLC) to the RS-232 interface using a RS PRO RS-232 DB-9 cable. The serial port uses the transmit (TXD), receive (RXD) and signal ground (GND) lines of the RS-232 standard. It does not use the hardware handshaking lines CTS and RTS.
  • Page 95: Usb Interface

    The USB device port on the rear panel is used for remote control. The USB port is configured as CDC interface. When configured to CDC, the USB port on the LCR-6000 series will appear as a virtual COM port to a connected PC. Any terminal program that can communicate via a serial port can be used for remote control.
  • Page 96: Install Bsu Driver

    LCR-6000 Series Instruction Manual/English Install USB Driver The USB driver needs to be installed when using the USB port for remote control. The USB interface creates a virtual COM port when connected to a PC. Configure the interface to USB in SYSTEM>CONFIG>REMOTE item.
  • Page 97 LCR-6000 Series Instruction Manual/English The LCR-6000 and the converter that it is assigned to will now appear in under the Controller (Universal Serial Bus Controller) node. The LCR-6000 will appear as an unknown USB Serial Port under “Other Devices”. Right-click Other Devices and select “Update Driver Software”.
  • Page 98 LCR-6000 Series Instruction Manual/English The LCR-6000 and the COM port that it is assigned to will now appear in under the Ports (COM & LPT) node.  the driver for the device can’t be installed automatically, please use the CD comes with the device to install. Click on the directory: USB Drive ...
  • Page 99: Command Reference

    LCR-6000 Series Instruction Manual/English OMMAND REFERENCE This chapter provides the following information to remotely control the LCR-6000 Series via the RS-232C. Terminator NL>:The EOI line is asserted by New Line or ASCII Line Feed character. (Decimal 10, Hex 0x0A, or ASCII ‘\n’)
  • Page 100: Command Structure

    LCR-6000 Series Instruction Manual/English Command Structure The LCR-6000 commands are divided into two types: Common commands and SCPI commands. The common commands are defined in IEEE std. 488.2-1987, and these commands are common for all devices. The SCPI commands are used to control all of the LCR-6000's functions.
  • Page 101 LCR-6000 Series Instruction Manual/English Example function:imp:type Cp-D function Subsystem Command Level 2 type Level 3 Cp-D Parameter The basic rules of the command tree are as follows  Letter case (upper and lower) is ignored. For example, FUNCTION: IMPEDANCE= function:impedance ...
  • Page 102 LCR-6000 Series Instruction Manual/English resistanceabbreviated to res volumeabbreviated to vol  If the long form mnemonic is defined as a phrase rather than a single word, then the long form mnemonic is the first character of the first word(s) followed by the entire last word. The above...
  • Page 103: Header And Parameters

    LCR-6000 Series Instruction Manual/English Header and Parameters The commands consist of a command header and parameters. (See the following.) Example comp:nom 100.0e3 Header Parameter Headers can be of the long form or the short form. The long form allows easier understanding of the program code and the short form allows more efficient use of the computer.
  • Page 104 LCR-6000 Series Instruction Manual/English Table 11-1 0 Definition Mnemonic Multiplier 1E18 (EXA) Mnemonics 1E15 (PETA) 1E12 (TERA) 1E9 (GIGA) 1E6 (MEGA) 1E3 (KILO) 1E-3 (MILLI) 1E-6 (MICRO) 1E-9 (NANO) 1E-12 (PICO) 1E-15 (PEMTO) 1E-18 (ATTO) 13/12/2019 Version No. 002...
  • Page 105: Command Reference

    LCR-6000 Series Instruction Manual/English Command Reference All commands in this reference are fully explained and listed in the following functional command order.  DISPlay Subsystem  FUNCtion Subsystem  FREQuency Subsystem  VOLTage Subsystem  APERture Subsystem  FETCh Subsystem ...
  • Page 106: Display Subsystem

    LCR-6000 Series Instruction Manual/English DISPlay Subsystem The DISP Subsystem command group sets the display page. Figure 11-2 Command Tree Example DISP:LINE The :LINE command enters an arbitrary comment line of up to 30 ASCII characters in the comment field. DISP:LINE “<string>”...
  • Page 107 LCR-6000 Series Instruction Manual/English DISPLAY. ENLARGE [or ENLA] Sets the display page to ENLARGE DISPLAY. BINMEAS [or BINM] Sets the display page to BIN MEAS. BINCOUNT [or BCO] Sets the display page to BIN COUNT. LISTMEAS [or LIST] Sets the display page to LIST MEAS.
  • Page 108: Function Subsystem

    LCR-6000 Series Instruction Manual/English FUNCtion Subsystem The DISP Subsystem command group sets the display page. The FUNCtion subsystem command group sets the measurement function, the measurement range, monitors parameter control. Figure 11-3 FUNCtion FUNCtion {Cs-Rs,Cs-D, Subsystem Tree Cp-Rp,Cp-D, Lp-Rp,Lp-Q, Ls-Rs,Ls-Q, R-Q,R-X, Z-thr(Z-θr),Z-Thd(Z-θd)
  • Page 109 LCR-6000 Series Instruction Manual/English FUNCtion The FUNCtion command sets the measurement function Command Syntax FUNC <function> Parameter Where, <function> is: Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, Rs- Q, Rp-Q, R-X, DCR, Z-r(or Z-thr)*1, Z-d(Z-thd) *1, Z-D, Z-Q.(*1:  is ASCII Hex 0xE9) Example SEND>...
  • Page 110 LCR-6000 Series Instruction Manual/English Query Response <0-8><NL> Example SEND> FUNC:IMP:RANG?<NL> RET> 0<NL> FUNCtion:DCR:RANGe The FUNCtion:DCR:RANGe command sets the DCR’s measurement range. Command Syntax FUNC:DCR:RANGe <0-8,MIN,MAX> Parameter Where, <0-8,MIN, MAX> is: The range number =Range 0 =Range 8 Example SEND> FUNC:DCR:RANG 2<NL>//Set DCR range to [2] 10k.
  • Page 111 LCR-6000 Series Instruction Manual/English FUNCtion:MONitor1/2 The FUNCtion:MONitor1 and FUNCtion:MONitor2 commands set the two monitor parameter. Command Syntax FUNC:MONitor1 {off, Z, D, Q, THR, THD, R, X, G, B, Y, ABS, PER VAC, IAC} FUNC:MONitor2 {off, Z, D, Q, THR, THD, R, X, G, B, Y,...
  • Page 112: Frequency Subsystem

    LCR-6000 Series Instruction Manual/English FREQuency Subsystem The FREQuency command sets the oscillator frequency. The FREQuency? query returns the current test frequency setting. Figure 11-4 FREQ Subsystem Command Tree [:CW] FREQuency {value,MIN,MAX} Command Syntax FREQ[:CW] {<value>,MIN,MAX} Parameter Where, <value> Is the numeric data (NR1 integer, NR2fix float or NR3 floating point).
  • Page 113: Level Subsystem

    LCR-6000 Series Instruction Manual/English LEVel Subsystem The Level subsystem sets the oscillator’s output voltage/current level and source output impedance. Figure 11-5 LEVel Subsystem Command Tree LEVel:VOLTage (=VOLTage[:LEVel]) The LEVel:VOLTage or VOLTage[:LEVel] command sets the oscillator’s output voltage level. Command Syntax LEVel:VOLTage {<value>,MIN,MAX}...
  • Page 114 LCR-6000 Series Instruction Manual/English LEVel:CURRent (=CURRent[:LEVel]) The LEVel:CURRent or CURRent[:LEVel] command sets the oscillator’s output current level. Command Syntax LEVel:CURRent {<value>,MIN,MAX} or CURRent:LEVel {<value>,MIN,MAX} Parameter Where, <value> Is the numeric data (NR1, NR2 or NR3). MIN Sets to the minimum value of current.
  • Page 115 LCR-6000 Series Instruction Manual/English The suffix unit  can’t be used with this command. Note This command CANNOT be used in LIST SWEEP. DISPLAY page and CORRECTION page. LEVel:ALC (=AMPlitude:ALC) The LEVel:ALC or AMPlitude:ALC command enables the Automatic Level Control (ALC).
  • Page 116: Aperture Subsystem

    LCR-6000 Series Instruction Manual/English APERture Subsystem The APERture subsystem command sets the integration time of the ADC and the averaging rate. Figure 11-6 APERture {SLOW,MED,FAST} Tree APERture Subsystem Command Tree <averaging rate value:NR1> Command Syntax APERture {SLOW,MED,FAST} APERture <value> SPEED(spd) {SLOW,MED,FAST} SPEED(spd) <value>...
  • Page 117 LCR-6000 Series Instruction Manual/English APERture:AVG? The APERture:AVG? query returns the averaging rate settings. Query Syntax APER:AVG? Query Response <NR1> Integer (0 to 256) Example SEND> APER:AVG?<NL> RET> 0<NL> 13/12/2019 Version No. 002...
  • Page 118: Fetch Subsystem

    LCR-6000 Series Instruction Manual/English FETCh Subsystem The FETCh subsystem command group is a sensor-only command which retrieves the measurement data taken by measurement(s) initiated by a trigger, and places the data into the output buffer. Figure 11-7 IMPedance? FETCh FETCh...
  • Page 119 LCR-6000 Series Instruction Manual/English When in the [LIST MEAS] page view, the following description for the FETCh query is applicable: The FETCh? query sets the latest LIST measurement data of the primary parameters, secondary parameters and comparator results into the output buffer.
  • Page 120 LCR-6000 Series Instruction Manual/English Example SEND> FETC:MAIN?<NL> RET> +2.02100e-11,+1.64422e-01<NL>//LCR Primary,Secondary RET> +1.23434e+05<NL>//DCR FETCh:MONitor1? /2? The FETCh:MONitor1? and FETCh:MONitor2 set the latest measurement data of the moniter1 and moniter2 parameters into the output buffer. Query Syntax FETCh:MONitor1? and FETCh:MONitor2? Query Response <NR3: moniter1/2 value>...
  • Page 121 LCR-6000 Series Instruction Manual/English 1.00000e+20,-1.00000e+20,-,10,-1.00000e+20,- 1.00000e+20,-<NL> (-1.00000e+20: The STEP is OFF) Query Syntax FETCh:LIST? <spot no> Query Response <spot no>,<NR3:primary value>,<NR3:secondary value>,<CMP result> Example SEND> FETC:LIST? 2<NL> RET> 02,+7.11030e-12,+3.48450e-01,P<NL> (-1.00000e+20: The STEP is OFF) 13/12/2019 Version No. 002...
  • Page 122: Comparator Subsystem

    LCR-6000 Series Instruction Manual/English COMParator Subsystem The COMParator subsystem command group sets the comparator function, including its ON/OFF setting, limit mode, and limit values. Figure 11-8 :S TATe COMParator {ON,OFF} COMParator Subsystem :MODE {ABS,PER,SEQ} Command Tree :AUX {ON,OFF} :BINS {1 to 9}...
  • Page 123 LCR-6000 Series Instruction Manual/English Query Response {on,off} Example SEND> COMP:STAT?<NL> RET> on<NL> COMParator:MODE The :COMParator:MODE command sets the limit mode of the comparator function. Command Syntax COMParator:MODE {ABS,PER,SEQ} Parameter Where,{ABS,PER,SEQ} is: Absolute tolerance mode Percent tolerance mode Sequential mode Example SEND>...
  • Page 124 LCR-6000 Series Instruction Manual/English Query Syntax COMParator:BINS? Query Response <NR1> (1 to 9) Example SEND> COMP:BINS?<NL> RET> 3<NL> COMParator:TOLerance:NOMinal The COMParator:TOLerance:NOMinal command sets the nominal value for the tolerance mode of the comparator function. Command Syntax COMParator:TOLerance:NOMinal <value> Parameter Where,<value> is: NR1, NR2 or NR3 A suffix multiplier can be used with this command.
  • Page 125 LCR-6000 Series Instruction Manual/English COMParator:SLIM The COMParator:SLIM or COMParator:secondary command sets the LOW/HIGH limit values for the secondary parameter. Command Syntax COMParator:SLIM <low value>,<high value> COMParator:secondary <low value>,<high value> Parameter Where, <low value>,<high value> is: <low value> NR1,NR2 or NR3: low limit value <high value>...
  • Page 126 LCR-6000 Series Instruction Manual/English Example SEND> COMP:OPEN 2<NL> Query Syntax COMParator:OPEN? Query Response {OFF,2,5,10,20,50} Example SEND> COMP:OPEN?<NL> RET> OFF<NL> 13/12/2019 Version No. 002...
  • Page 127: List Subsystem

    LCR-6000 Series Instruction Manual/English LIST Subsystem The LIST or SWEEP Subsystem command group sets the List Sweep measurement function, including the sweep point setting and limit values for the limit function Figure 11-9 :PARAmeter LIS T {FREQ,VOLT,CURR} LIST Subsystem Command Tree :S TAT <n>,{ON,OFF}...
  • Page 128 LCR-6000 Series Instruction Manual/English ON or 1 Set this point to ON OFF or 0 Set this point to OFF Example SEND> LIST:STAT 1,ON<NL> Query Syntax LIST:STAT? <n> Parameter Where,<n> is: NR1(1 to 10): List sweep point Query Response {on,off} Example SEND>...
  • Page 129: Correction Subsystem

    LCR-6000 Series Instruction Manual/English CORRection Subsystem The CORRection subsystem command group sets the correction function, including the OPEN, SHORT and LOAD correction settings. Note The CORRection subsystem CANNOT work in [LIST MEAS] page. CORRection OPEN STATe {ON, OFF} SHORt STATe:...
  • Page 130 LCR-6000 Series Instruction Manual/English CORRection:OPEN:STATe The CORRection:OPEN:STATe command sets the OPEN correction function to ON or OFF. Command Syntax CORRection:OPEN:STATe {ON,OFF,1,0} Parameter Where, {ON,OFF,1,0} is: ON, 1 When the function is ON OFF,0 When the function is OFF Example SEND>...
  • Page 131 LCR-6000 Series Instruction Manual/English CORRection:SPOT:FREQuency The CORRection:SPOT:FREQuency command sets the frequency point for the specified frequency point correction. Command Syntax CORRection:SPOT:FREQuendy <value> Parameter Where, <value> is: value NR1,NR2 or NR3:Frequecny value. A suffix multiplier can be used with this command. But the unit “Hz”...
  • Page 132: Trigger Subsystem

    LCR-6000 Series Instruction Manual/English TRIGger Subsystem The TRIGger subsystem command group is used to enable a measurement or a sweep measurement, and to set the trigger mode. Figure 11-11 [:IMMediate] TRIGger TRIGger Subsystem Command Tree :S OURce {INT,MAN,EXT,BUS} :DELAY(DLY) <float value>,min,max...
  • Page 133 LCR-6000 Series Instruction Manual/English TRIGger:DELAY The TRIGger:DELAY command sets the trigger delay time. Command Syntax TRIGger:DELAY {<float>,min,max} TRIGger:DLY {<float>,min,max} Parameter Where, is float value:from 1ms to 60.00s min: =0ms max: =60.000s Example SEND> TRIG:DLY 1<NL>//1.000s Query Syntax TRIGger:DELAY? TRIGger:DLY? Query Response {0.000s~60.00s}...
  • Page 134: Bias Subsystem

    LCR-6000 Series Instruction Manual/English BIAS Subsystem The BIAS subsystem command group sets the DC BIAS switch to ON or OFF, and sets the DC bias voltage value. Figure 11-12 BIAS BIAS Subsystem {<-2.5V to +2.5V>, Command Tree min,max} Command Syntax BIAS {OFF,<-2.5 to +2.5V>,min,max}...
  • Page 135: File Subsystem

    LCR-6000 Series Instruction Manual/English FILE Subsystem The FILE subsystem command group executes the file operation. Figure 11-13 :S AVE FILE <File No.> FILE Subsystem Command Tree :LOAD <File No.> :DELete <File No.> FILE? The FILE? query returns the file number used by the system.
  • Page 136 LCR-6000 Series Instruction Manual/English FILE:LOAD The FILE:LOAD command recalls all user settings from the currently used file. Command Syntax FILE:LOAD Example SEND> FILE:LOAD<NL> The FILE:LOAD <n> command recalls all user settings from specified file. Command Syntax FILE:LOAD <File No.> Parameter Where, <File No.>...
  • Page 137: Error Subsystem

    LCR-6000 Series Instruction Manual/English ERRor Subsystem ERRor? The ERRor? retrieves the last error information. Query Syntax ERRor? Query Response Error string Example SEND> ERR?<NL> RET> no error.<NL> 13/12/2019 Version No. 002...
  • Page 138: System Subsystem

    LCR-6000 Series Instruction Manual/English SYSTEM Subsystem SYSTem:SHAKehand The SYSTem:SHAKehand command feeds back the sent commands. Command Syntax SYSTem:SHAKehand {on,off} Example SEND> SYST:SHAK ON<NL> Query Syntax SYSTem:SHAKehand? Query Response {on,off} Example SEND> SYST:SHAK?<NL> RET> OFF<NL> SYSTem:CODE The SYSTem:CODE command feeds back error codes for each sent command.
  • Page 139 LCR-6000 Series Instruction Manual/English auto The results will be sent back by one trig. Query Syntax SYSTem:RESult? Query Response {FETCH,AUTO} Example SEND> SYST:RES? <NL> RET> fetch<NL> 13/12/2019 Version No. 002...
  • Page 140: Common Commands

    LCR-6000 Series Instruction Manual/English Common Commands *IDN? The *IDN? query returns the instrument ID. Query Syntax IDN? Or *IDN? Query Response <model>,<firmware>,<serial no.>,<manufacturer> *TRG The *TRG command (trigger command) performs the same function as the Group Execute Trigger command. Command Syntax...
  • Page 141: Specification

    LCR-6000 Series Instruction Manual/English PECIFICATION This chapter describes the specifications and supplemental performance characteristics of the LCR-6000 Series:  Specifications  Dimensions Accuracy is defined as meeting all of the following conditions: Temperature: 23 ºC ± 5 ºC Humidity: <70% R.H.
  • Page 142: General Specification

    LCR-6000 Series Instruction Manual/English General Specification RGB color TFT-LCD, Size: 3.5” (320x240) Display: Test Function: Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls- Rs, Ls-Q, Rs-Q, Rp-Q, R-X, DCR, Z-θr, Z-θd, Z-D, Z-Q Z, D, Q, Vac, Iac, Δ, Δ%, θr, θd, R, X, G, B, Y...
  • Page 143 LCR-6000 Series Instruction Manual/English LCR-6200’s open/short trimming frequency point list 1.2k 1.5k 2.5k 100k 120k 150k 200k LCR-6100’s open/short trimming frequency point list 1.2k 1.5k 2.5k 100k LCR-6020’s open/short trimming frequency point list 1.2k 1.5k 2.5k LCR-6002’s open/short trimming frequency point list 1.2k...
  • Page 144 LCR-6000 Series Instruction Manual/English Display Range Parameter Display Range 0.00001uH ~ 9999.99H 0.00001pF ~ 9999.99mF 0.00001Ω ~ 99.9999MΩ R, X, |Z| G, B, |Y| 0.01nS ~ 999.999S 0.00001 ~ 9.99999 0.00001 ~ 99999.9 θd -179.999° ~ 179.999° θr -3.14159 ~ 3.14159 0.00001Ω...
  • Page 145 LCR-6000 Series Instruction Manual/English Temperature: 23˚C±5˚C, Relative Humidity: Specification Environment: Conditions: <70%RH Temperature: 0~50˚C, Relative Humidity: Operating Environment: <70%RH (Indoor use only, Altitude: 2000 meters) Temperature: -10~70˚C, Relative Humidity: Storage Conditions: <80%RH Power Supply: AC 100V-240V, 50Hz-60Hz Fuse: 2A Slow-Blow...
  • Page 146: Dimensions

    LCR-6000 Series Instruction Manual/English Dimensions Figure 12-1 Dimensions 264.4 291.6 308.6 311.1 13/12/2019 Version No. 002...
  • Page 147: Accuracy

    LCR-6000 Series Instruction Manual/English CCURACY This section will explain the meter’s accuracy, measurement tolerance and how to test the meter’s performance. It includes:  Accuracy  Factors that decide accuracy The meters’ accuracy is affected by the tolerances from measurement stability, temperature variation, circuit linearity and the measurement repeatability.
  • Page 148: Accuracy

    LCR-6000 Series Instruction Manual/English Accuracy L, C, R |Z| Measurement Accuracy The accuracies of L, C, R, |Z| is equal to Ae, which is defined by: = ±[A×Ar+(Ka+Kb+Kf)×100+KL]×Kc [%] Basic measurement accuracy Basic accuracy correction factor Impedance factor a Impedance factor b...
  • Page 149 LCR-6000 Series Instruction Manual/English Accuracy for D D’s accuracy is defined below:  (when Dx≤0.1 ) De = When Dx>0.1, De should be multiplied by (1+Dx ) Accuracy for Q Q’s accuracy is defined below:     Qe = (when Qx×De<1)
  • Page 150 LCR-6000 Series Instruction Manual/English Accuracy for Rs When Dx(measured D value)≤0.1 The accuracy of Rs is defined as: Rse = Xx×De [Ω]  Xx = 2πfLx= Where: Xx is the measured X value[]. Cx is the measured C value[F]. Lx is the measured L value[H].
  • Page 151: Correction Factors That Affect Measurement Accuracy

    LCR-6000 Series Instruction Manual/English Correction factors that affect measurement accuracy The following will show how to decide the basic accuracy, A: A is 0.05: When the measuring signal is 0.4Vrms≤Vs≤1.2Vrms and the measurement speed is slow or medium. A is 0.1: When the measuring signal is 0.4Vrms≤Vs≤1.2Vrms and the...
  • Page 152 LCR-6000 Series Instruction Manual/English Figure 13-1 The basic measurement accuracy A If the accuracy for the spot you are searching for falls right on the line, e.g. the horizontal thick line between values 0.25 and 0.65, then use the smaller value, 0.25, for the basic accuracy of the spot you are searching for.
  • Page 153 LCR-6000 Series Instruction Manual/English Figure 13-2 Table for basic accuracy correction factor 100m 150m 200m 500m [Vrms] Table 13-1 Impedance correction factors Measurement Measuring speed frequency         1 )( 1 )( 1 )( 1 )( fm100Hz...
  • Page 154 LCR-6000 Series Instruction Manual/English Measuring frequency [Hz] The impedance of the DUT [Ω] The amplitude of the measuring signal [mVrms] When the impedance is less than 500Ω then use K can be ignored. When the impedance is larger than 500Ω then use K can be ignored.
  • Page 155: Declaration Of Conformity

    LCR-6000 Series Instruction Manual/English Declaration of Conformity We declare that the below mentioned product Type of Product: Precision LCR Meter Model Number: LCR-6300, LCR-6200, LCR-6100, LCR-6020, LCR-6002 are herewith confirmed to comply with the requirements set out in the Council...
  • Page 156 LCR-6000 Series Instruction Manual/English Limited Warranty This meter is warranted to the original purchaser against defects in material and workmanship for 3 years from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.
  • Page 157 LCR-6000 Series Instruction Manual/English Africa RS Components SA P.O. Box 12182, Vorna Valley 1686 20 Indianapolis Street, Kyalami Business Park Kyalami, Midrand, South Africa Asia RS Components Ltd. Suite 1601, Level 16, Tower 1, Kowloon Commerce Centre, 51 Kwai Cheong Road, Kwai Chung, Hong Kong China RS Components Ltd.

This manual is also suitable for:

Lcr-6300Lcr-6200Lcr-6100Lcr-6020Lcr-6002

Table of Contents
