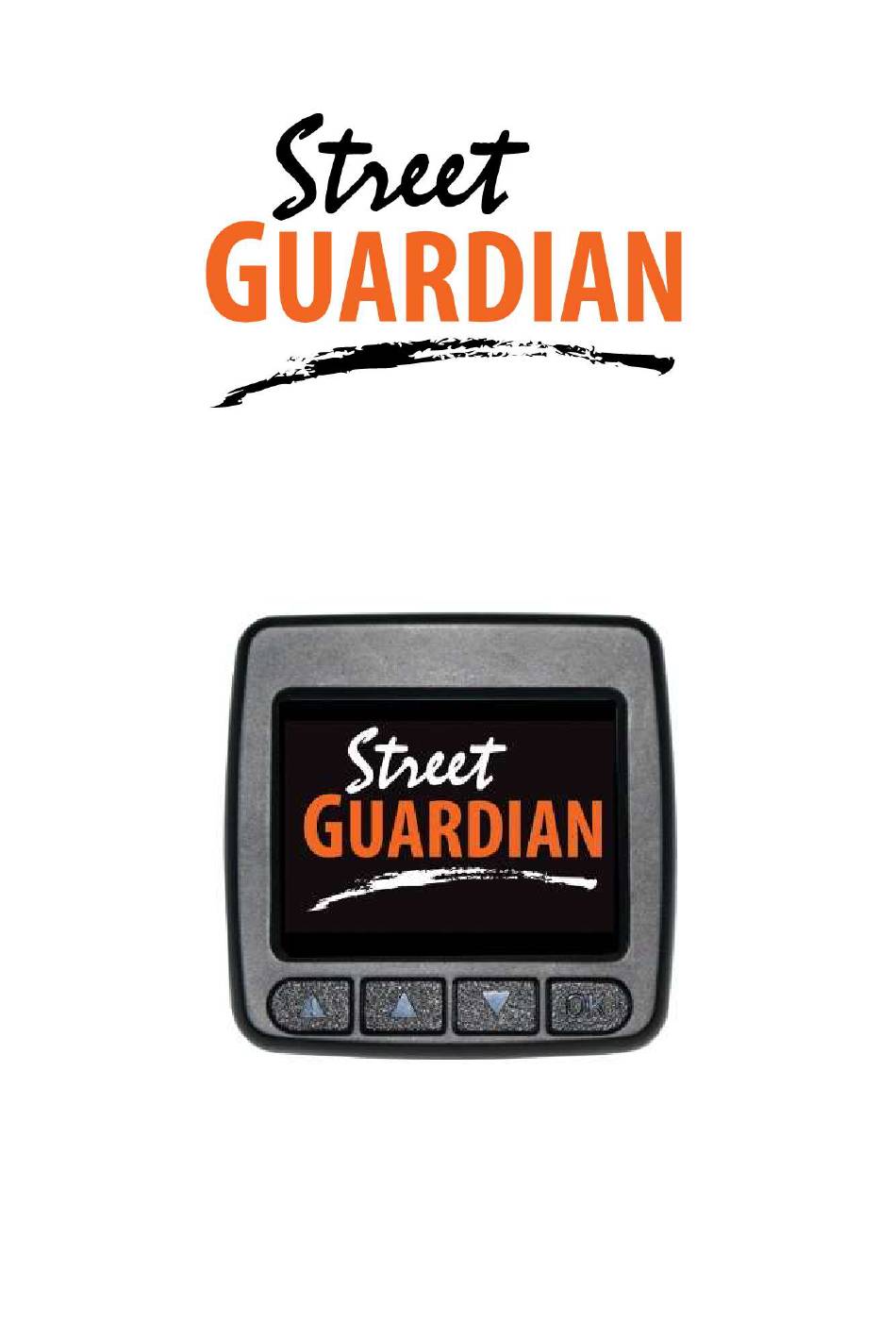

- Page 1 Digital video recorder SG9665TC User manual...
-
Page 2: Product Safety & Precautions
Product safety & precautions Thank you for purchasing the Street Guardian SG9665TC Digital Video Recorder (DVR), please read and follow this guide before installation and use. The camera is designed to operate at temperatures of between -20°c to +70°c, operating outside of these temperatures may produce unpredictable results. - Page 3 Introduction The Street Guardian SG9665TC Digital Video Recorder is engineered to require minimal user intervention, it is pre-configured with logical default settings and is supplied ready to use once installed with a minimum of adjustment needed to personalise to your needs.
-
Page 4: Installation
Installation The DVR should preferably be mounted behind, or to either side of the rear view mirror and within the sweep area of the windscreen wipers. Before mounting the DVR ensure that there is enough room to access and remove the memory card, there is sufficient room for the cables, and adequate clearance for the mirror to be adjusted. - Page 5 1. Select a suitable mounting location, if using the adhesive mount ensure the window is clean prior to application, remove the backing tape and press and hold the bracket firmly against the glass for 2 minutes, then wait 20 minutes before attaching the camera. The adhesive will achieve 50% bond after 20 minutes, 100% bond is achieved after 72 hours, if the camera is attached to the bracket too soon after installation the adhesive may not bond correctly.
- Page 6 [Note] the on glass type GPS antenna should not be mounted within 15cm of the camera for best performance, the type of GPS can be identified by the length of the cable, the on glass type GPS antenna cable is approximately 70cm long, the on dash type GPS antenna cable is approximately 140cm long.
- Page 7 Settings The DVR is pre-set with logical default settings and is ready to operate with minimal adjustment required, when powered on the internal capacitors will charge, the DVR will then power up and recording will commence. [Note] The DVR does not contain a battery and will need to be connected to a power source to configure settings, connecting to a computer USB port is not supported.
-
Page 8: Menu Options & Defaults
Menu options & defaults To access the menus any active recording must be stopped by pressing the key, pressing the key will enter the settings menu menu, pressing the key again will exit the menu. menu Following is a list of the menu items, their default settings listed in BLUE and a brief description of each setting. - Page 9 EV – +0.0 – Exposure Value – Adjustable to increase or decrease brightness in the recordings. Metering – CENTER WEIGHTED – selectable option to set the light metering exposure table. Frequency – 50 Hz – set the anti flicker mode to suit the local AC power used, LED lighting will show some flicker, this is normal.
- Page 10 Camera layout & Overview Description of Button Functions [Note] The buttons have different functions depending on the current state, recording, standby or playback.
- Page 11 1.<EMERGENCY/BACK> Button Function 1: During recording pressing the <EMERGENCY/BACK> button will wake the display and save the current recording to prevent the file being overwritten during the normal recording process. Function 2: When not recording the <EMERGENCY/BACK> button will exit from the current mode or sub menu and is used to navigate some sub menus as indicated on the display.
- Page 12 3. <MENU/DOWN> Button Function 1: Menu access During the video recording long press the <MENU/DOWN> button to enter the settings menu, if the recording is stopped short press the <MENU/DOWN> button to enter the settings menu [Note] the display must be on for this to function Function 2: Sub menu navigation Whilst in menu settings short press the <MENU/DOWN>...
- Page 13 5. <RESET> Switch If the DVR does not respond press and hold the <RESET> switch for 5 seconds to power off and restart the DVR, if the DVR has to be reset please ensure to check the memory card for errors and format the card before using again.
-
Page 14: Basic Operation Description
Basic operation description 1. Automatic Recording When you start your vehicle the DVR is automatically started and the recording commences, the REC indicator on the screen will blink and the REC LED will indicate the recording status. At power off the DVR will automatically save the current recording and will power down.. -
Page 15: Camera & Accessories
& Accessories further description Camera – SG9665TC Full HD digital video camera. Mount bracket with 3M adhesive – used for installation of camera to window and allow camera to detach. Mount bracket with suction mount– used for installation of camera... - Page 16 Low profile mount bracket with 3M adhesive – used for installation of camera to window and allow camera to detach. 12v~24v power cord – approved power supply to suit, use of non- approved power supplies may damage your camera and could void warranty.
-
Page 17: Hints And Tips
hints & tips It is essential to make sure the camera has a clear view for best results, automotive glass cleaners should be used to prevent window fogging, using a glass cleaning additive in the washer fluid is also recommended, keeping wiper blades in good working order and replacing them when they start to wear is best practice. -
Page 18: Frequently Asked Questions
Frequently asked questions Q. When the camera turns on the screen shows briefly then goes black and I can’t access the menus, what’s wrong? A. If the AV out is connected to an external monitor the regular display is disabled, also ensure you don’t have the GPS plugged into the AV out port. - Page 19 Q. I use a Mac, anything I need to know? A. Mac can leave hidden system files on the memory card that can prevent the camera from recycling correctly and cause recordings to fail, memory cards should always be reformatted in the camera before use.
-
Page 20: Firmware Update Instructions
Firmware update instructions Any updated firmware will be made available on the support section of our website https://support.streetguardian.info/downloads To update the firmware the process is as follows • Extract the zipped firmware file downloaded from our website • Delete any files from the memory card •... -
Page 21: Technical Specifications
Technical Specifications Processor Novatek 96658 Image Sensor Sony Exmor IMX323 Lens f/2.0 Metal Body, 7 Element Glass Angle of View 120° Horizontal Resolution Full HD 1920×1080 @15mbit/sec Frame Rate 30FPS Video Format H.264 MOV AV Output NTSC/PAL LCD display 2.0-inch Storage Temp -40°C to +80°C Operating Temp:... -
Page 22: Further Information
[Note] The information contained in this user manual is based on the features and functions found in release version 1.8 www.streetguardian.info © Street Guardian 2019...
