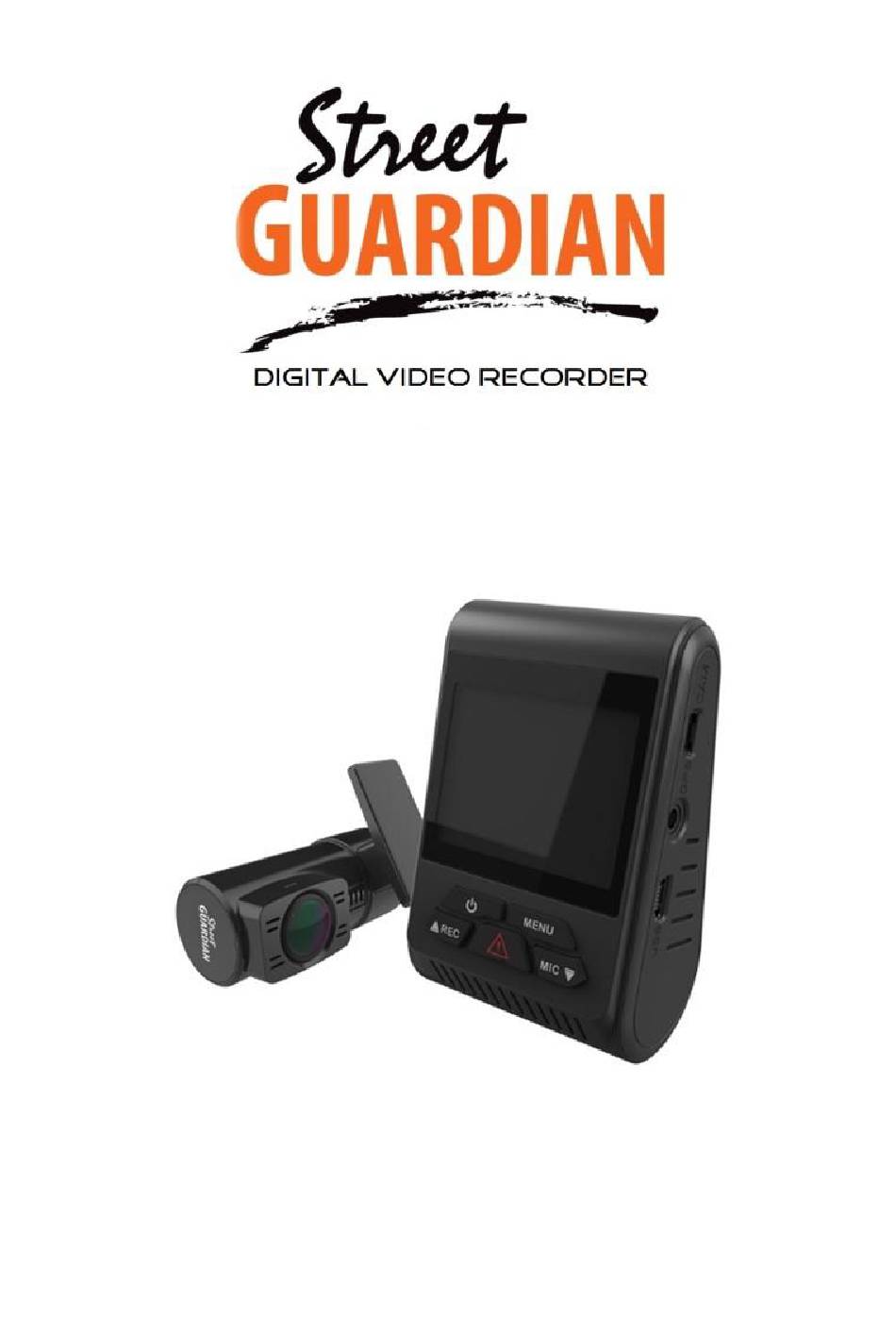

- Page 1 SG9663DCPRO+ QUICK START GUIDE...
- Page 2 Product safety & precautions Thank you for purchasing the Street Guardian SG9663DCPRO+ Dual Channel Digital Video Recorder (DVR), please read and follow this quick start guide before installation and use. [Note] A more detailed user guide for this product is available for download from the support section of our website at https://streetguardian.info/support...
- Page 3 Introduction The Street Guardian SG9663DCPRO+ Digital Video Recorder is pre-configured with logical default settings and is supplied ready to use once installed with a minimum of adjustment needed to personalise to your needs.
- Page 4 Camera layout & Overview Installation The DVR front camera unit should preferably be mounted behind, or to either side of the rear view mirror and within the sweep area of the windscreen wipers. Before mounting the DVR ensure that there is enough room for the cables and clean the glass prior to installation to ensure a good bond for the adhesive to the glass, it is always advisable to route any cables across the passenger side of the vehicle to avoid any chance of cables...
- Page 5 [Note] The rear camera is cabled to the front camera unit, ensure cable alignment and orientation is correct before attempting to connect any cables, if the vehicles is fitted with SRS airbags care must be taken not to inhibit the operation of these systems, professional installation is recommended 1.
- Page 6 3. Insert the charging interface of the in vehicle charger into the USB interface of the DVR. 4. Connect the GPS and position the cables accordingly, the GPS should be mounted with the adhesive side to the windscreen so that the antenna is oriented correctly, for best performance do not locate the GPS too close to the main camera unit, maintain at least 15cm separation between the camera and GPS antenna.
- Page 7 time and date settings are automatically updated via GPS (if fitted) and will sync periodically to maintain accuracy, the time zone will need to be configured to your specific region to ensure correct operation. [Note] The DVR does not contain a battery and will need to be connected to a power source to configure settings.
- Page 8 Street Guardian Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in...
- Page 9 damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Street Guardian Conformity Declaration...
- Page 10 Storage Temp -40C to 85C Operating Temp: -20C to 70C Optimal operating Temp: -10C to 60C Operating Humidity 15% to 65% (RH) Memory Card* 32 GB to 512 GB [Note] *Memory cards must be formatted in the camera to ensure compatibility using the built-in formatting menu option, not all brands supported, consult your dealer for recommended memory cards.
- Page 11 Information about the latest specification, amendments, the availability of replacement parts and accessories, warranty information, detail of other sales region product specifications and their respective user manuals are available on our website. FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
- Page 12 *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set f orth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. www.streetguardian.info © Street Guardian 2022...
