Street Guardian SG9663TD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital video recorder
SG9663TD
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG9663TD and is the answer not in the manual?

Questions and answers

Related Manuals for Street Guardian SG9663TD

Summary of Contents for Street Guardian SG9663TD

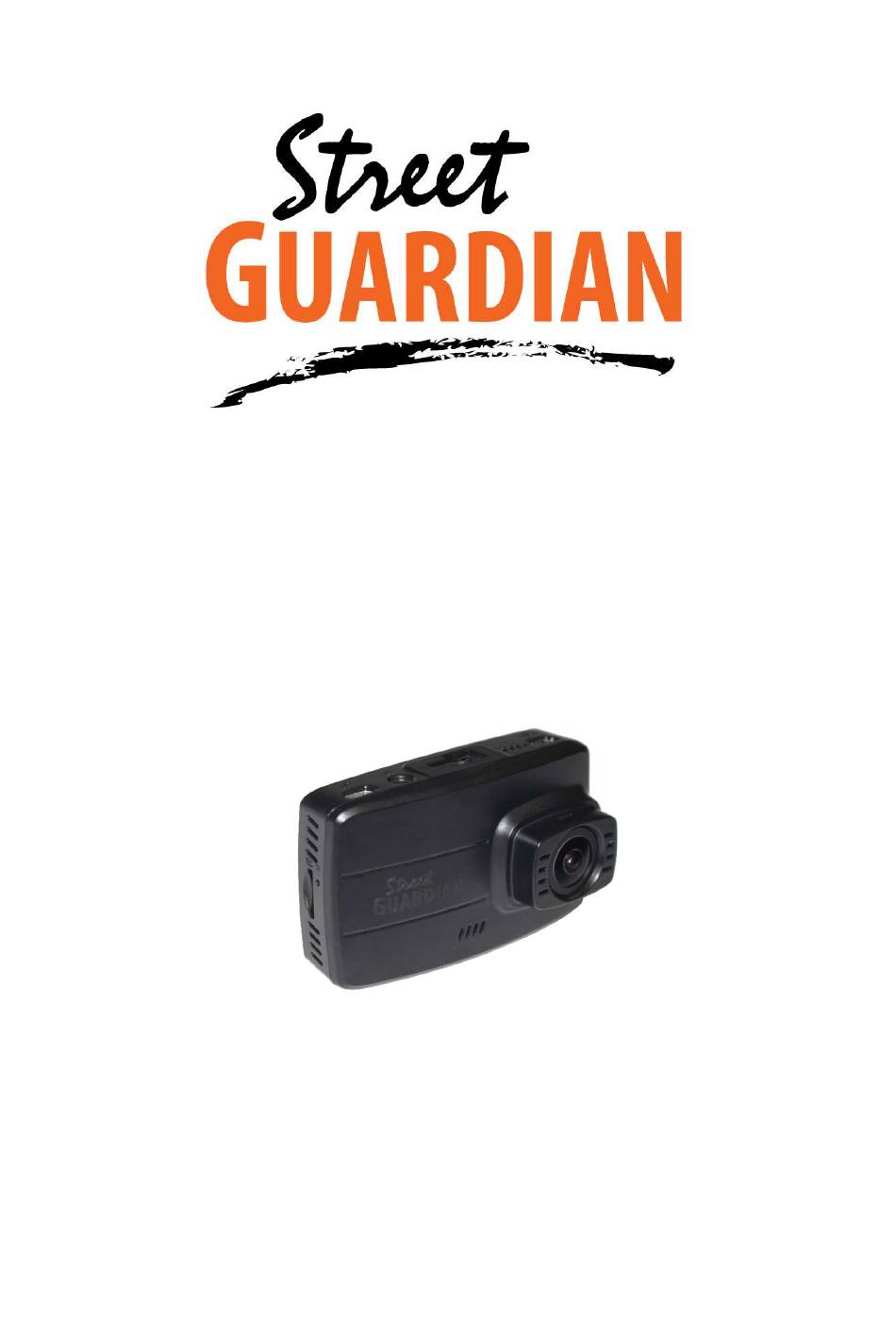

  • Page 1 Digital video recorder SG9663TD User manual...

  • Page 2: Product Safety & Precautions

    Product safety & precautions Thank you for purchasing the Street Guardian SG9663TD Digital Video Recorder (DVR), please read and follow this guide before installation and use. The camera is designed to operate at temperatures of between -20°c to +70°c, operating outside of these temperatures may produce unpredictable results.
  • Page 3 Introduction The Street Guardian SG9663TD Digital Video Recorder is engineered to require minimal user intervention, it is pre-configured with logical default settings and is supplied ready to use once installed with a minimum of adjustment needed to personalise to your needs.
  • Page 4 Camera layout & Overview...

  • Page 5: Installation

    Installation The DVR main camera unit should preferably be mounted behind, or to either side of the rear view mirror and within the sweep area of the windscreen wipers. Before mounting the DVR ensure that there is enough room to access and remove the memory card, there is sufficient room for the cables, and adequate clearance for the mirror to be adjusted.
  • Page 6 1. Select a suitable mounting location, if using the adhesive mount ensure the window is clean prior to application, remove the backing tape and press and hold the bracket firmly against the glass for 2 minutes, then wait 20 minutes before attaching the camera. The adhesive will achieve 50% bond after 20 minutes, 100% bond is achieved after 72 hours, if the camera is attached to the bracket too soon after installation the adhesive may not bond correctly.
  • Page 7 [Note] the on glass type GPS antenna should not be mounted within 15cm of the camera for best performance, the type of GPS can be identified by the length of the cable, the on glass type GPS antenna cable is approximately 70cm long, the on dash type GPS antenna cable is approximately 140cm long.
  • Page 8 Settings The DVR is pre-set with logical default settings and is ready to operate with minimal adjustment required, when powered on the internal capacitors will charge, the DVR will then power up and recording will commence. [Note] The DVR does not contain a battery and will need to be connected to a power source to configure settings, connecting to a computer USB port is not supported.

  • Page 9: Menu Options & Defaults

    Menu options & defaults To access the menus short press the key, the menu down/SET recording will stop and will enter the settings menu, pressing the key will exit the menu. return Following is a list of the menu items, their default settings listed in BLUE and a brief description of each setting.
  • Page 10 Exposure – +0.0 – Exposure Value – Adjustable to increase or decrease brightness of the recordings for the front or rear cameras. WDR – – Wide Dynamic Range setting. AE Metering – Center Weighted – Settings to select different Auto Exposure metering table.
  • Page 11 Display Logo – – Display the logo in the recorded video. Record Audio – – Turn the Microphone on or off. Screen Saver – 1 MIN – Setting to automatically turn off the LCD display. Auto Restart – 1 MIN –...
  • Page 12 Format – CANCEL – Memory card format function, cards larger than 32 GB use exFAT which is not a supported file system, if using a card formatted exFAT the camera will automatically enter the format menu to allow the card to be formatted correctly before use. Default setting –...

  • Page 13: Description Of Key Functions

    Description of Key Functions [Note] The keys have different functions depending on the current state, recording, standby, menu navigation, or playback mode, as a reminder the on screen display has a short description above each key to indicate the current functionality. 1.<EMERGENCY/RETURN>...
  • Page 14 Whilst in recording mode long press the < MENU UP / PLAY > key to enable or disable the microphone. Function 3: Menu navigation Whilst in playback mode or the settings menus the < MENU UP / PLAY > key is used to navigate through playback and menu options. 3.
  • Page 15 PANEL / OK > key to enable or disable the Wi-Fi function for use with the Street Guardian app [Note] the SSID and password will display on screen and the camera will continue to double beep until a connection is established with your device, exiting the app will not disable Wi-Fi, press and hold the <...

  • Page 16: Basic Operation Description

    Basic operation description 1. Automatic recording When you start your vehicle the DVR is automatically started and the recording commences, the REC indicator on the screen will flash and the LED on the side will blink to indicate the recording status. [Note] If the DVR detects an error with the memory card or detects a communication error when using the (optional) rear camera the DVR will emit a series of warning beeps to notify of an error, check the...
  • Page 17 3. Automatic collision sensing The DVR is fitted with a built in G-sensor. In case of severe vehicle collision the DVR can lock the recording at the time of the accident, and display a yellow emergency icon on the display screen. The collision G-sensor has adjustable sensitivity, the default setting is set to <LOW SENSITIVITY>.
  • Page 18 camera & Accessories...
  • Page 19 Camera – SG9663TD Full HD front camera Mount bracket with 3M adhesive – used for installation of camera to window and allow camera to detach. Mount bracket with suction mount– used for installation of camera to window and allow camera to detach.
  • Page 20 Spare 3M tape – Die cut replacement 3M tape to suit mount brackets and GPS. Microfiber carry bag – Will help protect camera from getting scratched when transporting outside of the vehicle. String for bracket removal – Used to cut through 3M tape if needing to remove the bracket.
  • Page 21 cpl filter (optional) The optional CPL filter can help to reduce dashboard reflections which can otherwise inhibit details in some scenes. Below is an example of the reduction in glare and reflection when using a CPL filter. [Note] The CPL filter is installed with the larger opening facing up.
  • Page 22 SGTDHW 3 wire power supply (optional) The camera supports parking mode using the optional SGTDHW hardwire power supply, the low voltage cutout feature uses a four position switch for setting the cut off voltage threshold of your vehicle battery. Once the threshold has been set, power will be automatically terminated if power consumption drains the battery beyond this point.
  • Page 23 Before connecting the power supply consult the vehicle user manual to find the location of the fuse panel and select appropriate circuits in your fuse panel for the Battery + (yellow wire) power, and ACC switched (red wire) power that are NOT part of the vehicle safety systems such as airbags, ECU etc, the black ground wire should be connected to a factory grounding point.

  • Page 24: Hints And Tips

    hints & tips It is essential to make sure the camera has a clear view for best results, automotive glass cleaners should be used to prevent window fogging, using a glass cleaning additive in the washer fluid is also recommended, keeping wiper blades in good working order and replacing them when they start to wear is best practice.
  • Page 25 PC and Mac software for playback and map interpretation of the recorded files can be download from the downloads section of our website https://support.streetguardian.info/downloads Download the Street Guardian Dashcam Viewer Mobile App. Available on the Apple App Store and Google Play store. https://bit.ly/SGAPPiOS https://bit.ly/SGAPPandroid...

  • Page 26: Frequently Asked Questions

    Frequently asked questions Q. Can I connect the camera to my computer to access the recordings? A. No, computer access is not supported, the power requirements of the camera exceed the output level of most computers, always use a card reader to access files on the memory card. Q.
  • Page 27 fail, memory cards should always be reformatted in the DVR before use. Q. Can I just format the memory card in my computer? A. It is advisable to only format memory cards in the DVR to ensure the file system parameters are correct, if the memory card becomes corrupt you may need to format the card in your computer to return the card to a default state, then format the card in the DVR before use.

  • Page 28: Firmware Update Instructions

    • Extract the zipped firmware file downloaded from our website • Delete any files from the memory card • Copy the firmware SG9663TD.bin file to the empty memory card (Linux/Chromebook users rename file to SG9663TD.BIN) • Insert the memory card to DVR •...

  • Page 29: Technical Specifications

    Technical Specifications Processor Novatek 96663 Image Sensor front Sony STARVIS IMX327 Image Sensor rear (optional) Sony STARVIS IMX291 Lens f/1.6 Metal Body, 7 Element Glass Angle of View 106° Horizontal, 127° Diagonal Frame Rate (single channel) 30fps/60fps Resolution (30fps) 1920×1080 @15/18/21mbit/sec Resolution (60fps) 1920×1080 @30/36/42mbit/sec Frame Rate (dual channel)

  • Page 30: Further Information

    [Note] Specification and features are subject to improvement, the information contained in this user manual is based on the features and functions found in firmware release version 1.08 ©Street Guardian 2021...
