  • Page 1 Digital video recorder SG9663DCPRO User manual...

  • Page 2: Product Safety & Precautions

    Product safety & precautions Thank you for purchasing the Street Guardian SG9663DCPRO Dual Channel Digital Video Recorder (DVR), please read and follow this guide before installation and use. The camera is designed to operate at temperatures of between -20°c to +70°c, operating outside of these temperatures may produce unpredictable results.
  • Page 3 Introduction The Street Guardian SG9663DCPRO Digital Video Recorder is engineered to require minimal user intervention, it is pre-configured with logical default settings and is supplied ready to use once installed with a minimum of adjustment needed to personalise to your needs.

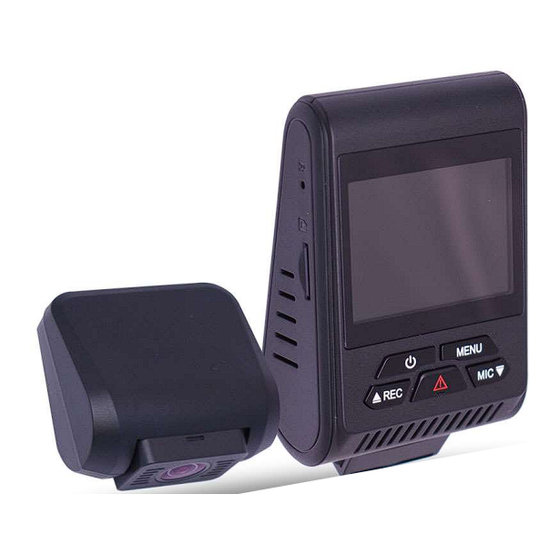

  • Page 4 Camera layout & Overview...

  • Page 5: Installation

    Installation The DVR main camera unit should preferably be mounted behind, or to either side of the rear view mirror and within the sweep area of the windscreen wipers. Before mounting the DVR ensure that there is enough room to access and remove the memory card, there is sufficient room for the cables, and adequate clearance for the mirror to be adjusted.
  • Page 6 1. Once a suitable mounting location is decided secure the DVR mount bracket to the windshield using the provided 3M adhesive tape, ensuring the window is clean prior to application, remove the backing tape and press and hold the bracket firmly against the glass for 2 minutes, then wait 20 minutes before attaching the camera.
  • Page 7 2. Fix the power, rear camera, and GPS cables properly and route cables across the passenger side where possible to prevent the line of sight from being affected. [Note] Prior to installing the rear camera cable determine which of the supplied cables is the most suitable for your installation type, with all cable routing it is important to take note of any pillar or side curtain airbags, cables must be installed so as not to interfere with the operation of these safety systems, if in doubt please seek...
  • Page 8 [Note] the on glass type GPS antenna should not be mounted within 15cm of the camera for best performance, the type of GPS can be identified by the length of the cable, the on glass type GPS antenna cable is approximately 70cm long, the on dash type GPS antenna cable is approximately 140cm long.
  • Page 9 Settings The DVR is pre-set with logical default settings and is ready to operate with minimal adjustment required, when powered on the internal capacitors will charge, the DVR will then power up and recording will commence. [Note] The DVR does not contain a battery and will need to be connected to a power source to configure settings, connecting to a computer USB port is not supported.

  • Page 10: Menu Options & Defaults

    Menu options & defaults To access the menus any active recording must be stopped by pressing the key, pressing the key will enter the settings menu menu, pressing the key again will exit the menu. menu Following is a list of the menu items, their default settings listed in BLUE and a brief description of each setting.
  • Page 11 G-Sensor – Low Sensitivity – Adjustable to increase or decrease the force required to trigger automatic protection of files. Parking G-Sensor – Middle Sensitivity – Adjustable to increase or decrease the force required to trigger automatic protection of files while in parking mode. Parking Monitor –...
  • Page 12 Boot Delay – 5 Secs – selectable boot delay options, (applies to 2 wire power supply use only) DATE/TIME – DD/MM/YYYY enter the date and time and choose the display format, press the key to advance to the next option. menu Time Zone –...

  • Page 13: Description Of Key Functions

    Description of Key Functions [Note] The keys have different functions depending on the current state, recording, standby, menu navigation, or playback mode, the functions also vary if using the optional SGDCHW 3 Wire parking mode cable. 1.<POWER> Key Function 1: Power On/Off When powered off, press and hold the <POWER>...
  • Page 14 [Note] If no connection is made the WiFi will timeout and recording will resume. 2. <MENU> Key Function 1: Menu key Whilst in standby mode short press the <MENU> key to enter the settings menu, or while recording long press the <MENU> key to enter the settings menu.
  • Page 15 [Note] During recording a yellow triangle at the top of the LCD display will indicate the lock function has been activated, in playback mode, a key-shaped icon in the miniature icon list indicates that the current recording is locked. Function 2: Settings confirmation During the menu setting process, press the <OK/LOCK>...
  • Page 16 5. <MIC> Key Function 1: Page down In the menu setting and playback modes, you can press the <MIC> key to page down. Function 2: Navigate files in playback In playback state, press the <MIC> key to navigate forward through the recorded files, after selecting a file for playback press the press the <MIC>...

  • Page 17: Basic Operation Description

    Basic operation description 1. Automatic Recording When you start your vehicle the DVR is automatically started and the recording commences, the REC indicator on the screen will blink and the REC light will flash to indicate recording status. [Note] If the camera detects an error with the memory card or fails to detect the rear camera the front camera will emit a series of warning beeps to notify of an error, check the camera display for any relevant notification messages.
  • Page 18 3. Collision Sensing The DVR is fitted with a built in G-sensor. In case of severe vehicle collision the DVR locks the recording at the time of the accident, and displays a yellow triangle icon on the display screen. The collision G-sensor has adjustable sensitivity, the default setting is set to <LOW SENSITIVITY>.

  • Page 19: Camera & Accessories

    camera & Accessories...
  • Page 20 Cord clips – May be useful in some installations to secure wiring. GPS antenna – Window mount type with 70cm cable. Camera – SG9663DCPRO Full HD front camera Camera – SG9663DCPRO Full HD rear camera. 90° GPS adapter cable – Adapter cable to route GPS cable correctly.
  • Page 21 Micro SD memory card and SD adapter – May be included in some sales regions, only high quality memory cards are recommended, Class 10 U1 minimum, please consult your dealer for information about supported makes and models. Spare 3M tape for mount – Die cut replacement 3M tape to suit front camera mount bracket.
  • Page 22 cpl filter The included CPL filter will help to reduce dashboard reflections which can otherwise inhibit details in some scenes. Below is an example of the reduction in glare and reflection when using a CPL filter. [Note] The CPL filter is installed with the larger opening facing up.

  • Page 23: Hints And Tips

    hints & tips It is essential to make sure the camera has a clear view for best results, automotive glass cleaners should be used to prevent window fogging, using a glass cleaning additive in the washer fluid is also recommended, keeping wiper blades in good working order and replacing them when they start to wear is best practice.
  • Page 24 Playback and file handling Street Guardian Dashcam Viewer supports playback and map interpretation of the recorded files. Street Guardian Dashcam Viewer for Windows 10 64 bit http://bit.ly/SGviewerWIN64 Street Guardian Dashcam Viewer for Mac http://bit.ly/SGviewerMAC Download the Street Guardian Dashcam Viewer Mobile App.

  • Page 25: Frequently Asked Questions

    Frequently asked questions Q. Can I connect the camera to my computer to access the recordings? A. Computer access is not supported, the power requirements of the camera exceed the output level of most computers, always use a card reader to access files on the memory card. Q.
  • Page 26 fail, memory cards should always be reformatted in the camera before use. Q. Can I just format the memory card in my computer? A. It is advisable to only format memory cards in the camera to ensure the file system parameters are correct, if the memory card becomes corrupt you may need to format the card in your computer to return the card to a default state, then format the card in the camera before use.

  • Page 27: Firmware Update Instructions

    Firmware update instructions Any updated firmware will be made available on the support section of our website https://streetguardian.info/support To update the firmware the process is as follows • Extract the zipped firmware file downloaded from our website • Delete any files from the memory card •...

  • Page 28: Technical Specifications

    Technical Specifications Processor Novatek 96663 Image Sensor front SONY Exmor R IMX291 Starvis Image Sensor rear SONY Exmor R IMX291 Starvis Lens f/2.0 Metal Body, 7 Element Glass Angle of View 112° Horizontal, 135° Diagonal Resolution 2 x 1920×1080 @15/18/21 mbit/sec Resolution 1 x 1920×1080 @30/36/42 mbit/sec Frame Rate...

  • Page 29: Further Information

    [Note] The information contained in this user manual is based on the features and functions found in release version 1.17 www.streetguardian.info © Street Guardian 2020...
